INSTALLATION MANUAL

ADAPTER PLATE

HY-F03B

、

HY-F03W

HY-F05B

、

HY-F05W

HY-F08B

、

HY-F08W

Thank you for purchasing TOA’s Adapter Plate.

Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

1. SAFETY PRECAUTIONS

• Before installation or use, be sure to carefully read

all the instructions in this section for correct and

safe operation.

• Be sure to follow all the precautionary instructions in

this section, which contain important warnings and/

or cautions regarding safety.

• After reading, keep this manual handy for future

reference.

Indicates a potentially hazardous situation which,

if mishandled, could result in death or serious

personal injury.

WARNING

• Since the unit is designed for indoor use, do not install

it outdoors. If installed outdoors, the aging of parts

causes the unit to fall o󰀨, resulting in personal injury.

• Do not use other methods than specied to mount

the bracket. Extreme force is applied to the speaker

and the speaker could fall o󰀨, possibly resulting in

personal injuries.

• Tighten each nut and bolt securely. Ensure that

the bracket has no loose joints after installation

to prevent accidents that could result in personal

injury.

• Use the specied speakers in combination. Doing

otherwise may cause the speaker to fall o󰀨, resulting

in personal injury.

Indicates a potentially hazardous situation which,

if mishandled, could result in moderate or minor

personal injury, and/or property damage.

CAUTION

• Avoid touching the unit’s sharp metal edge to

prevent injury.

2. GENERAL DESCRIPTION

HY-F series is an adaptor bracket designed for attaching

the optional F-03, F-05, and F-08 series Speaker systems

to the commercial brackets*.

The table below shows the combinations of brackets and

speakers.

Brackets Speakers

HY-F03B, HY-F03W F-03BT, F-03WT

HY-F05B, HY-F05W F-05BT, F-05WT

HY-F08B, HY-F08W F-08BT, F-08WT

* Recommended commercial brackets are as follows.

• Speaker ceiling mount: 24496 (K&M)

• Adapter: 19780, 19610 (K&M)

• Adapter panel: 24359 (K&M)

3. INSTALLATION EXAMPLES

F-05BT

(option)

F-05BT

(option)

HY-F05B

ST-34B (option)

Speaker ceiling mount

(K&M)

Adapter (K&M)

133-01-00352-01

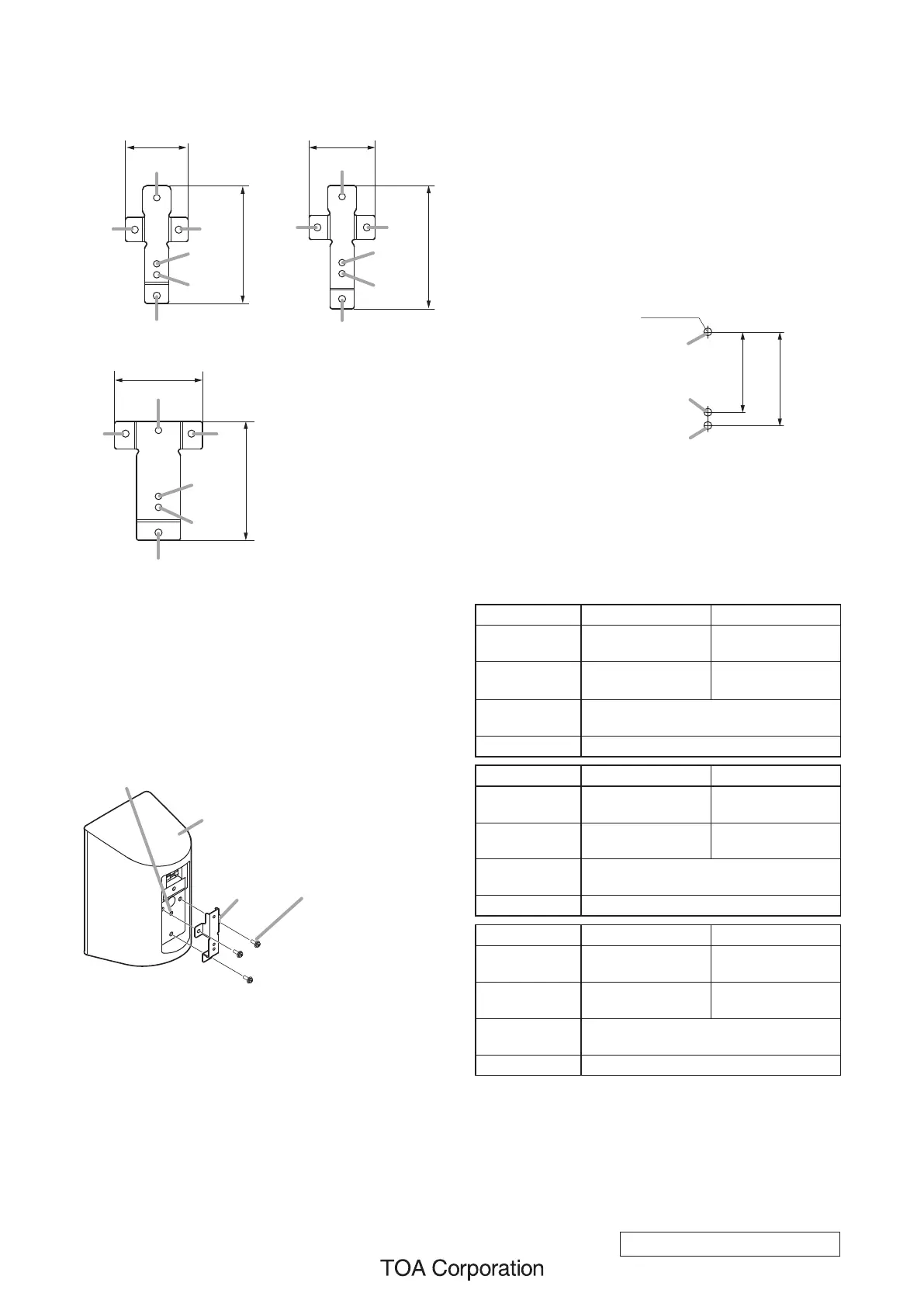

4. DIMENSIONAL DIAGRAM

[HY-F03B/F03W] [HY-F05B/F05W]

[HY-F08B/F08W]

Unit: mm

107 or 4.21"

108 or 4.25"

112 or 4.41"

57 or 2.24"

80 or 3.15"

60 or 2.36"

(1)

(1) (1)

(1)

(1) (1)

(1)

(2)

(3)

(4) (4)

(4)

5. INSTALLATION

The attaching method is the same though each bracket’s

shape and size are di󰀨erent.

Step 1. Attach this bracket to the speaker’s rear surface.

Use 1 bracket’s supplied screw and 2 speaker’s

supplied screws.

HY-F05B

* Supplied with this bracket: 1 pc

Supplied with speaker: 2 pcs

F-05BT

Speaker system (option)

The figure shows the method to attach HY-F05B to F-05BT.

Attach a safety wire to this hole.

Machine screw

M5 x 20

(with plain washer and

spring washer)*

Notes

● Do not use the bracket supplied with the speaker.

● When installing the speaker to the place other than a

speaker stand, attach the safety wire at the position as

shown above.

● The safety wire is not included. Separately prepare it.

Step 2. Attach the speaker to the commercial bracket

using this bracket.

● Use 2 supplied M6 x 12 screws (w/plain and

spring washers) for installation.

● Use 2 out of 3 mounting holes (A - C) in this

bracket when attaching to a commercial bracket.

· Be sure to use hole A.

· Use hole B or C, either of which aligns with the

mounting hole in the commercial bracket.

● For usage of the commercial bracket, see the

installation manual supplied with it.

[Mounting holes for the commercial bracket

(common to all models)]

60 or 2.36"

70 or 2.76"

3-M6 x 1.0

Unit: mm

Bracket mounting

hole A

Bracket mounting

hole B

Bracket mounting

hole C

Step 3. Connect the speaker cables to the speaker’s input

terminals.

For connection, see the installation manual

supplied with each speaker.

6. SPECIFICATIONS

Model No. HY-F03B HY-F03W

Applicable

Speaker

F-03BT F-03WT

Finish Steel plate, black*

paint

Steel plate, white*

paint

Dimensions 57 (w) x 107 (h) x 18 (d) mm

(2.24" x 4.21" x 0.71")

Weight 90 g (0.2 lb)

Model No. HY-F05B HY-F05W

Applicable

Speaker

F-05BT F-05WT

Finish Steel plate, black*

paint

Steel plate, white*

paint

Dimensions 60 (w) x 112 (h) x 18 (d) mm

(2.36" x 4.41" x 0.71")

Weight 90 g (0.2 lb)

Model No. HY-F08B HY-F08W

Applicable

Speaker

F-08BT F-08WT

Finish Steel plate, black*

paint

Steel plate, white*

paint

Dimensions 80 (w) x 108 (h) x 18 (d) mm

(3.15" x 4.25" x 0.71")

Weight 150 g (0.33 lb)

RAL 9011 equivalent *

RAL 9016 equivalent

Note: The design and specications are subject to change

without notice for improvement.

• Accessories

Machine screw (M5 x 20)*

................................... 1

Machine screw (M6 x 12)*

................................... 2

With plain washer and spring washer

(1) Speaker mounting hole

(2) Bracket mounting hole A

(3) Bracket mounting hole B

(4) Bracket mounting hole C

https://www.toa-global.com/en
