Side 1/4

TOA's HY-PF1B, HY-PF1W, and HY-PF1WP are used exclusively to suspend the HX-5 speaker system from the high

ceiling.

Both the HY-PF1B and HY-PF1W are designed for indoor use, while the HY-PF1WP is designed for outdoor use.

The FB-120 series Subwoofer can be suspended using the HY-PF1B or HY-PF1W and the frame's supplied mounting

brackets.

HY-PF1B

HY-PF1W

HY-PF1WP

SPEAKER RIGGING FRAMES

INSTALLATION MANUAL

1. SAFETY PRECAUTIONS

•

Before installation or use, be sure to carefully read all the

instructions in this section for correct and safe operation.

•Be sure to follow all the precautionary instructions in this

section, which contain important warnings and/or

cautions regarding safety.

•After reading, keep this manual handy for future

reference.

Indicates a potentially hazardous situation which, if

mishandled, could result in death or serious personal

injury.

WARNING

•Refer all installation work to the dealer from whom the

speaker was purchased. Installation for flying requires

extensive technical knowledge and experience. The

speaker may fall off if incorrectly installed, resulting in

possible personal injury.

•Flying Precautions

Be sure to follow the instructions below. Otherwise, the

suspension wires or belts may be off or snap and the

speaker may fall off, causing personal injury.

· Use nuts and bolts that are appropriate for the ceiling's

structure and composition.

· Check to confirm that the suspension wires and belts

are strong enough to withstand the load.

· The connectors of the suspension wires and belts must

be securely linked with those of the load.

· All parts and components (such as enclosures, metal

pieces, and screws) must be free from any

deformation, crack, and corrosion.

· Be sure to use screws supplied with the optional flying

hardware when installing the speaker using such

hardware.

•Install the unit only in a location that can structurally

support the weight of the unit and the speaker. Doing

otherwise may result in the speaker falling down and

causing personal injury and/or property damage.

• (HY-PF1B and HY-PF1W only)

Since the unit is designed for indoor use, do not install it

outdoors. If installed outdoors, the aging of parts causes

the speaker to fall off, resulting in personal injury.

• Owing to the speaker's size and weight, be sure that at

least two persons are available to install the unit. Failure

to do so could result in personal injury.

• Do not use other methods than specified to mount the

unit. Extreme force is applied to the unit and the speaker

could fall off, possibly resulting in personal injuries.

• Tighten each nut and bolt securely. Ensure that the unit

has no loose joints after installation to prevent accidents

that could result in personal injury.

• Use the specified speaker in combination. Doing

otherwise may cause the speaker to fall off, resulting in

personal injury.

• Do not mount the unit in locations exposed to constant

vibration. The unit can be damaged by excessive

vibration, potentially causing the speaker to fall, which

could result in personal injury.

• Avoid installing the speaker in locations close to the

seashore or in indoor swimming facilities that are not well

ventilated. In such locations the bracket may be

vulnerable to corrosion, eventually allowing the speaker

to fall resulting in personal injury.

Indicates a potentially hazardous situation which, if

mishandled, could result in moderate or minor personal injury,

and/or property damage.

CAUTION

•Avoid touching the unit's sharp metal edge to prevent

injury.

•Do not stand or sit on, nor hang down from the unit as

this may cause it to fall down or drop, resulting in

personal injury and/or property damage.

•Have the unit checked periodically by the shop from

where it was purchased. Failure to do so may result in

corrosion or damage to the unit that could cause the unit

to fall, possibly causing personal injury.

2. PRECAUTIONS WHEN INSTALLING

THE HY-PF1WP

Only the HY-PF1WP can be installed outdoors.

•Only the HX-5B-WP and HX-5W-WP speaker systems

can be installed outdoors.

•Install the speakers so that all speaker modules face

downward from the horizontal axis.

Doing otherwise could adversely affect the speaker's

weather resistance and possibly lead to malfunction or

failure.

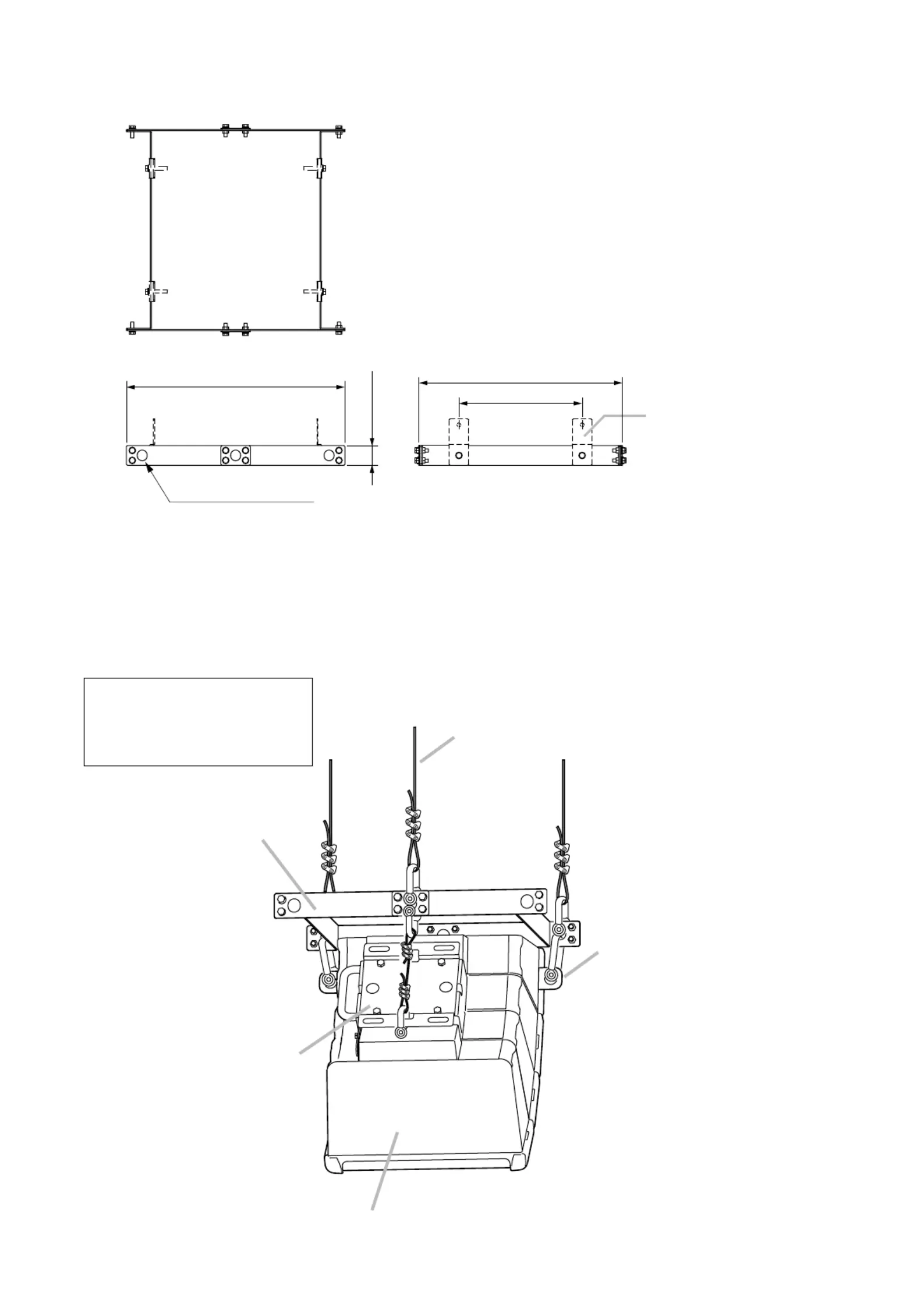

3. DIMENSIONAL DIAGRAM

Subwoofer fixing bracket

(HY-PF1B and HY-PF1W

only, accessory)

550 (21

/ )32

512 (20

/ )32

310 (12

/ )64

50 (1 31/ )32

Suspension hole

6-25 x 27 (6-

/ x 1 64

/ )16

Unit: mm (inches)

Note

The holes to use for suspension

differ depending on the way of

speaker suspension.

4. SUSPENSION

4.1. When Suspending Only HX-5 Series Speaker Systems

When suspending only HX-5 series with the HY-PF1 series, use chains, wires, or carabiners.

[Example of HX-5 series vertical suspension]

Rear plate

HY-PF1 series

(suspended at 3 points)

HX-5 series (suspended at 3 points)

Use 3 wires for suspension from the ceiling.

Suspend the HX-5 series at

the same 3 suspension holes

as in step 1.

Note

If the HX-5 series is suspended

horizontally, change the

orientation of the rear plate.

More particularly, refer to the

instruction manual supplied

with the HX-5 series.

A stack of up to 4 HX-5 series

can be suspended vertically.

Only 1 HX-5 series can be

suspended horizontally.
