Please follow the instructions in this manual to obtain the optimum results from this unit.

We also recommend that you keep this manual handy for future reference.

HY-RR1REINFORCEMENT RING

INSTRUCTION MANUAL

Indicates a potentially hazardous situation which, if mishandled, could

result in death or serious personal injury.

WARNING

Indicates a potentially hazardous situation which, if mishandled, could

result in moderate or minor personal injury, and/or property damage.

CAUTION

• Be sure to read the instructions in this section carefully before use.

• Make sure to observe the instructions in this manual as the conventions of safety symbols and messages

regarded as very important precautions are included.

• We also recommend you keep this instruction manual handy for future reference.

• Leave the installation to your TOA dealer because the installation requires expert knowledge. Improper

installation may cause the speaker to fall, resulting in personal injury and/or property damage.

• Install the mounting hardware in a location that can structurally support the weight of the mounting hardware

and the speaker. Doing otherwise may result in the speaker falling down and causing personal injury and/or

property damage.

• Do not use other methods than specified to mount the unit. Incorrect mounting may cause the speaker to fall

off, possibly resulting in personal injuries.

• Tighten each screw securely. Ensure that the unit has no loose joints after installation to prevent accidents

that could result in personal injury.

• Use the specified speaker in combination. Doing otherwise may cause the speaker to fall off, resulting in

personal injury.

• Avoid touching the unit's sharp metal edge to prevent injury.

2. GENERAL DESCRIPTION

The HY-RR1 Reinforcement Ring is specially designed for use with the F-1522SC Ceiling Speaker System.

It permits the F-1522SC to be installed even in a weak ceiling.

1. SAFETY PRECAUTIONS

Printed in Indonesia

533-06-105-70

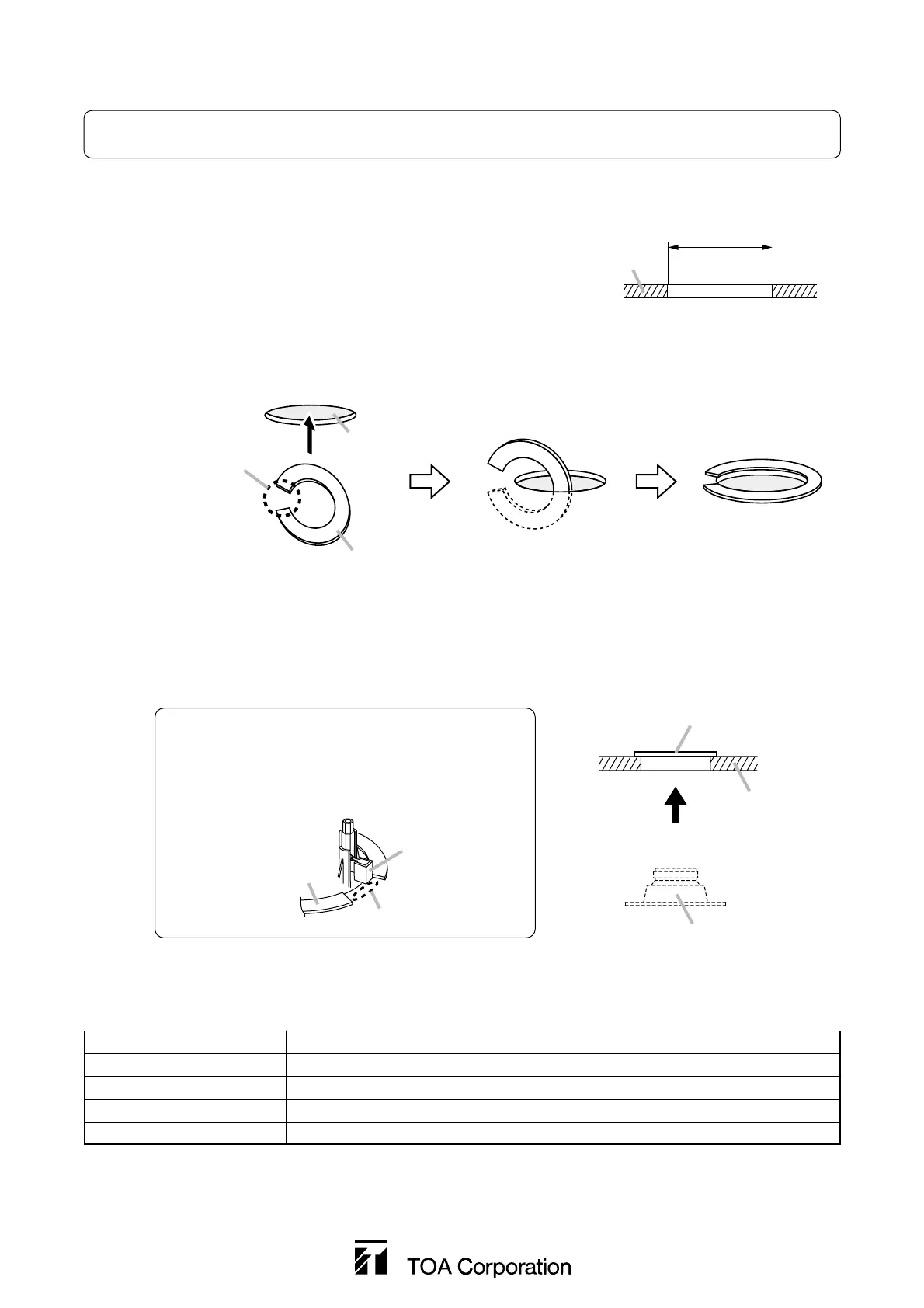

3. INSTALLATION

Refer to the F-1522SC speaker's instruction manual for information.

Step 1. Cut a ø135 mm (5

/16") hole in the ceiling.

To position and trace the hole, use the paper pattern

included with the F-1522SC.

4. SPECIFICATIONS

Note: The design and specifications are subject to change without notice for improvement.

Mounting Hole Diameter ø135 mm (5

/16")

Finish Surface-treated steel plate

Dimensions ø175 mm (1.2 mm in thickness) or ø6

/64" (3/64" in thickness)

Weight 80 g

Usable Speaker F-1522SC

Ceiling panel

ø135 ±5 mm

/16 ±

/64" )

Step 2. Insert the HY-RR1 into the ceiling using its cut-out section and place it on the ceiling as shown below.

Mounting hole

Cut-out section

HY-RR1

HY-RR1 placed on

ceiling panel

Step 3. Mount the F-1522SC speaker.

Refer to the instruction manual included with the F-1522SC for correct mounting procedure.

Ceiling panel

Speaker unit

Install the speaker.

HY-RR1

Mounting tab

HY-RR1

Caution

Install the speaker so that its mounting tab does not

come to the cut-out section of the HY-RR1.

Ensure that the mounting tab presses the HY-RR1.

Cut-out section

Avoid this way.
