Please follow the instructions in this manual to obtain the optimum results from this unit.

We also recommend that you keep this manual handy for future reference.

HY-RR2REINFORCEMENT RING

INSTRUCTION MANUAL

Indicates a potentially hazardous situation which, if mishandled, could

result in death or serious personal injury.

WARNING

Indicates a potentially hazardous situation which, if mishandled, could

result in moderate or minor personal injury, and/or property damage.

CAUTION

• Be sure to read the instructions in this section carefully before use.

• Make sure to observe the instructions in this manual as the conventions of safety symbols and messages

regarded as very important precautions are included.

• We also recommend you keep this instruction manual handy for future reference.

• Leave the installation to your TOA dealer because the installation requires expert knowledge. Improper

installation may cause the speaker to fall, resulting in personal injury and/or property damage.

• Install the mounting hardware in a location that can structurally support the weight of the mounting hardware

and the speaker. Doing otherwise may result in the speaker falling down and causing personal injury and/or

property damage.

• Do not use other methods than specified to mount the unit. Incorrect mounting may cause the speaker to fall

off, possibly resulting in personal injuries.

• Tighten each screw securely. Ensure that the unit has no loose joints after installation to prevent accidents

that could result in personal injury.

• Use the specified speaker in combination. Doing otherwise may cause the speaker to fall off, resulting in

personal injury.

• Avoid touching the unit's sharp metal edge to prevent injury.

2. GENERAL DESCRIPTION

The HY-RR2 Reinforcement Ring is specially designed for use with the F-2352SC Ceiling Speaker System,

enabling the F-2352SC installation to a weak ceiling.

It also permits the F-2352SC to be installed to a wide range of locations in versatile mounting methods using

in conjunction with the HY-TB1 Tile Bar Bridge, HY-TR1 Trim Ring, or HY-AH1 Anchor Hanging Bracket.

1. SAFETY PRECAUTIONS

3. SPECIFICATIONS

Note: The design and specifications are subject to change without notice for improvement.

Mounting Hole Diameter ø200 mm (7

/8")

Finish Surface-treated steel plate

Dimensions ø260 mm (outer diameter) x 1.2 mm thick or

ø10

/64" (outer diameter) x 3/64" thick

Weight 280 g

Usable Speaker F-2352SC

Printed in Indonesia

533-06-106-80

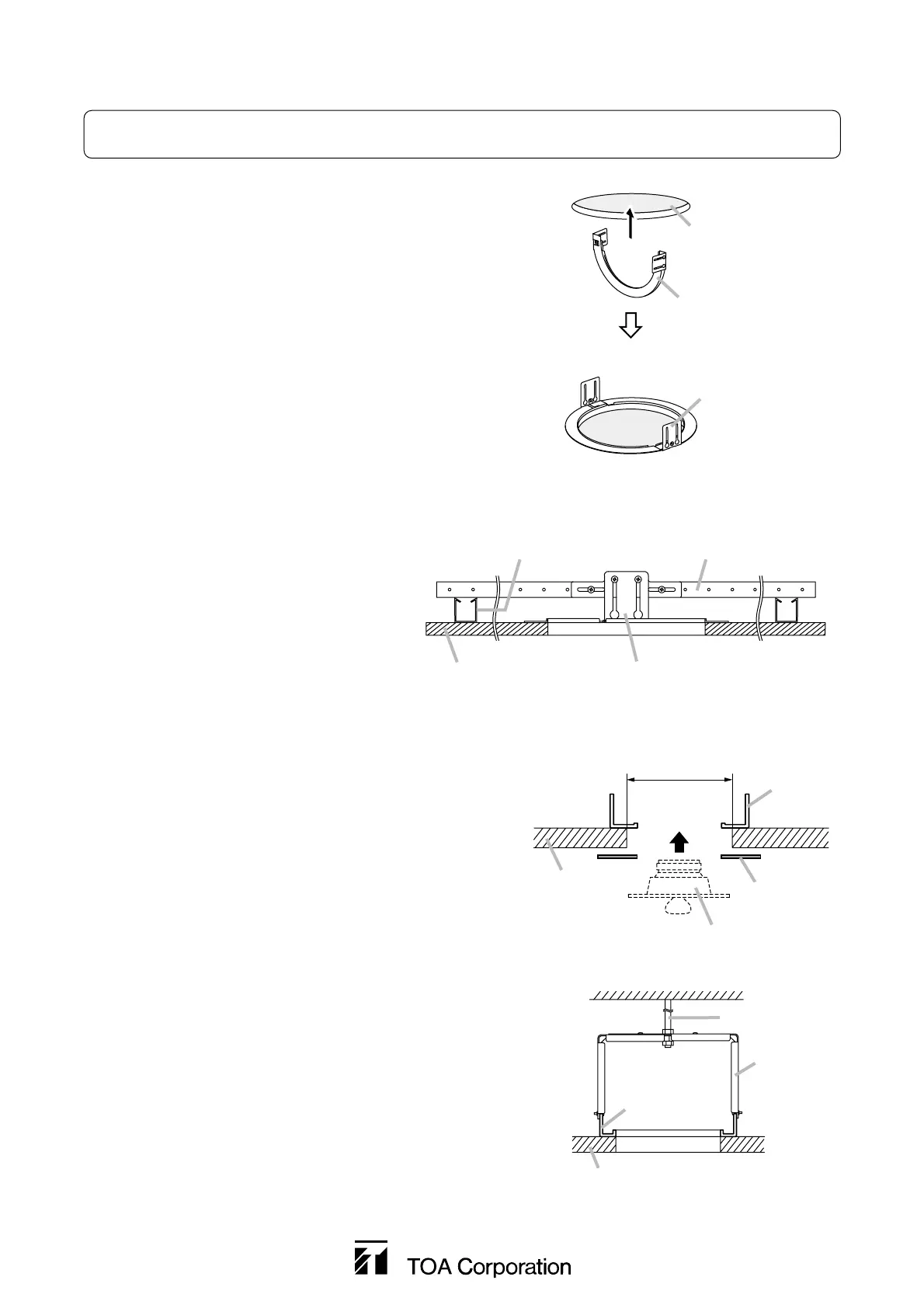

4. INSTALLATION

Refer to the F-2352SC speaker's instruction manual for information.

4-1. Direct mounting to a weak ceiling panel

Use the HY-RR2.

Fold the HY-RR2 Reinforcement Ring in half* and insert it

through the mounting hole in the ceiling panel, then open it

with its tabs facing up.

Place the ring on the ceiling panel aligning it with the

mounting hole.

* The HY-RR2 is too large to be inserted into the mounting

hole unless folded.

4-2. Mounting to a ceiling frame

4-3. Ceiling mounting to a larger than specified hole

Use the HY-RR2 in conjunction with the optional

HY-TR1 Trim Ring.

Note

Refer to the instruction manual included with the

HY-TR1 for the correct ceiling mounting procedure.

4-4. Mounting to an anchor bolt

Use the HY-RR2 in conjunction with the optional HY-AH1

Anchor Hanging Bracket.

Note

Refer to the instruction manual included with the HY-AH1

for the correct mounting procedure.

Mounting hole

ø200 mm (7

/8")

HY-RR2

HY-RR2 placed on ceiling panel

These tabs must

face upward,

away from the hole.

HY-TB1 (optional)

Ceiling panel HY-RR2

Ceiling frame

Use the HY-RR2 in conjunction with the

optional HY-TB1 Tile Bar Bridge.

Note

Refer to the instruction manual included

with the HY-TB1 for the correct ceiling

mounting procedure.

HY-TR1

ø200 – ø300 mm

/8" – 11

/16")

Ceiling

panel

HY-RR2

Speaker unit

Anchor bolt

Ceiling panel

HY-AH1

(optional)

HY-RR2
