1. SAFETY PRECAUTIONS

• Before installation or use, be sure to carefully read

all the instructions in this section for correct and

safe operation.

• Be sure to follow all the precautionary instructions

in this section, which contain important warnings

and/or cautions regarding safety.

• After reading, keep this manual handy for future

reference.

Indicates a potentially hazardous situation which,

if mishandled, could result in death or serious

personal injury.

WARNING

• Refer all installation work to the dealer from whom

the speaker was purchased. Installation onto the

ceiling requires extensive technical knowledge and

experience. The speaker may fall off if incorrectly

installed, resulting in possible personal injury.

• Install the unit only in a location that can structurally

support the weight of the speaker and the mounting

bracket. Doing otherwise may result in the speaker

falling down and causing personal injury and/or

property damage.

• Owing to the speaker's size and weight, be sure

that at least two persons are available to install the

speaker. Failure to do so could result in personal

injury.

• Donotuseothermethodsthanspeciedtomount

the bracket. Extreme force is applied to the bracket

and the speaker could fall off, possibly resulting in

personal injuries.

• Use safety wires when installing speakers. If not

used, personal injury could result if a speaker

should accidentally fall.

• Attach the safety wire to the speaker. If not attached,

the speaker could fall off, resulting in personal injury.

• Use nuts and bolts that are appropriate for the

ceiling’sstructureandcomposition.Failuretodoso

may cause the speaker to fall, resulting in material

damage and possible personal injury.

• Tighten each nut and bolt securely. Ensure that

the bracket has no loose joints after installation

to prevent accidents that could result in personal

injury.

• Use the HX-7B-WP or HX-7W-WP Speaker System

in combination. Doing otherwise may cause the

speaker to fall off, resulting in personal injury.

• Do not mount the speaker in locations exposed

to constant vibration. The rigging bracket can be

damaged by excessive vibration, potentially causing

the speaker to fall, which could result in personal

injury.

• Avoid installing the speaker in locations close to the

seashore or in indoor swimming facilities that are

not well ventilated. In such locations, the bracket

may be vulnerable to corrosion, eventually allowing

the speaker to fall resulting in personal injury.

Indicates a potentially hazardous situation which,

if mishandled, could result in moderate or minor

personal injury, and/or property damage.

CAUTION

• Avoid touching the bracket's sharp metal edge to

prevent injury.

• Do not stand or sit on, nor hang down from the

bracket as this may cause the speaker to fall down

or drop, resulting in personal injury and/or property

damage.

• Have the bracket checked periodically by the shop

from where it was purchased. Failure to do so may

result in corrosion or damage to the speaker or its

rigging bracket that could cause the speaker to fall,

possibly causing personal injury.

INSTALLATION MANUAL

SPEAKER RIGGING BRACKET HY-TM7B-WP

HY-TM7W-WP

ThankyouforpurchasingTOA’sSpeakerRiggingBracket.

Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

2. GENERAL DESCRIPTION

The HY-TM7 Series Speaker Rigging Brackets are used to hang the HX-7B-WP or HX-7W-WP Speaker System

directly from ceilings, beams or other building structures, including under outdoor eaves.

3. NOTES ON INSTALLATION

• Observe the following instructions when installing the speaker

system.

Failure to do so could adversely affect their intended weather-

resistant capability, leading to malfunction.

· Install the speaker system in locations not exposed directly to

rain, such as under eaves.

· All speaker modules must point downward from the horizontal.

• Two joined HX-7 Series Speaker Systems cannot be installed

with this bracket.

4. INSTALLATION

Step 1. Mount this bracket to a ceiling, beam, etc. using the bolts.

Bolts and nuts for mounting the bracket on the ceiling or beam are not

supplied.

Use bolts and nuts that are appropriate for the ceiling’s or beam’s

structure and composition. Failure to do so may cause the speaker to

fall, resulting in material damage and possible personal injury.

WARNING

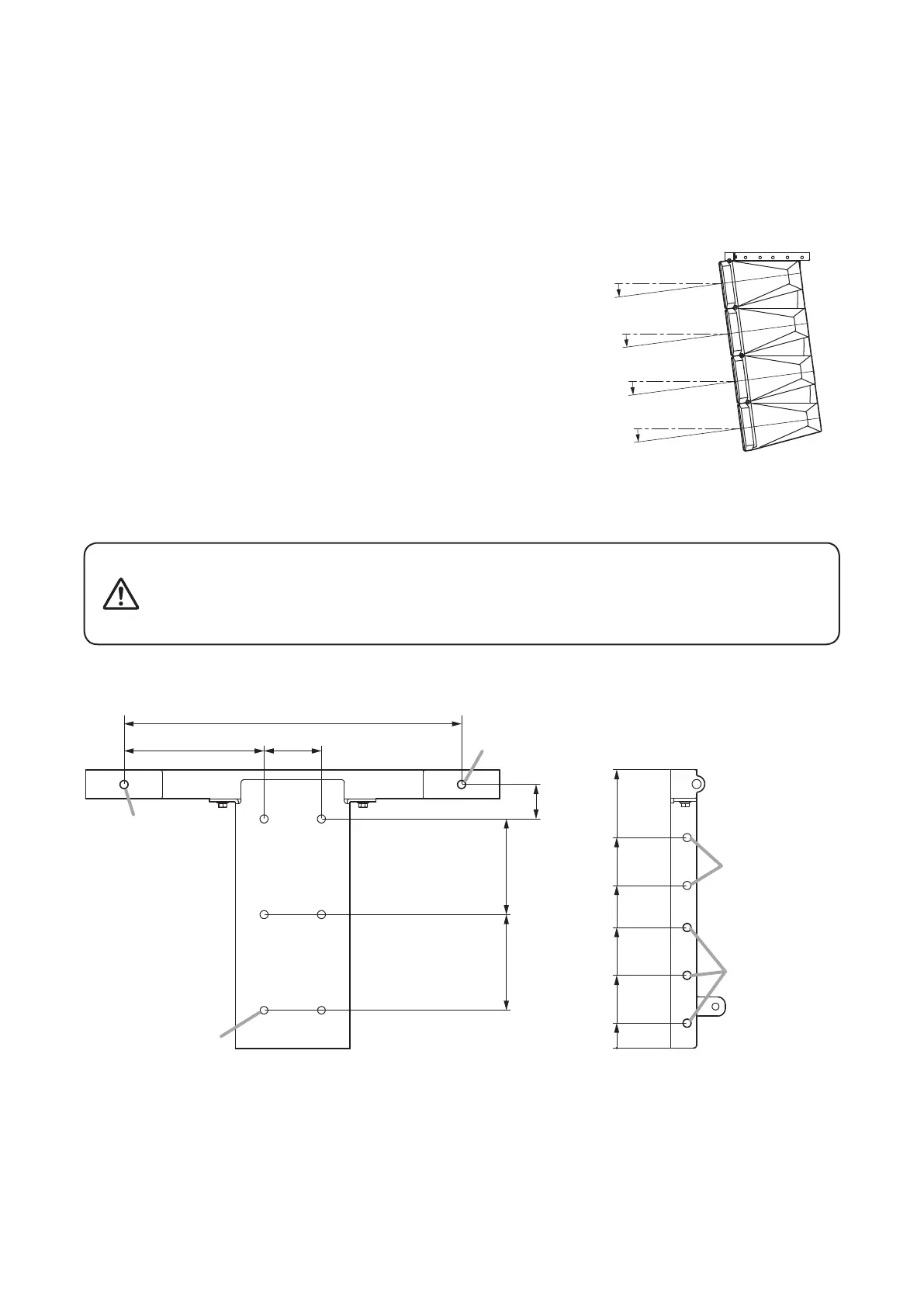

[Mounting dimensions]

(1.42")

146.5 (5.77")

[Front] [Right side]

M8 （weld nut)

ø8.5(0.33")

(6 positions)

353 (13.9")

60 (2.36")

100 (3.94")100 (3.94")

(1.18")

(3.15")

130

(5.12")

295

(11.61")

224

(8.82")

174

(6.85")

ø9 (0.35")

Note: Left-side surface same.

Unit: mm

[Vertical installation]

Horizontal

Produkt Specifikationer

Mærke:	TOA
Kategori:	Højttaler
Model:	HY-TM7W-WP
Bredde:	433 mm
Dybde:	295 mm
Højde:	57 mm
Vægt:	2500 g
Antal pr. pakke:	1 stk
Produktfarve:	Metallic
Materiale:	Rustfrit stål
Kapabilitet:	HX-7W-WP
Skruer inkluderet:	Ja
