HY-W0801W

HS-120W, HS-150W, HS-1200WT,

HS-1500WT

HY-1200VW, HY-1200HW, HY-1500VW,

HY-1500HW

Rolled steel plate, white,

medium gloss, paint

4 kg (8.82 lb)

Hex bolt (with spring and plain washers) M8 x 25 ........ 4

Thank you for purchasing TOA's Wall Mount Bracket.

Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

1. SAFETY PRECAUTIONS

HY-W0801

HY-W0801W

WALL MOUNT BRACKETS

INSTRUCTION MANUAL

Indicates a potentially hazardous situation which, if mishandled, could

result in death or serious personal injury.

WARNING

Bolts and nuts used to fix the Bracket A on a wall are not included.

Prepare those that are appropriate for the wall's structure and

composition. Failure to do so may cause the unit to fall, resulting

in personal injury.

WARNING

• Install the unit only in a location that can structurally support the total weight of the unit and the speaker.

Doing otherwise may result in the speaker falling down and causing personal injury and/or property damage.

• Owing to the speaker's size and weight, be sure that at least two persons are available to install the speaker.

Failure to do so could result in personal injury.

• Do not use other methods than specified below to mount the bracket. Extreme force is applied to the unit, or

rust may deteriorate the unit, which then could fall off, possibly resulting in personal injuries.

· As the unit cannot be used separately, be sure to use it in conjunction with the specified bracket.

· As the unit is designed for in-door use, do not install it outdoors.

· Do not install the unit to a ceiling.

• Use nuts and bolts (not supplied with the unit) that are appropriate for the wall's structure and composition.

Failure to do so may cause the speaker to fall, resulting in material damage and possible personal injury.

• Tighten each nut and bolt securely. Ensure that the bracket has no loose joints after installation to prevent

accidents that could result in personal injury.

• Do not hang down from the unit as this may cause it fall away from the wall surface, resulting in personal

injury.

2. GENERAL DESCRIPTION

The HY-W0801 and HY-W0801W Wall Mount Brackets are designed to mount the speaker system on a wall

in conjunction with the optional speaker mount bracket.

3. SPECIFICATIONS

Model

Applicable speaker

Applicable

mounting bracket

Finish

Weight

Accessory

HY-W0801

ES-0851, HS-120B, HS-150B,

HS-1200BT, HS-1500BT

HY-0851ST, HY-0852ST, HY-1200VB,

HY-1200HB, HY-1500VB, HY-1500HB

Rolled steel plate, black,

medium gloss, paint

Note: The design and specifications are subject to change without notice for improvement.

133-05-430-90

URL: http://www.toa.jp/

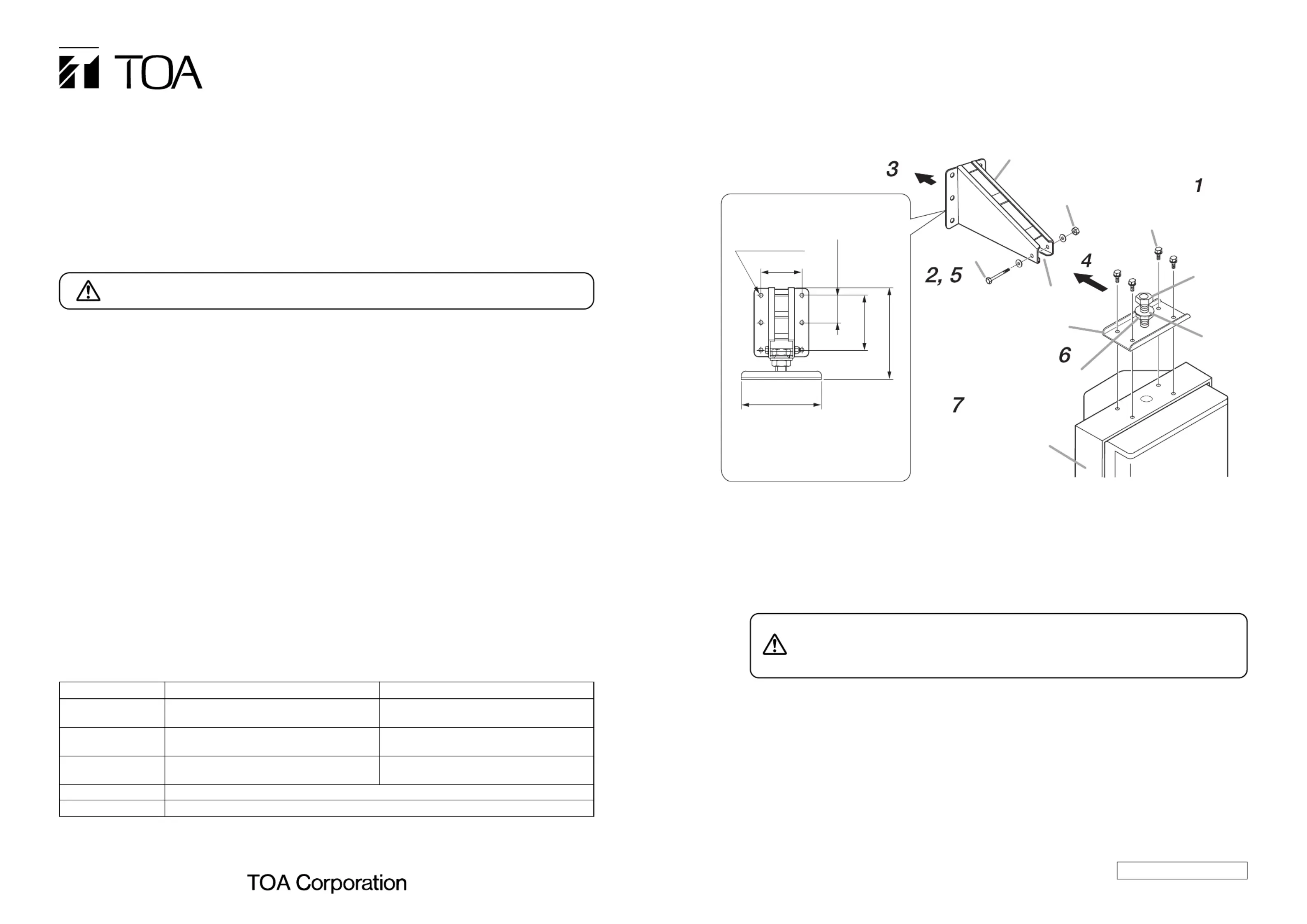

4. INSTALLATION

The example here shows the installation procedures of the Wall Mount Bracket in conjunction with the HY-

0851ST or HY-0852ST Speaker Mounting Bracket.

For the installation procedures to the HY-1200 or HY-1500 Series Mounting Bracket, refer to the instruction

manual attached to each mounting bracket.

Step 1. Attach the Bracket B to the HY-0851ST or HY-0852ST Speaker Mounting Bracket.

Note

For the speaker installation, refer to the instruction manual attached to the HY-0851ST or HY-0852ST.

Step 2. Remove the safety bolt from the Bracket A.

Step 3. Install the Bracket A on the wall using 6 bolts.

Step 4. Insert the bolt on the Bracket B into the notch in the Bracket A.

In this event, position the notch between the fixed nut and plain washer on the bolt.

Step 5. Run the safety bolt through the holes in the Bracket A, then tighten the bolt using the nut for M8.

Step 6. Adjust the speaker's horizontal angle.

After adjustment completion, tighten the horizontal angle adjustment nut on the Bracket B.

Horizontal angle adjustment range: 180 to the right or left (360 rotation) ˚ ˚

Step 7. Adjust the speaker's vertical angle at the HY-0851ST or HY-0852ST side.

For adjustment instructions, refer to the instruction manual attached to the HY-0851ST or HY-0852ST.

90 (3.54)

176 (6.93)

60 (2.36)

120 (4.72)

201.2 (7.92)

To the wall surface Bracket A

(supplied with the HY-W0801

and HY-W0801W)

Nut for M8

Safety bolt

Notch

Bracket B

(supplied with the HY-W0801

and HY-W0801W)

Hex bolt M8 x 25

(supplied with the HY-W0801

and HY-W0801W)

Fixed nut

Plain

washer

Horizontal angle adjustment nut

Speaker Mounting Bracket

(HY-0851ST or HY-0852ST)

Speaker

Dimensional diagram

of the Bracket A

Note

Be sure to secure with all 6 mounting

holes in the Bracket A.

Unit: mm (inches)

6 - ø9.2 (0.36)
