TOA HY-WM1WP Manual

TOA Højttaler HY-WM1WP

Læs gratis den danske manual til TOA HY-WM1WP (1 sider) i kategorien Højttaler. Denne vejledning er vurderet som hjælpsom af 3 personer og har en gennemsnitlig bedømmelse på 4.3 stjerner ud af 2 anmeldelser. Har du et spørgsmål om TOA HY-WM1WP, eller vil du spørge andre brugere om produktet?

Download PDF

Side 1/1

Note

The figure is a view of the HX-5

series installed horizontally.

Rear plate

(factory-mounted to the HX-5 series)

Vertical angle adjustment bolt

HY-WM1 series

Hexagon head bolt M8 x 15 (with washer)

Hexagon head bolt

M8 x 15 with washer

(accessory)

HX-5 series

Note: Rear plate's original bolts

Note

Attach the bracket after

removing the rear plate.

Note

If the

HX-5 series is installed vertically,

change the orientation of the rear plate.

More particularly, refer to the instruction

manual supplied with the HX-5 series.

[Dimensional diagram of rear plate]

131 (5

/ )32

4-12 x 41 (4-

/ x 1 32

/ )64

Unit: mm (inches)

181 (7 1/ )8

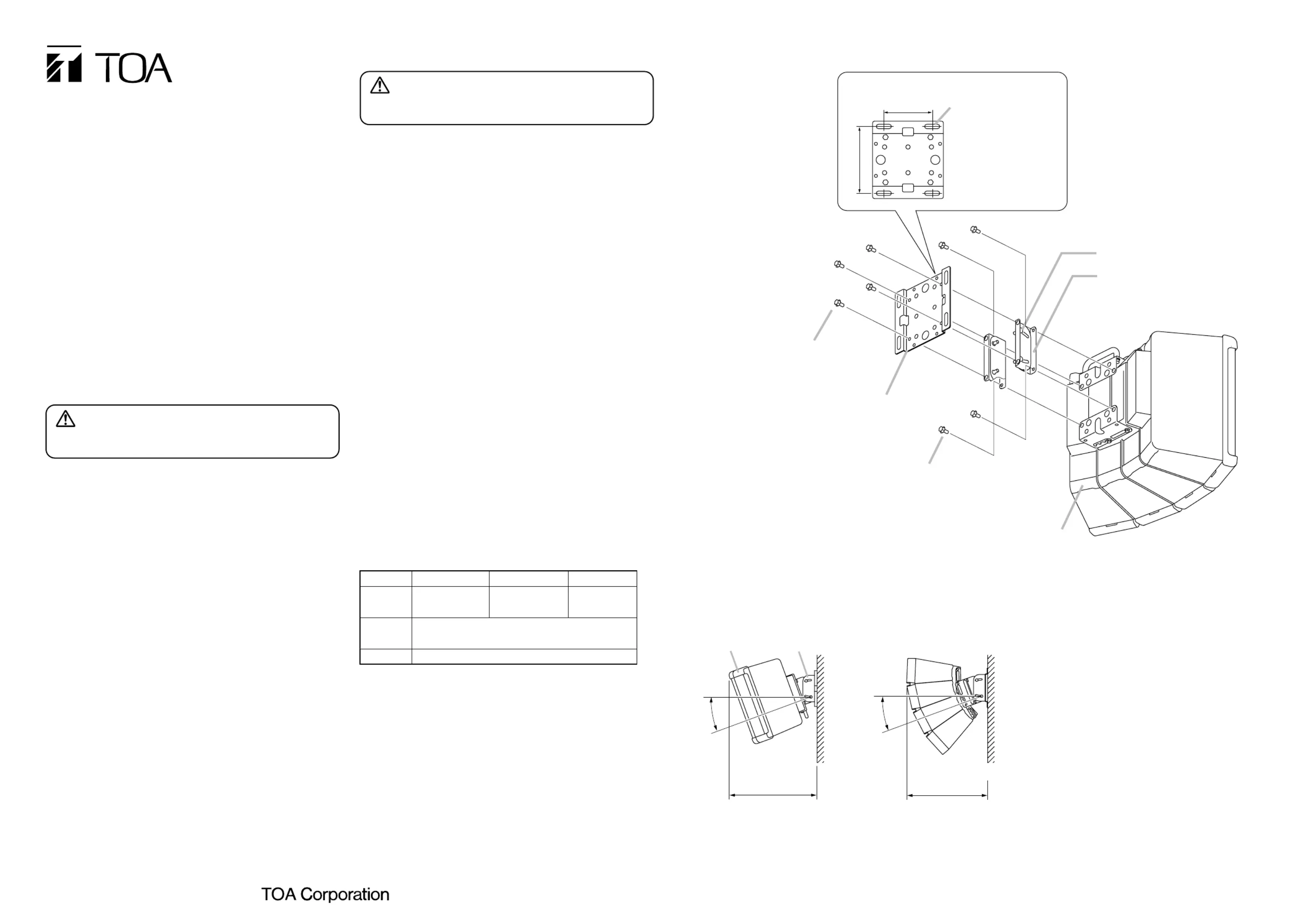

INSTALLATION MANUAL

SPEAKER MOUNTING BRACKETS

HY-WM1B

HY-WM1W

HY-WM1WP

TOA's HY-WM1 series are used exclusively to mount the HX-5

series speaker system to a wall or ceiling.

These brackets permit the speaker to be tilted downward up to 20°

from the horizontal when the speaker is mounted on a wall, or tilted

up to 20° from the vertical when the speaker is mounted on a

ceiling. Both the HY-WM1B and the HY-WM1W are designed for

indoor use, while the HY-WM1WP is designed for outdoor use.

1. SAFETY PRECAUTIONS

•Before installation or use, be sure to carefully read all the

instructions in this section for correct and safe operation.

•Be sure to follow all the precautionary instructions in this section,

which contain important warnings and/or cautions regarding

safety.

•After reading, keep this manual handy for future reference.

4. SPECIFICATIONS

• Accessories

Hexagon head bolt M8 x 15

(with washer)

........ 4

Note: The design and specifications are subject to change without

notice for improvement.

• Install the unit only in a location that can structurally support the

weight of the unit and the speaker. Doing otherwise may result in

the speaker falling down and causing personal injury and/or

property damage.

• (HY-WM1B and HY-WM1W only)

Since the unit is designed for in-door use, do not install it

outdoors. If installed outdoors, the aging of parts causes the unit

to fall off, resulting in personal injury. Also, when it gets wet with

rain, there is a danger of electric shock.

• Owing to the speaker's size and weight, be sure that at least two

persons are available to install the speaker. Failure to do so

could result in personal injury.

• Do not use other methods than specified to mount the bracket.

Extreme force is applied to the unit and the speaker could fall off,

possibly resulting in personal injuries.

• Use nuts and bolts that are appropriate for the wall's or ceiling's

structure and composition. Failure to do so may cause the

speaker to fall, resulting in material damage and possible

personal injury.

• Tighten each nut and bolt securely. Ensure that the bracket has

no loose joints after installation to prevent accidents that could

result in personal injury.

• Use the specified speaker in combination. Doing otherwise may

cause the speaker to fall off, resulting in personal injury.

• Do not mount the unit in locations exposed to constant vibration.

The mounting bracket can be damaged by excessive vibration,

potentially causing the speaker to fall, which could result in

personal injury.

• Avoid installing the speaker in locations close to the seashore or

in indoor swimming facilities that are not well ventilated. In such

locations the bracket may be vulnerable to corrosion, eventually

allowing the speaker to fall resulting in personal injury.

Indicates a potentially hazardous situation which, if mishandled,

could result in death or serious personal injury.

WARNING

Indicates a potentially hazardous situation which, if mishandled, could

result in moderate or minor personal injury, and/or property damage.

CAUTION

•Avoid touching the unit's sharp metal edge to prevent injury.

Only the HY-WM1WP can be installed outdoors.

•Only the HX-5B-WP and HX-5W-WP speakers can be

installed outdoors.

•Install the speaker so that all speaker modules face

downward from the horizontal axis. Doing otherwise could

adversely affect the speaker's weather resistance and

possibly lead to malfunction or failure.

2. PRECAUTIONS WHEN INSTALLING THE

HY-WM1WP

Step 1. Remove the HX-5 series' rear plate, and attach the

unit instead.

Step 2. Attach the rear plate (removed in Step 1) to the unit.

Step 3. Mount the rear plate to a wall or ceiling.

Note

Anchor bolts, nuts, and washers required for mounting

are not supplied with the bracket.

Step 4. Loosen the vertical angle adjustment bolts, fix the

speaker in the desired orientation and retighten the

angle adjustment bolts.

3. INSTALLATION

5. INSTALLATION EXAMPLE

HX-5 series

HY-WM1 series

Wall Wall

[Horizontal mounting] [Vertical mounting]

471 mm

(18

/ in.)64

434 mm

(17

/ in.)32

20°

Printed in Indonesia

533-06-123-90

Model No.

Finish

Dimensions

Weight

HY-WM1B

Steel plate, black,

semi-gloss, paint

62 (w) x 142 (h) x 22 (d) mm

/ (w) x 5 16

/ (h) x 32

/ (d) inches64

750 g

HY-WM1W

Steel plate, white,

semi-gloss, paint

HY-WM1WP

Stainless steel,

(SUS304)

Produkt Specifikationer

Mærke:	TOA
Kategori:	Højttaler
Model:	HY-WM1WP
Bredde:	62 mm
Dybde:	22 mm
Vægt:	750 g
Produktfarve:	Rustfrit stål
Materiale:	Stål
Placering:	Ceiling, Wall
Højde (maks.):	142 mm
Bolte inkluderet:	Ja
