Side 1/4

WARNING

CAUTION

Indicates a potentially hazardous situation which, if mishandled, could

result in death or serious personal injury.

Indicates a potentially hazardous situation which, if mishandled, could

result in moderate or minor personal injury, and/or property damage.

WARNING

CAUTION

URL: http://www.toa.jp/

1438

EN 54-24: 2008

1438/CPD/0280

Traceability Information for Europe

Manufacturer:

TOA Corporation

7-2-1, Minatojima Nakamachi, Chuo-ku, Kobe, Hyogo,

Japan

Authorized representative:

TOA Electronics Europe GmbH

Suederstrasse 282, 20537 Hamburg,

Germany

533-06-259-9#

INSTRUCTION MANUAL

HORN SPEAKER SC-630M EB-Q

1. SAFETY PRECAUTIONS

• Before installation or use, be sure to carefully read all the instructions in this section for correct and safe opera-

tion.

• Be sure to follow all the precautionary instructions in this section, which contain important warnings and/or

cautions regarding safety.

• After reading, keep this manual handy for future reference.

Safety Symbol and Message Conventions

Safety symbols and messages described below are used in this manual to prevent bodily injury and property da-

mage which could result from mishandling. Before operating your product, read this manual rst and understand

the safety symbols and messages so you are thoroughly aware of the potential safety hazards.

• Use only the specied amplier output voltage and

impedance, as exceeding the specied limits could re-

sult in re or other failures (high-impedance version).

• To avoid accidental air explosions, do not use the unit

around gasoline, thinner or other combustibles.

• Install the unit only in a location that can structu-

rally support the weight of the unit and the mounting

bracket. Doing otherwise may result in the unit falling

down and causing personal injury and/or property

damage.

• Protect the unit from exposure in snowy areas, as the

weight of snow build-up could cause the speaker to

fall, resulting in personal injury.

• Do not use other methods than specied to mount

the bracket. Extreme force is applied to the unit and

the unit could fall off, possibly resulting in personal

injuries.

• Attach the safety wire to the unit when mounting in

locations high above the ground. Failure to do so

could result in personal injury if the speaker should

later fall for any reason.

• Use nuts and bolts that are appropriate for the cei-

ling‘s or wall‘s structure and composition. Failure to do

so may cause the speaker to fall, resulting in material

damage and possible personal injury.

• Tighten each nut and bolt securely. Ensure that the

bracket has no loose joints after installation to prevent

accidents that could result in personal injury.

• Avoid mounting the unit in locations exposed to cons-

tant vibration. The mounting bracket can be damaged

by excessive vibration, potentially causing the speaker

to fall, which could result in personal injury.

• To avoid electric shocks, be sure to switch off the

amplier power when connecting the speaker.

• Avoid installing the unit in humid or dusty locations, or

in locations exposed to heaters, solvents, acid, alkali,

smoke, steam or direct sunlight (except outdoor-use

versions), as excessive exposure to these factors

could result in speaker failure, re or electric shock.

• Do not operate the unit for an extended period of time

with the sound distorting. This is an indication of a

malfunction, which in turn can cause heat to generate

and result in a re.

• Do not stand or sit on, nor hang down from the unit

as this may cause it to fall down or drop, resulting in

personal injury and/or property damage.

• Have the unit periodically checked by the shop from

where it was purchased. Also, when mounting the unit

on a vehicle, be sure to check both the speaker and

its mounts before moving. Failure to do so could result

in the speaker falling off due to damage or corrosion

to the speaker or its mounts, and possible personal

injury.

WARNING

Do not use the impedance selector switch position marked as [X], because this

position could result in ampli er or speaker failure, or  re.

2. HOW TO USE

2.1. Handling Precautions

• When installing the speaker, be sure the drain hole is positioned facing the ground. Without

the drain hole positioned correctly, rain could  ood the speaker, causing it to fail.

[Front view]

Drain hole Center

• Be sure to note the following polarities when multiple speakers are used in the same location. Incorrect connections

could

result in no bass output or decreased volume.

Black speaker cable: Positive (+), White speaker cable: Negative (–) or COM

Connect the cables to other cables of the same colors in parallel connections, and to cables of different colors in series

connections.

• To avoid ampli er failure, do not simultaneously connect both low- and high-impedance speakers to the ampli er. Ensure that

only one type is connected.

Notes: (1) „Low-impedance“ refers to speakers having no built-in matching transformer.

(2) „High-impedance“ refers to speakers having a built-in matching transformer.

• Ensure only the speci ed line voltage (ampli er output voltage) is used for the high-impedance speakers. The line

voltage is

indicated on the name plate as [70/100 V LINE]. If an unspeci ed line voltage is connected,  re or

equipment failure

could result.

2.2. Connections

The total rated input of all connected speakers must be equal to or smaller than the ampli er output. If the total speaker input

rating is greater than the ampli er output, the ampli er could fail. Connect all speakers in parallel.

For connection of speaker cable to ampli er cable use Junction box according to DIN EN 60670 with multiple entries and min

two external  xing positions. For junction box installation please refer to P. 3. Please contact your TOA dealer for this option.

2.3. Impedance Selection

Select the desired impedance by inserting a screwdriver into the impedance selector switch slot and turning the switch.

The OFF position disconnects the speaker from the ampli er and no sound is output.

Notes: (1) Speakers are factory-preset for the highest rated input of two line

voltages (i.e. 100 V line in the case of the 70/100 V line version).

(2) The speaker‘s rated input and impedance are indicated on the

name plate.

Speakers are designed to select either of the two line voltages (rated ampli-

 er output voltage). Check to con rm the line voltage to use, and select the

line voltage impedance speci ed on the name plate.

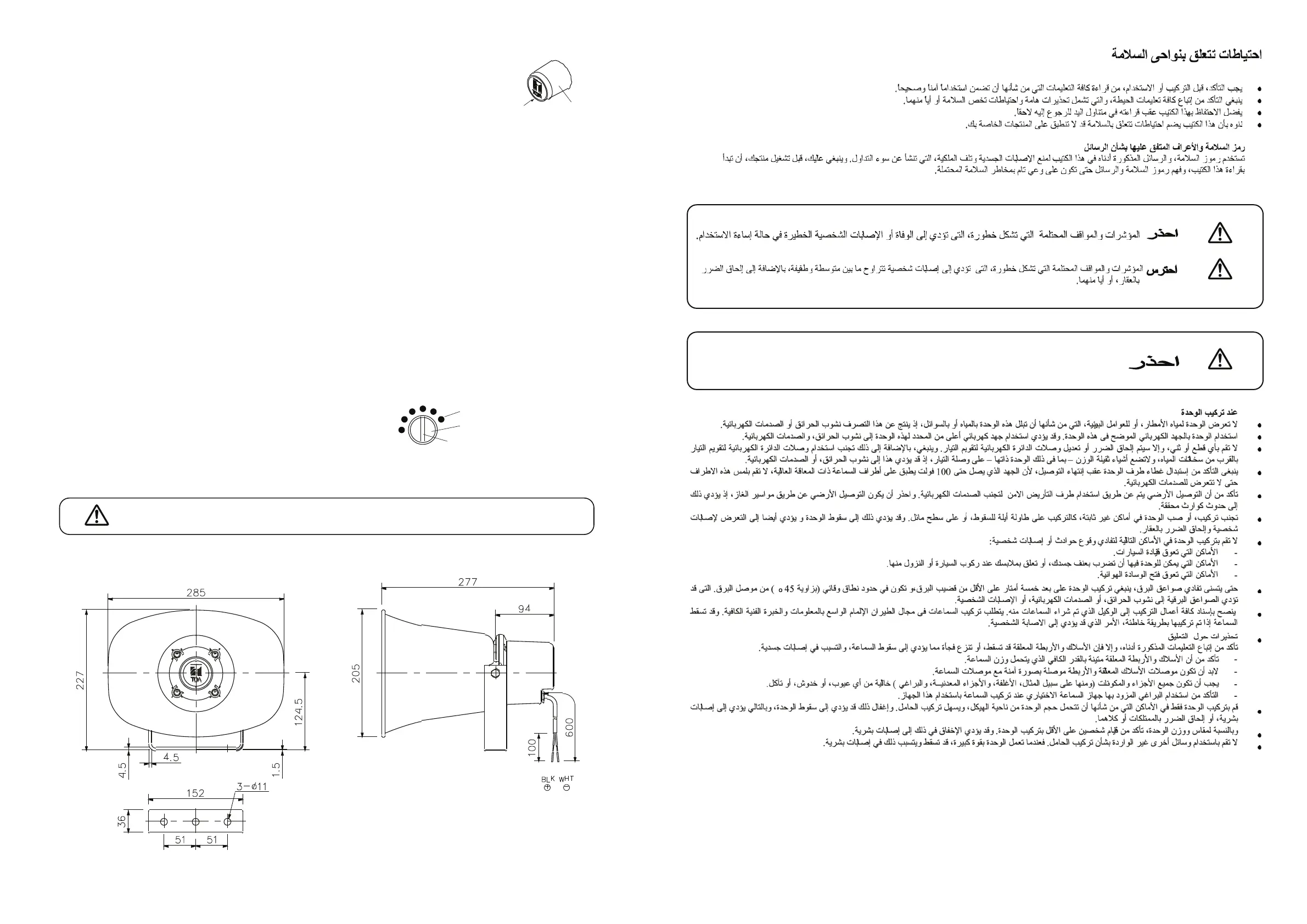

3. DIMENSIONAL DIAGRAM

Impedance marker

Impedance selector switch

Impedance pointer

(Also function as a screwdriver slot.)
