Please follow the instructions in this manual to obtain the optimum results from this unit.

We also recommend that you keep this manual handy for future reference.

SP-410

SPEAKER MOUNTING BRACKET

INSTRUCTION MANUAL

1. SAFETY PRECAUTIONS

• Be sure to read the instructions in this section carefully

before use.

• Make sure to observe the instructions in this manual as

the conventions of safety symbols and messages

regarded as very important precautions are included.

• We also recommend you keep this instruction manual

handy for future reference.

WARNING Indicates a potentially

hazardous situation which, if mishandled, could result in

death or serious personal injury.

• Make sure to observe the following precautions for

speaker installation. Doing otherwise may cause the

speaker to fall off, resulting in personal injury.

· Avoid installing the speaker at the place susceptible to

strong wind or direct vibrations.

· Install the speaker in locations that can structurally

support the weight of the speaker and the mounting

bracket.

• Do not use other methods than specified to mount the

bracket. Extreme force is applied to the unit and the unit

could fall off, possibly resulting in personal injuries.

• Use nuts and bolts that are appropriate for the ceiling's

or wall's structure and composition. Failure to do so may

cause the speaker to fall, resulting in material damage

and possible personal injury.

• Tighten each nut and bolt securely. Ensure that the

bracket has no loose joints after installation to prevent

accidents that could result in personal injury.

CAUTION Indicates a potentially hazardous

situation which, if mishandled, could result in moderate

or minor personal injury, and/or property damage.

• Do not stand or sit on, nor hang down from the unit as

this may cause it to fall down or drop, resulting in

personal injury and/or property damage.

• Have the unit periodically checked by the shop from

where it was purchased. Failure to do so could result in

the speaker falling off due to damage or corrosion to the

speaker or its mounts, and possible personal injury.

2. GENERAL DESCRIPTION

TOA's SP-410 Speaker Mounting Bracket is designed to

mount TOA's BS-1030 Series or other box speakers on a

wall or ceiling. It can be directly attached to a double-gang

electrical box.

3. APPLICABLE SPEAKERS

The SP-410 can be used for the speakers which

(1) Are lighter than 4 kg in weight, and

(2) Permit mounting of the bracket base with the following

mounting dimensions:

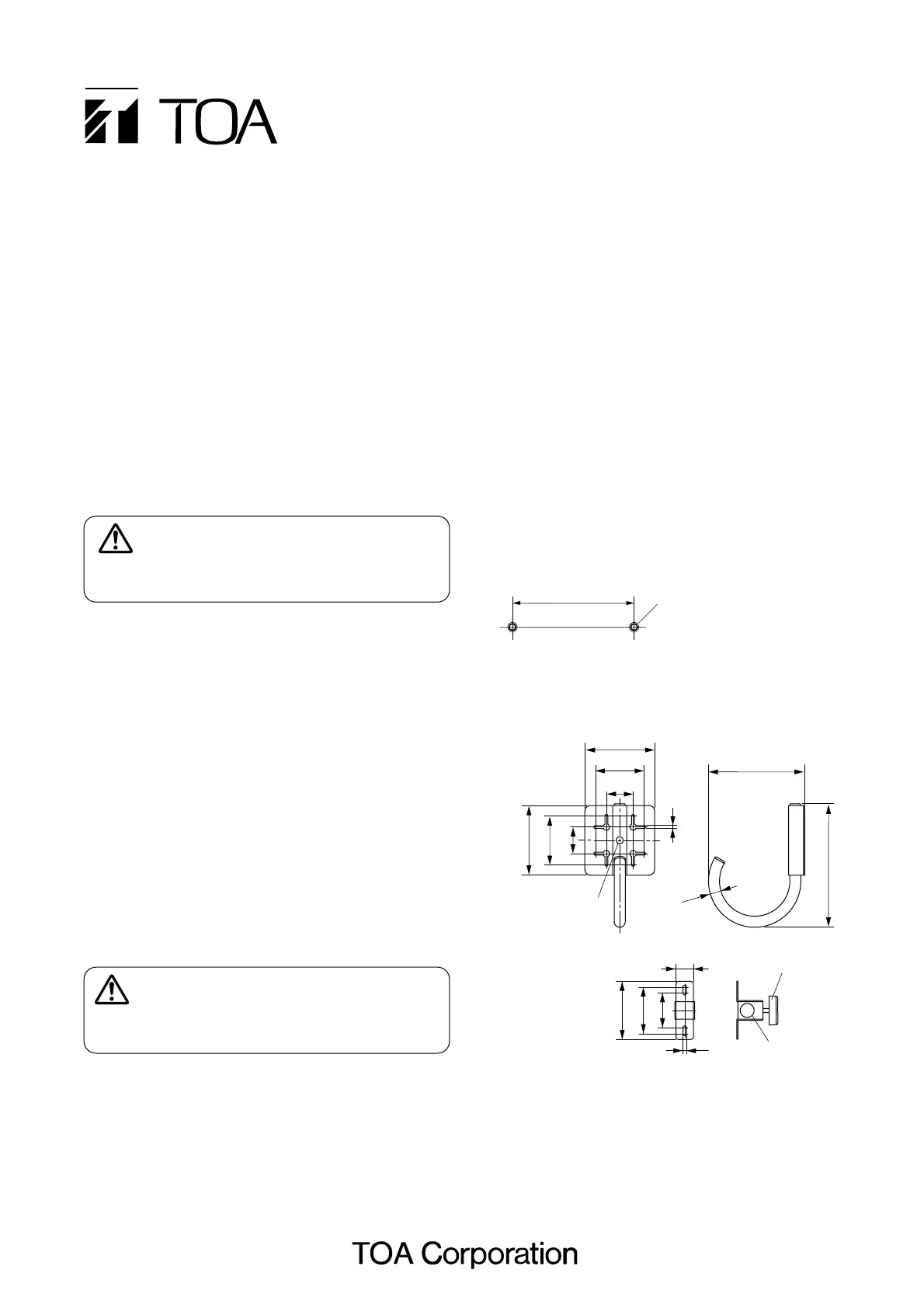

4. BRACKET COMPOSITION AND

DIMENSIONAL DIAGRAM

• Bracket stay

• Bracket base

• Accessory screws

For Bracket Base mounting

· M5x10 machine screw .............................................. 2

· M5 plain washer ........................................................ 2

· M4x12 machine screw .............................................. 2

For Bracket Stay mounting

· 4x16 tapping screw (for plywood) .............................. 4

· M4x35 machine screw (for electrical box) ................. 4

60 – 80 mm

M5 screw holes (2 places)

of over 10 mm deep

120

ø19

165.5

212.5

Unit: mm

Cable outlet hole: ø10

ø22

100

Bolt

Step 2-3. Insert the Stay mounting holes onto the head of

screws temporarily installed in Step 2-1 (Arrow 1).

Step 2-4. Slide the Stay in the direction of Arrow 2, and

mount by means of the remaining two supplied

screws.

Step 2-5. Tighten the two screws temporarily installed in

Step 2-1.

Step 3. Mount the speaker with the Base attached in Step

1 to the Stay.

Step 3-1. Pass the Base through the Stay pipe, and

temporarily fix the speaker with the bolt.

Step 3-2. Connect the speaker cable to the speaker.

Note: Put the excess length of cable back in the

ceiling or wall after connection completion.

Step 3-3. Loosen the bolt used to temporarily fix the

speaker, and retighten it after determining the

speaker position.

Step 3-4. Secure the Base to the Stay pipe using the

supplied two screws.

WARNING Do not mount the Bracket Stay

directly to the plaster board using tapping screws. The

screws could slip from the board and the speaker could

fall off, resulting in personal injury.

533-06-068-5A

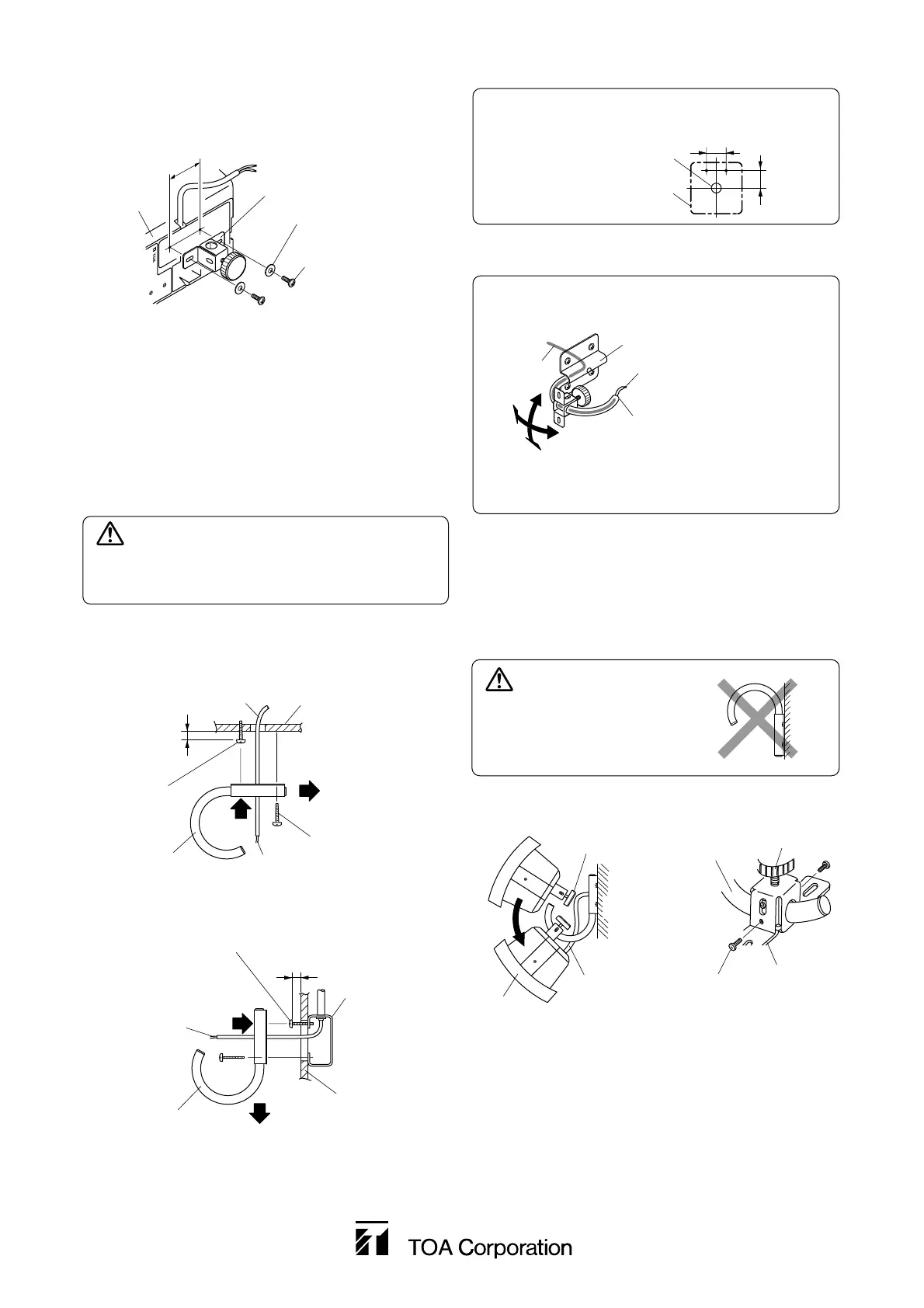

SPEAKER MOUNTING

Step 1. Attach the Bracket Base to the speaker.

Step 2. Mount the Bracket Stay to the wall or ceiling.

• The Stay can be mounted to the wall or ceiling either

directly or by using an electrical box.

• Two different types of screws are supplied to mount the

Stay.

(1) 4x16 tapping screw (4 pieces)

Use this screw for mounting to the plywood board with

thickness of over 9 mm.

(2) M4x35 tapping screw (4 pieces)

Use this screw for mounting to the electrical box.

[Direct Stay mounting to the wall or ceiling panel]

In the following example, the distance between two

mounting holes in the Stay is 46 mm.

[Stay mounting by means of an electrical box]

2-1

2-5

2-2

2-3

2-4

M4x35 machine screw (standard accessory)

Approximately 3 mm

Double-gang

electrical box

Speaker cable

Bracket Stay

Wall panel

60 – 80 mm

Speaker

Bracket Base

M5x10 machine screw

(standard accessory)

M5 plain washer

(standard accessory)

2-1

2-5

2-2

2-3

2-4

4x16 tapping screws

(standard accessory)

Ceiling panel (9 mm or

Produkt Specifikationer

Mærke:	TOA
Kategori:	Højttaler
Model:	SP-410
Produktfarve:	Grå
Materiale:	Stål
Placering:	Væg
Maksimal vægtkapacitet:	4 kg
