Please follow the instructions in this manual to obtain the optimum results from this unit.

We also recommend that you keep this manual handy for future reference.

SP-420SPEAKER MOUNTING BRACKET

INSTRUCTION MANUAL

1. SAFETY PRECAUTIONS

• Be sure to read the instructions in this section carefully

before use.

• Make sure to observe the instructions in this manual as

the conventions of safety symbols and messages

regarded as very important precautions are included.

• We also recommend you keep this instruction manual

handy for future reference.

WARNING Indicates a potentially

hazardous situation which, if mishandled, could result in

death or serious personal injury.

• Install the bracket only in a location that can structurally

support the weight of the bracket and the speaker as well

(approximately 3.5 kg in total). Doing otherwise may

cause the speaker to fall off, resulting in personal injury.

• Do not use other methods than specified to mount the

bracket. Extreme force is applied to the unit and the unit

could fall off, possibly resulting in personal injuries.

• Tighten each nut and bolt securely. Ensure that the

bracket has no loose joints after installation to prevent

accidents that could result in personal injury.

CAUTION Indicates a potentially hazardous

situation which, if mishandled, could result in moderate

or minor personal injury, and/or property damage.

• Have the unit periodically checked by the shop from

where it was purchased. Failure to do so could result in

the speaker falling off due to damage or corrosion to the

speaker or its mounts, and possible personal injury.

2. GENERAL DESCRIPTION

The SP-420 is a bracket designed to be exclusively used

for mounting TOA's BS-1030W Universal Speaker in a wall

or ceiling. The bracket's feature to pinch the panel permits

it to even be mounted in the plaster or plywood wall or

ceiling panel. It can be mounted in the panel that is

approximately 5 – 24 mm thick.

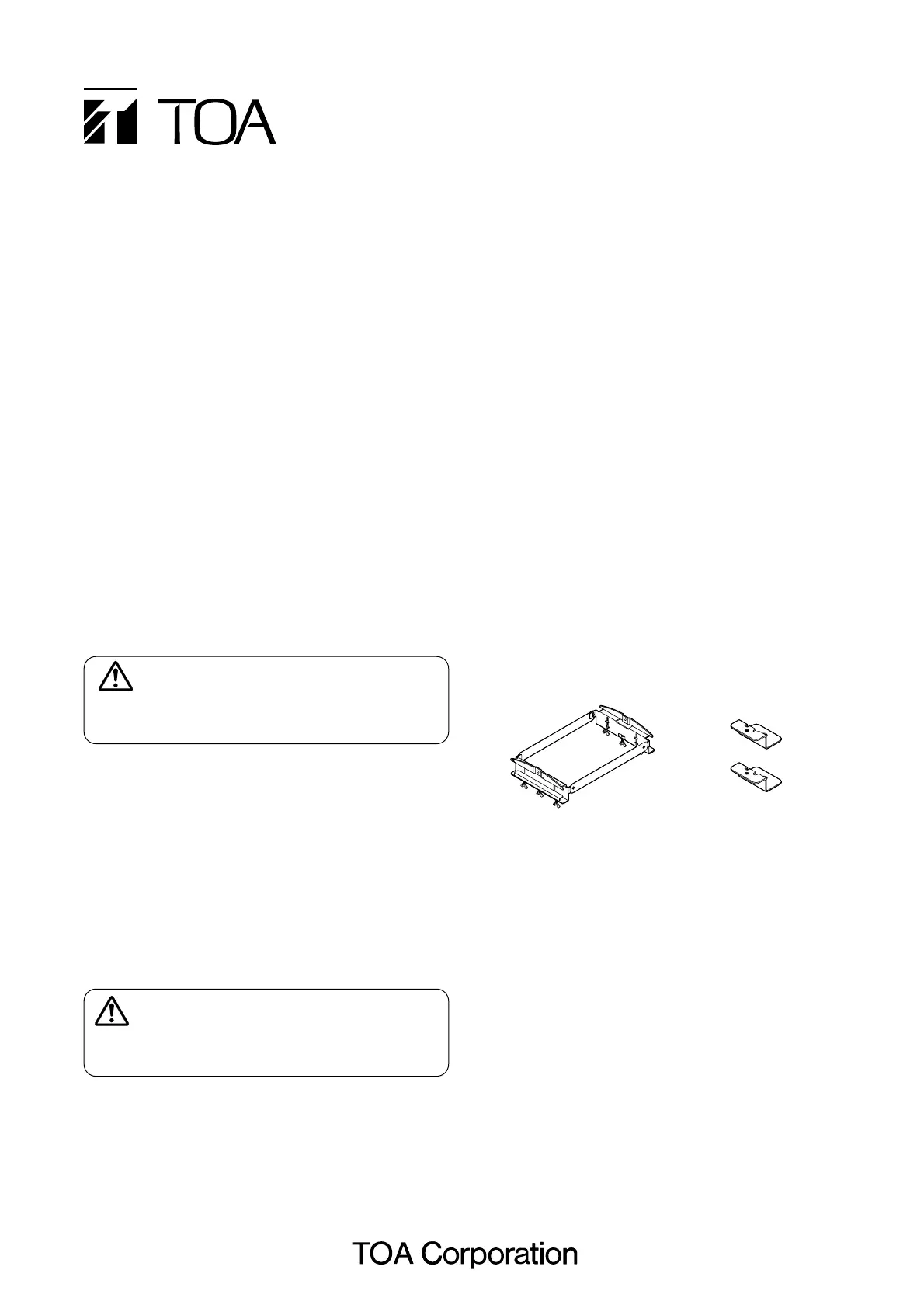

3. BRACKET COMPOSITION

• Accessory screws

For mounting clip fixing

· M5x10 machine screw .............................................. 2

· M5 plain washer ........................................................ 2

For speaker mounting

· M5x15 Allen screw..................................................... 2

· M5 plain washer ........................................................ 2

For mounting bracket fixing

· M4x40 butterfly bolt ................................................... 6

Note: Six butterfly bolts are screwed into the mounting

bracket by the factory.

Mounting clip

(2 pieces)

Mounting bracket

(with butterfly bolt)

WARNING Install the bracket only in a

location that can structurally support the weight of the

bracket and the speaker as well (approximately 3.5 kg

in total). Doing otherwise may cause the speaker to fall

off, resulting in personal injury.

Printed in Indonesia

533-06-072-00

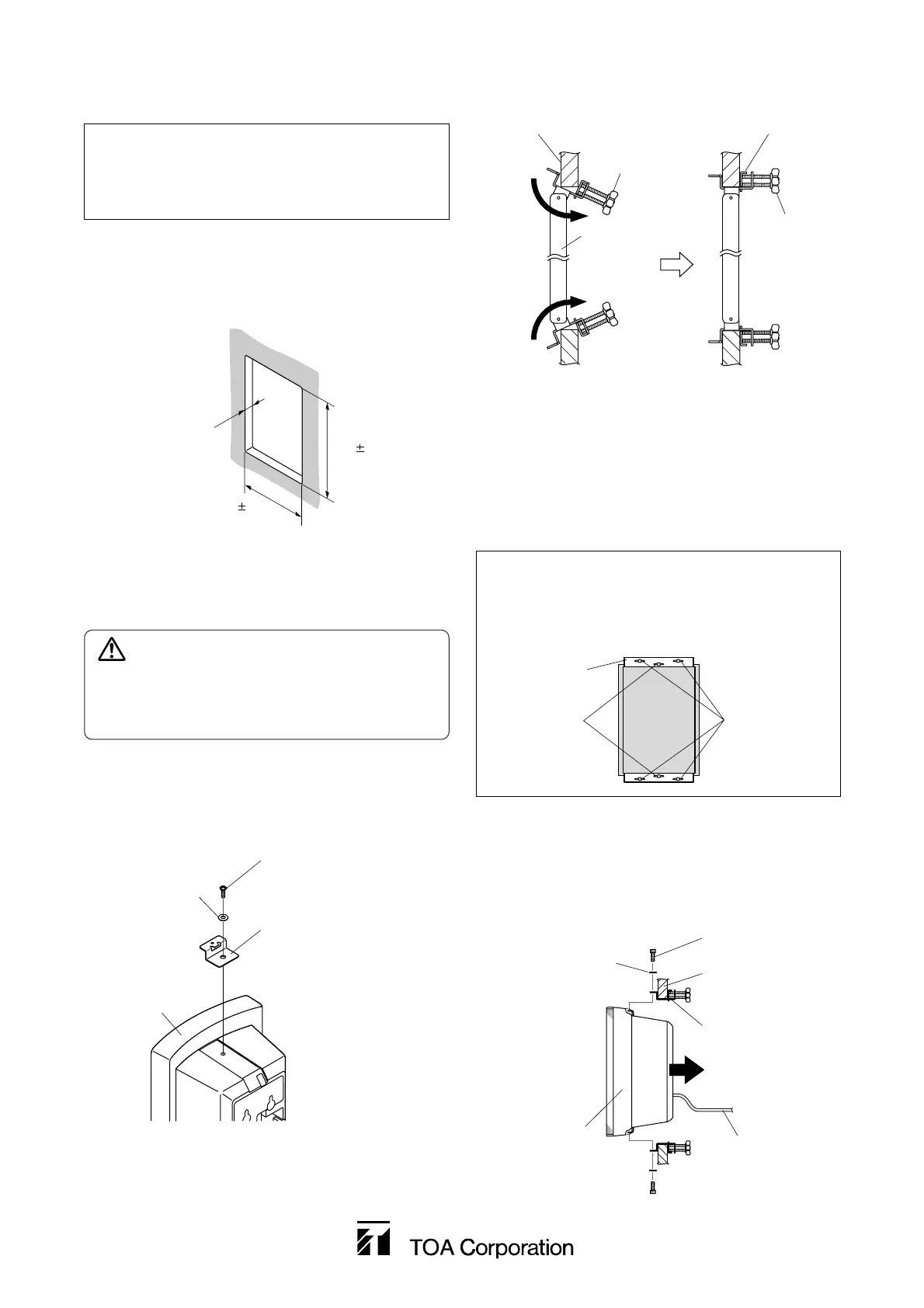

Step 1. Make a mounting hole in the wall or ceiling.

(The figure assumes that the speaker is installed

vertically.)

Step 3. Mount the bracket in the wall or ceiling.

Step 3-1. Fully loosen all butterfly bolts (6 pieces) and

rotate the bracket clamp in the arrow-indicated

direction so that the wall (ceiling) panel is placed

between the clamp frame and the set plate.

Step 3-2. Retighten the six butterfly bolts in the following

order to pinch the panel securely by means of

the set plate.

Note: Prepare an Allen wrench before beginning to

mount the speaker.

An Allen wrench (distance of 4 mm between sides

opposite to each other) is required for tightening Allen

screws (M5).

4. SPEAKER MOUNTING

Note

Each of 4 corners of the hole needs to be smaller

than 5 mm in radius. Exceeding this limit could

cause the bracket to contact the corner, and prevent

it from being mounted in the wall or ceiling.

5 – 24 mm

260 mm

175 mm

Step 2. Using the hardware supplied with the speaker,

attach the mounting clip to the speaker.

Machine screw

(standard accessory)

Plain washer

(standard accessory)

Mounting clip

(standard accessory)

Speaker

Take care about the correct clip

mounting orientation.

3-1

3-2

Mounting bracket

Wall or ceiling panel

Set plate

Butterfly bolt

Butterfly bolt tightening order

(figure as viewed from the hidden side of the panel)

(1) Tighten butterfly bolt A (2 pieces).

(2) Tighten butterfly bolt B (4 pieces).

Mounting

bracket

Mounting

hole

Butterfly

bolt A

(2 pieces)

Butterfly

bolt B

(4 pieces)

Step 4. Connect the speaker cable.

Step 5. Push the speaker onto the bracket opening (in the

arrow-indicated direction), then fix it securely using

the hardware.

Wall or ceiling panel

Plain washer

(standard accessory)

Allen screw

(standard accessory)

Speaker cable

Mounting bracket

Speaker

Produkt Specifikationer

Mærke:	TOA
Kategori:	Højttaler
Model:	SP-420
Produktfarve:	Grå
Materiale:	Stål
Kapabilitet:	BS-1030W
