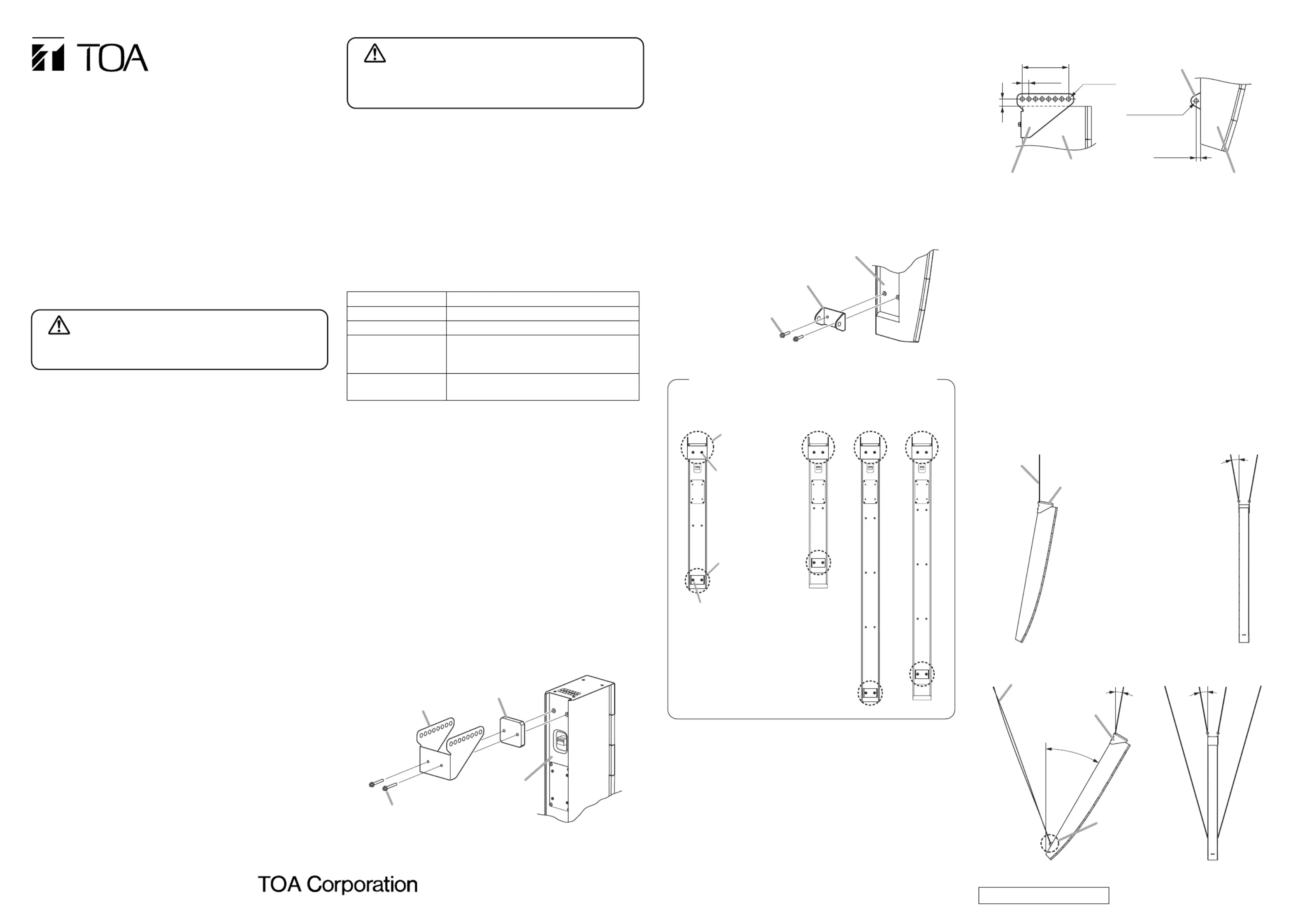

INSTALLATION MANUAL

FLYING BRACKET SR-FB3

The SR-FB3 Flying Bracket is used for ceiling suspension of the

Line Array Speaker SR-H2L, SR-H2S, SR-H3L, or SR-H3S.

Only 1 speaker can be suspended using the SR-FB3.

1. SPECIFICATIONS

Note: The design and specifications are subject to change without

notice for improvement.

Step 1. Attach the Suspension bracket to the speaker's rear

upper section.

Remove the specified screws on the speaker's rear

surface, then use their screw holes to secure the

Suspension bracket.

In this event, insert the Spacer between the speaker and

the Suspension bracket.

Note

For the bracket mounting position, refer to "Mounting

positions of the Suspension bracket and Pull-back bracket"

shown at right.

Step 2. Attach the Pull-back bracket to the speaker rear

surface.

Attach the Pull-back bracket in one of the following cases,

and install wires.

• When the speaker is to be suspended in fixed

installations

• If more downward angle is required when suspending the

speaker

Remove the specified screws on the speaker's rear

surface, then use their screw holes to secure the Pull-back

bracket.

Note

For the bracket mounting position, refer to "Mounting

positions of the Suspension bracket and Pull-back bracket"

shown below.

Step 3. Connect the suspension wires to both the suspension

holes in the Suspension bracket and Pull-back bracket.

Tips

Speaker's downward angle can be adjusted by selecting

the suspension holes in the Suspension bracket.

If more downward angle is required, connect the wire to the

Pull-back bracket, then pull it up and back.

Note

For details, read "Ceiling Suspension."

Step 4. Connect the speaker cable to the removable terminal

plug.

Note

For connection, refer to the instruction manual enclosed

with the speaker.

133-05-448-20

URL: http://www.toa.jp/

1. SAFETY PRECAUTIONS

2. INSTALLATION

3. CEILING SUSPENSION

• Before installation or use, be sure to carefully read all the

instructions in this section for correct and safe operation.

• Be sure to follow all the precautionary instructions in this section,

which contain important warnings and/or cautions regarding

safety.

• After reading, keep this manual handy for future reference.

• Refer all installation work to the qualified professionals.

Installation for flying requires extensive technical knowledge and

experience. The speaker may fall off if incorrectly installed,

resulting in possible personal injury.

• Flying Precautions

Be sure to follow the instructions below. Otherwise, the

suspension wires or belts may be off or snap and the speaker

may fall off, causing personal injury.

· Check to confirm that the suspension wires and belts are strong

enough to withstand the speaker load.

· The connectors of the suspension wires and belts must be

securely linked with those of the speaker.

· All parts and components (such as enclosures, metal pieces,

and screws) must be free from any deformation, crack, and

corrosion.

· Be sure to use screws supplied with the optional flying hardware

when installing the speaker using such hardware.

• Install the unit only in a location that can structurally support the

weight of the unit and the speaker. Doing otherwise may result in

the unit falling down and causing personal injury and/or property

damage.

• Since the unit is designed for in-door use, do not install it

outdoors. If installed outdoors, the aging of parts causes the unit

to fall off, resulting in personal injury.

• Do not use other methods than specified to mount the bracket.

Extreme force is applied to the unit and the unit could fall off,

possibly resulting in personal injuries.

• Tighten each nut and bolt securely. Ensure that the bracket has

no loose joints after installation to prevent accidents that could

result in personal injury.

• Use the specified speaker in combination. Doing otherwise may

cause the unit or component to fall off, resulting in personal injury.

• Avoid touching the unit's sharp metal edge to prevent injury.

• Do not put your weight on, nor hang down from the unit as this

may cause it to fall down or drop, resulting in personal injury

and/or property damage.

• Have the unit checked periodically by the shop from where it was

purchased. Failure to do so may result in corrosion or damage to

the unit or speaker that could cause the unit to fall, possibly

causing personal injury.

WARNING

Indicates a potentially hazardous situation which, if

mishandled, could result in death or serious personal injury.

CAUTION

Indicates a potentially hazardous situation which, if

mishandled, could result in moderate or minor personal injury,

and/or property damage.

Applicable Speaker SR-H2L, SR-H2S, SR-H3L, SR-H3S

Finish Rolled steel plate, white, paint

Weight 630 g (1.39 lb)

Component Suspension bracket ........... 1

Pull-back bracket ............... 1

Spacer (wood) ................... 1

Accessories Hex bolt M5 x 25 (with washer) ........ 2

Hex bolt M5 x 40 (with washer) ........ 2

Spacer

Suspension bracket

Hex bolt M5 x 40

(supplied with the SR-FB3)

Speaker

(rear)

Speaker (rear)

Pull-back bracket

Hex bolt M5 x 25

(supplied with the SR-FB3)

Unit: mm

(inches)

105 (4.13)

15 (0.59)

16.8 (0.66)

16-ø10

(16-ø0.39)

Speaker body

Suspension bracket

Pull-back bracket

2-ø10 (ø0.39)

10 (0.39)

The figure shows an example

of the SR-H3S installation.

Wire

Suspension

bracket

Within 10 ° Within 10 °

Within 30 °

Pull-back bracket

[Side]

[Front]

Wire

Suspension bracket

[Side]

Tips

The downward angle increases as the

suspension point is moved backward.

The figure shows an example of the

SR-H3S installation.

Within 10 °

[Front]

Mounting positions of the Suspension bracket and

Pull-back bracket

[SR-H2L] [SR-H2S] [SR-H3L] [SR-H3S]

Suspension bracket

Hex bolt M5 x 40

(supplied with the

SR-FB3)

Pull-back bracket

Hex bolt M5 x 25

(supplied with the SR-FB3)

Note

Remove the attached screws.

The removed screws are not used.

Notes

• Only 1 speaker can be suspended using the SR-FB3.

(Never use the SR-FB3 to suspend the linked speakers.)

• Adjust the wire length so that uniform load is applied to each wire.

• When suspending the speaker, the angle of the suspension wires

must be within 10° from the vertical axis.

• When pulling the speaker up and back for adjusting the downward

angle, the inclination angle of the speaker’s rear surface must be

within 30° from the vertical axis.

[Two-wire suspension method]

[Suspension hole dimensional diagrams]

[Four-wire suspension method]
