Side 1/24

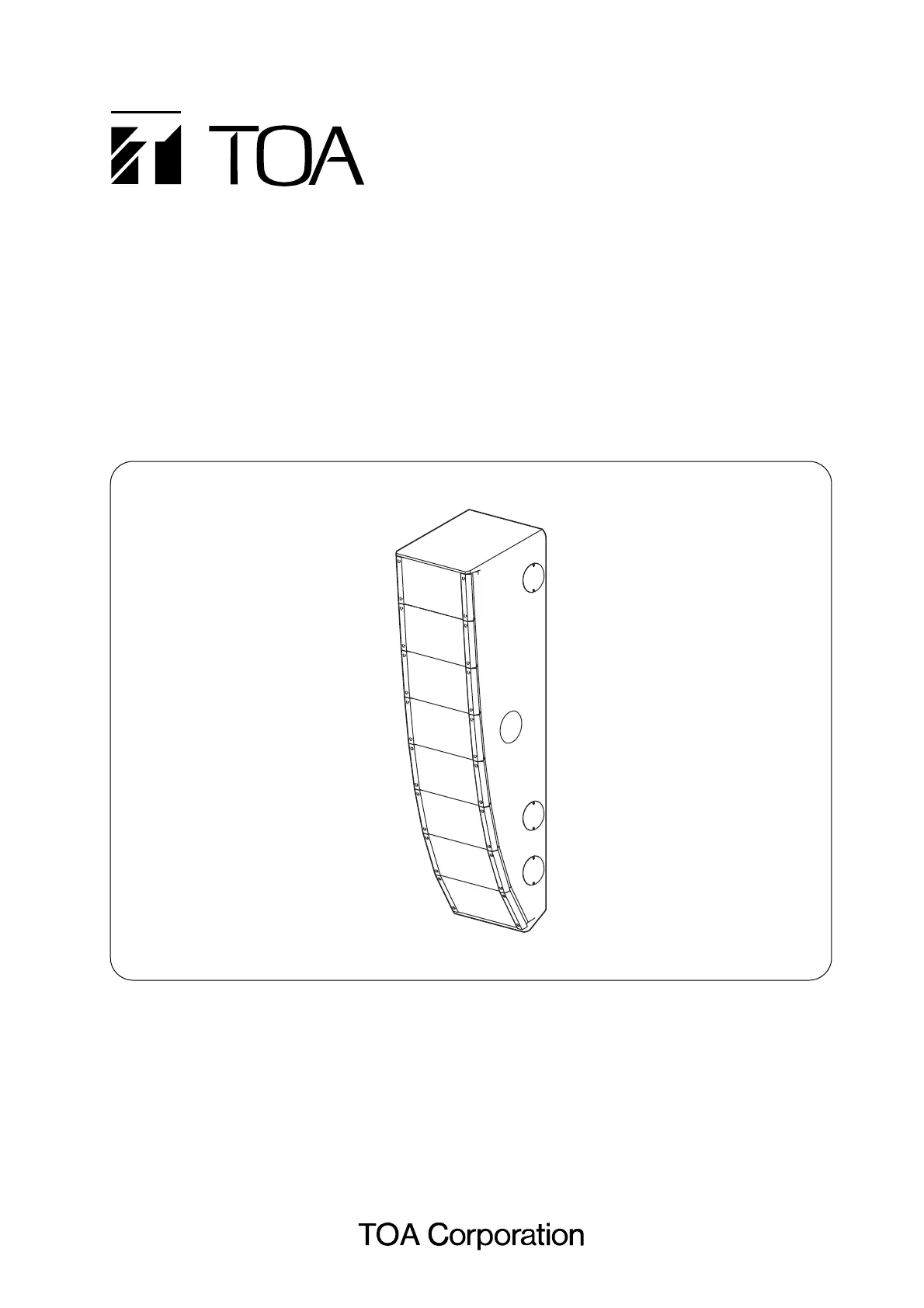

OPERATING INSTRUCTIONS

LINE ARRAY SPEAKER

WALL PAN BRACKET (optional)

SR-T5

SR-PB5

Thank you for purchasing TOA's Line Array Speaker.

Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

TABLE OF CONTENTS

1. SAFETY PRECAUTIONS ................................................................................. 3

2. GENERAL DESCRIPTION .............................................................................. 5

3. FEATURES ........................................................................................................... 5

4. NOMENCLATURE AND DIMENSIONAL DIAGRAMS

4.1. SR-T5 Line Array Speaker

4.1.1. Speaker .................................................................................................... 6

4.1.2. Mounting Bracket A (accessory) .............................................................. 6

4.1.3. Mounting Bracket B (accessory) .............................................................. 6

4.2. SR-PB5 Wall Pan Bracket (Optional)

4.2.1. Pan bracket A (Quantity: 2) ...................................................................... 7

4.2.2. Pan bracket B (Quantity: 2) ...................................................................... 7

5. INTERNAL WIRING DIAGRAM AND

INPUT OVER-VOLTAGE PROTECTION CIRCUITRY ............................ 7

6. INPUT TERMINAL CONNECTION ............................................................... 8

7. CHANGING TO HIGH IMPEDANCE ............................................................ 9

8. BEFORE INSTALLING THE SPEAKER

8.1. Anchor Bolt Mounting Dimensions ................................................................... 12

8.2. Speaker Cable Outlet Position When Installing the SR-T5 Flat against Wall .. 12

9. MOUNTING TO THE WALL

9.1. When Installing the SR-T5 Using the Supplied Mounting Bracket Only

(Downward angle adjustable)

9.1.1. Coverage area ....................................................................................... 13

9.1.2. Rough installation plan ........................................................................... 14

9.1.3. Installation procedure ............................................................................. 14

9.2. When Installing the Speaker in Conjunction with the Optional SR-PB5

(Both horizontal and downward angles adjustable)

9.2.1. Rough installation plan ........................................................................... 18

9.2.2. Installation procedure ............................................................................. 18

10. SPECIFICATIONS

10.1. SR-T5 Line Array Speaker ............................................................................. 24

10.2. SR-PB5 Wall Pan Bracket (optional) .............................................................. 24
