Side 1/1

Speaker mounting bracket (B)

(component of the SR-WB4WP)

Attach the speaker mounting bracket (A)

to the lower part of the speaker.

[When facing the speaker toward the left]

Speaker mounting bracket (A)

(component of the SR-WB4WP)

Screws removed in Step 2.

(with the waterproof washers)

Pad

Note

Take care not to remove the pad

when mounting the speaker.

[When facing the speaker toward the right]

Speaker

Bracket base: 2 pieces

(component of the SR-WB4WP)

Hexagon head bolt M8 x 20

(supplied with the SR-WB4WP)

4, 7

Screw slot

Allow the space for inserting

the bracket base.

Hexagon head bolt M8 x 20

(supplied with the SR-WB4WP)

Speaker mounting bracket (B)

(component of the SR-WB4WP)

Remove the 16 attached screws with waterproof washers

(in upper and lower parts on both sides of speaker).

(The removed screws are used in Step 3.)

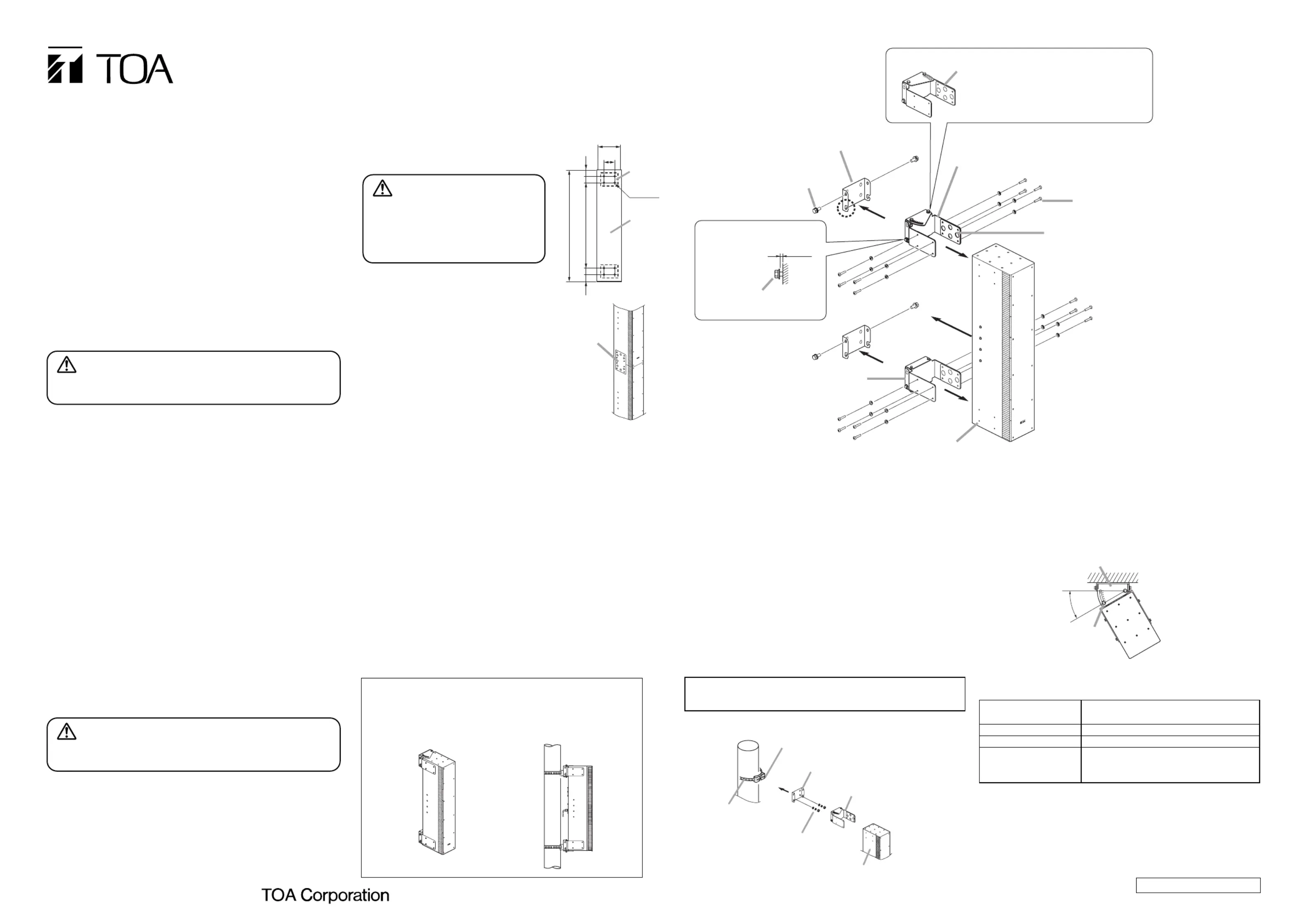

INSTALLATION MANUAL

WALL MOUNTING BRACKET

SR-WB4WP

The SR-WB4WP is designed to be used exclusively to mount the

SR-S4LWP Line Array Speaker. It allows the speaker orientation

angle to be adjusted to 30° max. horizontally. Using the optional

SR-EP4WP Extension Plate, it can joint up to 2 speakers.

In Combination with the optional SP-131 Speaker Mount Bracket

and YS-60B Pole Band, the SR-TB4WP also permits the speaker

to be mounted on an outdoor pole.

1. SAFETY PRECAUTIONS

•Before installation or use, be sure to carefully read all the

instructions in this section for correct and safe operation.

•Be sure to follow all the precautionary instructions in this section,

which contain important warnings and/or cautions regarding

safety.

•After reading, keep this manual handy for future reference.

4. SPECIFICATIONS

• Accessories

Hexagon head bolt M8 x 20

(with washer)

........ 8

• Optional products

Extension plate: SR-EP4WP, Speaker mount bracket: SP-131,

Pole band: YS-60B

Note: The design and specifications are subject to change without

notice for improvement.

Step 1. Fix the bracket base on a wall.

Mounting pitch differs depending

on whether 1 or 2 speakers are

mounted.

2. INSTALLATION

Extension Plate

SR-EP4WP

(optional)

•Refer all installation work to the dealer from whom the unit was

purchased. Installation requires extensive technical knowledge

and experience. The speaker may fall off if incorrectly installed,

resulting in possible personal injury.

•Install the unit only in a location that can structurally support the

weight of the unit and the speaker. Doing otherwise may result in

the speaker falling down and causing personal injury and/or

property damage.

•Owing to the speaker's size and weight, be sure that at least two

persons are available to install the speaker. Failure to do so

could result in personal injury.

•Do not use other methods than specified to mount the bracket.

Extreme force is applied to the unit and the speaker could fall off,

possibly resulting in personal injuries.

•Use nuts and bolts that are appropriate for the wall's structure

and composition. Failure to do so may cause the speaker to fall,

resulting in material damage and possible personal injury.

•Tighten each nut and bolt securely. Ensure that the bracket has

no loose joints after installation to prevent accidents that could

result in personal injury.

•Do not mount the unit in locations exposed to constant vibration.

The mounting bracket can be damaged by excessive vibration,

potentially causing the speaker to fall, which could result in

personal injury.

Indicates a potentially hazardous situation which, if mishandled,

could result in death or serious personal injury.

WARNING

Indicates a potentially hazardous situation which, if mishandled, could

result in moderate or minor personal injury, and/or property damage.

CAUTION

•Avoid touching the unit's sharp metal edge to prevent injury.

•Do not stand or sit on, nor hang down from the unit as this may

cause it to fall down or drop, resulting in personal injury and/or

property damage.

•Have the unit checked periodically by the shop from where it was

purchased. Failure to do so may result in corrosion or damage to

the unit that could cause the unit to fall, possibly causing

personal injury.

Step 2. Remove the screws on both

sides of the speaker.

When jointing 2 speakers,

use the optional SR-EP4WP

Extension Plate.

For speaker joint, refer to the

instruction manual enclosed

with the SR-S4LWP Line

Array Speaker.

Note

Up to 2 speakers can be joined and mounted.

Never join more than 2 speakers.

Step 3. Attach the speaker mounting bracket (A) and (B) to the

speaker.

When facing the speaker toward the right, attach

Bracket (A) to the upper part of the speaker and

Bracket (B) to the lower part. Conversely, when facing

the speaker toward the left, attach Bracket (B) to the

upper part and Bracket (A) to the lower part.

Step 4. Fix the hexagon head bolts (1 each on both sides of

upper and lower brackets) loosely to the speaker

mounting bracket.

Step 5. Connect a speaker cable to the speaker.

Step 6. Insert the loosely fitted bolts into the bracket base's

screw slots.

Step 7. Tighten the hexagon head bolts (1 each on both sides

of upper and lower brackets) to securely fix the

speaker brackets.

At the same time tighten 4 loosely fixed bolts in step 4.

Bracket base

Speaker

160

1655738 (1637)

895 (1793)

31 55

12 x 17

Unit: mm

[Wall mounting dimensions]

Loosen the angle adjustment bolts (2 each of upper and lower

brackets) of the speaker brackets to determine the speaker

orientation.

The speaker brackets are marked in 5º for angle reference

purposes.

3. ADJUSTING THE SPEAKER ORIENTATION

Speaker mounting bracket (A)

Horizontal facing angle

Maximum 30°

[When facing the speaker toward the right]

Angle adjustment bolt

(2 each of upper and

lower brackets)

[Finished assembly view]

• Example of pole

mounted application

• Example of wall

mounted application

Bolts and nuts used to fix a bracket

base on a wall are not included. Use

bolts and nuts that are appropriate

for the construction of wall.

WARNING

Number of Speakers Max. 2 (when jointed with an optional

to be Mounted SR-EP4WP)

Finish Stainless steel (SUS304)

Weight 4.3 kg (including accessories)

Product Composition Speaker mounting bracket A ...... 1,

Speaker mounting bracket B ...... 1,

Bracket base ...... 2

133-01-440-4A

URL: http://www.toa.jp/

2.1. Mounting on a Wall

( ): Dimensions when joining 2 speakers

Speaker mounting bracket

(component of the SR-WB4WP)

Speaker

Bracket base

(component of the SR-WB4WP)

YS-60B Pole Band

(optional)

Bolt

(supplied with the SP-131)

Washer, Nut

(supplied with the SP-131)

2.1. Mounting on a Pole

The optional SP-131 Speaker Mount Bracket and YS-60B Pole

Band are required to mount the speaker on a pole.

Step 1. Attach the SP-131 to the Bracket base using the lower

screw holes in the base.

Step 2. Install the SP-131 on a pole using the YS-60B.

Determine the mounting position according to the

"Wall mounting dimensions."

The allowable pole diameter is 90 – 340 mm.

For the detailed mounting procedures of the SP-131

and YS-60B, see the instruction manual enclosed with

the SP-131.

Note

Tighten the loosely fixed

bolts after finishing angle

adjustment.

The subsequent procedures follow Step2 or later in the

section "2.1. Mounting on a Wall."
