Side 1/12

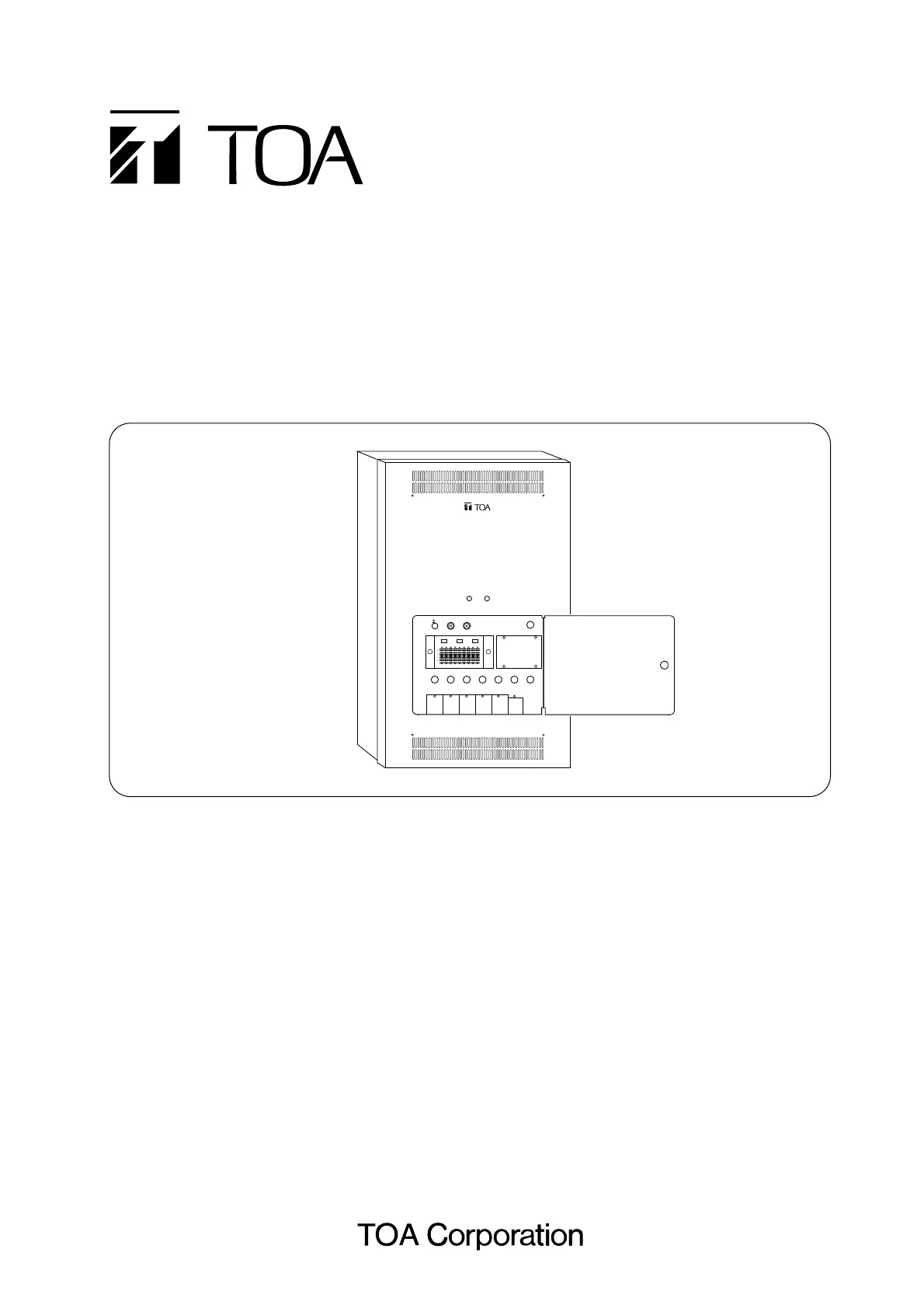

OPERATING INSTRUCTIONS
NEW 900 SERIES
IN-WALL MIXER POWER AMPLIFIER
W-906A
W-912A
INPU T 1
POWER
ON 250V 3A 250V 6A
OFF
OFF MAX
INPU T 2 INPU T 3
AC FUS E
OFF ON
LOW PA SS
OFF ON
HIGH P ASS
OUT
63 125 250 500 1k 2k 4k 8 k 16k
63 125 250 500 1k 2k 4k 8 k 16k
IN
EQUALIZ ER
OU T PU T FUSE CO MPRE SSO R
INPU T 4 INPU T 5 INPU T 6 MAST ER
12
6
0
6
12
12
6
0
6
12
900 SERIES
WALL AMP LIFIER
POWER P EAK
Please follow the instructions in this manual to obtain the optimum results from this unit.
We also recommend that you keep this manual handy for future reference.
1. GENERAL DESCRIPTION ............................ 2
2. FEATURES .................................................... 2
3. NOMENCLATURE AND FUNCTIONS
Front .............................................................. 3
Front (
viewed with the front cover removed
) .... 4
4. INSTALLATION AND CONNECTION .......... 5
5. SERVICING .................................................... 8
6. OPERATION ................................................ 8
7.
HOW TO USE VOLUME CONTROL COVER
.... 9
8. OUTPUT EQ CHARACTERISTIC ............. 10
9. BLOCK DIAGRAM .................................... 10
10. SPECIFICATIONS ..................................... 11
Accessories ................................................ 12
TABLE OF CONTENTS
2
1. GENERAL DESCRIPTION
The TOA W-906A and W-912A Mixer Power Amplifiers control and mix up to six independent input signals
plus two inputs with use of expanding kit. The W-906A delivers up to 60 W of output power and the W-912A
120 W. Optional accessory modules are available for use with the W-906A and W-912A to provide versatility
for a wide range of operating applications. Edge connectors at the bottom of the front panel permit the
selection of the TOA plug-in modules: The H-01 series, H-02 series, H-03 series, H-21 and H-22 Microphone
Preamplifiers, the E-01 series and E-11 series Mag. Phono Preamplifiers, the X-01 series, X-11 series and X-
21 Auxiliary Preamplifiers for high-level sources, the B-01 series and B-11 series Bridging Transformers for
bridging high-impedance lines, the L-01 series Line Matching Transformers for matching 600 lines, I-01Ω
Paging Input for combining with TOA Intercom Systems EXES-1000, EXES-5000 and EX-16, T-01 series Line
Outputs for matching 600 lines and the S-01, S-02 and S-03 Tone Signal Generators for generatingΩ
attention-getting signals and 1 kHz sine wave for testing within the total system. Other features include a
muting function. Sources fed to particular input module accessories are muted by short-circuiting at MUTE
TERMINALS on the front. To perform this function, Module E-11, X-11 series or B-11 series is required. Using
any of the modules H-21, H-22 and X-21 permits the input signal level to be controlled remotely by means of
an external potentiometer.
The W-906A and W-912A have a built-in one-octave graphic equalizer with 9 bands to tailor sound system
frequency response to room acoustics, reducing feed-back tendencies and improving intelligibility. A built-in
compressor circuit is provided to protect the output level from distortion as a result of excessive input and
keeps it constant. Compressor's threshold level can be adjusted.
The W-906A and W-912A Mixer Power Amplifiers have output terminals to match 4 or 8 speaker systems,Ω
or speaker distribution system may be connected to the 25 or 70 V terminals. User's (blank) space is provided
for additional functions to be made by the customers. The expanding kit (optional) may be loaded in this space
when the number of input is increased. Protection against tampering is assured by means of a key-locked
hinged door. The W-906A and W-912A can be mounted in any four-inch wall with of the BX-9F Flush
Mounting Black Box. On-wall mounting is also possible with the BX-9S Surface Mounting Box.
2. FEATURES
• 6-channel mixer power amplifier
• Expandable to 8-input
• Output power: 120 W for W-912A, 60 W for W-906A
• Wide frequency response: 30 to 20,000 Hz ±1dB
• Low distortion and noise
• Excellent output regulation
• Built-in one-octave equalizer
• Built-in compressor
• Self-protection circuitry design
• Separate output terminals: 4 and 8 , 25 and 70 VΩ
• Extra space for customizing
• LED pilot light
• LED peak indicator
• Full range of plug-in modules
• Flush and surface mounting
