Side 1/7

IK-6420A

1-1

- 3 -

•The CAUTION label, shown on the left,

is attached on the camera.

CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK.

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightening flash with arrowhead

symbol, within an equilateral triangle,

is intended to alert the user to the

presence of uninsulated “dangerous

voltage” within the product’s enclosure

that may be of sufficient magnitude to

constitute a risk of electric shock to

persons.

The exclamation point within an

equilateral triangle is intended to alert

the user to the presence of important

operating and maintenance (servicing)

instructions in the literature

accompanying the appliance.

WARNING :

TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, DO NOT EXPOSE

THIS APPLIANCE TO RAIN OR

MOISTURE.

CAUTION :

CONNECT 24V AC UL LISTED CLASS 2

POWER SUPPLY.

FIELD INSTALLATION MARKING :

THIS INSTALLATION SHOULD BE

MADE BY A QUALIFIED SERVICE

PERSON AND SHOULD CONFORM TO

ALL LOCAL CODES.

FCC (USA)-INFORMATION

NOTE : This equipment has been tested and found to comply with the limits for a Class A

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when the equipment is operated in a

commercial environment. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications. Operation of this equipment in a residential

area is likely to cause harmful interference in which case the user will be required to correct the

interference at his own expense.

USER-INSTALLER CAUTION : Your authority to operate this FCC verified equipment could

be voided if you make changes or modifications not expressly approved by the party.

- 2 -

1. Read Instructions

All the safety and operating instructions should be

read before the product is operated.

2. Retain Instructions

The safety instructions and instruction manual should

be retained for future reference.

3. Warnings

Comply with all warnings on the product and in the

instruction manual.

4. Follow Instructions

Follow all operating and use instructions.

5. Cleaning

Disconnect this video product from the power supply

before cleaning.

6. Attachments

Do not use attachments not recommended by the

video product manufacturer as they may cause

hazards.

7. Water and Moisture

Do not use this video product near water. Some

examples are: near a bath tub, wash bowl, kitchen

sink, or laundry tub, in a wet basement, or near a

swimming pool.

8. Accessories

Do not place this video product on an unstable cart,

stand, tripod, bracket or table. The video product may

fall, causing serious injury to a person, or serious

damage to the product. Use only with stand, tripod,

bracket, or table recommended by the manufacturer,

or sold with the video product. Any mounting of the

product should follow the manufacturer’s instructions,

and should use a mounting accessory recommended

by the manufacturer.

9. Ventilation

This video product should never be placed near or

over a radiator or heat register. If this product is placed

in a built in installation verify that there is proper

ventilation so that the camera temperature operates

within the recommended temperature range.

10. Power Sources

This video product should be operated only from the

type of power source indicated on the information

label. If you are not sure of the type of power supply

at your location, consult your product dealer.

11. Power-Cord Protection

Power cords should be routed so that they are not

likely to be walked on or pinched by items placed upon

or against them. Pay particular attention to cords at

plugs, screws and the point where they exit the

product.

12. Installation

Install this video product on a secure part of the ceiling

or wall. If installed on a unsecured location the camera

could fall causing injury and damage.

13. Lightning

For additional protection on this video product during

a lightning storm, or when it is left unattended and

unused for long periods of time, unplug it from the

wall outlet and disconnect the power supply and cable

system. This will prevent damage to the video product

due to lightning and power-line surges. If lightning

occurs, do not touch the unit or any connected cables

in order to avoid electric shock.

14. Overloading

Do not overload the power supply or extension cords

as this can result in a risk of fire or electric shock.

15. Object and Liquid Entry

Never push objects of any kind into this video product

through openings as they may touch dangerous

electrical points or short-out parts that could result in

a fire or electrical shock. Never spill liquid of any kind

on the video product.

16. Servicing

Do not attempt to service this video product yourself

as opening or removing covers may expose you to

dangerous electrical or other hazards. Refer all

servicing to qualified service personnel.

17. Damage Requiring service

Disconnect this video product from the power supply

and refer servicing to qualified service personnel

under the following conditions.

a. When the power-supply cord or plug is damaged.

b. If liquid has been spilled, or objects have fallen into

the video product.

c. If the video product has been exposed to rain or

water.

d. If the video product does not operate normally by

following the operating instructions in the instruction

manual. Adjust only those controls that are covered

by the instruction manual as an improper adjustment

of other controls may result in damage and will often

require extensive work by a qualified technician to

restore the video product to its normal operation.

e. If the video product has been dropped or the cabinet

has been damaged.

f. When the video product exhibits a distinct change

in performance which indicates a need for service.

18. Replacement Parts

When replacing parts be sure the service technician

uses parts specified by the manufacturer or have the

sa me characteristics as the original par t.

Unauthorized substitutions may result in fire, electric

shock or other hazards.

19. Safety Check

Upon completion of any service or repairs to this video

product, ask the service technician to perform safety

checks to determine that the video product is in proper

operating condition.

IMPORTANT SAFEGUARDS

SECTION 1 GENERAL DESCRIPTION

IK-6420A

1-2

- 5 -

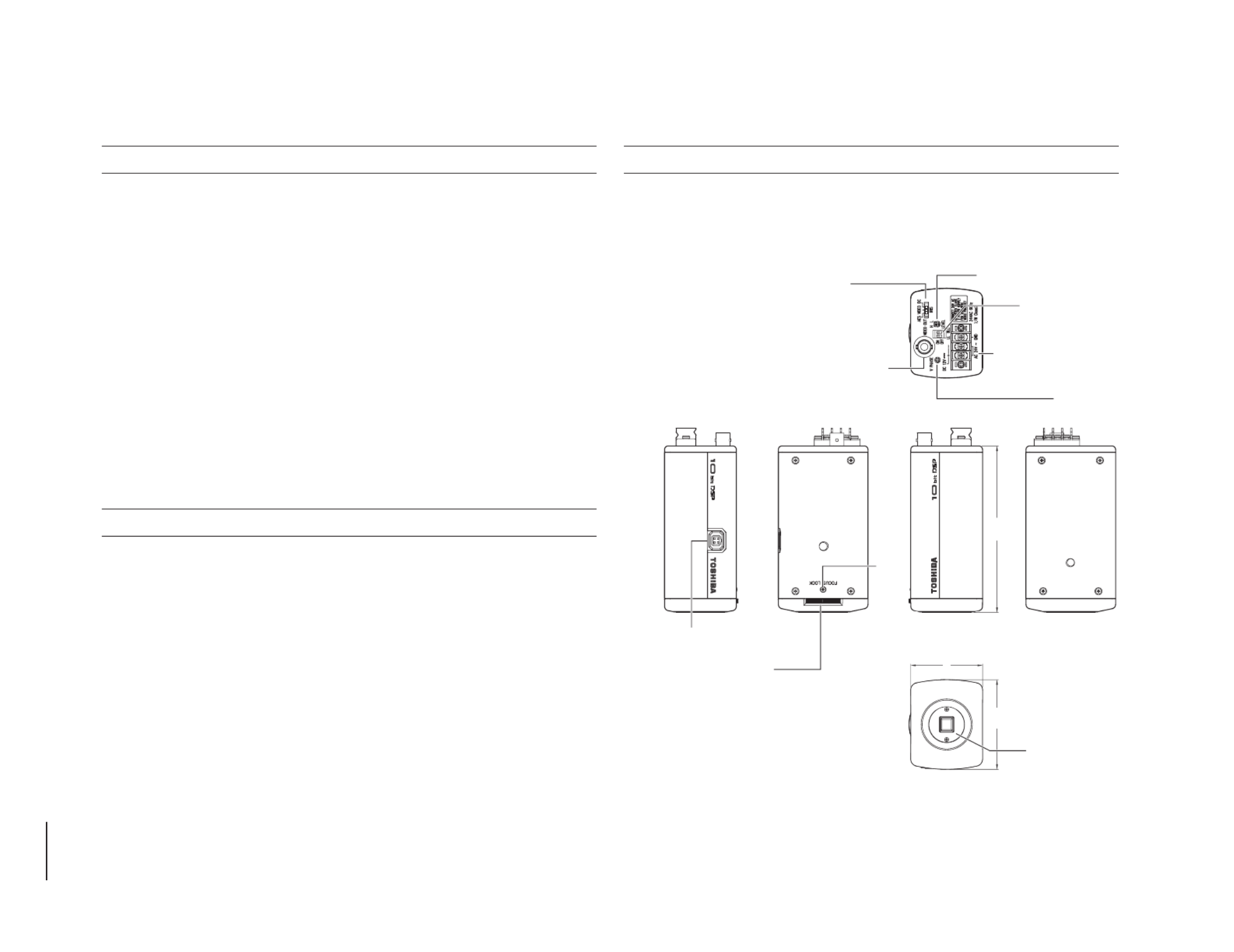

3. PART NAMES AND FUNCTIONS

116 (4.57)

50 (1.97)

63 (2.48)

Left side View

Top View

Right Side View

Bottom View

Front View Rear View

Lens:

Mount a CS-mount lens.

24V AC/12V DC

power terminal

Video output terminal:

connect to a TV monitor, etc.

AES / VIDEO / DC select switch:

AES : Auto electronic shutter function.

VIDEO : When using Al lens (with amp).

DC : When using AI lens (without amp).

LEVEL:

DC - Type AI Lens

adjustment trimmer

Select switch :

Line Lock mode ON/OFF

BLC ON/OFF

V PHASE :

Line-Lock Phase

adjustment trimmer

Auto-IRIS Terminal

Focus ring:

Rotate the ring to

appropriate setting.

Focus Lock Screw

Dimensions : mm (inch)

- 4 -

1. FEATURES AND DESCRIPTION

1. 24V AC/12V DC dual-voltage capable extends power choice.

2. Camera has the ability to automatically switch the display to color in daylight or black and

white at night.

3. Camera synchronization mode is selectable between internal and line-lock.

4. The shutter speed is automatically adjusted according to the subject brightness.

5. Back Light Compensation (BLC) adjusts for strong backlight conditions.

6. White balance is automatically adjusted depending on color temperature variations (AWB)

7. Easy back focus adjustment for an easy installation.

8. Built-in 1/3 inch high – resolution CCD.

9. Minimum illumination of 0.2 lux at F1.2. (IK-6210A)

Minimum illumination of 0.2 lux at F1.0. (IK-6410A, IK-6420A)

10. S/N ratio of 50dB.

11. Horizontal resolution of 540 TVL (IK-6420A).

Horizontal resolution of 480 TVL (IK-6410A).

Horizontal resolution of 350 TVL (IK-6210A).

2. COMPONENTS

(1) Camera ............................................. 1

(2) Accessories ...................................... 1

(a) Lens Connector (E.Y.C-221) ........ 1

(b) Instruction Manual ....................... 1

Produkt Specifikationer

Mærke:	Toshiba
Kategori:	Overvågningskamera
Model:	IK-6420A
Vægt:	350 g
Wi-Fi:	Ingen
Format til analogt signal:	NTSC
Strømforbrug (typisk):	4 W
Driftstemperatur (T-T):	-10 - 50 °C
Maksimal opløsning:	- pixel
Dimensioner (BxDxH):	62.5 x 116.07 x 50 mm
Effektkrav:	24V AC, 12V DC
Hvidbalance:	Automatisk
Sensortype:	CCD
Minimumsbelysning:	0.2 Lux
Optisk sensorstørrelse:	1/3 "
Kameraets lukkerhastighed:	1/100000 sek./side
Signal/støjforhold:	50 dB
Overholdelse af branchestandarder:	UL 2044, FCC Class A, RoHS
Antal TV-linier:	540
