10/100 Mbps WDM Media Converter

Enlarge Your Ethernet Network

LED Explanation

On: Power on

O:

Power o

PWR

On: Valid link

Flashing: Transmitting or receiving data

O: Invalid link

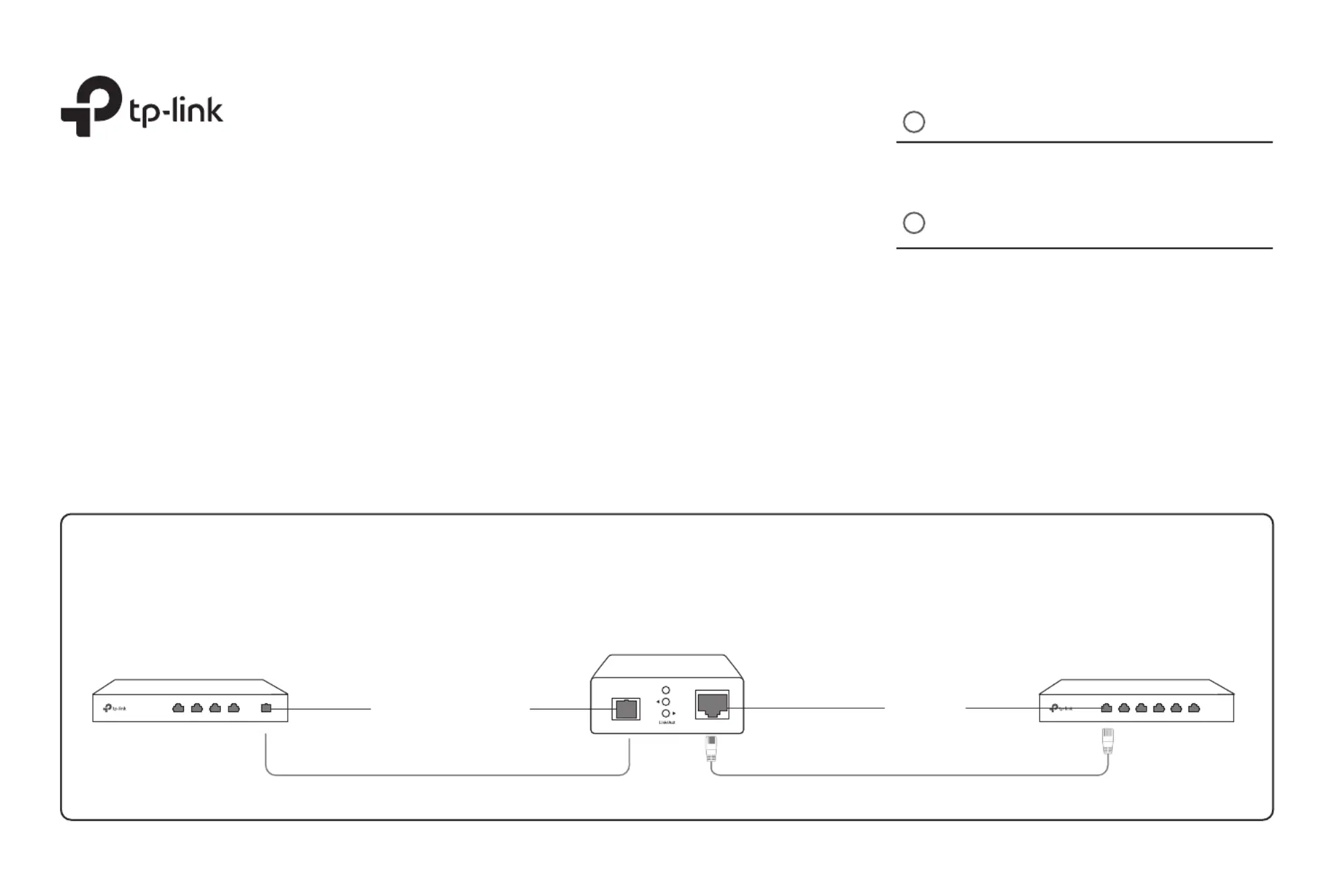

Scenario 1: Connect Devices with and without Optical Interfaces

LC-SC Fiber Cable

Ethernet Device

with Optical Interfaces

Twisted-Pair Cable

Ethernet Device

without Optical Interfaces

Media Converter

Fast Ethernet

100BASE-X (Fiber) Interface

10/100M

PWR

Link/Act

Package Contents: Converter, Power Adapter, Installation Guide

EU declaration of conformity

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/30/EU,

2014/35/EU, 2009/125/EC, 2011/65/EU and (EU)2015/863.

The original EU declaration of conformity may be found at https://www.tp-link.com/en/ce.

Safety Information

Keep the device away from water, re, humidity or hot environments.

Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.

Do not use damaged charger or USB cable to charge the device.

Do not use any other chargers than those recommended.

Adapter shall be installed near the equipment and shall be easily accessible.

Do not point or stare directly into the beam or into the optical port of the transceiver when it is operating, as this can injure your eyesight.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due

to improper use of the device. Please use this product with care and operate at your own risk.

Note: Please use one TL-FC111A-20 and one TL-FC111B-20 to work properly.

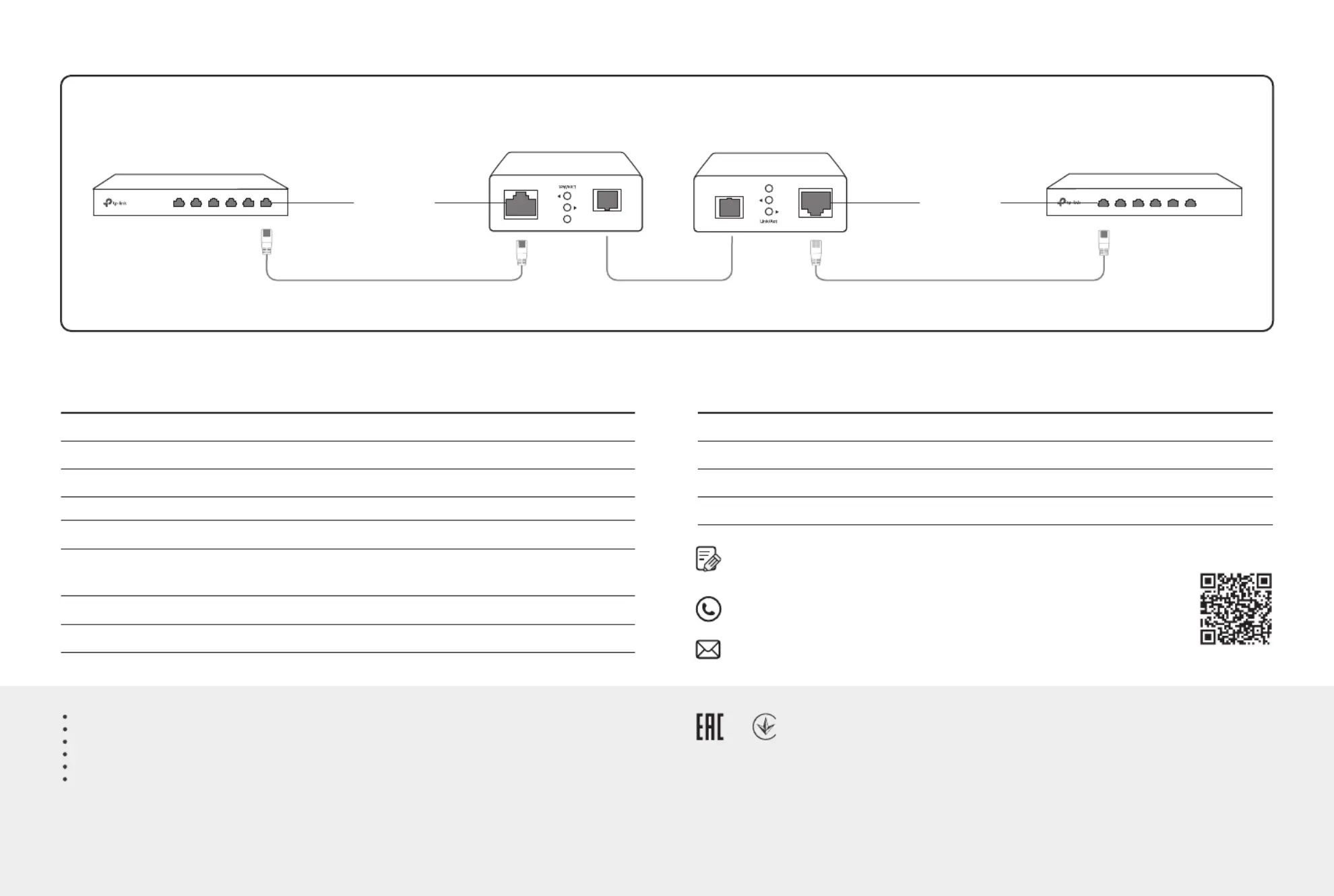

Scenario 2: Connect Devices without Optical Interfaces

SC-SC Fiber CableTwisted-Pair Cable Twisted-Pair Cable

Ethernet Device

without Optical Interfaces

Media Converter Media Converter

Ethernet Device

without optical Interfaces

10/100M

General Specifications Environmental and Physical Specifications

Specications

0 C to 50 C (32 F to 122˚ ˚ ˚ ˚F)

-40˚C to 70˚C (-40˚F to 158˚F)

5% to 90% RH non-condensing

10% to 90% RH non-condensing

Operating Temperature

Storage Temperature

Storage Humidity

Operating Humidity

IEEE 802.3, IEEE 802.3i, IEEE802.3u

Standards

1 SC ber optic; 1 RJ45 jackConnector

Twisted-Pair

100BASE-Tx: 2-pair UTP/STP of Cat. 5 or above (≤100 m)

External Power Adapter: 5 V/0.6 APower

TL-FC111A-20: 1550 nm TX, 1310 nm RX

TL-FC111B-20: 1310 nm TX, 1550 nm RX

Wave Length

Dimensions 94.5*73*27 mm

Fiber

9/125 μm single-mode ber (≤20 km)

For technical support and other information, please visit

https://www.tp-link.com/support, or simply scan the QR code.

If you have any suggestions or needs on the product guides, welcome

to email techwriter@tp-link.com.cn.

To ask questions, find answers, and communicate with TP-Link users or

engineers, please visit https://community.tp-link.com to join TP-Link

Community.

PWR

Fast Ethernet

PWR, Link/ActLED
