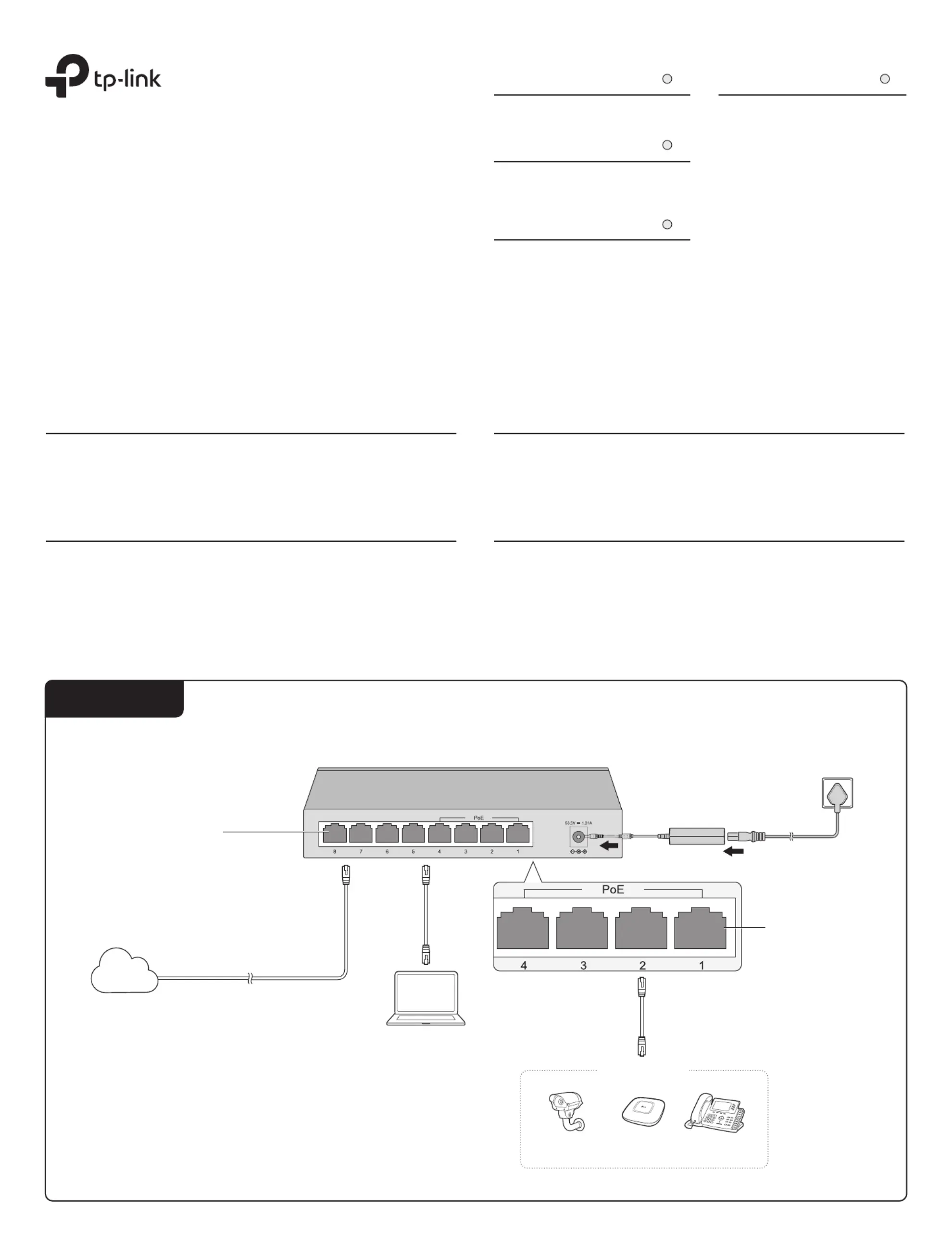

Installation Guide
Connection
Unmanaged Desktop PoE+ Switch
PC
Ethernet Ports (1-8)
PoE Ports (1-4)
1. PoE ports can also connect to non-PoE devices, but only transmit data.
Note:
2. TL-SL1311MP/TL-SL1311P has three uplink ports, which typically connect to uplink devices like routers.
Uplink 1 is an SFP slot and works with a 1000 Mbps SFP module. Uplink 2 and uplink 3 are RJ45 ports.
Internet
Link/Act
On: Link present but no activity
Flashing: Transmitting/receiving data
O: No link
PoE Status
On: PoE power provided
Flashing: Current-overload/ Short-circuit
O: No PoE power provided
Power
On: Power on
O: Power o
© 2024 TP-Link 7106510937 REV7.4.0
LED Explanation
DC Power Adapter
AC Power Cord
Switches Explanation
Note: For simplicity, we will take TL-SF1008P for example throughout the Guide.
O: Ports run at 10/100 Mbps and support PoE power supply up to 100 m away.
On: Ports run at 10 Mbps and support PoE power supply up to 250 m away.
Extend (for TL-SF1008LP/TL-SF1008P/TL-SF1009P/TL-SL1311P/TL-SL1311MP)
PoE MAX
TL-SF1008LP
O: Total power supply < 34 W
On: 34 W ≤ Total power supply < 41 W
Flashing: Total power supply ≥ 41 W
TL-SF1008P
O: Total power supply < 59 W
On: 59 W ≤ Total power supply < 66 W
Flashing: Total power supply ≥ 66 W
TL-SF1009P/TL-SL1311P
O: Total power supply < 58 W
On: 58 W ≤ Total power supply < 65 W
Flashing: Total power supply ≥ 65 W
TL-SL1311MP
O: Total power supply < 117 W
On: 117 W ≤ Total power supply < 124 W
Flashing: Total power supply ≥ 124 W
O: The PoE Auto Recovery function is disabled.
On: The switch will constantly detect the working status of a PoE powered device (PD). When
the switch nds that the PD works abnormally, the switch will reboot it.
Recovery (For TL-SF1008LP/TL-SF1008P/TL-SF1009P/TL-SL1311P/TL-SL1311MP)
O: Ports can transmit data with each other.
On: Specc ports cannot transmit data with other downlink ports. They can transmit data
only with the uplink ports.
Isolation (For TL-SF1009P/TL-SL1311P/TL-SL1311MP)
O: All the ports transmit data with the same priority.
On: Port 1 and 2 transmit data in a higher priority than other ports. When congestion
occurs, packets which are transmitted by the ports with higher priority occupy the whole
bandwidth.
Priority (For TL-SF1008LP/TL-SF1008P/TL-SF1009P)
Note: The numbers in brackets indicate the ports where the feature takes eect. For example, when Extend(1-4) is toggled to On, the Extend mode will be enabled for ports 1-4.
IP Camera AP IP Phone
Powered Device (PD)
TP-Link hereby declares that the device is in compliance with the essential requirements and other
relevant provisions of directives 2014/30/EU, 2014/35/EU, 2011/65/EU and (EU)2015/863.
The original EU declaration of conformity may be found at https://www.tp-link.com/en/support/ce/
EU declaration of conformity
General Specications
Specications
IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE802.3at
IEEE802.3ab (Only for TL-SL1311P and TL-SL1311MP)
IEEE802.3z (Only for TL-SL1311P and TL-SL1311MP)
CSMA/CD
TL-SF1008LP/TL-SF1008P:
8 10/100 Mbps RJ45 Ports Auto-Negotiation/Auto MDI/MDIX
PoE Ports: Port 1–4
TL-SF1009P:
9 10/100 Mbps RJ45 Ports Auto-Negotiation/Auto MDI/MDIX
PoE Ports: Port 1–8
TL-SL1311P/TL-SL1311MP:
8 10/100 Mbps RJ45 Ports Auto-Negotiation/Auto MDI/MDIX
2 10/100/1000 Mbps RJ45 Ports Auto-Negotiation/Auto
MDI/MDIX
1 1000 Mbps SFP slot
PoE Ports: Port 1–8
10BASE-T:
UTP category 3, 4, 5 cable (maximum 100 m)
EIA/TIA-568 100
Ω
STP (maximum 100 m)
100BASE-TX:
UTP category 5, 5e cable (maximum 100 m)
EIA/TIA-568 100
Ω
STP (maximum 100 m)
1000BASE-T (Only for TL-SL1311P and TL-SL1311MP):
UPT category 5e cable or above (maximum 100m)
EIA/TIA-568 100
Ω
STP (maximum 100 m)
1000BASE-SX/LX/LX10/BX10 (Only for TL-SL1311P and
TL-SL1311MP): MMF, SMF
TL-SF1008LP/TL-SF1008P: 1.6 Gbps
TL-SF1009P: 1.8 Gbps
TL-SL1311P/TL-SL1311MP: 7.6 Gbps
Store-and-Forward
Automatically learning, automatically aging
External Power Adapter
Input: 100-240 VAC, 50/60 Hz
Output:
TL-SF1008LP: 53.5 VDC/0.81 A
TL-SF1008P/TL-SF1009P/TL-SL1311P: 53.5 VDC/1.31 A
TL-SL1311MP: 53.5 VDC/2.43A
TL-SF1008LP: 41 W (up to 30 W for each PoE port)
TL-SF1008P: 66 W (up to 30 W for each PoE port)
TL-SF1009P/TL-SL1311P: 65 W (up to 30 W for each PoE port)
TL-SL1311MP: 124 W (up to 30 W for each PoE port)
TL-SF1008LP/TL-SF1008P/TL-SF1009P: 105 mm
TL-SL1311P/TL-SL1311MP: 150 mm
Standard
Wall Mountable
Distance Between
Mounting Holes
Network Media (Cable)
Interface
Switching Capacity
Protocol
Power Supply
Transfer Method
MAC Address Learning
Safety Information
Keep the device away from water, re, humidity or hot environments.
Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
Place the device with its bottom surface downward.
Do not use damaged charger or USB cable to charge the device.
Do not use any other chargers than those recommended.
Adapter shall be installed near the equipment and shall be easily accessible.
The plug on the power supply cord is used as the disconnect device, the socket-outlet shall be easily
accessible.
The socket-outlet shall be installed near the equipment and shall be easily accessible.
PoE Budget
Frequently Asked Questions (FAQ)
The Power LED should be lit when the power system is working normally. If the Power LED is
not lit, please check as follows:
A1:
Make sure the AC power cord is connected the switch with power source properly.
A2:
Make sure the voltage of the power supply meets the requirements of the input voltage
of the switch.
A3:
Make sure the power source is on.
Q1. The Power LED is not lit.
It is recommended that you check the following items:
A1:
Make sure that the cable connectors are rmly plugged into the switch and the device.
A2:
Make sure the connected device is turned on and working well.
A3:
The cable must be less than 100 meters long (328 feet). If Extend Mode is enabled, it
should be less than 250 meters (820 feet).
Q2. The Link/Act LED is not lit when a device is connected to the
corresponding port.
When the total power consumption of connected PoE devices exceeds the maximum, the
PoE port with a smaller port number has a higher priority. The system will cut o power to
the ports with larger port numbers to ensure supplying to other ports.
Take TL-SF1008P as an example. If port 1, 2 and 4 are consuming 15.4 W respectively, and
an additional PoE device with 20 W is inserted to port 3, the system will cut o the power of
port 4 to compensate for the overload.
Q3. Why are PoE ports not supplying power for PoE devices?
For technical support and other information, please visit
https://www.tp-link.com/support, or simply scan the QR code.
To ask questions, find answers, and communicate with TP-Link users or
engineers, please visit https://community.tp-link.com to join TP-Link
Community.
A1:
Before upgrading a connected PoE powered device (PD), disable PoE Auto Recovery to
avoid the PD’s damage.
A2:
When a PD does not send data packets to the switch for a long period in certain
scenarios (e.g. an IPC in sleep mode), disable PoE Auto Recovery to avoid the PD
repeatedly rebooting.
Q4. What should I notice before using the PoE Auto Recovery
feature?
TP-Link hereby declares that the device is in compliance with the essential requirements and other
relevant provisions of the Electromagnetic Compatibility Regulations 2016 and Electrical Equipment
(Safety) Regulations 2016.
The original UK declaration of conformity may be found at https://www.tp-link.com/support/ukca/
UK declaration of conformity
Yes
Environmental and Physical Specications
FCC, CE, RoHS
0˚C to 40˚C (32˚F to 104˚F)
-40˚C to 70˚C (-40˚F to 158˚F)
10% to 90% non-condensing
5% to 90% non-condensing
Certication
Operating Temperature
Storage Temperature
Operating Humidity
Storage Humidity
