Transparent

Turntable

User Manual

Safety Instructions

TT—B/W

Designed and developed by Transparent™ | Stockholm, Sweden

https://transpa.rent transpa.rent

User Manual

Bruksanvisning

Manuel De L'utilisateur

Benutzerhandbuch

Manual De Usuario

ユーザーマニュアル

사용 설명서

小型透明扬声器用户手册

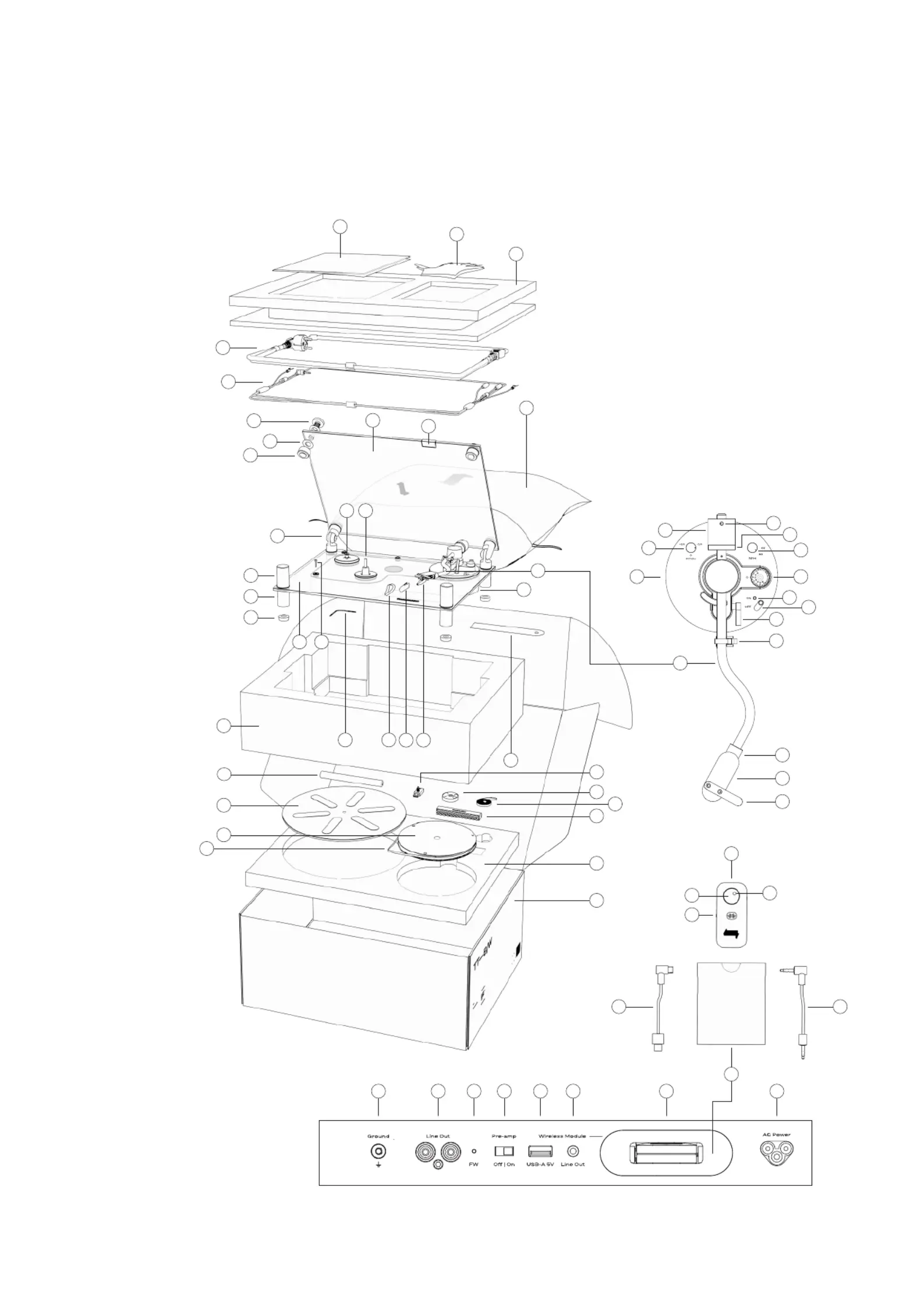

Parts

1. User Manual

2. Gloves

3. Top Buffer

4. Power Cable

5. Music Cable (RCA)

6. Product Bag

7. Dust Cover

8. Finger Grip

9. Pillar Screw x4

10. Washers x16

11. Top Pillars x2

12. Hinge Pillars x2

13. Front Pillars x2

14. Bottom Pillars x4

15. Rubber Feet x4

16. Plinth

17. Screws

18. Motor Pulley

19. Spindle

20. E Box

21. Tonearm

22. Tonearm Base Plate

23. Precision Speed / Pitch Knob

24. Tonearm Counterweight

25. Counterweight Set Screw

26. Counterweight Dial

27. Speed RPM Setting Knob

28. Anti Skating Knob

29. LED

30. On/Off Switch

31. Tonearm Lifting Lever

32. Tonearm Clip

33. Headshell Mount

34. Headshell

35. Tonearm Grip

36. Cartridge

37. Cartridge Cover

38. Rubber Band

39. Assembly Tool (Allen Key/Hex key)

40. Cartridge Alignment Tool

41. Middle Buffer

42. Cloth

43. Platter

44. Sub Platter

45. Rubber Belt

46. USB Ground Adapter

47. 45 RPM Adapter

48. Extra Rubber Belt

49. Record Brush

50. Bottom Buffer

51. Packaging

Introduction

The Transparent Turntable is a high quality vinyl record player. It is built by a tempered glass plinth and dust cover, with most structural parts crafted out of aluminium. These sturdy materials offer a rigid structure to

ensure a reliable playback over time.

The belt driven motor system is a reliable method to ensure a consistent playback over a long period of time, and there are precision speed and tracking controls for fine tuning the playback.

We have developed our own tonearm with a custom headshell that can hold any moving magnet cartridge with standard mounting holes, but even the headshell is modular by the standard SME connector.

The tonearm is operated by custom aluminium tonearm grip, lifting lever and clip.

The Transparent Turntable has a built in pre-amp. This means it can play directly to any modern (active) loudspeaker without the need of separate equipment. If you wish to use external amplifiers there is of course a

pre-amp on/off switch as well. The TT comes with music cables of course, but to ensure a timeless functionality of the turntable, we have developed a compartment for wireless modules as well. The first generation TT

comes with our pre-installed Bluetooth™ module so you can enjoy your vinyl records in a wireless playback if you wish. In future home demands the compartment is ready to adapt and upgrade to future needs.

The completely modular design, high quality build and upgradable nature of this products is part of Transparent’s circular design philosophy. It is not only about where all raw materials come from, but also about a plan

to make the product stay relevant over a long time to come.

52. Bluetooth Module

53. Bluetooth Button

54. Bluetooth LED

55. Bluetooth Transmitter / Receiver Switch

56. Wireless Module Holder

57. Wireless Module Power Cable

58. Wireless Module Sound Cable

59. Ground Screw

60. Line Out RCA

61. FW Check / Upgrade Button

62. Pre-amp On/Off
