2024 Alu Fuel EXe
1

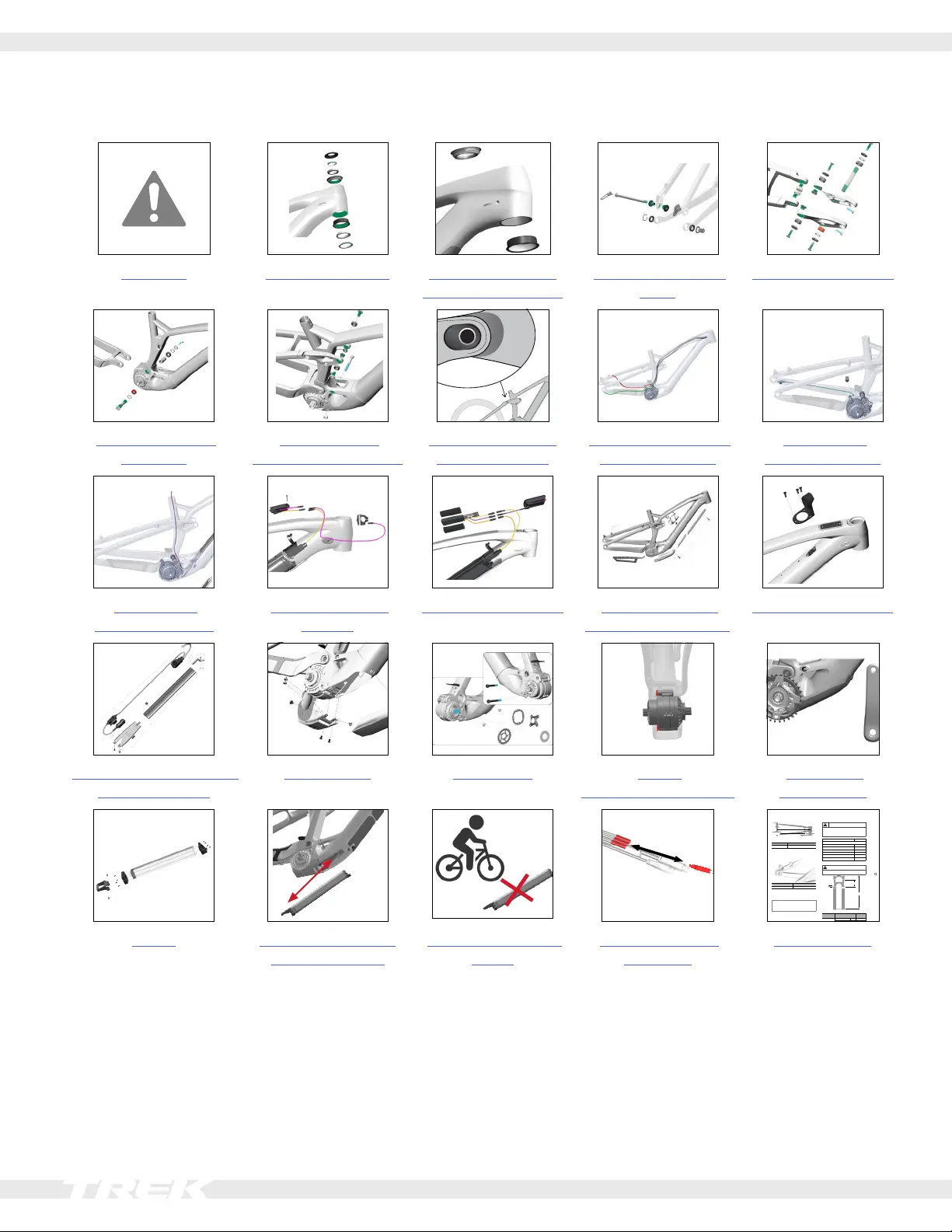

Indhold
Sikkerhed Justerbart headset Justering af geome-
trien — headsetvinkel
Active Braking Pivot
(ABP)
Vippeled og baggaffel
Hovedvippeled og
kædestag
Bagdæmper —
monteringsdele og mål
Justering af geome-
trien — Mino Link
Kabelføring: bremser
og mekanisk gear
Kabelføring:
hastighedssensor
Kabelføring:
dropper-sadelpind
Fjernbetjening og
displays
Kabelføring: AXS-gear Stelbeskyttere og
studser til vandasker
Dæksel til opladeport
Batterikabel, kabelbakke
og adgangspanel
Motordæksel Motorenhed Juster
kompensationsskuerne
Genmonter
pedalarmene
Specications
Chainline (1x only)
55mm
Chainring (1x only)
Minimum Maximum
30T 34T Round
Oval rings of any size are not recommended as they will
affect motor performance.
Rear brake mount
Minimum Maximum
180mm, direct mount Adaptable to 203mm
Maximum tire size
29" x 2.5"
Notice: Measurements of actual tires may vary. Always
verify there is sufcient clearance between the tire and
the frame. Improper tire size could damage the bicycle
frame. Trek recommends 6mm clearance above and on
the sides of the tire.
Seat post
WARNING
Always follow the seatpost manufacturer’s minimum
insertion recommendation. Failure to follow the recom-
mendation could cause damage to the seatpost and
result in injury to the rider.
Minimum insertion 75mm
Maximum insertion
Small 190mm
Medium 225mm
Large 250mm
Extra Large 285mm
Seat tube inside diameter 22.5mm
Seat tube post clamp outer diameter 39.7mm
Fork
WARNING
Exceeding the recommended maximum fork length could
damage the bicycle and result in injury to the rider.
Travel
Sag
Axle to Crown
Frame/Size Axle to Crown (mm) Travel (mm)
S, M, ML, L, XL Recommended 5 57 150
Maximum 567 160
Recommended sag: Refer to the suspension setup card
included with your bike or the suspension calculator at
Trekbikes.com/suspension-calculator.
TK_Fuel_Ex-e_ServiceManual_MY23.indd 18TK_Fuel_Ex-e_ServiceManual_MY23.indd 18 4/11/2022 4:17:10 PM4/11/2022 4:17:10 PM
Batteri Afmontering og mon-
tering af batteriet
Brug af cyklen uden
batteri
Tilslut lygter til TQ
Smart Box
Specikationer
Copyright 2023 Trek Bicycle Corporation Alle rettigheder forbeholdes
