OWNER’S MANUAL AND ASSEMBLY GUIDE

VAPOR SURGE CYCLE BIKE

IMPORTANT—PLEASE READ

All products shown are prototype. Actual product delivered may vary. Product specications, features, and software are subject to change without notice.

For the most up-to-date version of this manual, please see our website: https://truetness.com/services-support/user-manuals/

CONTACTING OUR SUPPORT TEAM

To contact TRUE for any of your pre or post installation questions, please call our toll-free numbers Monday - Friday 8:30am - 5:00pm (CST):

• Commercial Direct Customers and Corporate Accounts | 800.868.8783

• Retail Customers and Distributors | 800.883.8783

Or email us:

• Commercial Direct Customers and Corporate Accounts | service.direct@truetness.com

• Retail Customers and Distributors | service@truetness.com

• Service International | int.service@truetness.com

When contacting TRUE, please have the following information ready:

• Serial Number of Unit

• Contact Information—Full Name, Email, and Phone Number

• Address of Facility or Residence

• Detailed Description Regarding Symptom of the Unit (along with pictures or video if applicable)

NOTE: Authorized service providers, dealers, and distributors may also use TRUE’s online resource | portal.truetness.com.

CONTACTING OUR SALES TEAM

Interested in owning more TRUE products? Please contact us with any product inquires so that we may direct you to the appropriate sales representative to help answer

your questions.

• Phone | 800.426.6570

• Email | sales@truetness.com

• Hours | Monday - Friday 8:30am - 5:00pm (CST)

REPORTING FREIGHT CLAIMS OR PARTS DAMAGE

Unfortunately, sometimes materials can be damaged during shipment. If materials are damaged during shipment, please follow the guidelines below to determine the

appropriate process for you to follow.

Severe Damage—Obvious damage to external packaging and internal product.

Please refuse the shipment and it will be returned to TRUE by the carrier. Contact TRUE product support by calling 800.883.8783 or sales support by calling

800.426.6570 Monday-Friday during normal business hours to notify us that the shipment has been refused. Once we have received the damaged shipment, a

replacement shipment will be sent to you. If the shipment comes in multiple boxes, only refuse boxes with damage.

Slight Damage—Minimal damage to external packaging with unknown internal damage to product.

If the shipment has minimal damages and you are not sure if the actual product is damaged, you must sign the bill of lading as damaged when accepting the shipment.

Once you have opened the box and you have determined something is indeed damaged, please gather the serial number, model number, description of damage, and

photos of damage. Please make sure the photos include the damaged product as well as the damaged box the product arrived in. Contact TRUE product support

(service@truetness.com | 800.883.8783) or TRUE sales support (sales@truetness.com | 800.426.6570) Monday-Friday during normal business hours.

Concealed Damage—No damage to external packaging but internal damage to product.

You may receive a shipment that looks intact and discover once the box has been opened that there are hidden damages. Please notify the carrier immediately. TRUE

will not be able to le a claim if the carrier is not notied in a timely manner. Once you have called the carrier you will need to gather the serial number, model number,

description of damage, and photos of damage. Contact TRUE product support (service@truetness.com | 800.883.8783) or TRUE sales support (sales@truetness.com

| 800.426.6570) Monday-Friday during normal business hours.

SAFETY INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS—SAVE THESE

INSTRUCTIONS...............................................................................5

SPACE REQUIREMENTS..................................................................7

SPECIFICATIONS..........................................................................7

WARNING DECALS..........................................................................8

COMPLIANCES.............................................................................8

PROPER USE...................................................................................9

ASSEMBLY INSTRUCTIONS

PREASSEMBLY CHECKLIST...........................................................10

ASSEMBLY STEPS.........................................................................13

PRODUCT FEATURES

BASE OVERVIEW...........................................................................22

CONSOLE FEATURES....................................................................23

KEYPAD BUTTONS........................................................................26

SOFTWARE MANAGEMENT............................................................27

CARE AND MAINTENANCE

INSPECTION................................................................................29

CLEANING THE EQUIPMENT.........................................................29

LEVELING THE MACHINE..............................................................29

PREVENTATIVE MAINTENANCE....................................................30

LONG TERM STORAGE..................................................................30

BC1000 WIRING DIAGRAM.............................................................31

WARRANTY INFORMATION

COMMERCIAL WARRANTY ............................................................32

LIMITED-USE COMMERCIAL WARRANTY.......................................33

IN-HOME USE WARRANTY.............................................................33

WARRANTY DETAILS.....................................................................34

WARRANTY REGISTRATION...........................................................35

TABLE OF CONTENTS

SAFETY INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS—SAVE THESE INSTRUCTIONS

This equipment is intended for a commercial or institutional setting. This owner’s manual should be accessible to all personal trainers, faculty, and members.

• Read and understand all instructions and warnings prior to use.

• Obtain a medical exam before beginning any exercise program. If at any time during exercise you feel faint, dizzy, or experience pain, stop and consult your

physician.

• Obtain proper instruction prior to use.

• This unit is intended for commercial use only. Usage class: SC.

• This unit is intended for indoor use only.

• Inspect the unit for incorrect, worn, or loose components and do not use until corrected, replaced, or tightened prior to use.

• Do not wear loose or dangling clothing while using the unit.

• Care should be used when mounting or dismounting the unit.

• Read, understand, and test the emergency stop procedures before use.

• Disconnect all power before servicing the unit.

• Do not exceed maximum user weight of 350 lbs / 160 kg.

• Keep the top side of the moving surface clean and dry.

• Keep children and animals away.

• Use caution when moving and assembling unit.

• All exercise equipment is potentially hazardous. If attention is not paid to the conditions of equipment usage, death, or serious injury could occur.

WARNING: To reduce the risk of burns, re, and electric shock or injury to

persons, follow these instructions:

• Heart rate monitoring systems may be inaccurate. Over-exercising may result

in serious injury or death. If you feel faint, dizzy, or experience pain, stop

exercising immediately.

• Health related injuries may result from incorrect or excessive use of exercise

equipment.

• TRUE STRONGLY recommends seeing a physician for a complete medical

exam before undertaking an exercise program, particularly if the user has a

family history of high blood pressure or heart disease, is over the age of 45,

smokes, has high cholesterol, is obese or has not exercised regularly in the

past year. Additionally, TRUE recommends consulting a tness professional

on the correct use of this product.

• Equipment should be immediately taken out of use if it fails to work properly

or when a warning is presented electronically.

• When using this exercise machine, basic precautions should always be

followed.

• Use this equipment only for its intended use as described in this manual.

• This stationary training equipment is not suitable for high accuracy purposes.

• Do not move the equipment by lifting the console. Do not use the console as a

handlebar during a workout.

• This product can expose you to chemicals including Toluene and Acrylamide

which are known to the State of California to cause Cancer and birth defects

or other reproductive harm. For more information, go to www.P65Warnings.

ca.gov.

• Keep equipment stable on at ground.

• Risk of personal injury-crushing hazard when equipment is in operation. Keep

feet, hands, and ngers away from moving parts.

• Replace warning labels that may be worn, damaged, or missing.

• Replace any non-working or damaged components, remove the unit from

service until repair is performed.

• Do not operate the equipment while being covered with a blanket, pillow,

plastic, or anything that insulates or stops airow. Keep air openings free of

lint, hair or any obstructing material.

• Any changes or modications to this equipment could void the product

warranty.

• Do not use this product in areas where aerosol spray products are being used

or where oxygen is being administered. Such substances create the danger of

combustion and explosion.

• Do not use this product outdoors, near water, while wet, or in areas of high

humidity including extreme temperature changes.

• Wear shoes with rubber or high traction soles. Do not use shoes with heels, or

leather soles. Make sure no stones are embedded in the soles. Do not use this

product in bare feet. Keep all loose clothing, shoelaces, and towels away from

moving parts.

• When pedaling the equipment, foot straps must be used to help prevent

serious injury or death.

• Ensure the ywheel is free from any obstructions that would hinder

mechanical movement. Maintain a safe distance between the ywheel and all

body parts (e.g. ngers) and clothing to help prevent serious injury.

• The seat mount assembly must always meet the minimum insertion depth

notated on the shaft to help prevent serious injury or death.

• Use upper exercise arms to maintain balance when mounting and

dismounting the machine and for additional stability while exercising.

• Avoid the possibility of bystanders being struck or caught between moving

parts by making sure that they are out of reach of the equipment while it is in

motion.

• Always ensure that all adjustment devices are fully retracted or secured in

their proper position before starting to use the equipment.

• If any of the adjustment devices are left projecting, they could interfere with

the user’s movement.

• Avoid exiting the bike while the pedals are still in motion.

• The braking system is speed-independent.

• Do not use typing or web surng features at excessive speeds. Always

stabilize yourself when using typing or web surng features. (Varies by

console option.)

• Never place liquids of any type directly on the unit except in the accessory

tray or bottle holders. Containers with lids are recommended.

• Always follow the console instructions for proper operation.

• Use correct ergonomic positioning while operating this equipment.

• Allow only one person at a time on the equipment while it’s operating.

• Do not allow animals on or near the equipment while in operation.

• Do not reach into or underneath the unit, or tip it on its side during operation.

• Do not use if you have a cold or fever.

• This equipment is not intended for use by persons with reduced physical,

sensory, or mental capabilities, or lack of experience and knowledge, unless

they are supervised or have been given instruction concerning use of the

equipment by a person responsible for their safety.

• Children shall not play with the appliance.

• Close supervision is necessary when used near children under the age of 15,

or disabled persons.

• Cleaning and user maintenance shall not be made by children without

supervision.

• Do not use attachments not recommended by the manufacturer.

• Allow only trained personnel to service this equipment.

• It is the sole responsibility of the owner/operator to ensure regular and

scheduled maintenance is performed.

• This bike is self-generated and does not require the use of an electrical outlet

with the LCD console.

• The batteries within self-generated equipment contain materials that are

considered hazardous to the environment. Federal law requires proper

disposal of these batteries.

• Speed and power specications determined during testing for this product

exist within a range of plus or minus ten percent of the stated values.

SPACE REQUIREMENTS

TRUE recommends leaving a minimum of 24” (61cm) at the front and rear of the equipment and 39” (99cm) on each side of the equipment. Keep all sides away from the

wall or obstructions. The free area also includes the area for emergency dismount. Where equipment is positioned adjacent to each other, the value of the free area may

be shared.

39”

(99cm)

39”

(99cm)

24”

(61cm)

SPECIFICATIONS

• DIMENSIONS (L X W X H)

59” x 24” x 44” (150cm x 61cm x 112cm)

• MACHINE WEIGHT

112.5 lbs / 51 kg

• MAXIMUM USER WEIGHT

350 lbs / 160 kg

Live Training Area

Free Area

24”

(61cm)

WARNING DECALS

WARNING: Replace warning labels that may be worn, damaged, or missing.

To replace any worn or missing decals contact TRUE product support (service@truetness.com | 800.883.8783).

COMPLIANCES

This equipment complies with all applicable codes and regulations. For a complete list of compliances, please visit www.truetness.com.

SAMPLE

NOTE: The two numbers before the “-” refers to the year of manufacturing.

P/N 8100720

P/N 00709000

base serial

number location

PROPER USE

PROPER TRAINING POSITION

• Once seated, users should place their feet on the pedals (A).

• When pedaling, the user should be able to extend their legs fully while

pedaling; if users do not have enough room to fully extend their legs,

they should adjust their seat position (B) until their legs are able to

comfortably extend. Additionally, if users legs feel overly stretched

when they’re extended, the seat needs a lower adjustment.

• During a workout, the user’s hands must grasp the handlebars (C).

• To brake during a workout, toggle down the red brake lever (D) located

on the handlebar mount assembly.

ENTRY AND EXIT SAFETY

To Enter:

• Enter the machine from either side and sit on the seat.

• Grip the upper exercise arms or stationary handlebars.

• Place both feet on the pedals.

To Exit:

• Stop pedaling by slowing leg motion.

• Conrm the workout has ended and the console has returned to the

home screen

• Ensure the pedals have come to a complete stop.

• While rmly grasping the handlebars to maintain balance, slowly

slide your body off the seat and feet from the pedals to transition to a

standing position free from the bike.

• Exit the machine from either side.

Use caution when assembling this product.

Unpacking and assembling this product is a two person task.

CAUTION:

Use caution when unpacking this product. Avoid damage to the product.

DO NOT use a box cutter. DO NOT slice into the packaging.

VERIFY BOX CONTENTS

IMPORTANT! Please verify box contents. If you have questions, or if there are any

missing parts, contact product support (service@truetness.com | 800.883.8783).

Avoid damage to the product.

NEVER use an electric screwdriver to fasten the plastic shroud pieces.

TOOLS NEEDED FOR ASSEMBLY

INCLUDED

IN BOX

3mm, 4mm, and 6mm

Allen Wrenches

YES

13mm (qty 2), 15mm,

and 16mm Wrenches

#2 Phillips Screwdriver NO

ASSEMBLY INSTRUCTIONS

NOTE: Supplemental video available @TRUEFitnessservicevids.

PREASSEMBLY CHECKLIST

BASIC GUIDELINES FOR SETTING UP THE EQUIPMENT

After removing the equipment from the packaging, place the equipment on a clean, level surface.

BOX CONTENTS

ITEM PART NUMBER DESCRIPTION QTY

1 BC10100 MAINFRAME ASSEMBLY 1

2 BC10200 FRONT STABILIZER ASSEMBLY 1

3 BC10300 REAR STABILIZER ASSEMBLY 1

4 BC10220 FRONT COVER ASSEMBLY 1

5 BC10420 HANDLEBAR ASSEMBLY 1

6 BC1013014R RIGHT PEDAL 1

7 BC1013014L LEFT PEDAL 1

8 BC10510 SEAT FRAME ASSEMBLY 1

9 BC10520 SEAT PAD 1

10 BC10610 CONSOLE ARM ASSEMBLY 1

11 BC10620 CONSOLE BRACKET 1

12 8100726 CONSOLE 1

13 BC1000HW HARDWARE PACK, BC1000 1

14 MAN-BC1000-0A MANUAL, BC1000 1

ASSEMBLY STEPS

Step 1—Attach Front and Rear Stabilizer Assemblies

Parts Used in this Step

Item Part Description Qty

1 C 507A HHS, M10 X 25MM, SS 4

2 C 997 WASHER, FLAT, M10, SS 4

3 BC10200 FRONT STABILIZER ASSEMBLY 1

4 BC1011019 WASHER, CURVED, 18 X 8.5 X 6.5MM 4

5 C1093C WASHER, FLAT, M8, SS 4

6 C2000 HHS, M8 X 20MM, SS 4

7 BC10100 MAINFRAME ASSEMBLY 1

8 BC10300 REAR STABILIZER ASSEMBLY 1

Tools Used in this Step

16mm Wrench

13mm Wrench

A. Line up the front and rear stabilizer assemblies with

the mainframe assembly.

B. To help with alignment, insert and nger tight all

fasteners. DO NOT fully tighten yet.

C. Once all fasteners are nger tight:

• Use a 16mm wrench to fully tighten the M10 bolts.

• Use a 13mm wrench to fully tighten the M8 bolts.

Parts Used in this Step

Item Part Description Qty

1 BC1013014L LEFT PEDAL 1

2 BC1013014R RIGHT PEDAL 1

Tools Used in this Step

15mm Wrench

Step 3—Attach Right and Left Pedals

A. Attach the left and right pedals to the left and right crank arm assemblies by

lining up the pedal threads inside the corresponding holes on the crank arm

assemblies.

when using a torque wrench

= 100 N-M (74 FT-LB)

crank arm

assembly

NOTE:

• The left pedal is threaded into the left

crank arm assembly hole counter-

clockwise.

• The right pedal is threaded into

the right crank arm assembly hole

clockwise.

B. Securely fasten the pedals to the

crank arm assemblies. It is strongly

recommended to torque each pedal to

100 N-M (74 FT-LB).

Parts Used in this Step

Item Part Description Qty

1 BC1041020 SLIDE BRACKET 1

2 BC1041030 LOWER END CAP 1

3 C2004 SHCS, M4 X 10MM, SS 2

4 BC10420 HANDLEBAR ASSEMBLY 1

Step 4—Attach Handlebar Assembly

Tools Used in this Step

3mm Allen Wrench

A. Use a 3mm allen wrench to remove and set aside the M4 screws, lower

end cap, and slide bracket from the handlebar neck assembly.

B. Rotate the locking knob counter-clockwise to the unlocked position

and make sure the locking knob tab is parallel to the handlebar neck

assembly.

C. Pull up on the locking knob as you slide the handlebar assembly onto

the handlebar neck assembly.

D. Rotate the locking knob clockwise to the locked position.

E. Use a 3mm allen wench to reattach the slide bracket, lower end cap,

and M4 screws to the handlebar neck assembly.

handlebar neck

assembly

handlebar neck

assembly

locking

knob

locking knob

tab

Step 6—Attach Console Bracket and Arm Assembly

Parts Used in this Step

Item Part Description Qty

1 SM0025A SHCS, M8 X 50MM, BLK ZP 1

2 C1093C WASHER, FLAT, M8, SS 2

3 BC10620 CONSOLE BRACKET 1

4 SM0033A LOCK NUT, M8, NYL INS JAM NUT BLK ZP 1

5 BC10610 CONSOLE ARM ASSEMBLY 1

6 C1301A BHCS, M6 X 12MM, BLK ZP 4

7 SD0077 WASHER, LOCK M6 BLK ZP 4

Tools Used in this Step

4mm and 6mm Allen

Wrench

13mm Wrench

A. Connect the cables from the console arm

assembly to the cables from the handlebar neck

assembly:

• Black 3-pin potentiometer cables (BC10003

and BC10005)

• White 7-pin power/communication cables

(BC10003 and BC10005)

B. Carefully tuck the cables into the handlebar neck

assembly so they do not get pinched.

C. Finger tight the four M6 screws/washers

to attach the console arm assembly to the

handlebar neck assembly. When all four screws

are seated, use a 4mm wrench to fully tighten.

D. Use a 6mm wrench and 13mm wrench to attach

the console bracket to the console arm assembly.

potentiometer

cables

power/

communication

cables

Step 7—Attach Console

Tools Used in this Step

#2 Phillips

Screwdriver

Parts Used in this Step

Item Part Description Qty

1 8100726 CONSOLE 1

2 C10003A PHCS, M5 X 15MM, BLK ZP 4

A. Connect the cable from the console to the cable from the

console arm assembly: 10-pin power/communication cable

(BC100014 and BC10003).

B. Carefully tuck cable inside the console arm assembly so it does

not get pinched.

C. Seat the tab on the console bracket inside the notch on the

console.

D. Use a #2 Phillips screwdriver to attach the console to the

console bracket.

power/

communication

cables

Club Setting Description

CLUB UNIT Unit of Measurement—Press ENTER and then TIME (+)

or TIME (-) to scroll between miles and kilometers. Press

ENTER to save selection.

CLUB BELL Bell Volume—Sets the decibel level of the bell that

provides signals during workouts. The options are Off, 1

(softest), 2 or 3 (loudest), and the default value is 3. Press

ENTER, then TIME ( +) or TIME ( – ) keys to scroll through

the options. Press PAUSE CLEAR once to save your

selection and step back to scrolling mode.

CLUB Brit Brightness—Sets the brightness of the display. The

default value is 100. Press ENTER, then use the TIME ( +)

or TIME ( – ) keys to increase or decrease the brightness,

in 5% increments. Press PAUSE CLEAR once to save your

selection and step back to scrolling mode.

Step 9—Configure Console Settings

If desired, you can enter into the console software management functions

to adjust the Club (user) settings so they best suit your environment.

To access and navigate the console software management functions:

A. Press and hold both the TIME ( + ) and TIME ( – ) keys for three seconds,

or until you hear a bell.

B. Use the ( + ) key to scroll through the club setting described below.

C. Press ENTER to show the details of a function or make a change to a

user setting.

D. To exit, press PAUSE CLEAR until the console resets.

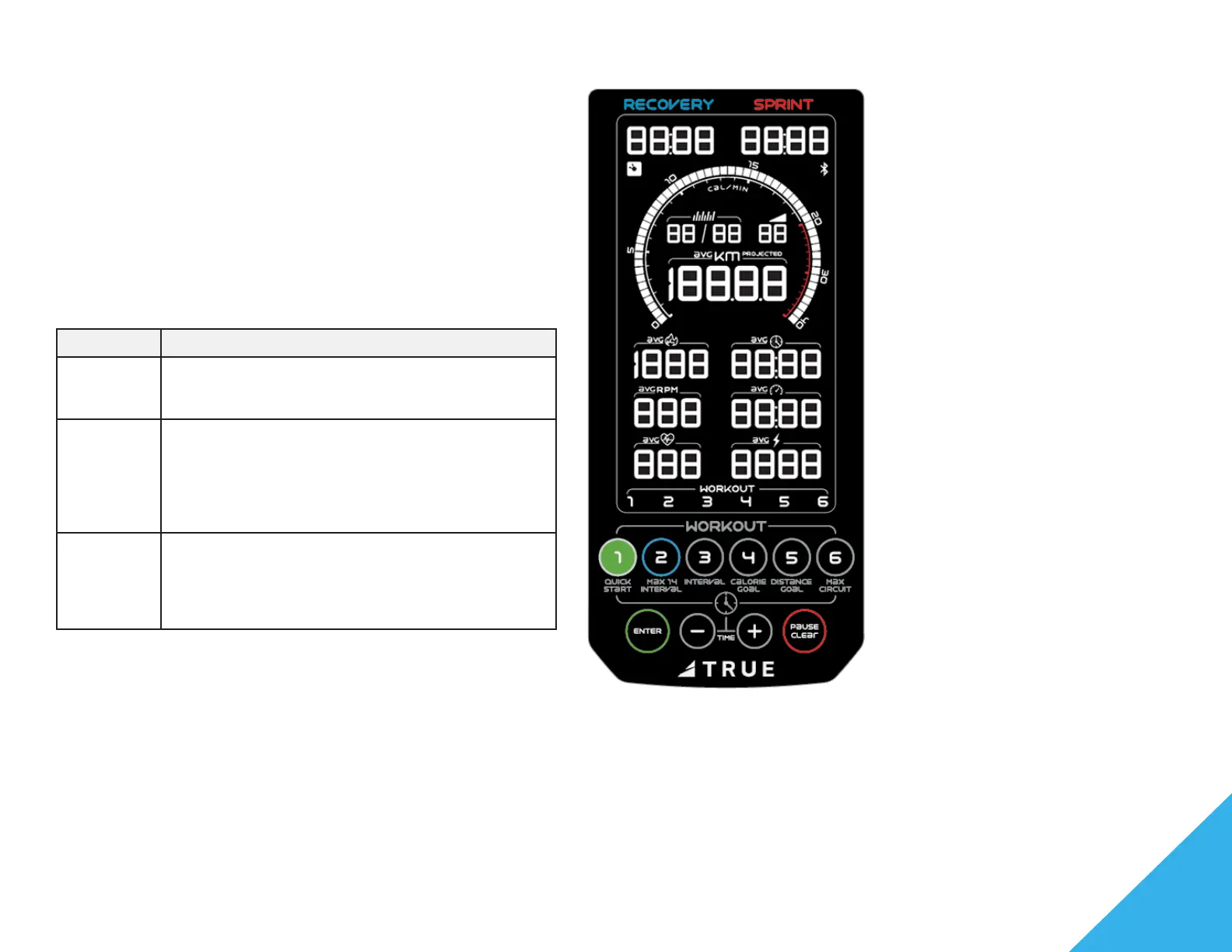

Sprint Session Clock

Counts down the time, in minutes and seconds, for the current sprint interval in the MAX 14 INTERVAL. Interval, or MAX CIRCUIT program. For MAX 14 INTERVAL, sprint

intervals are 25 seconds (0:25). For the Interval program, the default value is 30 seconds (0:30) and may be adjusted using the TIME (+ / –) keypad buttons to any value

between 0:05 and 9:55, in ve second increments. Press ENTER to save selections.

Bluetooth (BLTE) Indicator

When lit, this icon indicates that Bluetooth® wireless communications is active and detecting a signal from a heart rate monitor, tablet, or other device or app.

Resistance (Level)

Displays the Resistance Level (1-20), where 1 is the lowest resistance level and 20 is the highest. Use the resistance adjustment lever below the console to increase or

decrease your resistance level.

Calorie Tachometer

The calorie tachometer is the centerpiece of the LCD, giving you real-time feedback regarding your calories/minute burn rate, the peak calories/minute point of your

workout, and a “peak range” at +/- 20% of your peak point. During interval programs, this peak range of illuminated segments on the tachometer indicates your target

range surrounding your peak point.

Workout Time

Displays total workout time, counting up from 0:00. The timer goes up to 99 minutes:59 seconds, then the display rolls over to hours:minutes.

In the MAX 14 INTERVAL program, the default workout time is 14 minutes. Use the TIME (+ / -) keypad to select 3.5, 7, 21, or 28 minutes. Press ENTER to save the selected

value.

Speed

Displays your speed in miles per hour or kilometers per hour. Average speed is displayed during cool down following a programmed workout.

NOTE: The numeric value displayed for peed is an approximation based on the real-time workout data of the user.

Power

Displays the current estimate of power you are producing, in watts. Average estimated watts per minute (avg) and total estimated watts are displayed during cool down

following a programmed workout.

NOTE: The numeric value displayed for Power is an approximation based on the real-time workout data of the user.

Workout Summary

During a cool down phase after the completion of a programmed workout (MAX 14 INTERVAL, Interval, Calorie Goal, or Distance Goal), the following elds are displayed

on the LCD. (Where two values are listed, the values alternate on the display in two second intervals.)

• Peak calorie/minute achieved

• Total distance

• Average calories/minute and total calories

• Average RPM

• Average Speed

• Average heart rate and peak heart rate (if using a wireless heart rate monitor)

• Average estimated watts/minute and total estimated watts.

KEYPAD BUTTONS

QUICK START

The easiest way for you to start your workout is to begin pedaling, or press the QUICK START button, initiating a simple workout without intervals or a dened duration.

The workout timer counts up from 00:00. You may change the level of resistance using the resistance lever.

If you do not press any keypad button within six seconds after the console rst becomes active (such as when you rst step on the machine and move the pedals), then

you will automatically enter the QUICK START program.

MAX 14 INTERVAL

Press MAX 14 INTERVAL then press ENTER to begin a High Intensity Interval Training (HIIT) program with a pre-programmed duration and pre-set sprint and recovery

intervals of 25 and 80 seconds, respectively. The default program lasts 14 minutes; press enter when the Time ashes “14” to select this option.

You may choose a longer or shorter workout by pressing the TIME ( + ) or ( - ) button when the time value is ashing during setup. Options are 3.5 minutes, 7 minutes, 14

minutes (default), 21 minutes, or 28 minutes. Press ENTER to save your selection. The interval durations remain the same but the total number of intervals increases or

decreases according to the total time selected for the workout.

INTERVAL

1. Press Interval then press ENTER to program a custom interval program.

2. Program the sprint session time by pressing ENTER to accept the default value of 0:30, or press the TIME (+) or (-) buttons to select a time between 0:05 to 9:55 and

then press ENTER.

3. Program the recovery session time by pressing ENTER to accept the default value of 0:30, or press the TIME (+) or (-) buttons to select a time between 0:05 to 9:55

and then press ENTER.

4. Program the number of interval rounds by pressing ENTER to accept the default value of 00/08, or press the TIME (+) or (-) buttons to select a number of rounds

between 01 and 99, then press ENTER.

5. Enter weight by pressing ENTER to accept the default value of 150 lbs. (68 kg) and press ENTER to continue, or use the TIME ( + ) or ( – ) buttons to change the value

to any weight between 70 and 350 pounds (30 and 160 kilograms) and press ENTER to save the adjusted value.

CALORIE GOAL

1. Press CALORIE GOAL, and then press ENTER to quickly enter a program with a duration that you choose.

2. Program the workout duration by pressing Enter to accept the default value of 30:00, or press the TIME (+) or (-) buttons to select a time between 1:00 to 99:00 and

then press ENTER. The default value is 30:00.

3. Enter your weight by pressing ENTER twice to accept the default value of 150 lbs. (68 kg), or use the TIME (+ / -) buttons to change the value to any weight between

70 and 350 pounds (30 and 160 kilograms).

PREVENTATIVE MAINTENANCE

TRUE recommends that quarterly scheduled maintenance be performed by a qualied service technician. Please contact your dealer or visit www.truetness.com to

contact a local TRUE authorized service technician.

IMPORTANT! Use only TRUE Fitness certied service providers. Using non-authorized service providers could void the TRUE Warranty.

Frequency Tasks

Daily • Look and listen for slipping belts, loose fasteners, unusual noises, worn or frayed cables, and any other indications that the equipment may be in

need of service.

• Verify the pedals are at the correct torque specication and securely fastened.

• Use GymWipes™ Antibacterial wipes or spray a solution of 30 parts water to 1 part mild detergent to dampen a soft cloth and wipe all exposed

surfaces.

• Use a LCD/screen cleaner or spray a solution of 1 part 91% isopropyl alcohol and 1 part water to dampen a soft cloth and wipe the surface of the

console. This helps remove ngerprints, dust, and dirt.

Weekly • Vacuum any dust or dirt that might have accumulated under or around the machine.

Quarterly • Record time, distance, and hours from the console.

• Check error log in console.

• Remove shroud covers and vacuum any debris out of the speed sensor, control electronics and moving parts.

• Move and vacuum underneath the machine.

• Inspect all fasteners.

• Inspect all electrical connections.

• Inspect components for abnormal or premature wear.

LONG TERM STORAGE

When the bike is not in use for any length of time, ensure it is positioned so that it will not become damaged or interfere with people or other equipment.

BC1000 WIRING DIAGRAM

CONSOLE

8100726

ASSY, CABLE,

CONSOLE MAST,

SURGE BIKE, 10 PIN

BC100014

ASSEMBLY, CABLE,

UPPER FRAME

TO BASE, 7 PIN

BC10005

CABLE ASSY, CONSOLE TO

UPPER FRAME, 10 PIN

BC10003

ASSEMBLY, CABLE, GENERATOR

EXTENSION, 3 PIN

BC10007

ASSEMBLY, CABLE, BATTERY

EXTENSION/ FUSE, 2 PIN

BC100012

ASSEMBLY, POTENTIOMETER

BC1041014

ASSEMBLY, GENERATOR

BC1012030

SLA BATTERY,

12V 0.8AH

FP1208

FSD-F200MV2T01000BG

FUSE

FH1-208 FUSE HOLDER

TZI 018-A00512

JST VHR-8N

JST SMP-10V-BC

JST SMR-10V-B

JST SMR-03V-B

JST SMP-03V-BC

JST SMR-03V-B

JST SMP-03V-BC

JST SMR-03V-B

JST PALR-07V

JST PAP-07V-S

TE 1-480319-0

TE 1-480318-0

TE 1-480319-0

TE 1-480318-0

HuiRen Elec

WDD22P1-S00

SunUp

G12S03

JST SMP-02V-BC AUX

Connect to Pot

BC10003

BC100012

BC10007

BC10005

AUX

Connect

to Gen

Connect

to Battery

WARRANTY INFORMATION

CARDIO

WARRANTY ITEM VAPOR, APEX GRAVITY PLUS GRAVITY ADX, RO, SURGE

Frame* 7 Years 7 Years 7 Years 5 Years

Parts 3 Years 3 Years 3 Years 3 Years

Consoles 3 Years 3 Years 3 Years 2 Years

Labor** 2 Years 2 Years 1 Year 1 Year

Wear Items*** 180 Days 180 Days 180 Days 90 Days

STRENGTH

WARRANTY ITEM

PALLADIUM, FUSE XL, FORCE, FITNESS LINE,

ATLAS, XFT, XFW, MP, SM, FT, FS

Frame* 10 Years

Parts 5 Years

Cables and Linear

Bearings

1 Year

Labor** 1 Year

Wear Items*** 90 Days

FLEXIBILITY

WARRANTY ITEM STRETCH

Parts 1 Year

Wear Items*** 90 Days

COMMERCIAL WARRANTY

Warranty does not cover damage or equipment failure resulting from or caused

by improper assembly/installation, accident, misuse, abuse, unauthorized

modication, or failure to provide reasonable and necessary maintenance.

*Frame is the serialized base of the unit and does not include paint or

coatings.

**Labor is available for equipment located within United States and Canada.

***Wear Items include: batteries, covers, caps, badges, paint, pedal straps,

toe clips, elliptical pedal inserts, foot pads, Coax/TV, HDMI, USB, mirroring or

Ethernet connections, and safety key.

See Warranty Details for terms, conditions, and complete coverage details.

TRUEFITNESS.COM

service@trueﬁtness.com

800.883.8783

865 Hoff Road

St. Louis, MO 63366

MAN-BC1000-0A Owner’s Manual and Assembly Guide REV00

Produkt Specifikationer

Mærke:	True
Kategori:	Cykeltræner
Model:	Surge

Har du brug for hjælp?

Hvis du har brug for hjælp til True Surge stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Cykeltræner True Manualer

True Surge Manual

18 Juni 2025

True ADX Manual

17 Juni 2025

True UC2-0A-35 Manual

24 December 2024

True RC1-0A-35 Manual

24 December 2024

True UC3-0A-35 Manual

24 December 2024

True UC1-0A-35 Manual

24 December 2024

True RC3-0A-35 Manual

24 December 2024

True RC2-0A-35 Manual

24 December 2024

Cykeltræner Manualer

Nyeste Cykeltræner Manualer

Cecotec DrumFit Indoor 24000 Race Sprint Manual

3 August 2025

Taurus IC70 Smart Manual

25 Juli 2025

Cecotec DrumFit Indoor 13000 Race Sprint Manual

23 Juli 2025

Cecotec Drumfit Indoor 10000 Magnetic Connected Manual

23 Juli 2025

Cecotec DrumFit Indoor 6000 Compact Manual

23 Juli 2025

Cecotec DrumFit X-Bike 3000 Neo Pro Manual

23 Juli 2025

Cecotec Drumfit CrossFit 1000 Eolo Manual

23 Juli 2025

Cecotec DrumFit Indoor 13000 Race Manual

23 Juli 2025

Cecotec DrumFit Indoor 24000 Magnetic Connected Manual

23 Juli 2025

Cecotec DrumFit Cycle 9000 Talos Pro Manual

23 Juli 2025
