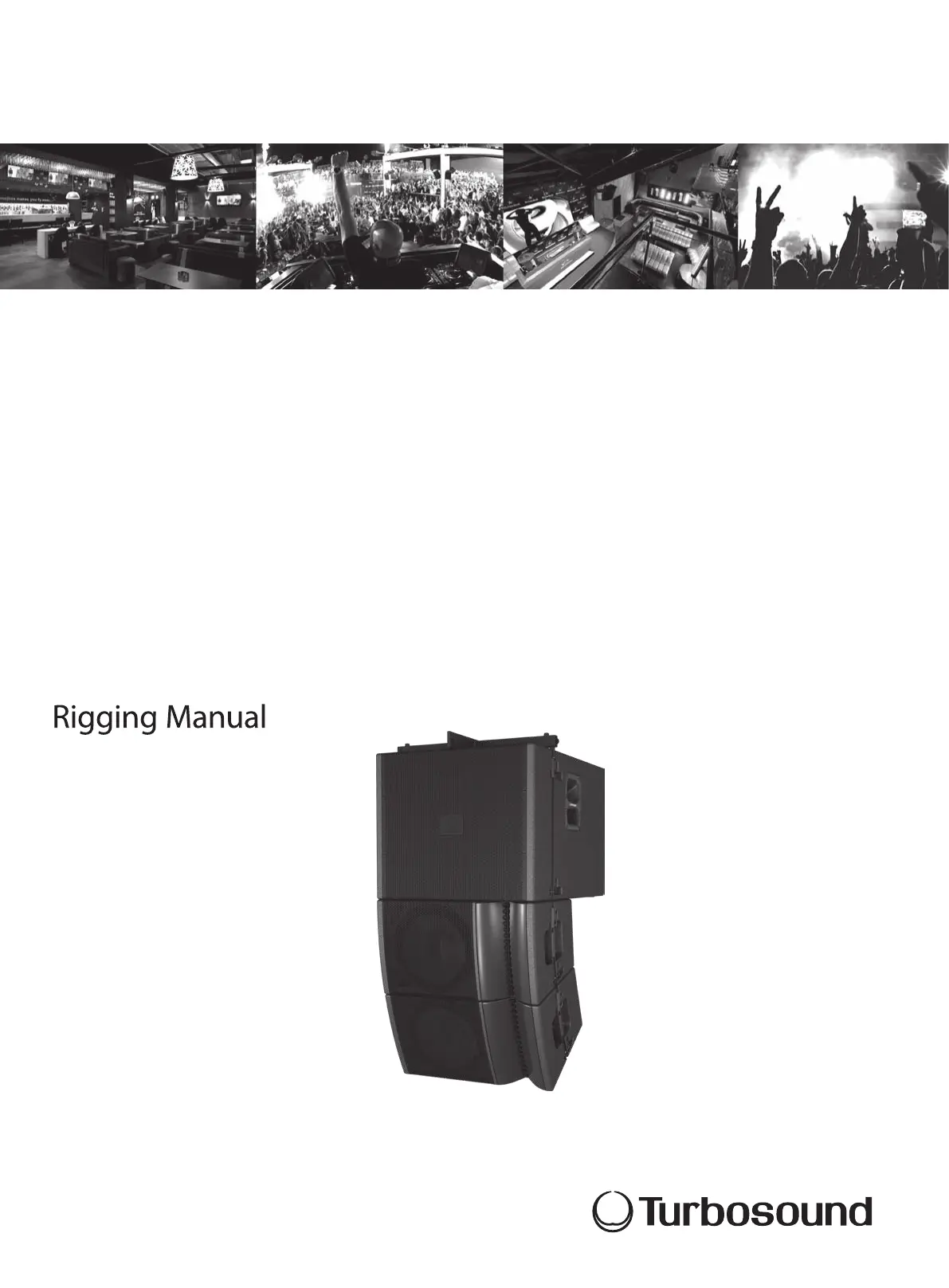

Side 1/50
TBV BERLIN SERIES
TBV118L
18" Front Loaded Subwoofer for Touring, Portable and Installation Applications
TBV123
Arrayable 2 Way 12" Constant Curvature Loudspeaker with
Dendritic Waveguide for Touring, Portable and Installation Applications
TBV118L-AN
18" Powered Subwoofer with KLARK TEKNIK DSP Technology and ULTRANET Networking
TBV123-AN
Arrayable 2 Way 12" Constant Curvature Loudspeaker with
Dendritic Waveguide, KLARK TEKNIK DSP Technology and ULTRANET Networking
TBV123-FB
Fly Bar for TBV BERLIN Series speakers for Flown or Ground Stacked Arrays
WARNING!
This rigging manual contains important safety information, and it must be kept in a safe place for future reference. It must be supplied with the equipment
during the original sale, rental, or re-sale, and all operators and users of the equipment must be made aware that this manual is available. Please visit our website
turbosound.com regularly and check for any updates to this manual.
2TBV123 / TBV123-AN and TBV118L / TBV118L-AN Rigging Manual
Table of Contents
Important Safety Instructions ..............................................................................................................3
Legal Disclaimer .....................................................................................................................................3
Limited warranty ....................................................................................................................................3
Chapter 1: Safety Information ..............................................................................................................4
Chapter 2: Introduction .........................................................................................................................6
Chapter 3: Assembling a TBV123 Array on a TBV123-FB Flybar .......................................................19
Chapter 4: Assembling a TBV118L Array on a TBV123-FB Flybar .....................................................22
Chapter 5: Assembling a Mixed Array on a TBV123-FB Flybar .........................................................25
Chapter 6: Assembling a TBV118L Ground Stack 28 ..............................................................................
Chapter 7: Assembling a TBV118L Subwoofer and TBV123 Ground Stack .....................................31
Chapter 8: Assembling a TBV123 Array Ground Stack ..................................................................... 34
Chapter 9: Pole Mounting a TBV123 Cabinet on a TBV118L Subwoofer .........................................37
Chapter 10: Assembling an Inverted TBV123 Array ..........................................................................39
Chapter 11: Using Eyebolts ..................................................................................................................45
Chapter 12: Safety Inspection .............................................................................................................47
Chapter 13: TBV Enclosure Quantities and Combinations for
TBV123-FB Flybar Suspension at 10:1, 7:1, 5:1 Design Factors ................................... 48
Manufacturer’s Declaration ................................................................................................................49
