Quickstart Guide

NuQ series

NuQ Series Quickstart Guide v1.2 - Page - 1

Models covered by this Quickstart Guide

NuQ-6, NuQ-8/DP, NuQ-10/DP, NuQ-12/DP, NuQ-15/DP, B-12DP, B-15/DP, B-18/DP.

Thank you for choosing a TURBOSOUND loudspeaker product for your application. If you would like further information

about this or any other TURBOSOUND product, please contact us on +44 (0)1403 711447. A detailed user manual on this

product range is available on our website at http://www.turbosound.com

Unpacking the Loudspeaker

After unpacking the unit please check carefully for damage. If damage is found, please notify your supplier at once. You,

the consignee, must instigate any claim. Please retain all packaging in case of future re-shipment.

System Requirements – Passive and Bi-amped Loudspeakers

The NuQ-6, NuQ-8, and NuQ-10 two-way loudspeakers are passive systems and

require only one amplifier channel for correct operation, the frequency splitting

between the LF driver and the HF driver being accomplished by the internal

passive crossover network built into each enclosure. They are equipped with

two Neutrik Speakon NL4MP connectors wired in parallel, serving as both input

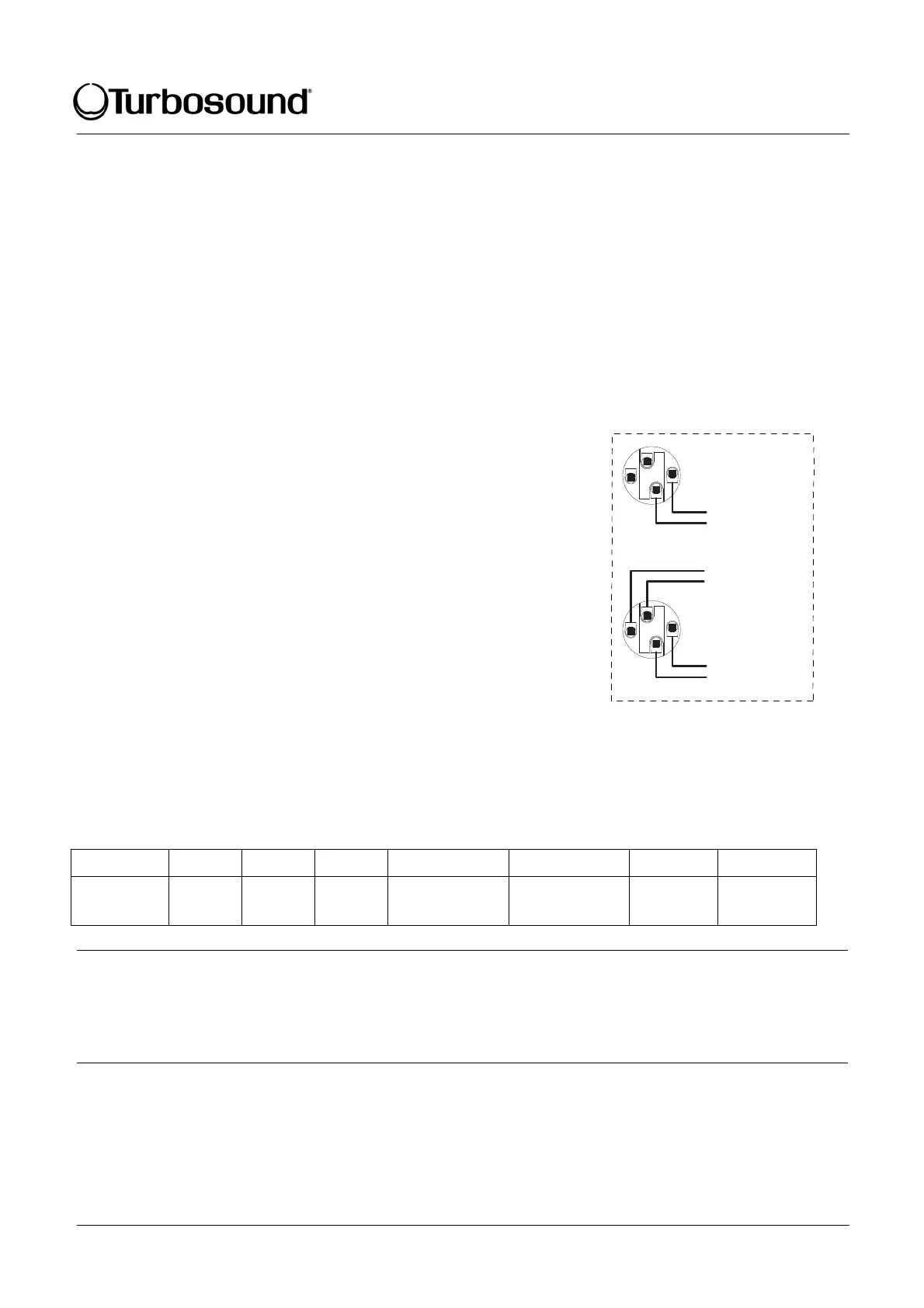

and loop-out connections to additional speakers. The Speakon wiring details are

shown at the right. The NuQ-12 and NuQ-15 two-way loudspeakers are

switchable passive/bi-amped systems and require two amplifier channels when

used in bi-amped mode. To avoid wasting amplifier power you should use

heavy-duty speaker cable with a minimum wire size of 12 gauge (1.5mm²), and

preferably 10 gauge (2.5mm²) for longer runs. Always observe the correct

polarity as shown.

Amplifier considerations

NuQ series speaker enclosures should be driven by high quality power amplifiers designed for true professional use.

Amplifiers should be capable of delivering long term broadband power equal to the loudspeaker’s program power rating

at its stated nominal impedance. The use of under-powered amplifiers must be avoided as heavily clipped signals can

cause permanent loudspeaker damage.

Model NuQ-6 NuQ-8 NuQ-10 NuQ-12 NuQ-15 B-15 B-18

Impedance 8 8 8 Passive: 8

LF: 8, HF: 6

Passive: 8

LF: 8, HF: 6

8 8

RECOMMENDED AMPLIFIER POWER RATING

The amplifier’s rated r.m.s. continuous power output (20Hz – 20kHz, each channel)

should be equal to the loudspeaker’s program power handling at its nominal impedance.

System Controllers and Bi-amplified systems

NuQ systems must be used with Turbosound LMS-D24 or LMS-D26 controllers, since these provide vital operating and

system security features. If you do not have a controller, DO NOT USE the loudspeaker without one; please contact your

Turbosound dealer for further details.

(Pins 2+ and 2- not connected)

Passive Speakon

connections

Negative (-ve)

Positive (+ve)

Bi-amped Speakon

connections

LF Negative (-ve)

LF Positive (+ve)

HF Negative (-ve)

HF Positive (+ve)
