Quick Start Guide

TCS-C ceiling series

TCS-C series Quick Start Guide - Page - 1

Models covered by this Quick Start Guide

TCS-C35T, TCS-C50T ceiling speakers.

Thank you for choosing a TURBOSOUND loudspeaker product for your application. If you would like further information

about this or any other TURBOSOUND product, please contact us. A detailed user manual on this product is available from

our web site at www.turbosound.com.

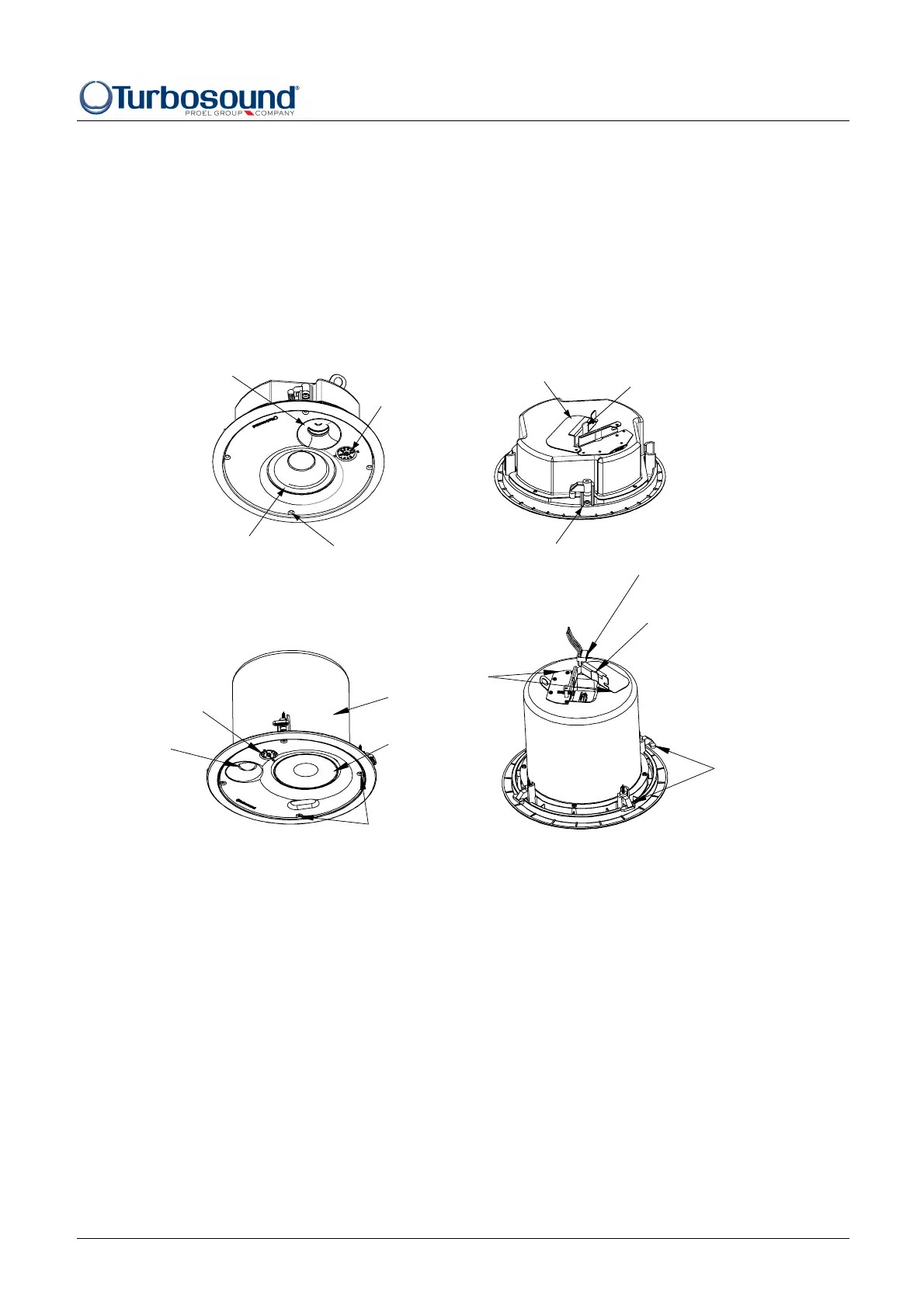

Tap selector

Terminal cover plate

Strain relief fitting

Input connector

Rotating mounting tabs

Tweeter

LF loudspeaker

Attachment screws

Steel fire can

Attachment screws

TCS-35T

TCS-50T

Unpacking the TCS series loudspeaker

After unpacking the unit please check carefully for damage. If damage is found, please notify your supplier at once. You,

the consignee, must instigate any claim. Please retain all packaging in case of future re-shipment.

System Requirements

TCS-C series ceiling loudspeakers are passive loudspeaker systems, and require only one amplifier channel for correct

operation, the frequency splitting between the LF driver and the HF driver being accomplished by the internal passive

crossover network.

Using Ceiling Loudspeakers with Subwoofers

If subwoofers are required, additional amplifier channels and external electronic crossovers will be required. The

Turbosound LMS series digital management systems are recommended for this purpose.

Quick Start Guide

TCS-C ceiling series

TCS-C series Quick Start Guide - Page - 2

Amplifier Considerations

Turbosound ceiling speakers should be driven by high quality power amplifiers designed for true professional use.

Amplifiers should be capable of delivering long term broadband power equal to the loudspeaker’s program power rating

equal to the loudspeaker’s program power rating

equal to the loudspeaker’s program power rating equal to the loudspeaker’s program power rating

at the stated nominal impedance

at the stated nominal impedanceat the stated nominal impedance. Always operate your power amplifiers at maximum gain for the best headroom and

signal/noise ratio, controlling the overall system volume from the mixing console. The use of under-powered amplifiers

must be avoided as heavily clipped signals can cause permanent loudspeaker damage.

In a distributed system the amplifiers must be capable of supplying broadband power equivalent to the sum of the power

rating of the loudspeakers (taking into account the individual power taps selected) connected to that particular amplifier

channel.

Installation Procedure

1. Cut a hole in the ceiling tile using a circular cutter set the size listed below and pull the wiring through the hole.

TCS-C35T cut-out diameter is 215mm

TCS-C35T cut-out diameter is 215mm TCS-C35T cut-out diameter is 215mm

TCS-C50T cut-out diameter is 240mm

TCS-C50T cut-out diameter is 240mm TCS-C50T cut-out diameter is 240mm

2. Connect the wiring to the removable connector. A 4-way Phoenix-style

connector is supplied with the loudspeaker. Strip the insulation back by

5mm (3/16”), insert the bare ends of the wire into the connector (do not tin

the wire) and screw down the hold-down screw with a small flat blade

screwdriver.

3. There are two possible connection strategies, depending on the desired circuit result when a single unit is disconnected

for trouble shooting or servicing:

Parallel Input Terminals

Parallel Input TerminalsParallel Input Terminals. This allows the circuit to remain intact whenever a speaker is disconnected. Connect the outgoing

pair of wires to the same terminals as the incoming pair of wires.

-Power Amplifier + -

Speaker 1 Speaker 2 Speaker 3

Inp

Link

+- -

Input

Link

+ - -

Input

Link

+ - -

Input

Link

Loop-through Terminals

Loop-through TerminalsLoop-through Terminals. All loudspeakers after this unit will be disconnected, helping to isolate problems to a section of

the distributed line while leaving the wires connected to the connector.

Power Amplifier

- -

Inp

Link

+ -

Speaker 1 Speaker 2 Speaker 3

- -

Input

Link

+ - -

Input

Link

+ - -

Input

Link
