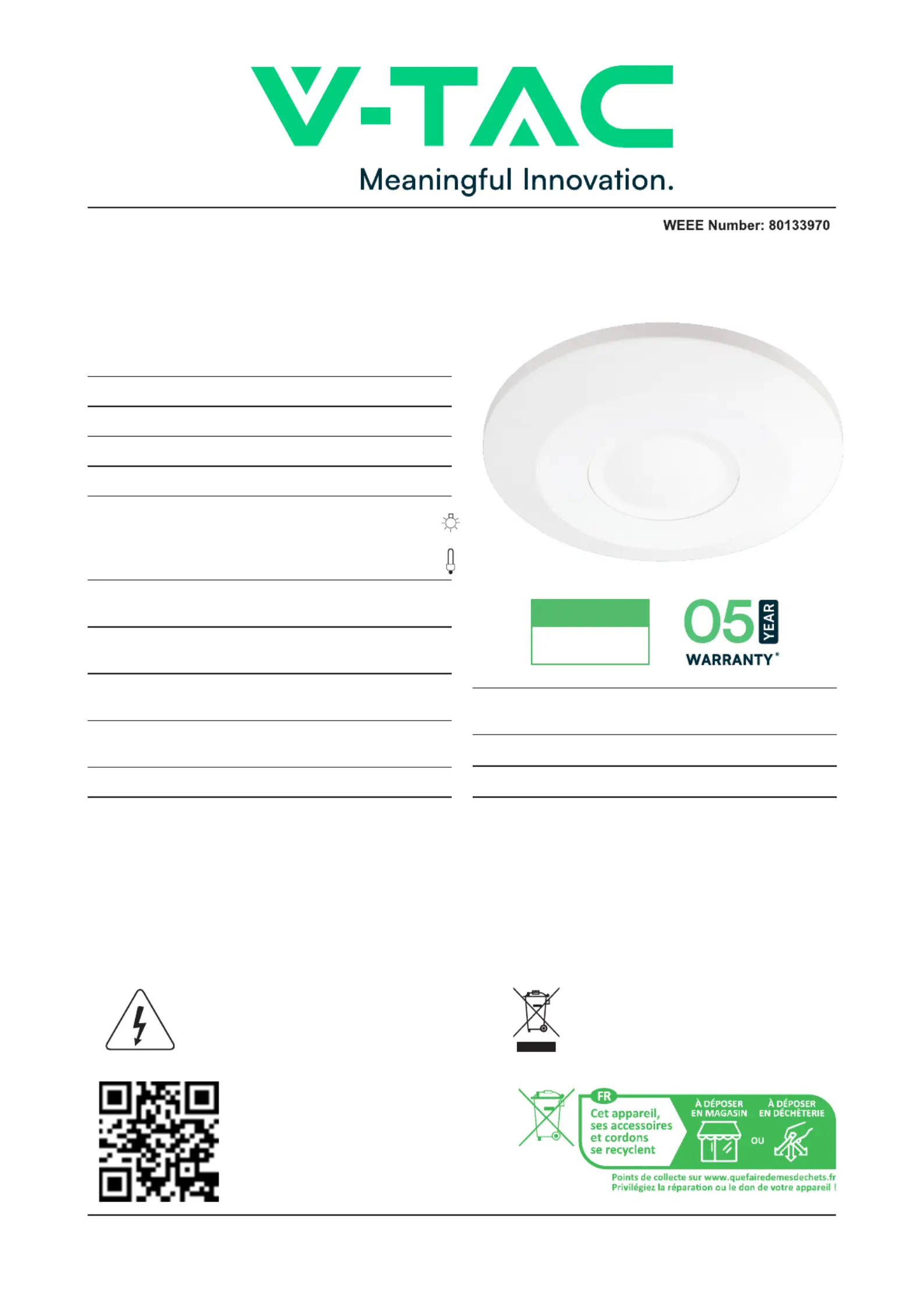

MODEL VT-81014
SKU 23430
HF SYSTEM 24Ghz CW Radar, ISM Band
INPUT VOLTAGE AC: 110-240V, 50/60 Hz
RATED LOAD
Max. 2000W (220-240V/AC)
1000W (110-130V/AC)
1000W (220-240V/AC)
(110-130V/AC)500W
TIME DELAY Min. 10sec ±3sec
Max. 12min ±1min
DETECTION
RANGE 360°
DETECTION
DISTANCE 3m (radius)
WORKING
TEMPERATURE -20°C to +40°C
AMBIENT LIGHT <3-2000 LUX (Adjustable)
In case of any query/issue with the product, please reach out to us at: support@v-tac.eu
For More products range, inquiry please contact our distributor or nearest dealers.
V-TAC EUROPE LTD. Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B
MULTI-LANGUAGE
MANUAL QR CODE
Please scan the QR code
to access the manual in
multiple languages.
INSTRUCTION MANUAL
REAL PRESENCE SENSOR
TECHNICAL DATA
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions
carefully before starting the installation and keep this manual handy for future reference. If you have any another
query, please contact our dealer or local vendor from whom you have purchased the product. They are trained
and ready to serve you at the best. The warranty is valid for 5 years from the date of purchase. The warranty
does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no
warranty against damage to any surface due to incorrect removal and installation of the product.
V-TAC LED
RANGE (UPTO 1000W)
COMPATIBLE WITH
This marking indicates that this
product should not be disposed
of with other household wastes.
Caution, risk of electric shock.
INSTALLATION
HEIGHT 2-4m
IP RATING IP20
DIMENSION ØXXxXX mm
+LED
FUNCTION
1. Can identify day and night: It can work in the daytime and at night when it is adjusted on the
“sun” position (max). It can work in the ambient light less than 3LUX when it is adjusted on the
“3” position (min). As for the adjustment pattern, please refer to the testing pattern.
2. When the detection distance is less than 3M, it detects human breathing and keeps lamp
3. on continuously.
4. When the detection distance is 3-4.5M, it will be worked as a normal microwave sensor and
detects human movement automatically.
5. Time-Delay is added continually: When it receives the second induction signals within the first
induction, it will restart to time from the moment.
6. Time–Delay is adjustable. It can be set according to the consumer’s desire. The minimum time
is 10sec±3sec. The maximum is 12min±1min.
WIRING DIAGRAM
SENSOR INFORMATION
INSTALLATION
• Please move the upper cover with anti-clockwise whirl
as per the diagram on the right.
• Connect the power and the load according to the con-
nection-wire diagram.
• Fix the bottom on the selected position with the inflated
screw.
• Install back the upper cover on the sensor, then you
could switch on the power and test it.
The wires come in and out
from the bottom
The wires come in
and out from the side
WARNING
1. Please make sure to turn o the power before starting the installation.
2. Installation must be performed by a qualified electrician.
3. For indoor use only.
