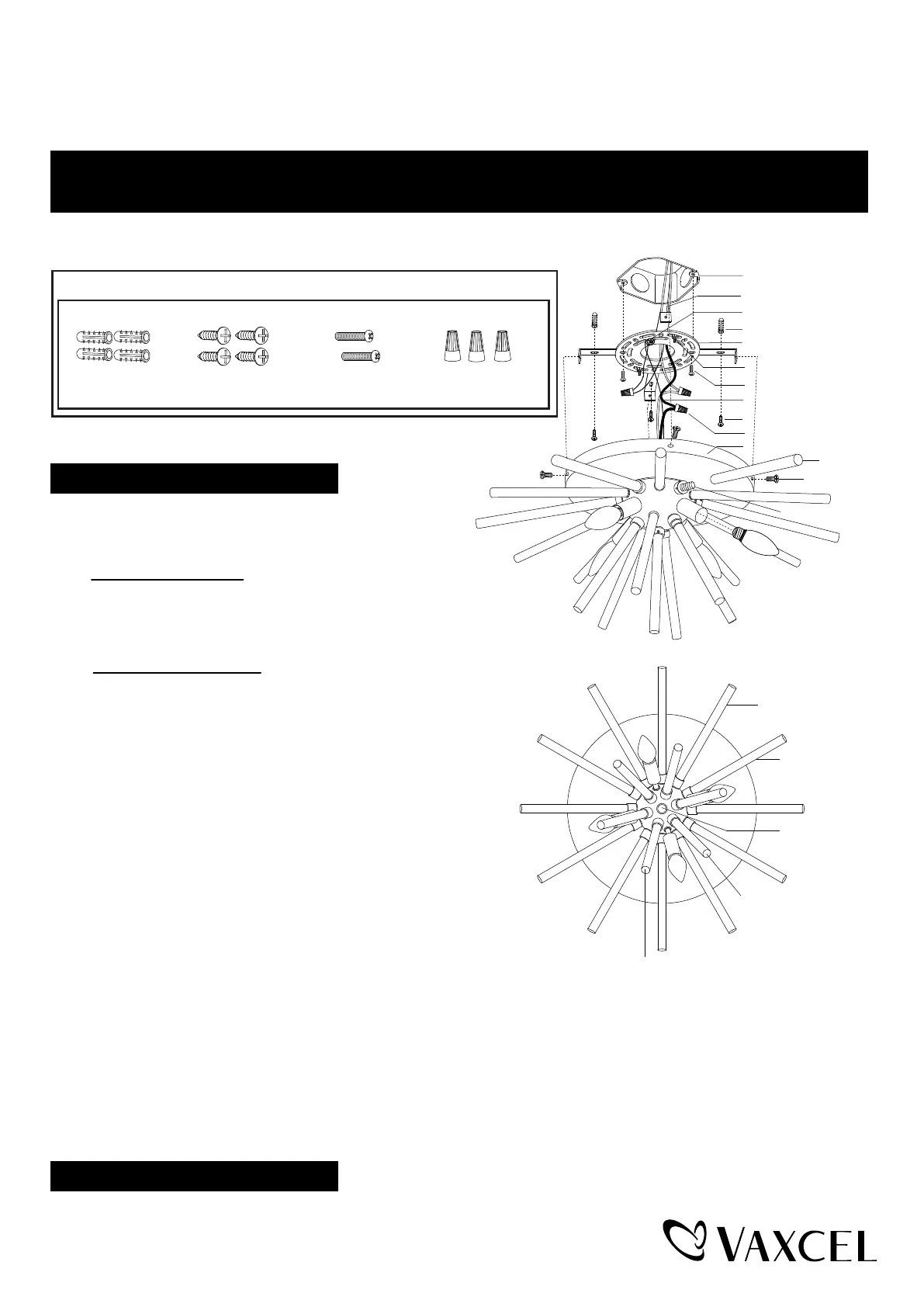

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

C0250

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

Hardware Package (included):

Turn off the power at fuse or circuit box

Turn on the power at fuse or circuit box

Installation Steps

Mounting Screw (C)Drywall Screw (B) Anchor (A)

Wire Connector (D)

1. Unscrew the four set screws.

Remove the mounting plate unit from the fixture.

2a. For Mounting to wood:

Attach the mounting

plate

unit to the outlet box by using two

mounting screws (C), then secure the drywall screw (B)

through the set hole to the wall.

2b. For Mounting to Drywall:

Place the mounting plate unit to the outlet box and mark the

target on the wall from the set hole for drilling two holes,

remove the mounting plate unit, drill the holes and thread

the anchors (A) into the holes, then attach the mounting

plate unit to the outlet box by using two mounting screws

(C). Secure the drywall screws (B) through the set holes

into the anchors (A).

3. Pull out the source wires from the outlet box. Make wire

connections using wire connectors (D) as follows:

• Connect the hot wire (black insulation) from the fixture to

the black wire from the power source.

• Connect the neutral wire (white insulation) from the fixture to

the white wire from the power source.

• Attach the fixture ground wire (bare wire) to the mounting plate

unit with the green ground screw. Then, depending on local code,

connect it to the house ground wire with the wire connector (D).

Carefully put all of the wires back into the outlet box.

4. Attach the fixture to the mounting plate unit and then secure it with four set screws.

5. Install rods as shown, 225mm metal rods and 232mm glass rods installed alternately at bottom tier, 173mm metal

rods and 178mm glass rods installed alternately at upper tier, 168mm glass rod installed at the center.

6. Install the bulbs (not included). See relamping label at socket area or packaging for maximum wattage allowed.

200907

House Ground Wire

Fixture Ground Wire

Fixture Mounting Screw

Set Screw

Threaded Pipe

Wire Connector (D)

Fixture

Mounting Plate Unit

Anchor (A)

Green Ground Screw

Mounting Screw (C)

Outlet Box

Drywall Screw (B)

Rod

Bulb Type B

Max. 60W

(not included)

232mm Glass Rod

225mm Metal Rod

173mm Metal Rod

168mm Glass Rod

178mm Glass Rod
