ASSEMBLY AND INSTALLATION

INSTRUCTIONS

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT

OFF POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

NOTE: Before installing, consult local electrical codes for wiring and grounding requirements.

PD5027

Installation Steps

1.Unscrew the set screws from the plate, and attach the

canopy and the back plate to the ceiling:

a.If the ceiling material is concrete:

Aim the middle hole of the back plate at the center

of the ceiling box. Mark the 2 setting holes of the back

plate on the ceiling, drill these 2 marks, and then thread

the wall anchors into the 2 holes of the ceiling. Thread

the wires of the power source through the canopy and

the back plate. Attach the canopy and the back plate

to the ceiling by threading the dry wall screws through

the setting holes of the back plate into the wall anchors.

b.If the ceiling material is wooden:

Thread the wires of the power source through the

canopy and the back plate. Attach the canopy and

the back plate to the ceiling by threading the dry wall

screws through the setting holes of the back plate

into the ceiling.

c.If the ceiling material is sheetrock:

Thread the wires of the power source through

the canopy and the back plate. Attach the canopy

and the back plate to the ceiling by threading the

small steel nails (not supplied) through the setting

holes of the back plate into the ceiling.

2.Take the proper numbers of the tubes to install the

height of the xture to be 16-5/8", 26-1/8" or 35-5/8"

as needed. (Three tubes for each lamp holder are

provided.)

Tube connections:

a. Thread the xture wire from the socket through

the down tube(w/o nipple), and secure the down

tube to the cap.

b. Thread the xture wire from the assembled tube

through the middle tube(w/ niple) and secure the

middle tube with the nipple.

c. Thread the xture wire through the upper tube(w/ nipple),

and then secure the upper tube with the nipple.

d. Thread the xture wire through the set nipple of the plate,

and secure the upper tube to the plate.

e. Complete the same steps for the other sockets and tubes.

3.Make wire connections with wire nuts:

---All black wires from tubes to the black wire from

power source.

---All white wires from tubes to the white wire from

power source.

---Attach the grounding wire and house grounding

wire to the back plate with a green grounding screw.

Carefully tuck wires into the ceiling box.

4.Attach the plate to the back plate, and secure with

the set screws.

5.Attach the glass shades to the lamp holders, and

secure with the socket rings.

6.Install bulbs.(Please do not exceed the maximum

capacity, which is recommended on the package.)

7.Turn on the power at fuse or circuit box.

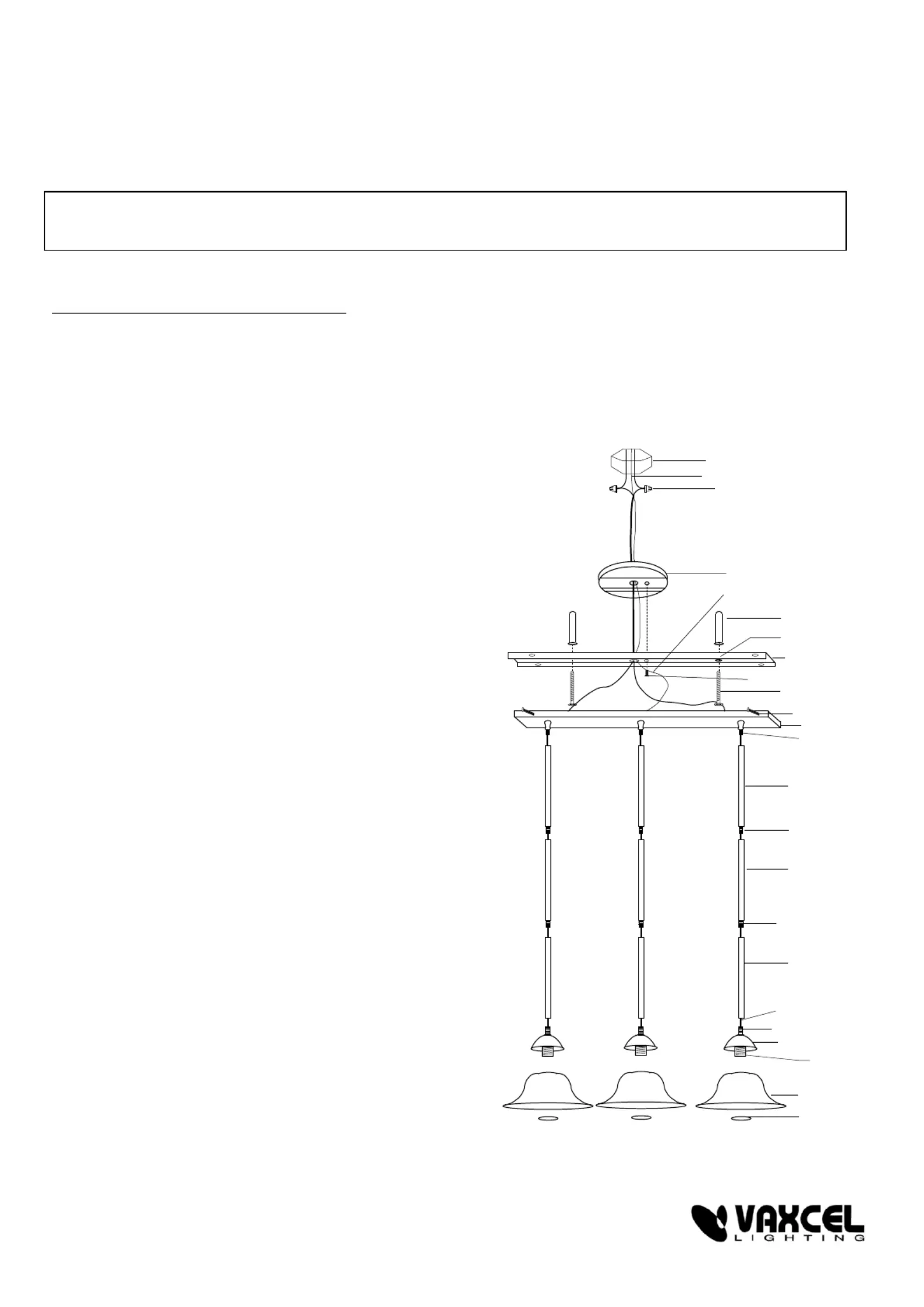

Upper Tube

Nipple

Set Nipple

Nipple

Cap

Socket

Glass Shade

Socket Ring

Middle Tube

Down Tube

Fixture Wire

Plate

Canopy

Wire Nut

House Grounding Wire

Grounding Wire

Ceiling Box

Set Screw

Dry Wall Screw

Green Grounding Screw

Back Plate

Wall Anchor

Setting Hole
