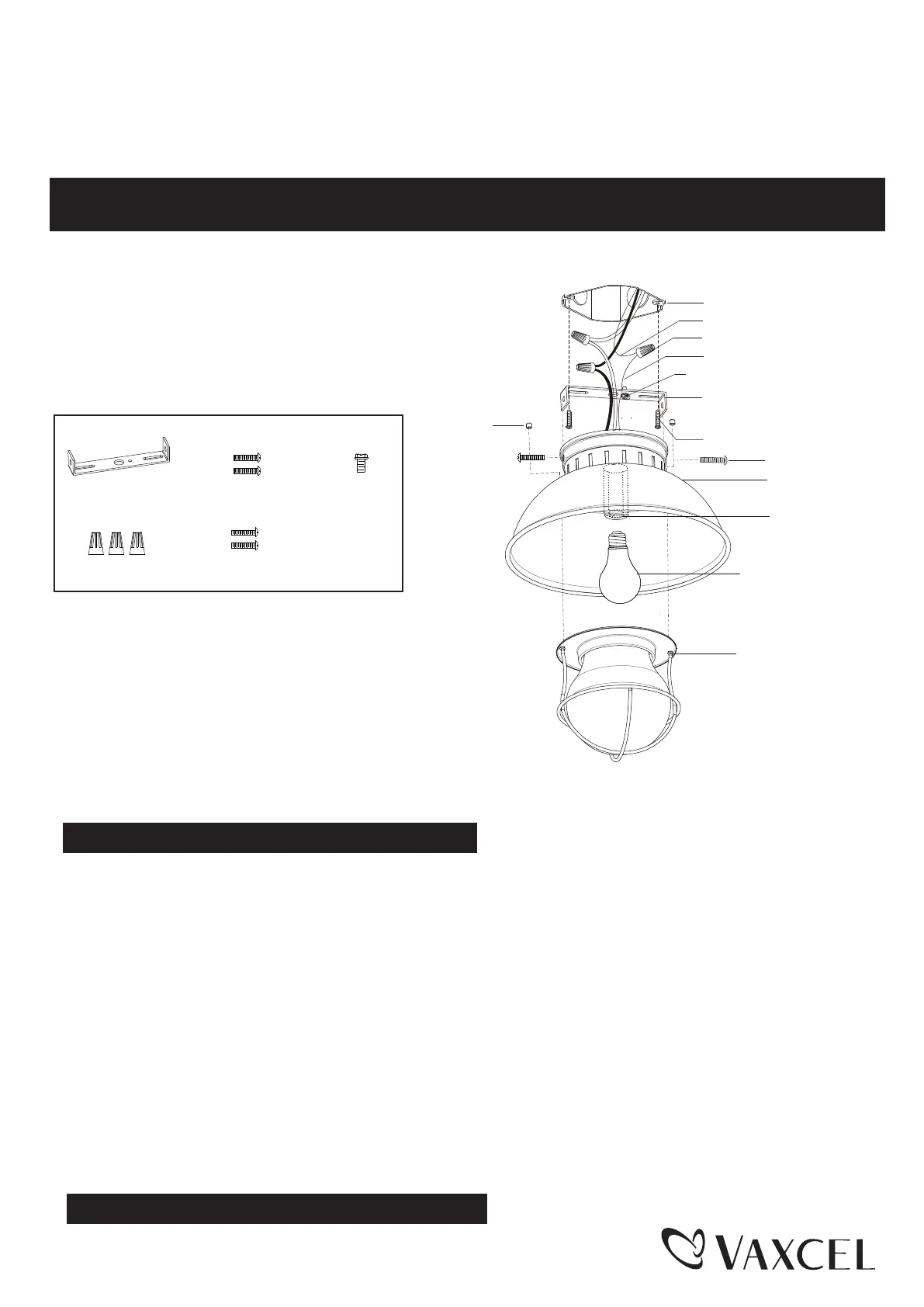

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

T0142 / T0143

Hardware Package (included):

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

141030

Turn off the power at the main fuse or circuit breaker box.

Turn on the power at the main fuse or circuit breaker box.

1. Attach the mounting strap to the outlet box using two mounting screws.

2. Install bulb (not included) into the socket of the fixture body. See relamping label at socket area or package for

maximum allowed wattage.

3. Attach the glass shade assembly to main fixture by using two ball nuts .

4. Pull out the wires and grounding wire from the outlet box. Make wire connections using the wire nuts. as follow:

---Connect the hot wire (usually black insulation) from the fixture to the black wire from the power source.

---Connect the neutral wire (usually white insulation) from the fixture to the white wire from the power source.

---Attach the fixture grounding wire (usually green insulation or bare wire) to the mounting strap with the green

grounding screw. Then connect it to the house grounding wire with the wire nut.

Carefully put the wires back into the outlet box.

5. Attach main fixture to the mounting strap by using two screws.

Mounting Screw (B)

Screw (E)

Green Grounding

Screw (C)

Wire Nut (D)

Mounting Strap (A)

Main Fixture

Socket

Bulb Type A Max.60W

(not included)

Glass Shade Assembly

Ball Nut

Mounting Screw (B)

Screw (E)

Fixture Grounding Wire

Outlet Box

House Grounding Wire

Wire Nut (D)

Mounting Strap (A)

Green Grounding Screw (C)

Installation Steps

Produkt Specifikationer

Mærke:	Vaxcel
Kategori:	Ikke kategoriseret
Model:	T0143
