ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THIS INSTRUCTION.

H0244

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

Turn off the power at fuse or circuit box.

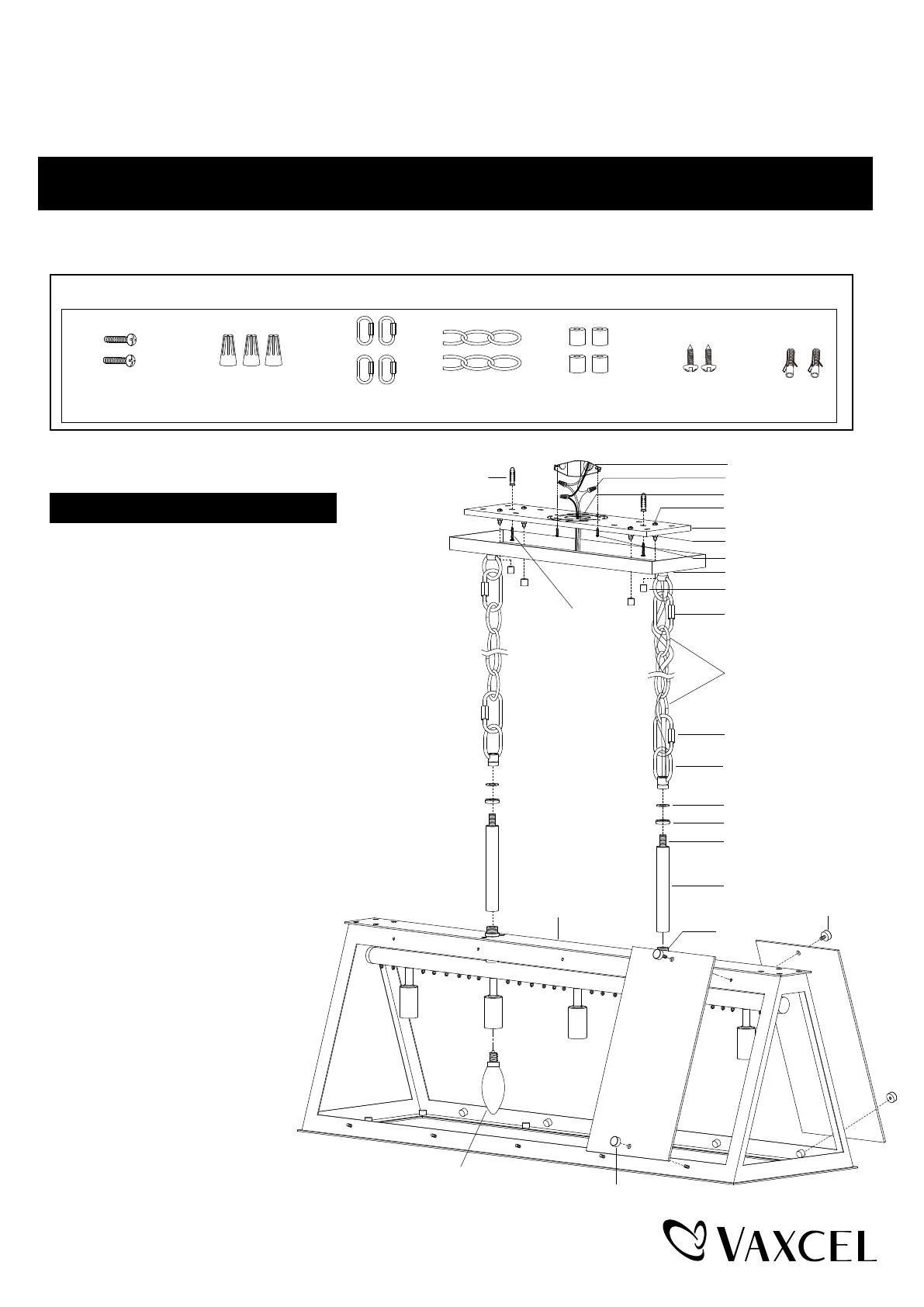

Installation Steps

Green Ground Screw

Mounting Screw (A)

Canopy

Ball Nut

(E)

Mounting Backplate

Wire Connector (B)

Fixture Mounting Screw

Lock Nut

Outlet Box

Threaded Pipe

Short Tube

Tube Cap

Washer

Loop Lock (C)

Loop

Chain (D)

Glass Panel

Fixture

Coupling

Set Screw 2

Set Screw 1

Candelabra Bulb

Max.60W (not included)

1. Attach the mounting back plate to the outlet box

using two mounting screws (A).

2. Thread the anchors (G) into the holes, then

attach the mounting bracket to the outlet box

by using two mounting screws (A). Secure

the dry wall screws (F) through the set

holes into the anchors (G).

3. Attach the short tube onto the coupling and

tighten it. Attach the short tube and tube cap

onto the fixture by inserting the threaded pipe,

then secure with the washer and loop.

4. Choose the length of the chain (D) you need,

use pliers (not included) to open and remove

links to short the chain, then weave the fixture

wire and the fixture ground wire through the

chain (D) and canopy.

5. Connect one end of the chain (D)

with the loop by using a loop lock (C).

6. Connect the other end of the chain (D)

by using another loop lock (C).

7. Thread the fixture wire and fixture

ground wire through mounting

backplate.

Hardware Package(inculded):

Wire Connector (B)Mounting Screw (A)

Loop Lock (C)

Chain (D)

Ball Nut (E)

Dry Wall Screw (F)

Anchor (G)

Dry Wall Screw (F)
