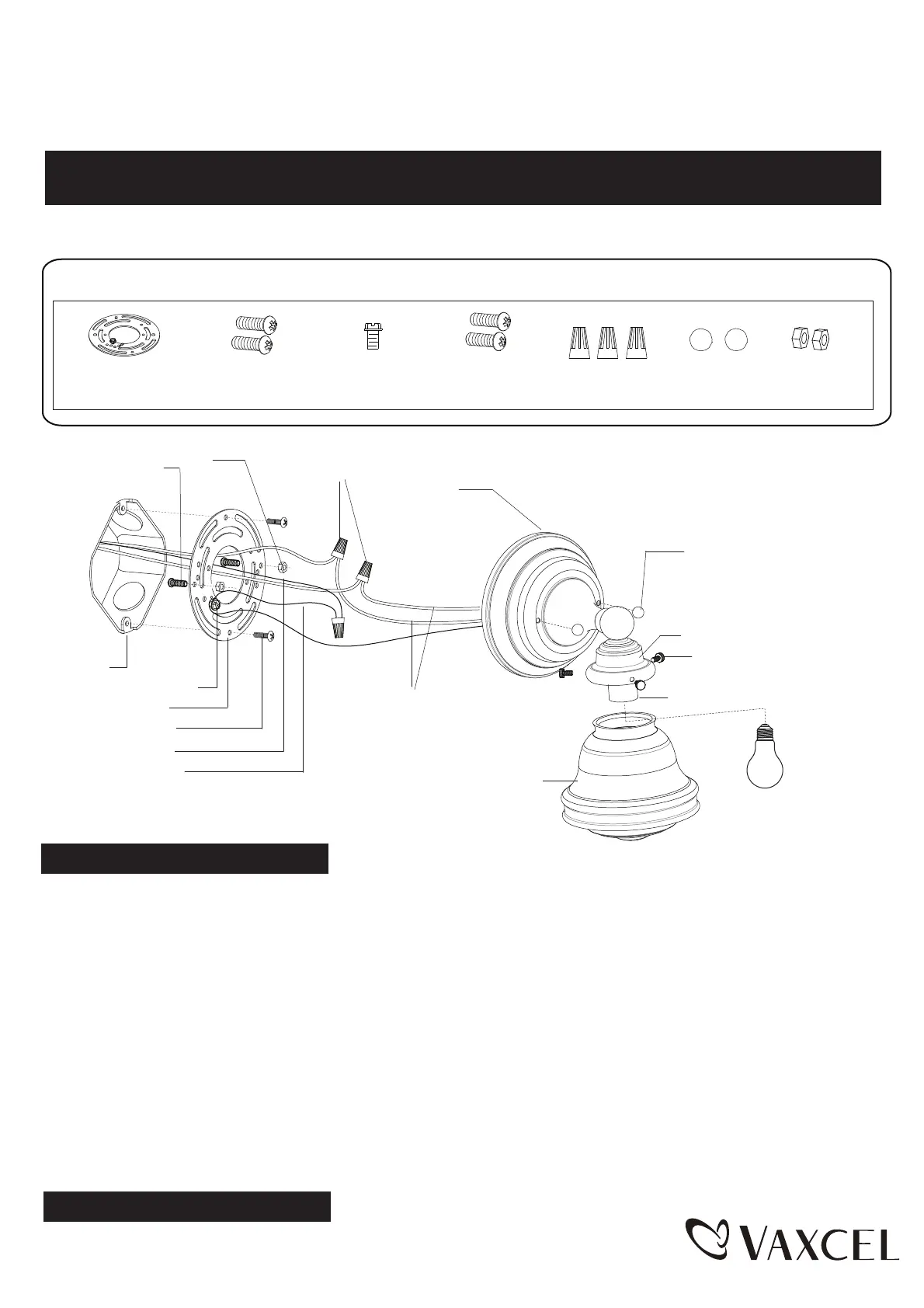

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

W0166 / W0167

1. Unscrew two ball nuts, and remove the mounting plate from the back plate.

2. Attach the mounting plate to the outlet box by using two mounting screws.

3. Pull out the source wires from the outlet box. Make wire connections using wire nuts as follow:

---Connect the hot wire (usually black insulation) from the fixture to the black wire from the power source.

---Connect the neutral wire (usually white insulation) from the fixture to the white wire from the power source.

---Attach the fixture grounding wire (usually green insulation or bare wire) to the mounting plate with the green grounding

screw. Then connect it to the house grounding wire with the wire nut.

Carefully put the wires back into the outlet box.

4. Attach the back plate to the mounting plate by inserting two fixture mounting screws, then secure it with two ball nuts.

5. Install bulb(not included). See relamping label at socket area or packaging for maximum allowed wattage.

6. Attach the glass shade to the glass bracket, secure it with three set screws.(Don’t over tighten.)

141117

Mounting Screw (B)

Wire Nut (E)

Mounting Plate (A)

Ball Nut (F) Lock Nut (G)

Fixture mounting

Screw(D)

Bulb Type A Max.60W

(not included)

Glass Shade

Ball Nut (F)

Socket

Set Screw

Mounting Screw (B)

Mounting Plate (A)

Green Grounding Screw (C)

Wire Nut (E)

House Grounding Wire

Fixture Grounding Wire

Fixture mounting

Screw(D)

Lock Nut(G)

Outlet Box

Fixture Wire

Back Plate

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

Hardware Package (included):

Green Grounding

Screw (C)

Turn off the power at fuse or circuit box.

Installation Steps

Glass Bracket

Turn on the power at fuse or circuit box.
