Table of Contents Rev. 5/23/2025 AHS, MANUAL
Table of Contents Copyright 2022 Vestil Manufacturing Co. Page 1 of 26
AHS-Series Steel Adjustable-Height Gantry Cranes
Receiving Instructions
After delivery, remove the packaging from the product. Inspect the product closely to determine
whether it sustained damage during transport. If damage is discovered, record a complete description
of it on the bill of lading. If the product is undamaged, discard the packaging.
NOTE: The end-user is solely responsible for confirming that product design, use, and maintenance
comply with laws, regulations, codes, and mandatory standards applied where the product is used.
Technical Service & Replacement Parts
For answers to questions not addressed in these instructions and to order replacement parts, labels,
and accessories, call our Technical Service and Parts Department at (260) 665-7586. The department
can also be contacted online at https://www.vestil.com/page-parts-request.php.
Electronic copies of Instruction Manuals
Additional copies of this instruction manual may be downloaded from https://www.vestil.com/page-
manuals.php.
Vestil Manufacturing Co.
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
Telephone: (260) 665-7586 -or- Toll Free (800) 348-0868
Fax: (260) 665-1339
Url: www.vestil.com Email: info@vestil.com
Table of Contents
Page
Table of Figures
Page
Specifications……………….…….
2 - 3
Fig. A Exploded View AHS-2-10-12, 2-10-14, & 2-10-16....
5
Signal Words…………..…………....
4
Fig. B Exploded View AHS-2-15 series …………..…………
6
Safety Instructions………………….
4
Fig. C Exploded View AHS-2-20-12, 2-20-14, & 2-20-16…..
7
Assembly Instructions…….
...18, 19, 20, 21
Fig. D Exploded View AHS-4-10-12, 4-10-14, & 4-10-16…..
8
Using the Crane…………………….
22 – 23
Fig. E Exploded View AHS-4-15 series………………….……
9
Festoon Kit…………………………..
23
Fig. F Exploded View AHS-4-20-12, 4-20-14, & 4-20-16……
10
Record of Satisfactory Condition.
24
Fig. G Exploded View AHS-6-10-12, 6-10-14, & 6-10-16.….
11
National Standards………………...
24
Fig. H Exploded View AHS-6-15 series…………….………..
12
Inspections & Maintenance……..
24 – 25
Fig. I Exploded View AHS-6-20-12, 6-20-14, & 6-20-16……
13
Labeling Diagram……………….…
25
Fig. J Exploded View AHS-8-10-12, 8-10-14, & 8-10-16……
14
Limited Warranty…………………...
26
Fig. K Exploded View AHS-8-15 series………………………
15
Fig. L Exploded View AHS-8-20-12, 8-20-14, & 8-20-16……
16
Fig. M Exploded View AHS-10-15-10…………………………
17
TABLE OF CONTENTS Rev. 5/23/2025 AHS MANUAL
TABLE OF CONTENTS Copyright 2022 Vestil Manufacturing Corp. Page 2 of 26

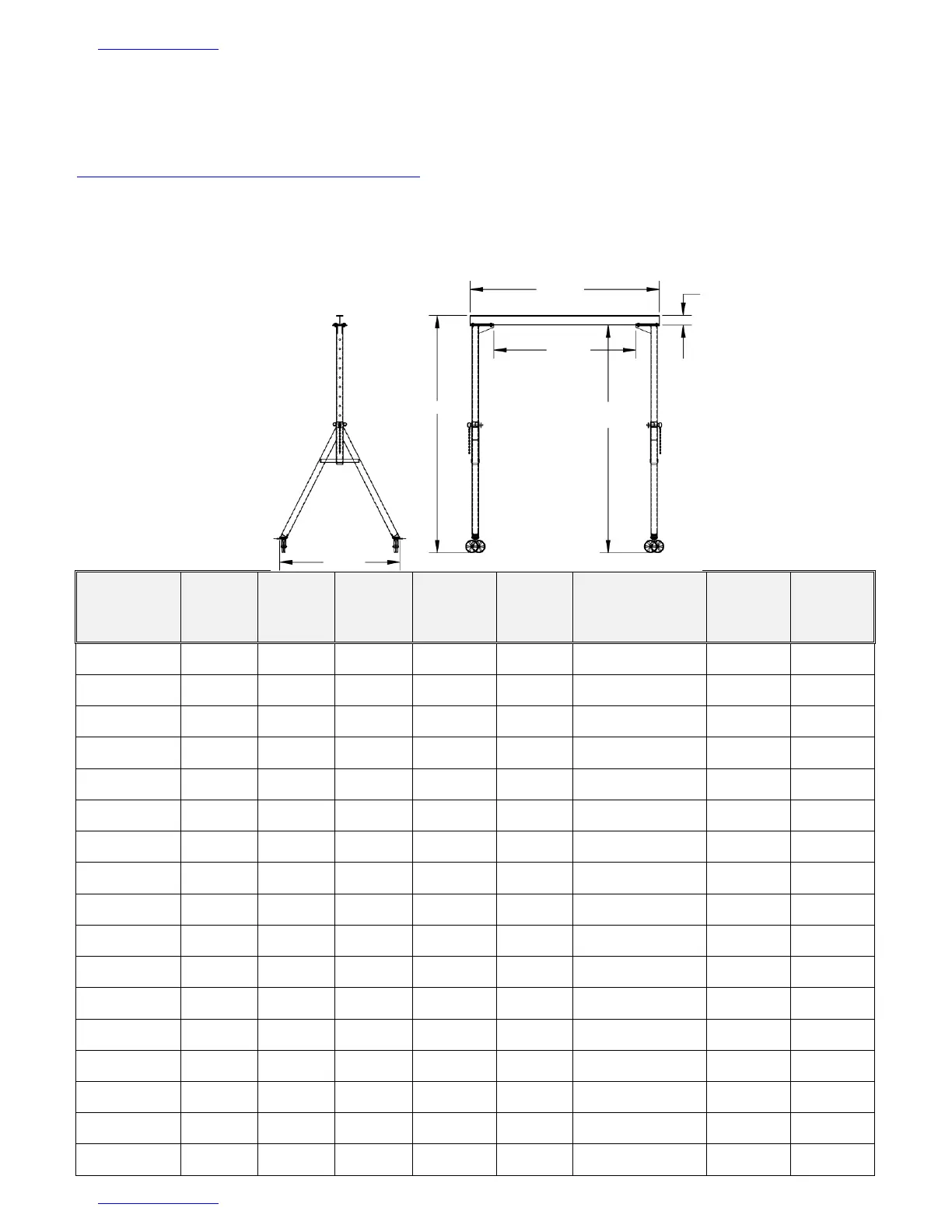

SPECIFICATIONS
Dimensions, net weight, and capacity information for each AHS-series crane are provided in the tables
on pages 2 & 3. However, product design changes might alter specifications, particularly dimensions and
net weight, for 1 or more model. Specifications documents for AHS-series cranes are provided on Vestil’s
website. To access the appropriate specifications document, navigate to the relevant webpage:
https://www.vestil.com/product.php?FID=517. Click the “Product Specifications Table” drop-down menu
bar partway down the page. Scroll down to the entry for the model you purchased and click the button
in the column titled “PDF’s” that looks like a pencil inside a box. A PDF file will open. This file is the
specifications document. Print a copy of the document and keep it with your copy of this manual. The
following is an exemplar specifications document. NOTE: 1 or more models listed in the following tables
might be discontinued between revisions of this manual.
Model
A:
Overall
width
B:
Overall
Beam
Length
C:
Beam
height
D:
Overall
height
E:
Usable
beam
length
F:
Height adjustment
range
Capacity
Net Weight
AHS-2-10-12
76
1
/
8
in.
193.4 cm
119
3
/
4
in.
304.2 cm
6
in.
15.2 cm
149
15
/
16
in.
380.8 cm
89
3
/
4
in.
228.0 cm
(90 – 144)in.
(228.6 – 365.8)cm
2,000 lb.
909 kg
753.5 lb.
342.5kg
AHS-2-10-14
88
1
/
2
in.
224.8 cm
119
3
/
4
in.
304.2 cm
6
in.
15.2 cm
174
1
/
16
in.
442.1 cm
89
3
/
4
in.
228.0 cm
(102 – 168)in.
(259.1 – 426.7)cm
2,000 lb.
909 kg
832.4 lb.
378.4 kg
AHS-2-10-16
88
1
/
2
in.
224.8 cm
119
3
/
4
in.
304 cm
6
in.
15.2 cm
198
1
/
16
in.
503.1 cm
89
3
/
4
in.
228.0 cm
(126 – 192)in.
(320.0 – 487.7)cm
2,000 lb.
909 kg
881.0 lb.
400.4 kg
AHS-2-15-7
46
3
/
8
in.
117.8 cm
179
3
/
4
in.
456.6 cm
6
in.
15.2 cm
90
3
/
16
in.
229.1 cm
149
3
/
4
in.
380.4 cm
(60 – 84)in.
(152.4 – 213.4)cm
2,000 lb.
909 kg
594.0 lb.
270.0 kg
AHS-2-15-9
58
3
/
8
in.
148.3 cm
179
3
/
4
in.
456.6 cm
6
in.
15.2 cm
114
1
/
4
in.
290.2 cm
149
3
/
4
in.
380.4 cm
(72 – 108)in.
(183.0 – 274.3)cm
2,000 lb.
909 kg
654.4 lb.
297.5 kg
AHS-2-15-10
64
1
/
4
in.
163.2 cm
179
3
/
4
in.
456.6 cm
6
in.
15.2 cm
126 in.
320.0 cm
149
3
/
4
in.
380.4 cm
(78 – 120)in.
(198.1 – 304.8)kg
2,000 lb.
909 kg
737.2 lb.
335.1 kg
AHS-2-15-12
76
1
/
8
in.
193.4 cm
179
3
/
4
in.
456.6 cm
6
in.
15.2 cm
149
15
/
16
in.
380.8 cm
149
3
/
4
in.
380.4 cm
(90 – 144)in.
(228.6 – 365.8)cm
2,000 lb.
909 kg
814.0 lb.
370.0 kg
AHS-2-15-14
88
1
/
2
in.
224.8 cm
179
3
/
4
in.
456.6 cm
6
in.
15.2 cm
174
1
/
16
in.
442.1 cm
149
3
/
4
in.
380.4 cm
(102 – 168)in.
(259.1 – 426.7)cm
2,000 lb.
909 kg
892.9 lb.
405.8 kg
AHS-2-15-16
88
1
/
2
in.
224.8 cm
179
3
/
4
in.
456.6 cm
6
in.
15.2 cm
198
1
/
16
in.
503.1 cm
149
3
/
4
in.
380.4 cm
(126 – 192)in.
(320.0 – 487.7)cm
2,000 lb.
909 kg
941.4 lb.
427.9 kg
AHS-2-20-12
76
1
/
8
in.
193.4 cm
239
3
/
4
in.
609.0 cm
10
1
/
8
in.
25.7 cm
154 in.
391.2 cm
209
3
/
4
in.
532.8 cm
(90 – 144)in.
(228.6 – 365.8)cm
2,000 lb.
909 kg
972.3 lb.
442.0 kg
AHS-2-20-14
88
1
/
2
in.
224.8 cm
239
3
/
4
in.
609.0 cm
10
1
/
8
in.
25.7 cm
178
1
/
8
in.
452.4 cm
209
3
/
4
in.
532.8 cm
(102 – 168)in.
(259.1 – 426.7)cm
2,000 lb.
909 kg
1051.2 lb.
477.8 kg
AHS-2-20-16
88
1
/
2
in.
224.8 cm
239
3
/
4
in.
609.0 cm
10
1
/
8
in.
25.7 cm
202
1
/
8
in.
513.4 cm
209
3
/
4
in.
532.8 cm
(126 – 192)in.
(320.0 – 487.7)cm
2,000 lb.
909 kg
1099.8 lb.
499.9 kg
AHS-4-10-12
76
1
/
8
in.
193.4 cm
119
3
/
4
in.
304.2 cm
8
1
/
8
in.
20.6 cm
153 in.
388.6 cm
89
3
/
4
in.
228.0 cm
(91 – 145)in.
(231.2 – 368.3)cm
4,000 lb.
1,818 kg
763.7 lb.
347.2 kg
AHS-4-10-14
88
1
/
2
in.
224.8 cm
119
3
/
4
in.
304.2 cm
8
1
/
8
in.
20.6 cm
177
1
/
8
in.
449.9 cm
89
3
/
4
in.
228.0 cm
(103 – 169)in.
(261.7 – 429.3)cm
4,000 lb.
1,818 kg
843.2 lb.
383.3 kg
AHS-4-10-16
88
1
/
2
in.
224.8 cm
119
3
/
4
in.
304 cm
8
1
/
8
in.
20.6 cm
201
1
/
8
in.
510.9 cm
89
3
/
4
in.
228.0 cm
(127 – 193)in.
(322.6 – 490.3)cm
4,000 lb.
1,818 kg
892.1 lb.
405.5 kg
AHS-4-15-7
46
3
/
8
in.
117.8 cm
179
3
/
4
in.
456.6 cm
8
1
/
8
in.
20.6 cm
93
1
/
4
in.
236.9 cm
149
3
/
4
in.
380.4 cm
(61 – 85
1
/
4
)in.
(155.0 – 216.6)cm
4,000 lb.
1,818 kg
644.5 lb.
293.0 kg
AHS-4-15-9
58
3
/
8
in.
148.3 cm
179
3
/
4
in.
456.6 cm
8
1
/
8
in.
20.6 cm
117
5
/
16
in.
298.0 cm
149
3
/
4
in.
380.4 cm
(73 – 109)in.
(185.5 – 276.9)cm
4,000 lb.
1,818 kg
722.8 lb.
328.6 kg
A
B
C
D
E
F
