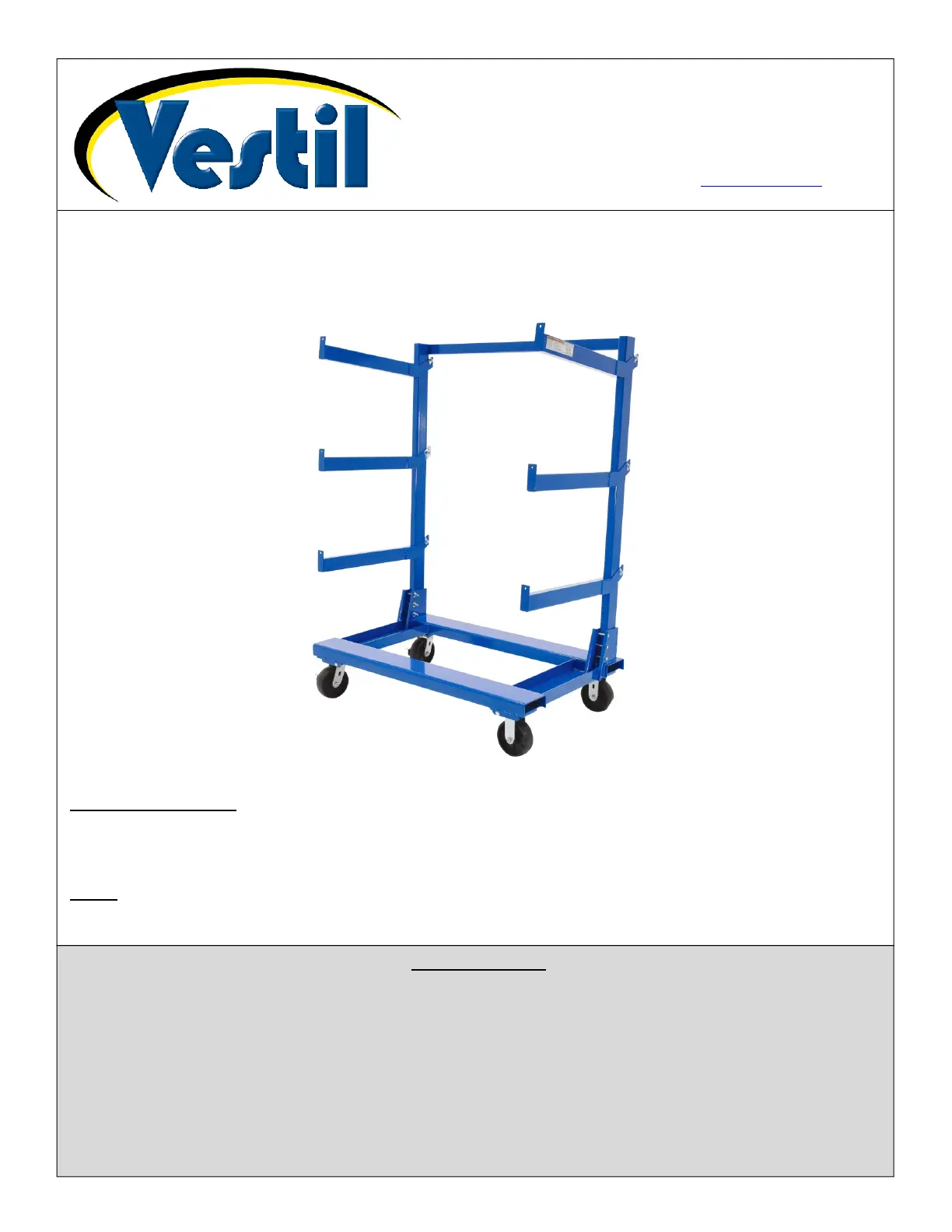

Side 1/8

Rev. 6/12/2017 CANT, MANUAL

CANT-Series Cantilever Carts

Instruction Manual

Receiving instructions:

After delivery, remove the packaging from the product. Inspect the product closely to determine whether

it sustained damage during transport. If damage is discovered, record a complete description of it on the

bill of lading. If the product is undamaged, discard the packaging.

NOTE:

The end-user is solely responsible for confirming that product design, installation, use, and maintenance

comply with laws, regulations, codes, and mandatory standards applied where the product is used.

Table of Contents

Specifications…………………………….………………………………………………………………………………………… 2

CANT-3048 Exploded Parts View and Bill of Materials…...…………………………………………………………………… 2

CANT-3060 Exploded Parts View and Bill of Materials………………………………………………………………………... 3

CANT-3648 Exploded Parts View and Bill of Materials………………………………………………………………………... 3

Signal words…………………………………………………………………………………………………………………………4

Hazards of improper use………………………………………………………………..………………………………………… 4

Assembling the cart……………………………………………………………………………………………………………..5 - 6

Using the rack………………………………………………………………………………………………………………………. 6

Inspections………………………………………………………………………………………………………………………….. 6

Labeling diagram………………………………………………………..…………………………………………………………. 7

Limited Warranty………..………………………………………………………………………………………………………….. 8

Vestil Manufacturing Corp.

2999 North Wayne Street, P.O. Box 507, Angola, IN 46703

Telephone: (260) 665-7586 Toll Free (800) 348-0868

Fax: (260) 665-1339

www.vestilmfg.com e-mail:

HUinfo@vestil.comU

Rev. 6/12/2017 CANT, MANUAL

Specifications:

Dimensions, capacity, and net weight appear in the diagrams and tables below.

CANT-3048 Exploded Parts Diagram and Bill of Materials

Item

Part no. Description Qty.

1 16-514-241

Weldment, base 1

2 16-514-244

Weldment, upright post 2

3 16-514-245

Weldment, 24” arm 6

4 16-132-261

Caster, 6”x2” swivel with brake, glass

filled Nylon

5 16-132-263

Caster, 6”x2”, rigid, glass filled Nylon 2

6 99-612-001

Pin, caster receiver, bolt and nut 4

7 16-014-511

Frame, cross support 1

8 21-024-021

Cap, rectangular glide 2

9 11105 Hex bolt, gr. A, zinc plated,

”-16x1” 4

10 33008

Flat washer, low carbon, USS, zinc

plated,

”

11 36106 Hex nut, gr. A, zinc plated,

”-16 4

12 11115 Bolt, HHCS, #2 zinc plated,

”-16x3” 6

13 37024

Nylon insert lock nut, gr. 2, zinc finish,

”-16

14 11113 Hex bolt, gr. A, plain finish,

”-16x2

”

Model A B

C D E F Net weight

CANT-3048 47” 24” 48” 48

”

30” 11

” 177 lb.

CANT-3060 59” 24” 60” 60

”

30” 11

” 191 lb.

CANT-3648 47” 30” 48” 48

”

36” 14” 190 lb.

Arm height adjustability: 6” increments (spacing between bearing pins is 6”)

Arm inclination: 7° above horizontal when bolted through upper holes

2° above horizontal when bolted through lower holes

Overall capacity: 2,000 lb.

Capacity per arm: 400 lb.
