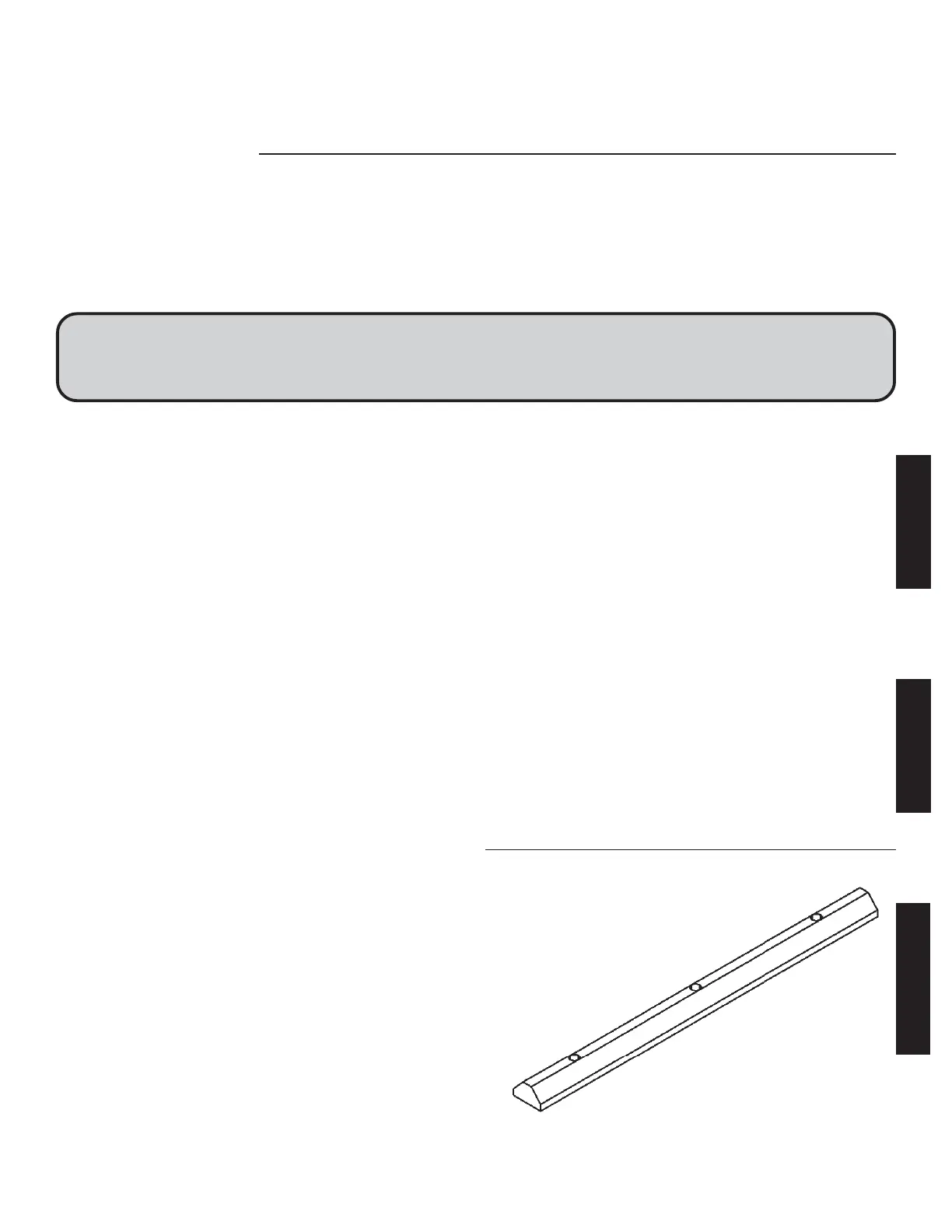

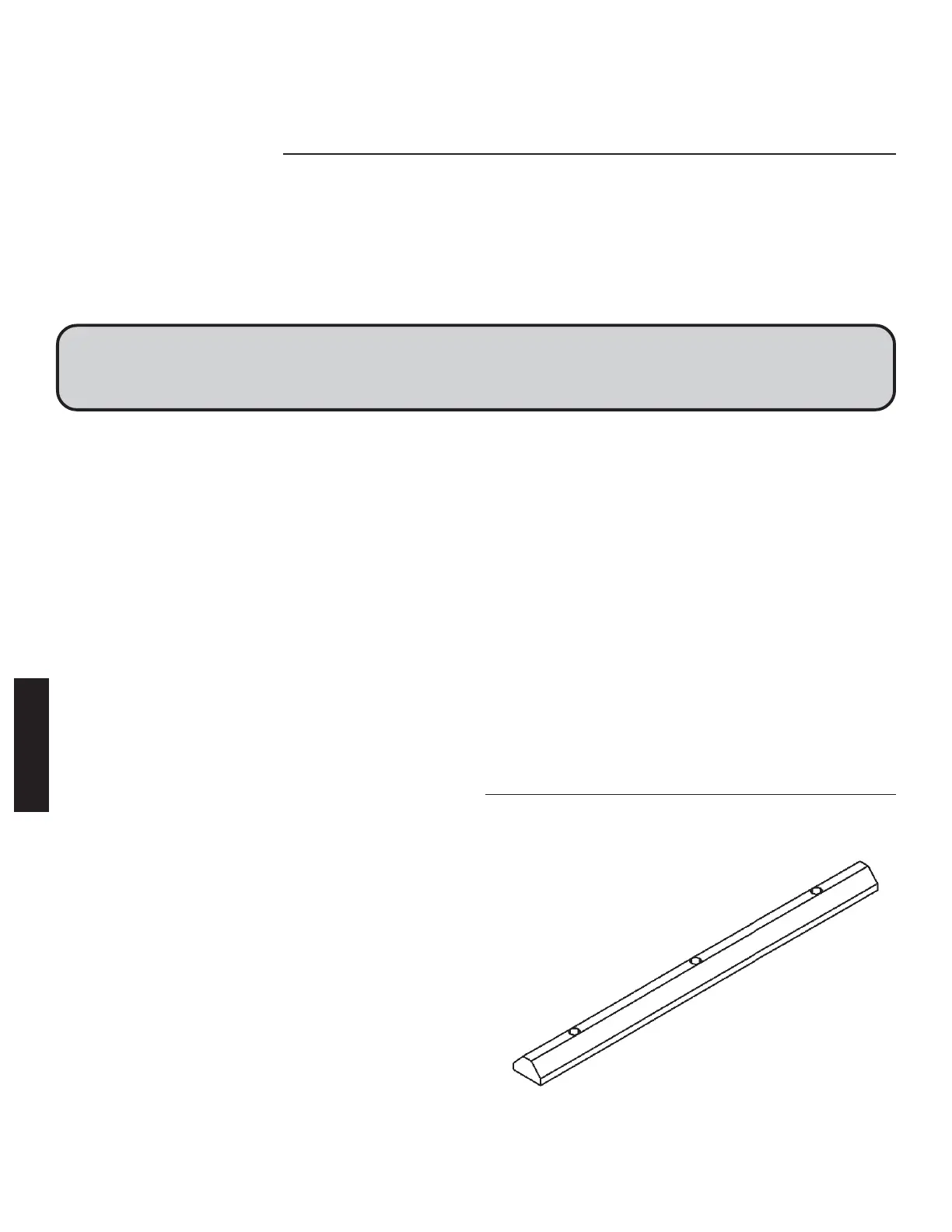

Side 1/5

Vestil Manufacturing Corporation

2999 North Wayne St., Angola, IN 46703

Ph: (260) 665-7586 • Fax: (260) 665-1339

sales@vestil.com • www.vestil.com

CONCRETE HARDWARE KIT (standard)

The following tools/hardware are required for installing your car

stop.

CS-33-CK KIT INCLUDES:

3 - 1/2” x 6” lag bolt for each hole

3 - 1/2” washers for lag bolts

3 - 1/2” anchor sleeve for each bolt

CUSTOMER SUPPLIES:

1 - High-speed hammer drill 3/4” masonry bit

1 - Impact wrench or heavy ratchet 3/4” socket

ASPHALT HARDWARE KIT

The following tools/hardware are required for installing your car

stop.

CS-AK KIT INCLUDES:

3 - 12” long steel spikes

1 - 72” long pieces of Butyl tape

CUSTOMER SUPPLIES:

1 - Sledge Hammer

RECEIVING INSTRUCTIONS

Every unit is thoroughly tested and inspected prior to

shipment. However, it is possible that the unit may incur damage

during transit. If damage is noticed when unloading, make a note

of it on the BILL OF LADING. Remove all packing and strapping

material, then inspect the unit again for damage. IF DAMAGE IS

EVIDENT, FILE A CLAIM WITH THE CARRIER IMMEDIATELY!

WARRANTY

This product is warranted for 30 DAYS from date of

purchase to be free of manufacturing defects in material and

workmanship. The manufacturer's obligation hereunder is limited

to repairing such products during the warranty period, provided

the product is sent prepaid back to the factory.

This warranty does not cover normal wear of parts or

damage resulting from any of the following: negligent use or

misuse of the product, use or application contrary to installation

instructions, or disassembly, repair or alteration by any person

prior to authorization from a factory representative.

ASSEMBLY INSTRUCTIONS

CONCRETE (standard)

1.) Position the car stop in its intended position and using its

predrilled holes as templates, mark the location of each hole

on the road surface.

CAR STOP • MODEL CS-33

OWNERS

MANUAL

Revised 0809 29-126-103

A company dedicated to solving ergonomic and material

handling problems since 1955

Ergonomic Solutions

Assembly Instructions................................................... 1

Assembly Drawing ........................................................ 1

CAR STOP • MODEL CS-33

2.) Remove the car stop. Using high speed hammer drill

with a 3/4” masonry bit, drill a hole at each marked location

to a depth of 3-1/2” below the road surface.

3.) Insert a anchor sleeve into each hole (large sleeve opening

on top). Tap the sleeves into the holes with a hammer so that

the sleeves are set flush with the surface. Place a washer

over each sleeve hole.

4.) Make sure the substrates are thoroughly clean and dry.

Reposition the car stop in its installation position. Apply firm

hand pressure. Slip a washer onto a lag bolt, insert the

bolt through a predrilled hole in the speed bump, align over

anchor sleeve and tighten the bolt about three-quarter of the

way with the 3/4” socket. Repeat for each hole in the speed

bump. Finish tightening each bolt until just snug. DO NOT

OVER TIGHTEN! Excessive tightening may damage the

car stop and void the product warranty.

ASSEMBLY INSTRUCTIONS

ASPHALT, HIGH USE AREA’S, OR LOCATIONS WITH

TEMPERATURES OVER 110°F

1) Adhere the Butyl tape to the under structure of car stop

length wise.

2) Place car stop in desired position.

3) Insert spike through predrilled hole. DO NOT HOLD SPIKE

WHILE HAMMERING! Drive spike into ground until flush

with car stop.

Contents

Hardware Kits .............................................................. 1

Receiving Instructions ................................................. 1

Warranty ...................................................................... 1
