Rev. 1/26/2015 CYL-H, manual.doc
Copyright 2015 Vestil Manufacturing Co. Page 1 of 5

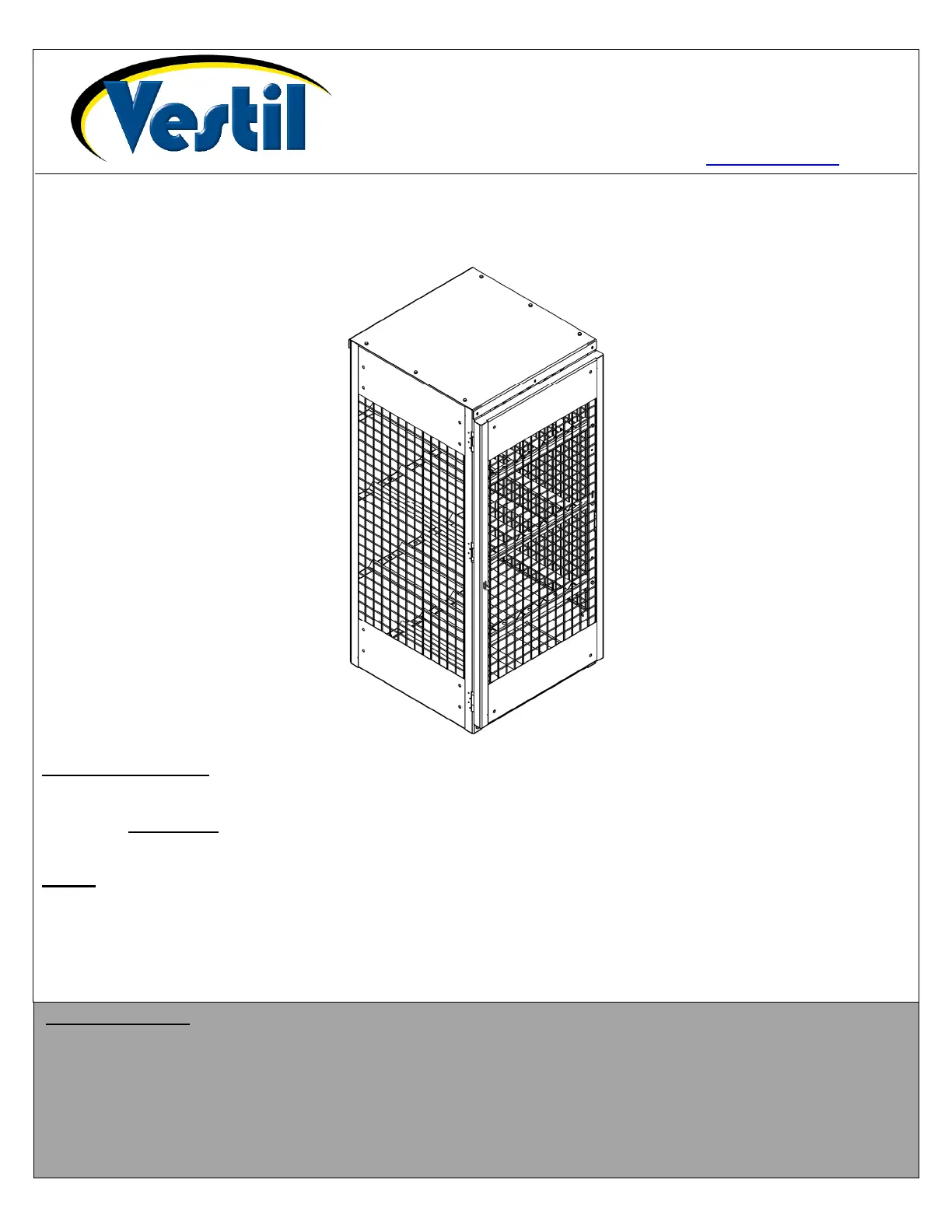

CYL-H Series Cylinder Storage Cabinets
Assembly and Maintenance Manual
Receiving instructions:
After delivery, IMMEDIATELY remove the packaging from the product in a manner that preserves the packaging; then inspect
the product closely to determine whether it sustained damage during transport. If damage is discovered during the
inspection, immediately record a complete description of the damage on the bill of lading. If the product is undamaged,
discard the packaging.
NOTES:
1) Compliance with laws, regulations, codes, and non-voluntary standards enforced in the location where the product is used
is exclusively the responsibility of the owner/end-user.
2) VESTIL is not liable for any injury or property damage that occurs as a consequence of failing to apply either:
a) Instructions in this manual; or
b) Information provided on labels affixed to the product. Neither is Vestil responsible for any consequential damages
sustained as a result of failing to exercise sound judgment while assembling, installing, using or maintaining this product.
VESTIL MANUFACTURING CORP.
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
Telephone: (260) 665-7586 -or- Toll Free (800) 348-0868
Fax: (260) 665-1339
www.vestilmfg.com e-mail: sales@vestil.com
Table of Contents
Product Specifications…………………………………..……………………………………………………………. ……………… 2 - 3
Signal Words….…………………………………………………………………………………………………………….…………. …. 3
Safety Recommendations………………………………………………………………..…………………………………………… …. 3
Anchor cabinet to the ground……………………………………….………………………………………………………………... …. 4
Loading the cabinet………………………..…………………….……………………………………………………………………. …. 4
Inspections & Maintenance…………………………………………………………………………………………………………… …. 4
Label Placement Diagram……...…………………………………………………………………………………………………….. …. 4
Limited Warranty…...………………………………………………………………………………………………………………….. …. 5
Rev. 1/26/2015 CYL-H, manual.doc
Copyright 2015 Vestil Manufacturing Co. Page 2 of 5

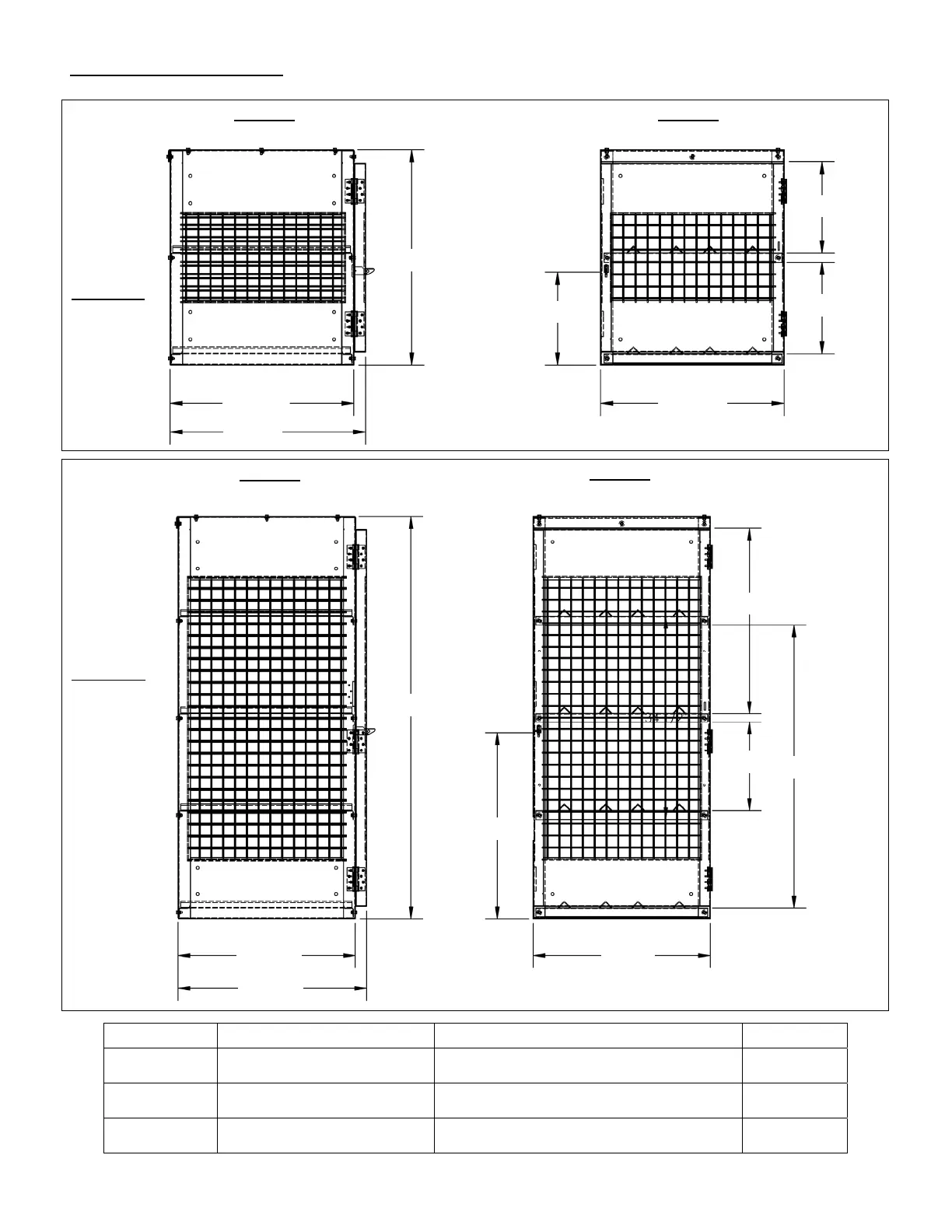

Product specifications: Dimensions and other product specifications appear in the following table based on
the following diagrams.
Model # of 20 lb. LPG tanks Overall Dimensions (W x L x H) Net weight
CYL-H-4 2 per shelf (4 tanks total) 30in.in. x 32in. x 35
1
/
4
in.
185.0 lb.
84.1 kg
CYL-H-8 2 per shelf (8 tanks total) 30in.in. x 31
13
/
16
in. x 68
1
/
4
in.
315 lb.
143.2 kg
CYL-H-16 2 per shelf (16 tanks total) 60in. x 32in. x 68
1
/
4
in.
487.1 lb.
221.4 kg
32 in.
35
1
/
4
in.
14
15
/
16
in.
15
3
/
16
in.
30
1
/
16
in.
31
7
/
16
in.
15 in.
68
1
/
4
in.
31
1
/
2
in.
32 in.
30 in.
CYL-H-8
Side view
Side view Front view
Front view
CYL-H-8
CYL-H-4 CYL-H-4
30
1
/
16
in.
30 in.
15 in.
48 in.
Each shelf
will hold two
20 pound
LPG
cylinders; 8
cylinders
total.
Net weight:
315 lb.
(143.2kg)
Each shelf
will hold two
20 pound
LPG
cylinders; 4
cylinders
total.
Net weight:
185 lb.
(81.4kg)
