SPECIFICATIONS

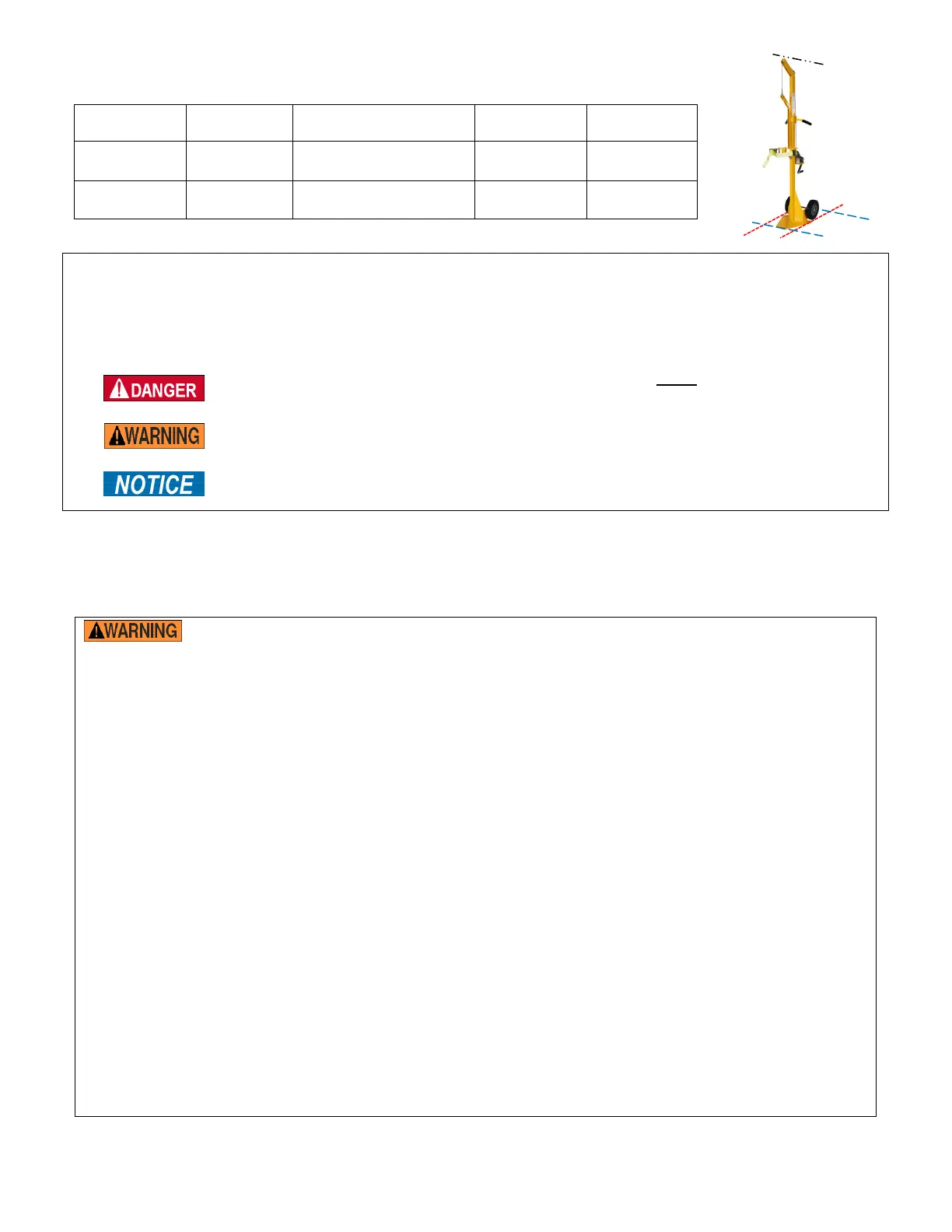

Dimensions, capacity, and net weight information appears in the following table:
a
SIGNAL WORDS
This manual uses SIGNAL WORDS to draw attention to uses of the product that could result in personal
injuries, as well as the probable seriousness of those injuries. Other signal words call attention to uses
likely to cause property damage. Signal words used in this manual appear below along with the definition of
each word.
Identifies a hazardous situation which, if not avoided, WILL result in DEATH or
SERIOUS INJURY. Use of this signal word is limited to the most extreme situations.
Identifies a hazardous situation which, if not avoided, COULD result in DEATH or
SERIOUS INJURY.
Identifies practices likely to result in product/property damage, such as operation that
might damage the product.
SAFETY INSTRUCTIONS
Vestil strives to identify all foreseeable hazards associated with the use of its products. However,
material handling is dangerous and no manual can address every conceivable risk. Ultimately, the most
effective way to prevent injury is to apply sound judgment whenever using this device.
Material handling is dangerous and could result in serious personal injuries or death.
• Read and understand the entire manual before using or servicing this lifter. DO NOT use this
device until you read and understand the entire instruction manual. Read the manual to refresh your
understanding of proper use and maintenance procedures.
• This lifting device must only be used by designated persons and lifting device inspectors.
Maintenance and test personnel should only use this device when necessary to perform their duties.
• DO NOT use this lifter if it is damaged, malfunctioning, or missing parts.
• DO NOT modify the product in any way without first obtaining written approval from Vestil.
Unapproved modifications automatically void the LIMITED WARRANTY and might make the product
unsafe to use.
• DO NOT exceed the capacity.
• DO NOT remove or obscure any label. Confirm the placement and legibility of all labels shown in the
LABELING DIAGRAM on p. 6. DO NOT use this device UNLESS all labeling is easily readable from a
reasonable distance.
• Inspect the lifter before each use. See INSPECTIONS AND MAINTENANCE on p. 6. If repairs are
necessary, only use manufacturer-approved replacement parts.
• DO NOT use the lifter to transport any cylinder that does not seat securely in the brackets. DO NOT
transport a cylinder unless it is securely held by the ratchet strap. The cylinder should not be able to slide
through the strap.
• ONLY raise the cylinder a few inches from the floor when transporting it. When transporting a cylinder up-
or-downhill, always remain uphill to the lifter. DO NOT move the lifter up or downhill unless you can easily
control the lifter. Although the CYL-HLT is equipped with 2 locking casters, these locks will NOT hold the
lifter in place on an incline and will not stop the lifter as it rolls downhill.
• DO NOT leave a raised cylinder unattended. ALWAYS lower the cylinder before leaving it.
• DO NOT store cylinders on the lifter. Unload the lifter and store cylinders in designated facilities.
Model Wheel type
Overall dimensions
(W X D x H)
Net weight
CYL-LT-1-HR Hard rubber
18in. x 24in. x 80in.
300 lb.
97 lb.
CYL-LT-1-PN Pneumatic
18in. x 24in. x 80in.
46cm x 61cm x 203cm
