Rev. 10/2/2017 DSP, MANUAL

DSP-Series Overhead Door Track Protectors

Installation Manual

Receiving instructions:

After delivery, remove the packaging from the product. Inspect the product closely to determine whether

it sustained damage during transport. If damage is discovered, immediately record a complete description

of the damage on the bill of lading. If the product is undamaged, discard the packaging.

Note:

The end-user is solely responsible for confirming that product design complies with all laws, regulations,

codes, and mandatory standards applied where the product is used.

Vestil Manufacturing Corp.

2999 North Wayne Street, P.O. Box 507, Angola, IN 46703

Telephone: (260) 665-7586 -or- Toll Free (800) 348-0868

Fax: (260) 665-1339

Web: www.vestilmfg.com e-mail: info@vestil.com

Table of Contents

Specifications………………………………………………………………………………………………………… 2

Signal Words………………………………………………………..……………………………………………….. 2

Safety Guidelines………………………………………….………………………………..………………….……. 2

Installation……..…………….………………………………………………..……………………………...……… 3

Limited Warranty…………………………………………………………………………...…………………….….. 4

Rev. 10/2/2017 DSP, MANUAL

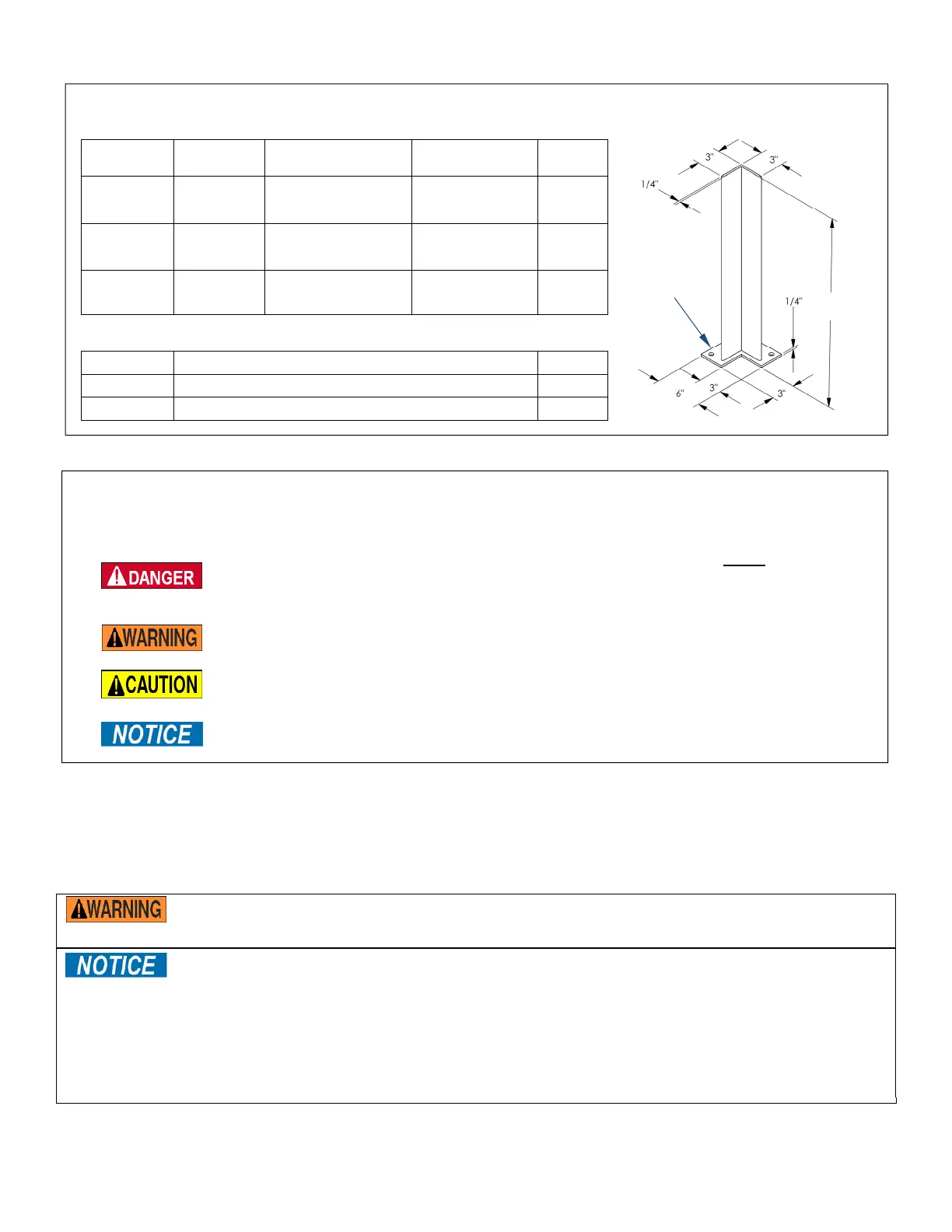

Specifications:

The following table provides dimensions and weights of each guard and anchoring hardware kit.

Signal Words:

This manual uses SIGNAL WORDS to identify hazards associated with the use of this product. Signal

words used in this manual appear below along with their definitions.

Identifies a hazardous situation which, if not avoided, WILL result in

DEATH or SERIOUS INJURY. Use of this signal word is limited to the most

extreme situations.

Identifies a hazardous situation which, if not avoided, COULD result in

DEATH or SERIOUS INJURY.

Indicates a hazardous situation which, if not avoided, COULD result in

MINOR or MODERATE injury.

Identifies practices likely to result in product/property damage, such as operation

that might damage the product.

Safety Guidelines:

Vestil strives to identify the foreseeable hazards of using its products, but no manual can address every

conceivable risk.

DO NOT modify the protector. Modifications automatically void the Limited Warranty (p. 4)

and might make the product unsafe to use.

If this product is installed improperly or carelessly, it will not protect overhead door track as

intended.

 Read and understand the entire manual before assembling and using this product.

 Each protector must be solidly anchored to the ground with three (3) anchor bolts. Anchor bolts should be

” (diameter) by at least 5” (length).

 Install the protectors with the overhead door closed. The protectors must not interfere with normal door

operation.

Model

Overall

height (H)

Mounting plate

dimensions

Anchor bolt

hole diameter

Net

weight

DSP-24 24

”

6” x 6” with 3” x 3”

square notch

” (for

”

anchor bolts)

12 lb.

DSP-36 36

”

6” x 6” with 3”x3”

square notch

” (for

”

anchor bolts)

17 lb.

DSP-48 48

”

6” x 6” with 3”x3”

square notch

” (for

”

anchor bolts)

21 lb.

Model Description Weight

AS-125 Anchor bolt (1) for concrete:

” x 5” 1 lb.

AS-125-4pk

Anchor bolts (4) for concrete:

” x 5” 4 lb.

Mounting

plate
