Side 1/22
EHLT, EHLTD & PST, 24-126-120, 0413.doc
V
ESTIL MFG. CO. 1
VESTIL MANUFACTURING CORP.
2999 N. Wayne St., Angola, IN 46703
Ph: 260-665-7586 · Fax: 260-665-1339
E-mail: sales@vestil.com · Website: www.vestil.com

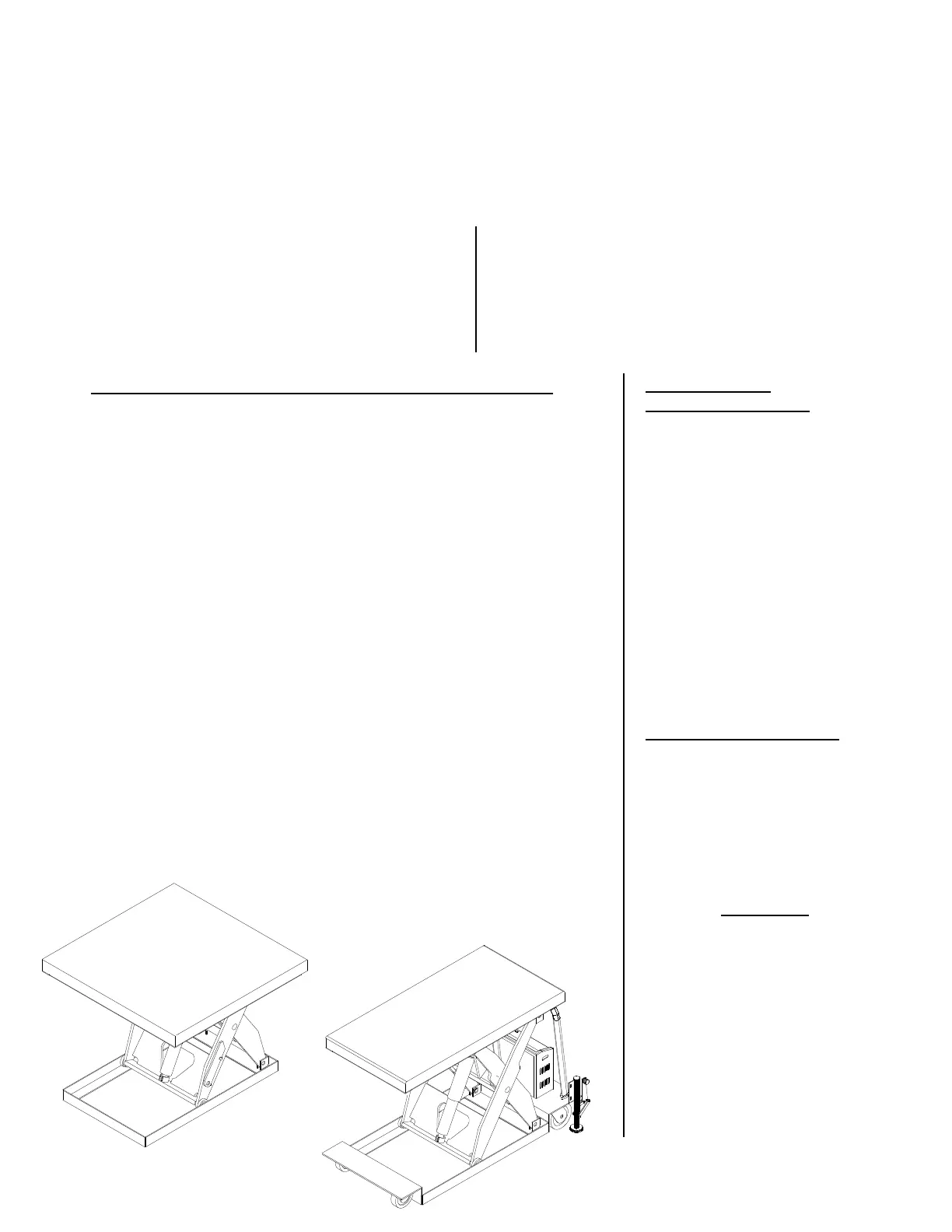

MODELS EHLT (1-4K), EHLTD (2K, 70RH) & PST (1-3K),
43”-55” RAISED HEIGHTS
Serial number ____________
Installation Instructions ……..................…………....… 2
Operation Instructions ……………………….….…… 3-4
Routine Maintenance & Safety Checks …………….… 5
Structural, Exploded Parts (EHLT) .............…….….…. 6
Structural, Exploded Parts (PST) ...........………............ 7
Structural Bill of Materials (EHLT & PST) ................... 8
Motor & Transformer Connections ................................ 9
Electrical & Hydraulic Diagrams .............................. 10-12
Power Unit’s Operation ………………...…..………... 13
DC Power Unit, Exploded Parts ................................ 14-15
AC Power Unit, Exploded Parts ................................ 16-17
Troubleshooting …………………………....………… 18
Safety Label Identification .............................................19
Warranty …………………………………….……..…. 20
IMPORTANT NOTES, WARNINGS AND SAFETY INSTRUCTIONS
Ensure that all employees understand and follow the following.
Failure to read and understand this owner’s manual before using or
servicing the scissor lift constitutes a misuse of the product. All persons
who will install, use, or care for this product must be familiar with this
information.
o Non-portable units must be securely anchored to a level concrete surface.
o The scissor lift is intended for use only on level, concrete surfaces.
o The lift’s load must be centered and evenly distributed on the platform.
o The platform should be lowered before transporting any loads (PST only).
o The load must be removed and the platform fully lowered before any work
is performed on the scissor lift.
o Do not use the scissor lift if any damage or unusual noise is observed.
o Always watch the load carefully when the scissor lift is in operation.
o Ensure that all information/ safety/warning labels remain in place and are
legible. See the labels page.
o For battery-powered units, review the Battery Info page.
o Do not use brake fluid or jack oils in the hydraulic system. If oil is needed,
use an anti-wear hydraulic oil with a viscosity grade of
150 SUS at 100°F, (ISO 32 cSt @ 40°C), or Dexron transmission fluid.
o Contact the manufacturer for any needed MSDS information.
Do not perform any modifications to the scissor lift without the
manufacturer’s approval. Failure to receive authorization for changes to
the equipment could void the warranty.
Maintenance and repairs are to be done only by personnel qualified to
perform the required work. Consideration will not be given for warranty
repair charges without prior written authorization by the manufacturer.
WHEN ORDERING
REPLACEMENT PARTS:
We take pride in using quality
parts on the equipment we
manufacture. We are not
responsible for equipment
problems resulting from the use
of unapproved replacement
parts.
To order replacement or
spare parts for this equipment,
contact the factory.
In any communication with
the factory please be prepared
to provide the machine’s serial
number, which is indicated on
the machine dataplate.
RECEIVING INSTRUCTIONS
It is possible that this product
could incur damage during
transit.
Inspect the unit closely when
it arrives. If you see evidence
of damage or rough handling to
either the packaging or to the
product when it is being
unloaded, immediately
make a
note of it on the Bill Of Lading!
It is important that you
remove the product’s packaging
upon its arrival to ensure that
there is no concealed damage
or to enable a timely claim with
the carrier for freight damage.
Also verify that the product
and its specifications are as
ordered.
OWNER’S
MANUAL
EHLT, EHLTD & PST, 24-126-120, 0413.doc
V
ESTIL MFG. CO. 2
INSTALLATION INSTRUCTIONS – EHLT (1-4K) & EHLTD
Review this entire page before installing the scissor lift.
Consult the factory in the event there are any questions or problems at the time of installation, or for
information regarding optional features not covered by the owner’s manual.
The scissor lift must be removed from the shipping wood and securely anchored to a concrete surface before use!
Modifications or additions to the scissor lift without prior manufacturer’s authorization may void the lift’s warranty
(see ANSI MH29.1-2003, Safety Requirements for Industrial Scissor Lifts, Section 12.6). The addition of ancillary
equipment to the lift may necessitate that its load capacity be reduced.
The installation must be made so that it complies with all the regulations applicable to the machine and its
location. The end-user must verify that the supplied equipment is installed so it will be suited to the environment
in which it will be used.
Installation must be performed by suitably trained personnel with access to the appropriate equipment. The
electrical aspects of the installation should be performed by an electrician.
Note
: If the unit is to be placed into a pit, you will need to first determine how the required electrical (and possibly
hydraulic) connections will be made once the unit is in place.
---------------------------------------------------------------------------------------
For a typical installation of a standard scissor lift you will need the following:
1. A fork truck or hoisting means to unload the scissor lift from the freight truck and set it into place.
2. A smooth, level, and adequately strong concrete surface on which to mount the scissor lift.
3. Concrete anchors, a masonry drill, a masonry bit, hand tools, grout, and steel shims. Consult the building’s
architect or facility engineer to determine the best size and type of hardware with which to anchor the machine to
the floor.
4. An appropriate power supply circuit and electrical disconnect matching the motor voltage and current
requirements. Refer to the machine’s dataplate, to the labels on the control enclosure, and to the electrical
section in this manual for more information. The end-user is responsible for supplying the branch circuit’s required
ground fault and short-circuit protection. (Motor overload protection is provided by a thermostat built into the
motor.)
---------------------------------------
To install a standard scissor lift:
1. The scissor lift must be lowered and fully supported under its frame when moved. Move the scissor lift into place
with straps or forks that span underneath the entire width or length of the frame. Use care to avoid damage the
electrical or hydraulic components inside the scissor lift.
2. Temporarily connect the power supply to the pigtail cord supplied with the scissor lift, and raise the platform so
the lift’s safety maintenance props can be installed between the legset’s frame rollers and the end of the lift’s
frame. Lower the legset until the rollers rest on the props.
o If the platform must be raised without first having the proper power supply connected, raise the platform at the
end of the table through which the power supply cord enters the frame. Use caution to avoid damage to the
perimeter pinch point (toe) guard! Use a hoist with straps or chain rigging, or insert a lift truck’s forks, at the
hinged end of the platform. Take care to not damage the hanging aluminum toe guard. The frame must be held
down at the ends of the shipping 4 x 4’s on the hinged end of the lift while the platform is raised.
3. Anchor the frame to the floor through the four 9/16” holes located in the frame.
4. Shim and/or grout under the full length of the frame sides.
5. Make permanent connection to the power supply, using an appropriate wiring method.
6. Operate the scissor lift through several full raise and lower cycles. Verify that the upper travel limit switch
(mounted near the left-side frame hinge) and the toe guard switches (around the perimeter of the platform)
function properly.
7. Check the hydraulic oil level. It should be filled to within 1” to 1½” of the reservoir’s fill hole. If oil is needed,
use an anti-wear hydraulic oil with a viscosity grade of 150 SUS at 100°F (ISO 32 at 40°C) or a non-synthetic
automatic transmission fluid.
8. Clean up any debris or spilled oil, and verify that all of the information/safety/warning labels are in good
condition.
