Contents:
Warnings & Safety Instructions ........................1
Replacement Parts............................................1
Receiving Instructions .....................................1
Installation Instructions.................................... 2
Operation Instructions ..................................... 3
Routine Maintenance & Safety Checks ........... 4
1
VESTIL MANUFACTURING CORPORATION
P.O. Box 507., Angola, IN 46703 USA
Phone (260) 665-7586 • Fax (260) 665-1339
E-mail: sales@vestil.com • www.vestil.com
OWNER’S
MANUAL
GROUND LIFT SCISSOR TABLES
SERIES EHLTG
Exploded Structural Parts Drawing & BOM......... 5
Electrical & Hydraulic Diagrams & BOM .......6-8
Power Unit’s Operation .................................... 9
Troubleshooting ............................................. 10
Safety Label Identification .............................. 11
Warranty......................................................... 12
RECEIVING INSTRUCTIONS
Every unit is thoroughly tested and inspected prior
to shipment. However, it is possible that the unit could
incur damage during transit.
Inspect the unit closely when it arrives. If you see
evidence of damage or rough handling to either the
packaging or to the product when it is being unloaded,
immediately make a note of it on the Bill Of Lading!
It is important that you remove the product’s packaging
upon its arrival to ensure that there is no concealed dam-
age or to enable a timely claim with the carrier for freight
damage.
Also verify that the product and its specifications are as
ordered.

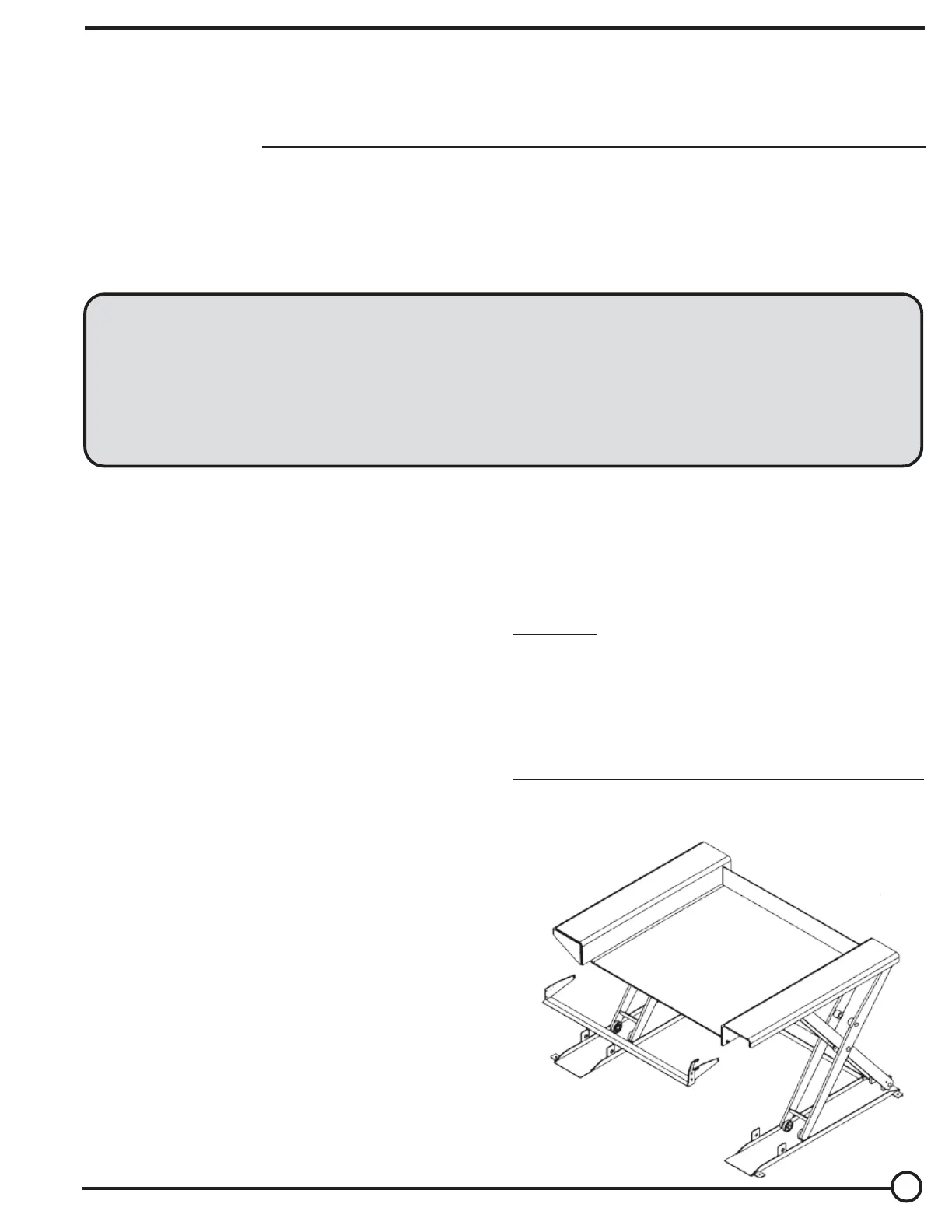

EHLTG-SERIES
GROUND LIFT
SCISSOR TABLE
Ergonomic Solutions
WARNINGS & SAFETY INSTRUCTIONS
Ensure that all employees understand and follow the following.
• Read and understand the owner’s manual before
using or servicing the lift.
• The load must be removed and either the leg set lowered
onto the maintenance props or the platform fully lowered
to the floor before any work is performed on the hydraulic
system.
• Ensure that all safety and warning labels stay in place
and are legible.
• Do not use the lift if any damage or unusual noise is
observed.
• Always watch the load and around the lift’s sides carefully
when the lift is in operation.
• Do not perform any modifications to the lift without the
manufacturer’s approval. Failure to receive authorization
for changes to the equipment could void the warranty.
• Maintenance and repairs are to be done only by
personnel qualified to perform the required work.
• Do not use brake fluid or jack oils in the hydraulic system.
If oil is needed, use an anti-wear hydraulic oil with a
viscosity grade of 150 SUS at 100°F, (ISO 32 cSt
@ 40°C), or Dexron transmission fluid.
WHEN ORDERING REPLACEMENT PARTS
We take pride in using quality parts on the equipment
we manufacture. We are not responsible for equipment
problems resulting from the use of unapproved
replacement parts.
To order replacement or spare parts for this equipment,
contact the factory.
In any communication with the factory please be pre-pared
to provide the machine’s serial number, which is indicated
on the machine dataplate.
Revised 11-13
04-126-121
A company dedicated to solving ergonomic and material
handling problems since 1955
.
INSTALLATION INSTRUCTIONS – EHLTG
Review this entire page before installing the ground-clearance scissor lift.
Consult the factory in the event there are any questions or problems at the time of installation, or for
information regarding optional features not covered by the owner’s manual.
The lift must be removed from the shipping wood and securely anchored to the floor before use!
• Modifications or additions made without prior manufacturer’s authorization may void the lift’s warranty. The addition of
ancillary equipment to the lift may necessitate that its load capacity be reduced.
• The installation must be made so that it complies with all the regulations applicable to the machine and its location. The
end-user must verify that the supplied equipment is installed so it will be suited to the environment in which it will be
used.
• Installation must be performed by suitably trained personnel with access to the appropriate equipment. The electrical
aspects of the installation should be performed by an electrician.
For a typical installation you will need the following:
1. A fork truck or hoisting means to unload the lift from the freight truck and set it into place.
2. A smooth, level, and adequately strong concrete surface on which to mount the lift.
3. Concrete anchors, a masonry drill, a masonry bit, hand tools, grout, and steel shims. Consult the building’s architect or
facility engineer to determine the best size and type of hardware with which to anchor the machine to the floor.
4. A power supply circuit and disconnect matching the motor voltage and current requirements. Refer to the machine’s
dataplate, to the labels on the control enclosure, and to the electrical section in this manual for more information.
The end-user is responsible for supplying the branch circuit’s required overcurrent and short-circuit protection, which
typically can be a 20A (maximum) inverse-time circuit breaker.
1. The lift must be lowered and fully supported. Move the lift into place with straps or forks placed underneath both the
frame and the platform. Use care to avoid damage to the electrical or hydraulic components from the remotely-
located power unit attached at the operator’s side of the lift.
2. Temporarily connect the power supply to the pigtail cord supplied with the power unit, and raise the platform so the
lift’s safety maintenance props can be utilized. Lower the platform so the legset is supported on the maintenance
props.
3. Anchor the frame to the floor through the 9/16” holes located at the corners of the frame.
4. Shim and/or grout under the full length of the frame sides.
5. Make permanent connection to the power supply, using an appropriate wiring method.
6. Operate the lift through several full up and down cycles. Verify that the upper travel limit switch (mounted in one side
of the leg set) and the toe guard switch (at one end of the toe guard bar, across the loading side of the platform)
function properly.
7. Check the remote power unit’s hydraulic oil level. It should be filled to within 1” to 1½” of the reservoir’s fill hole. If
oil is needed, use an anti-wear hydraulic oil with a viscosity grade of 150 SUS at 100°F (ISO 32 at 40°C) or a non-
synthetic automatic transmission fluid.
8. Clean up any debris or spilled oil, and verify that all of the warning and safety labels are intact.
• If the platform must be raised without first having the proper power supply connected, raise the platform at the end of
the lift to which the electrical cord and hydraulic hose attaches. Use a lifting hook on each side, attached near the
deck hinges. With this method, the frame must be held down at the hinged end of the lift while the platform is raised.
2
