Rev. 9/20/2016 FORK-J, MANUAL
Page 1 of 4
FORK-J Fork Truck Jack System
Instruction Manual
Receiving instructions:
After delivery, IMMEDIATELY remove the packaging from the product in a manner that preserves the packaging.
Inspect the product closely to determine whether it sustained damage during transport. If damage is discovered,
immediately record a complete description of the damage on the bill of lading. If the product is undamaged,
discard the packaging.
NOTICES:
1) Compliance with laws, regulations, codes, and non-voluntary standards enforced in the location where the product
is used is exclusively the responsibility of the owner/end-user.
2) VESTIL is not liable for any injury or property damage that occurs as a consequence of failing to apply either:
a) Instructions in this manual; or
b) Information provided on labels affixed to the product.
Vestil is not responsible for consequential damages sustained while assembling, using, or maintaining this product.
Table of Contents
Signal Words……………………………………………………………..………………………………………………………… 2
Safe use recommendations………………………………………………………………………………………………….. ….. 2
Operation………………………………………………………………………………………………………………………. ….. 2
Exploded parts diagram & bill of materials………..……………………………………………………………..……………… 3
Specifications………………………………………………………………………………………………………………………. 3
Limited warranty……………………………………………………………………………………………………………….. ….. 4
VESTIL MANUFACTURING CORP.
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
Telephone: (260) 665-7586 -or- Toll Free (800) 348-0868
Fax: (260) 665-1339
www.vestilmfg.com e-mail:
HUsales@vestil.comU
Rev. 9/20/2016 FORK-J, MANUAL
Page 2 of 4
Signal Words:
This manual uses SIGNAL WORDS to indicate the likelihood of personal injuries, as well as the probable
seriousness of those injuries, if the product is misused in the ways described. Other signal words call attention to
uses of the product likely cause property damage. The signal words used in this manual appear below along with
the meaning of each word:
Identifies a hazardous situation which, if not avoided, WILL result in DEATH or
SERIOUS INJURY. Use of this signal word is limited to the most extreme situations.
Identifies a hazardous situation which, if not avoided, COULD result in DEATH or
SERIOUS INJURY.
Indicates a hazardous situation which, if not avoided, COULD result in MINOR or
MODERATE injury.
Identifies practices likely to result in product/property damage, such as operation that
might damage the product or other property.
Safe use recommendations:
Operation:
To operate the jack, simply grasp the handle and slide the front
end of the jack under the fork truck. A label on the top surface
of the lifting frame displays a red line. Do not slide the jack
further beneath the truck than the red line. Turn the knob at the
top of the pump body to the fully closed position (clockwise).
Then, move the handle up-and-down to raise the lifting frame.
Fine tune the position of the jack, if necessary, to bring the
lifting frame into solid contact with the frame of the fork truck.
Position a jack stand at the front and rear of the truck frame on
the side of the truck being raised. Continue to raise the jack
until jack stands can be placed underneath the front and rear
ends of the truck frame. Slowly lower the truck frame onto the
jack stands by slowly turning the knob towards the “Open”
position (counterclockwise). NOTE: The more the knob is
rotated counterclockwise, the faster the jack lowers.
Improper or careless use of this product might result in serious personal injuries or death.
DO NOT exceed to rated capacity of the jack (8,800 lb. 4000kg).
DO NOT attempt to lift a fork truck completely off of the ground with this jack system. At least 2 wheels must
maintain contact with the ground.
DO NOT use more than one jack to lift a fork truck.
DO NOT slide the jack under a truck beyond the red line that appears on the “NOTICE” decal. The decal is
applied to the top surface of “Lifting frame” (see item 58 in Bill of Materials on p. 3).
DO NOT use any cribbing in conjunction with the jack or the jack stands. For instance, never put blocks
underneath the jack or on top of it in order to increase the maximum jack height.
Keep hands, feet, clothing, etc. away from the moving scissor mechanism at all times.
DO NOT drive the fork truck off of the jack. Lower the jack until all wheels firmly contact the ground and remove
the jack and jack stands before driving the truck.
DO NOT work on the fork truck if it is only supported by the jack. Always support the truck with the jack stands
before beginning work. To support a truck with the stands:
1. Elevate the truck with the jack.
2. Position the jack stands beneath the frame of the truck on the same side as the jack. The stands should
be located at the front and rear of the frame.
3. Lower the jack until the frame rests solidly on both jack stands.
DO NOT modify the jack or the stands without first receiving written approval from the manufacturer.
Unapproved modifications automatically void the limited warranty and might make the jack and/or the stands
unsafe to use.

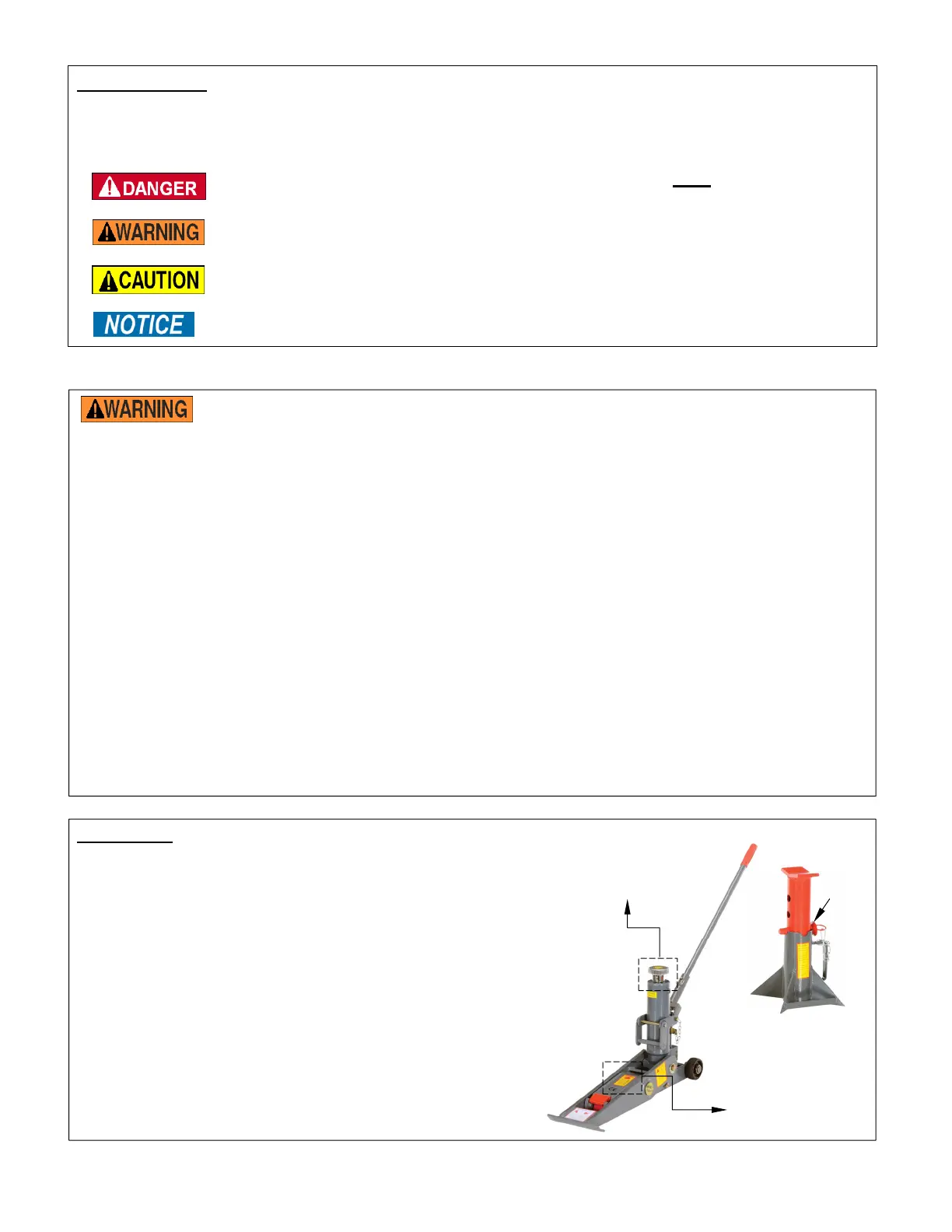

Label on top surface
of lifting frame with
red line indicator
Jack direction control knob:
1. Fully close to raise jack
2. Open to lower jack
Jack stand (change
pin position to adjust
height)
Pin
