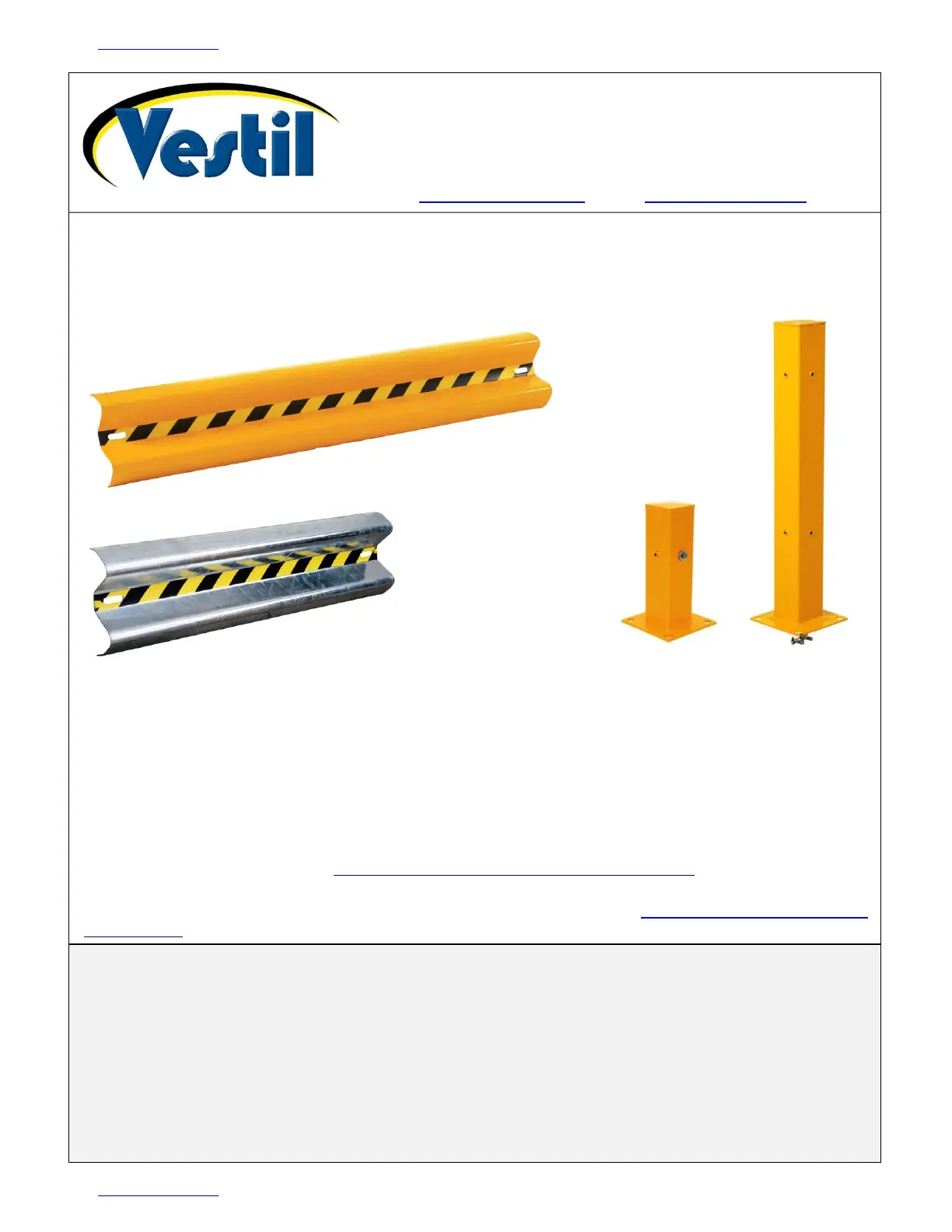

TABLE OF CONTENTS 5/14/2025 GR-H2R-BO, MANUAL

Bolt-On GR-H2R-BO Guard Rail Systems

GR-H2R Posts

Receiving Instructions

After delivery, remove the packaging from the product. Inspect the product closely to determine

whether it sustained damage during transport. If damage is discovered, record a complete description

of it on the bill of lading. If the product is undamaged, discard the packaging.

NOTE: The end-user is solely responsible for confirming that product design, use, and maintenance

comply with laws, regulations, codes, and mandatory standards applied where the product is used.

Technical Service & Replacement Parts

For answers to questions not addressed in these instructions and to order replacement parts, labels,

and accessories, call our Technical Service and Parts Department at (260) 665-7586. The department

can also be contacted online at https://www.vestil.com/page-parts-request.php.

Electronic Copies of Instruction Manuals

Additional copies of this instruction manual may be downloaded from https://www.vestil.com/page-

manuals.php.

Table of Contents

Page

Specifications.……………………….………………………………………….………………………...……………

Signal Words…………..……………..................................................................................................................

Safety Instructions….………..…………………………………………….…………………………………..………

Guardrail System Components……............................................................................................................

Attaching Guardrail Sections to Posts……...…………………………..…………………………………………

Anchoring Posts to the Ground………….………..……………………………………………………..…………

Record of Satisfactory Condition…………………………………………………………………………………..

Inspecting & Maintaining the Guardrail System…………………………………………………………………

Optional Equipment for GR-H2R Guardrail Systems………………………………………………………….…

6 - 7

Limited Warranty………………………………………………………………………………………………………

Vestil Manufacturing Company

2999 North Wayne Street, P.O. Box 507, Angola, IN 46703

Telephone: (260) 665-7586 -or- Toll Free (800) 348-0868

Fax: (260) 665-1339

www.vestil.com info@vestil.com

TP42

TP18

TP60 and TP72

not shown

GR-H2R-BO Yellow Powder Coat

GR-H2R-BO Galvanized Finish

TABLE OF CONTENTS 5/14/2025 GR-H2R-BO, MANUAL

SPECIFICATIONS

GR-H2R-BO series bolt-on guardrail systems are designed to provide protection against impacts in

industrial and commercial settings. Constructed from durable steel, these guardrails are available in

various lengths and finishes. They are intended for installation on private property using posts anchored

to the ground. These guardrail systems are not designed for installation on public roadways. DOT-

compliant versions are available upon request. System performance depends on proper installation as

well as the strength of the supporting surface. The following is detailed information about GR-H2R-BO

guardrails, derived from similar product data and adjusted for the bolt-on configuration:

 Available Lengths: 3ft, 4ft, 5ft, 6ft, 7ft, 8ft, 9ft, 10ft, 11ft, 12ft

 Finishes: Yellow Powder Coat (-YL), Hot-Dipped Galvanized (-HDG)

 Color: Yellow (Rail), Black (Bracket) for -YL; Gray (Rail), Black (Bracket) for -HDG

 Material: Steel

 Guardrail Dimensions: 5.5" W x [Length varies by model] L x 12.8125" H

 Impact Resistance: 4,000 lb. at 4 mph

 Mounting Posts Required: 2 posts for 3ft to 8ft lengths, 3 posts for 9ft to 12ft lengths (posts sold

separately)

 Rail-Mounting Hardware: Included with rails (for bolt-on attachment)

 Anchor Kits: Sold separately for mounting posts to the ground

Specifications for GR-H2R-BO guardrail system components are available online to anyone who visits

Vestil’s website. These include dimensions, net weight, and finish information. To access model-specific

information, navigate to the GR-H2R-BO webpage at https://www.vestil.com/product.php?FID=654.

Scroll the page to the “Product Specifications Table”. Scroll the table until you find your model. Click on

the model name (white text inside a blue box), and a pop-up window will open with detailed

information about your model. Print a copy of the document and keep it with your copy of this manual.

The graphic below is an exemplar specifications pop-up window for model GR-H2R-BO-4-YL.
