Side 1/22
1
Revised 10-03 21-126-102
A company dedicated to solving ergonomic and material
handling problems since 1955.
WARNINGS & SAFETY INSTRUCTIONS
Insure that all employees understand and follow the
following instructions.
• Read and understand the owner's manual before using or
servicing the table.
• For battery-powered units, review the additional warnings
included elsewhere in this manual.
• Do not use the table if any damage or unusual noise is
observed.
• Always watch the table and any load on it carefully when
it is being moved or used.
• Avoid sudden stops or quick turns to prevent accidental
tipping of the table.
• Use caution if you slide a load onto the table top.
• The table's load must be centered and evenly distributed
on the table.
• Do not perform any modifications to the table without the
manufacturer's approval. Failure to receive authorization
for changes to the equipment could void the warranty.
• Maintenance and repairs are to be done only bypersonnel
qualified to perform the required work.
• Do not use brake fluid or jack oil in the hydraulic system.
If oil is needed, use an anti-wear hydraulic oil with a
viscosity grade of 150 SUS at 100°F, (ISO 32 @ 40° C),
or a non-synthetic transmission fluid.
• Use only replacement parts either supplied or approved
by the manufacturer.
HYDRAULIC POST TABLES
& LONG DECK CART
Contents
Warnings and Safety Instructions .................... 1
Receiving Instructions ..................................... 1
Operating Instructions - HT, LDLT ................... 2
Instructions for Battery-Powered Units ............ 3
Power Unit's Operation - HT, LDLT ................. 4
Electrical, Hydraulic Diagrams - HT, LDLT ..... 5
Routine Maintenance & Safety Checks ........... 6
Trouble Shooting Guides - HT, LDLT ............. 7
1 & 2-Post Hydraulic Parts/Drawing .............8-9
4-Post Hydraulic & DC Parts/Drawing ......10-11
Foot Operated Jack Parts/Drawing ..........12 -15
2-Speed Operating Instructions .....................16
Trouble Shooting Guide ...........................17-18
2-Speed Foot Pump Parts/Drawing ........ 19 - 20
Warning Labels .............................................21
Warranty ........................................................ 22
OWNER'S
MANUAL
HYDRAULIC POST TABLES & LONG DECK CART
Model HT, LDLT
VESTIL MANUFACTURING CORPORATION
2999 North Wayne St., P.O. Box 507
Angola, IN 46703 USA
Phone (260) 665-7586 • Fax (260) 665-1339
www.vestil.com • sales@vestil.com

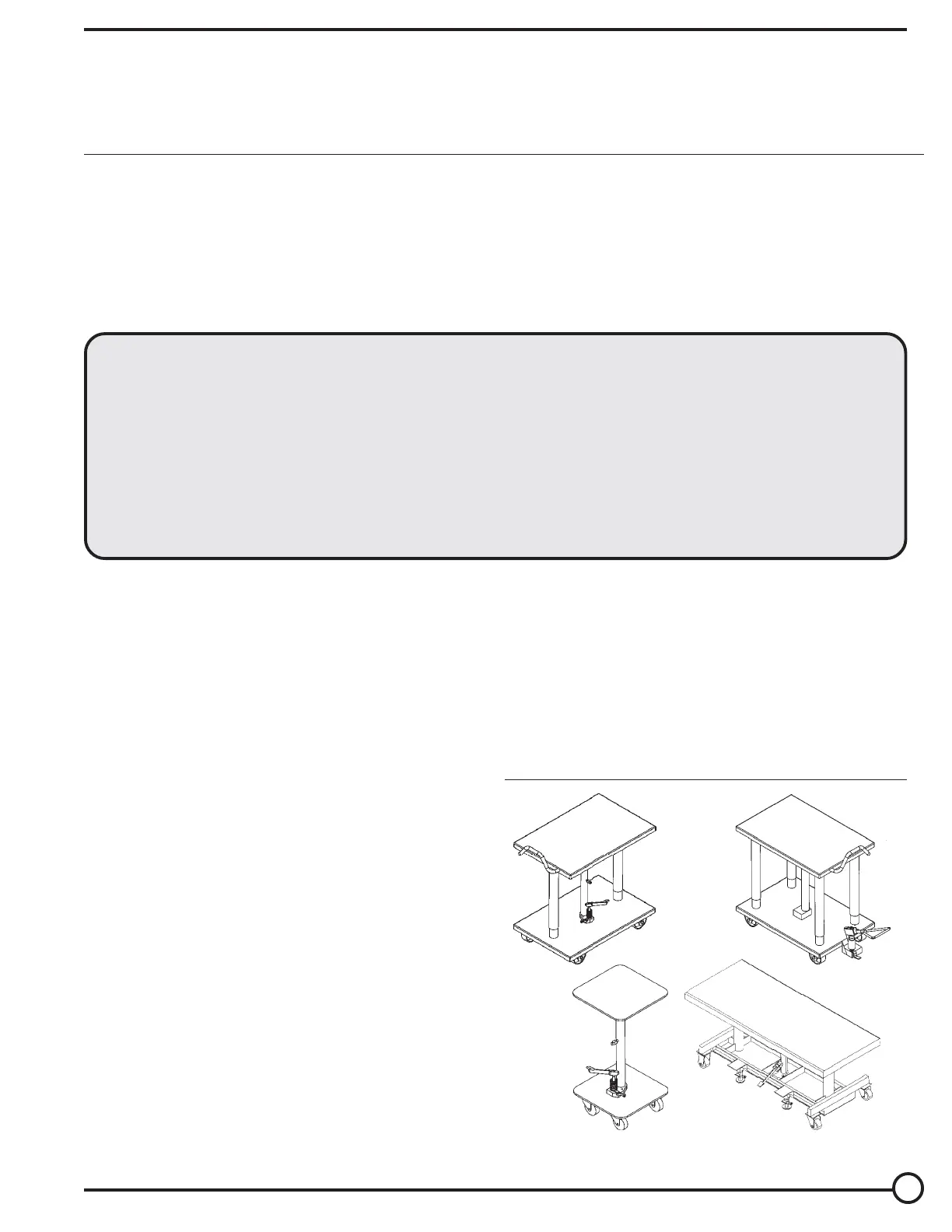

SINGLE POST
2-POST
4-POST
RECEIVING INSTRUCTIONS
Every unit is thoroughly tested and inspected prior to
shipment. However, it is possible that the unit may incur
damage during transit. If you see damage when unloading,
make a note of it on the SHIPPER RECEIVER.
Remove all packing and strapping material, inspect for
damage. IF DAMAGE IS EVIDENT, FILE A CLAIM WITH
THE CARRIER IMMEDIATELY! Also, check the platform
size, type of power unit, etc., to see that the unit is correct for
the intended application.
Long Deck
2
OPERATION INSTRUCTIONS - HT, LDLT
LOADING:
The load rating, in pounds, is shown on the capacity tag located on the base. It indicates the net capacity of the table, assuming
a centered load. Permanent damage to the table or injury to personnel could result from exceeding the listed capacity.
The load size should not exceed the table dimensions by more than 50% and should not exceed twenty-four inches in height.
Do not use the base of the hydraulic table as a storage shelf.
OPERATION:
The manually-powered hydraulic tables are furnished with a foot-pump.
On the single and two-post tables, step on the foot treadle to raise the table and step on the release lever on the right side
of the pump to lower the table.
The four-post table has a two-speed foot pump, separate from the lifting cylinder. Step on the foot treadle to raise the table.
You can change the pump from the low-volume to high-volume by pulling the slide on top of the foot pump back toward the
foot treadle.
The DC-powered table is furnished with either a constant-pressure (dead-man style), push-button (standard), or twin foot switch
(optional) control.
Pressing the "UP" push-button or foot switch will turn the power unit to raise the platform. The platform will raise only while
the control is pressed. Upon releasing the control, the platform will stop and hold its position.
Pressing the "DOWN" push-button or foot switch will energize the lowering valve to allow the platform to descend. Again,
releasing the control will stop the platform movement and the unit will hold its position. Be certain no part of any person or
object is under any part of the platform before lowering the unit.
Attempting to raise the platform when the battery is low will cause the motor relay protection to prevent the motor's operation.
Adequate battery voltage is indicated by a green LED on the motor relay. See the next page for more notes regarding operation
of battery-powered units.
SAFETY:
Keep all personnel clear of the machine when it is in operation.
Do not exceed the table's load rating.
Use caution to avoid tipping the table when placing or sliding a load onto or off of the table.
Avoid obstacles that can cause the base to sudden stop when moving a loaded table, such as cracks in the floor or the corners
of machines, etc. Doing so could cause the post table to tip over or allow the load to slide off the table.
Never use the table if it is in need of repairs or if it seems to be malfunctioning.
Notify your maintenance personnel if you notice anything out of the ordinary, such as odd noises, erratic motion, or damage
to any part of the table or its components.
ORDERING REPLACEMENT PARTS:
We take pride in using quality parts on the equipment we manufacture. We are not responsible for equipment problems resulting
from the use of unapproved replacement parts.
To order replacement or spare parts for this equipment, contact the factory.
In any communication with the factory, please be prepared to provide the machine's serial number, which is indicated on the
machine dataplate.
