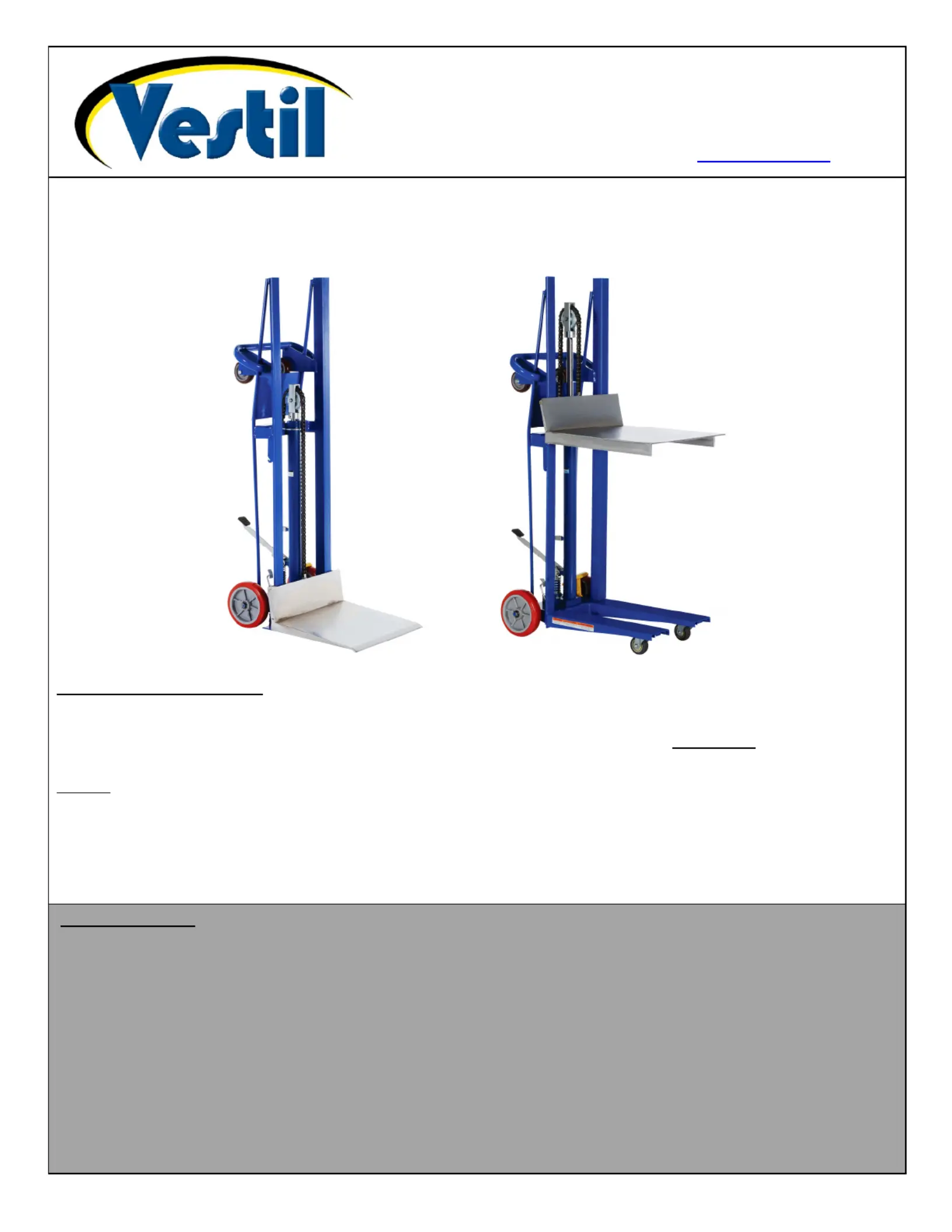

HYDRA ERIES S MANUAL HYDRAULIC LIFT TRUCKS
A
RECEIVING INSTRUCTIONS:
After delivery, IMMEDIATELY remove the packaging from the product in a manner that preserves the packaging and
maintains the orientation of the product in the packaging; then inspect the product closely to determine whether it
sustained damage during transport. If damage is discovered during the inspection, immediately record a complete
description of the damage on the bill of lading. If the product is undamaged, discard the packaging.
NOTES:
1) Compliance with laws, regulations, codes, and non-voluntary standards enforced in the location where the product is
used is exclusively the responsibility of the owner/end-user
2) VESTIL is not liable for any injury or property damage that occurs as a consequence of failing to apply either:
a) Instructions in this manual; or b) information provided on labels affixed to the product. Neither is Vestil responsible for
any consequential damages sustained as a result of failing to exercise sound judgment while assembling, installing, using
or maintaining this product.
Table of Contents
Product Specifications…………………………………..………………………………………………………………………………………. 2
Signal Words….………………………………………………………………………………………………………………………………….. 3
Safety Recommendations………………………………………………………………..…...………………………………………………… 3
FIG. 1: HYDRA-2 exploded parts diagram & bill of materials……………………………………………………………………………….. 4
FIG. 2: HYDRA-4 exploded parts diagram & bill of materials……………………………………………………………………………….. 5
FIG. 3: HYDRA-HD exploded parts diagram & bill of materials…………………………………………………………………………….. 6
Function tests before use……………………………………………………………………………………………………………………….. 7
Operation instructions…………………………………………………………………………………………………………………………… 7 - 8
Inspections & Maintenance……………………………………………………………………………………………………………………... 9
Troubleshooting Guide………………………………………………………………………………………………………………………….. 10
Detailed Troubleshooting—Foot Pump………………………………………………………………………………………………………... 11-15
FIG. 4: Hydraulic System Diagram…………………………………………………………………………………………………………….. 15
Detailed explanation of Hydraulic System Operation………………………………………………………………………………………… 16
Label Placement Diagram……...……………………………………………………………………………………………………………….. 17
Limited Warranty…...……………………………………………………………………………………………………………………………. 18
V M CESTIL ANUFACTURING ORP.
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
Telephone: (260) 665-7586 -or- Toll Free (800) 348-0868
Fax: (260) 665-1339
www.vestilmfg.com e-mail: sales@vestil.com
Copyright 2015 Vestil Manufacturing Co. Page 2 of 18
Product specifications:

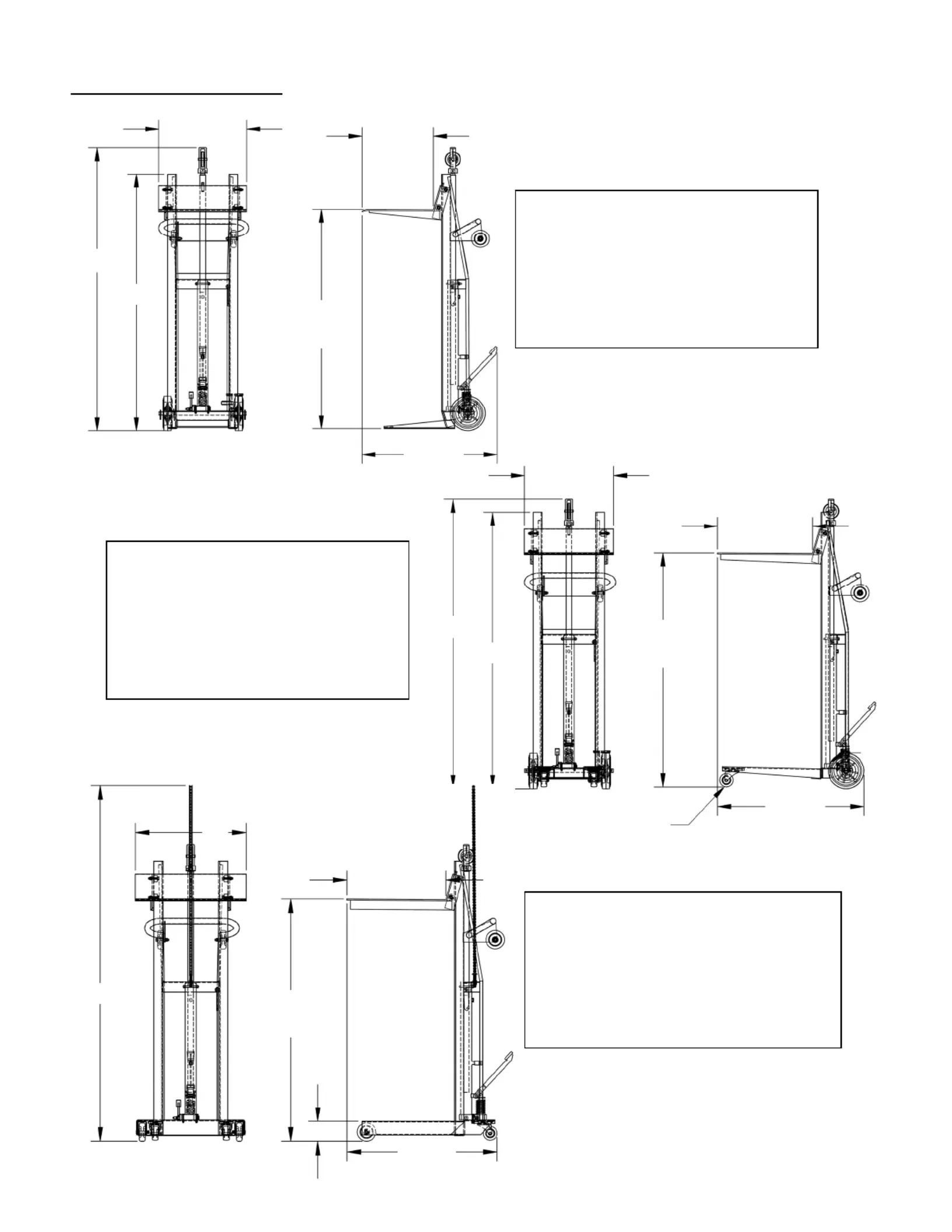

Dimensions and other product specifications appear in the following table based on the following diagrams.
HYDR
A
-HD
Deck operated by foot pump
Capacity: 1,000 lb.
Overall width: 24 inches
Overall length: 32
7
/
16
inches
Overall height: 77
1
/
4
inches
Deck dimensions: 24 inches x 21
3
/
8
inches
Service ran
g
e: 4
3
/
4
inches to 52
3
/
4
inches
HYDR
A
-2
Deck operated by foot pump
Capacity: 750 lb.
Overall width: 20 inches
Overall length: 30
11
/
16
inches
Overall height: 64
13
/
16
inches
Deck dimensions: 20 inches x 16
1
/
4
inches
Service range: 0 inches to 48 inches
HYDR
A
-4
Deck operated by foot pump
Capacity: 750 lb.
Overall width: 20 inches
Overall length: 32
15
/
16
inches
Overall height: 64
13
/
16
inches
Deck dimensions: 20 inches x 21
3
/
8
inches
Service range: 4 inches to 52
3
/
4
inches
58
13
/
16
”
20”
0” to 48”
service
ran
g
e
64
13
/
16
”
30
11
/
16
”
16
1
/
4
”
20”
64
13
/
16
”
61
7
/
16
”
4
3
/
4
” to
52
3
/
4
”
service
21
3
/
8
”
32
15
/
16
”
3” x 1
1
/
4
” hard rubbe
r
swivel caster
77
1
/
4
”
20”
21
3
/
8
”
4
3
/
4
” to
52
3
/
4
”
service
4
3
/
8
”
32
7
/
16
”
