Rev. 10/17/2016 JIB-HC, MANUAL
Copyright 2016 Vestil Manufacturing Co. Page 1 of 10
JIB-HC-Series Jib Cranes
Instruction Manual
Receiving instructions:
After delivery, IMMEDIATELY remove the packaging from the product. Inspect the product closely to determine
whether it sustained damage during transport. If damage is discovered, record a complete description of the damage
on the bill of lading and notify the freight carrier. If the product is undamaged, discard the packaging.
NOTICES:
1) Compliance with laws, regulations, codes, and non-voluntary standards enforced in the location where the
product is used is the responsibility of the end-user.
2) VESTIL is not liable for any injury or property damage resulting from failure to apply either:
a) Instructions in this manual; or
b) Information provided on labels affixed to the product.
3) Vestil is not responsible for consequential damages sustained while assembling, using, or maintaining this
product.
Table of Contents
Jib specifications……….………………………………………………………………………………………………………..2
Signal words…………………………………………………………………………………………………………………….. 2
Safe use recommendations……………………………………………………………..…………………………………….. 2 - 3
Function tests…………………………………………………………………………………………………………………… 3
FIGS. 1-4: Exploded parts diagrams and bills of materials………..…………………………………………………….... 3 - 5
Assembly instructions………………………………………………………………………………………………………….. 5 - 6
Use instructions………………………………………………………………………………………………………………….7
Inspections & Maintenance………………………………………………………………………………………………….... 8 - 9
Labeling diagram………………………………………………………..……………………………………………………… 9
Limited warranty………………………………………………………………………………………………………………… 10
VESTIL MANUFACTURING CORP.
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
Telephone: (260) 665-7586 -or- Toll Free (800) 348-0868
Fax: (260) 665-1339
www.vestilmfg.com e-mail:
HUsales@vestil.comU
Rev. 10/17/2016 JIB-HC, MANUAL
Copyright 2016 Vestil Manufacturing Co. Page 2 of 10
SIGNAL WORDS:
This manual uses SIGNAL WORDS to call attention to uses of this product that are likely to result in personal
injuries or property damage. The signal words used in this manual appear below along with their definitions.
Identifies a hazardous situation which, if not avoided, WILL result in DEATH or SERIOUS
INJURY. Use of this signal word is limited to the most extreme situations.
Identifies a hazardous situation which, if not avoided, COULD result in DEATH or
SERIOUS INJURY.
Indicates a hazardous situation which, if not avoided, COULD result in MINOR or
MODERATE injury.
Identifies practices likely to result in product/property damage, such as operation that might
damage the product or other property.
Safe Use Recommendations:
Study the entire manual before using this crane. Store a copy of the manual with the crane. Read the manual to
refresh your understanding of the safe operation, inspection or maintenance procedures whenever necessary.
DO not install or use the crane in areas where the crane will contact electrified wires. Electrocution
might occur if the crane, hoist, or load, etc. contacts electrified wires.
Improper or careless operation might result in serious personal injuries.
ALWAYS apply operation, inspection, and maintenance recommendations in 29 CFR 1910.179. Contact the
occupational safety and health institution of the state where the crane is used for requirements applied to jib cranes.
DO NOT use a damaged or malfunctioning jib! Restore the crane to normal operating condition before returning it
to service.

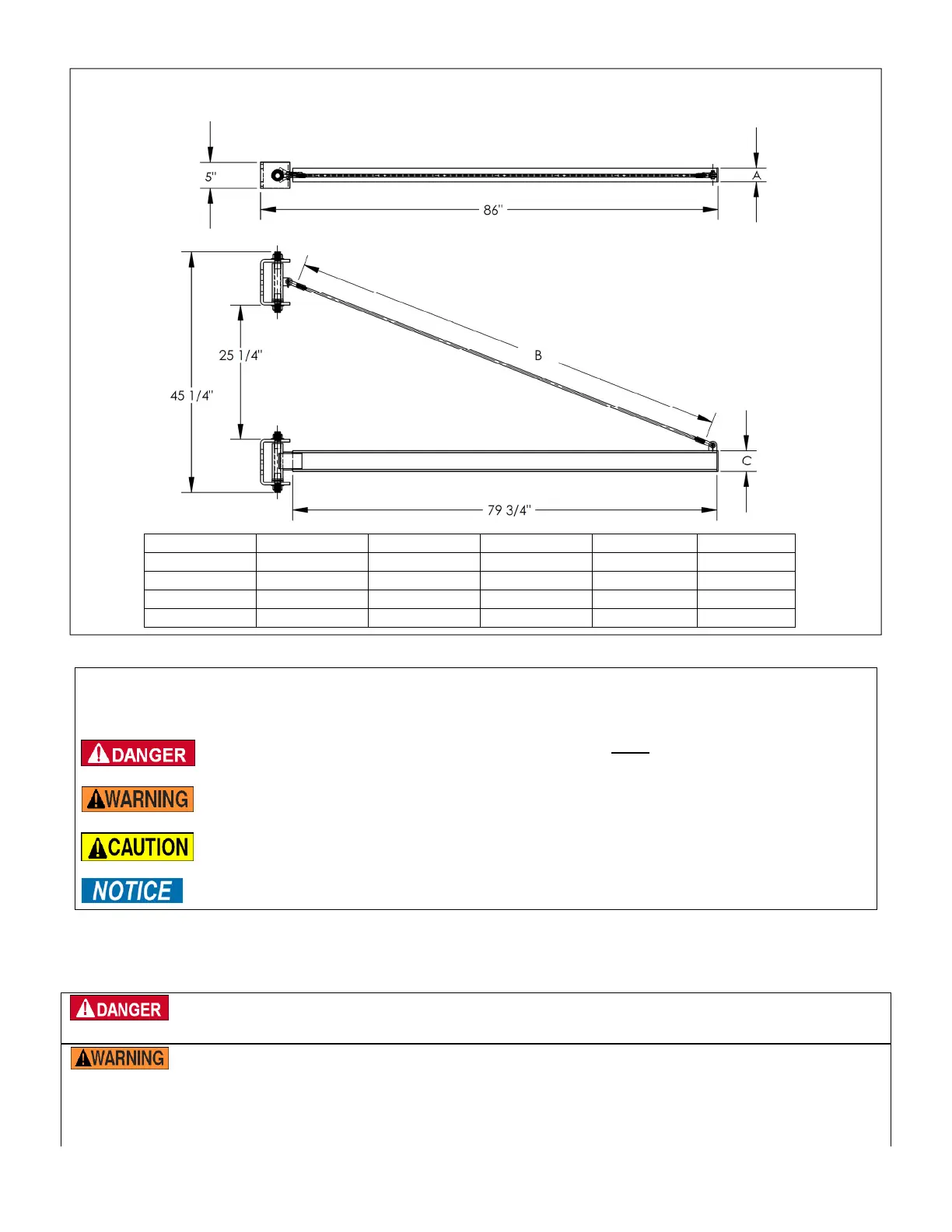

Jib Specifications:
Crane dimensions and net weight appear in the table below.
Model A B C Capacity Net wt.
JIB-HC-3 2
11
/
16
” 82
1
/
4
” 4” 300 lb. 102 lb.
JIB-HC-6 2
11
/
16
” 82
1
/
4
” 4” 600 lb. 102 lb.
JIB-HC-10 2
11
/
16
” 76
3
/
4
” 4” 1,000 lb. 110 lb.
JIB-HC-20 4” 76
3
/
4
” 6” 2,000 lb. 143 lb.
