Rev. 6/8/2017 PNU, MANUAL
Copyright 2017 Vestil Manufacturing Corp. Page 1 of 6
PNU-Series Steel Platform Carts
Instruction Manual
Receiving instructions:
After delivery, remove the packaging from the product. Inspect the product closely to determine whether
it sustained damage during transport. If damage is discovered, record a complete description of it on the
bill of lading. If the product is undamaged, discard the packaging.
NOTE:
The end-user is solely responsible for confirming that product design, installation, use, and maintenance
comply with laws, regulations, codes, and mandatory standards applied where the product is used.
Table of Contents
Specifications…………………………….………………………………………………………………………………………… 2
Exploded Parts View and Bill of Materials…………….………………………………………………………………………… 2
Signal words…………………………………………………………………………………………………………………………3
Hazards of improper use………………………………………………………………..………………………………………… 3
Assembling the cart………………………………………………………………………………………………………………... 4
Using the cart………………………………………………………………………………………………………………………. 4
Inspections………………………………………………………………………………………………………………………….. 5
Labeling diagram………………………………………………………..…………………………………………………………. 5
Limited Warranty………..………………………………………………………………………………………………………….. 6
Vestil Manufacturing Corp.
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
Telephone: (260) 665-7586 -or- Toll Free (800) 348-0868
Fax: (260) 665-1339
www.vestilmfg.com e-mail:
HUinfo@vestil.comU
Rev. 6/8/2017 PNU, MANUAL
Copyright 2017 Vestil Manufacturing Corp. Page 2 of 6
Specifications:

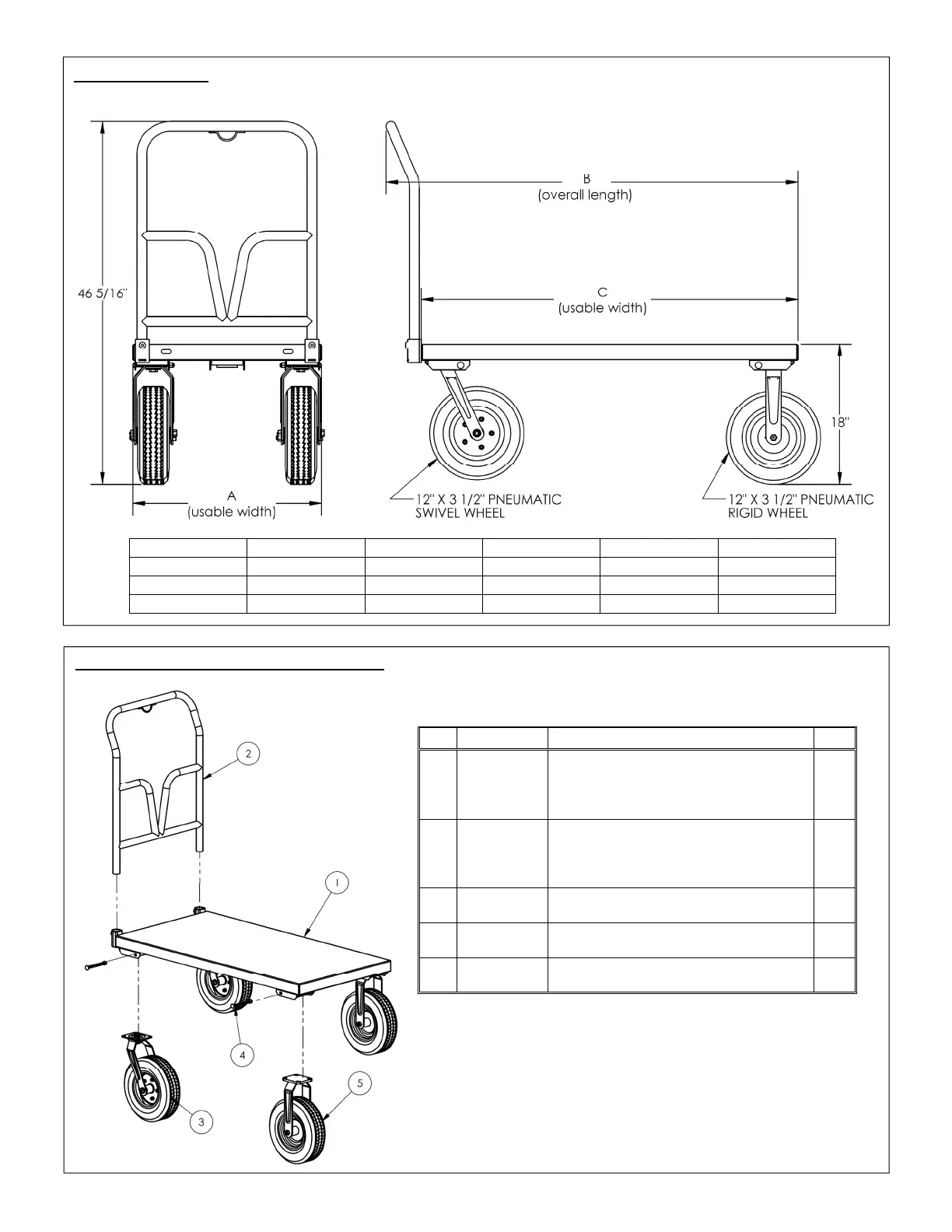

Dimensions, capacity, and net weight appear in the diagrams and tables below.
Exploded Parts Diagram and Bill of Materials
Item
Part no. Description Qty.
1
33-514-079
33-514-080
33-514-081
Weldment, deck:
PNU-2448
PNU-3060
PNU-3672
1
1
1
2
16-025-029
16-025-031
16-025-032
Handle, chromed:
PNU-2448
PNU-3060
PNU-3672
1
1
1
3 16-132-285
Caster, pneumatic swivel, 12” x 3
1
/
2
”,
with 4 x 4
1
/
2
” top plate
2
4 99-612-001
Caster retaining hardware, bolt and nut
assembly
4
5 16-132-142
Caster, pneumatic, 12” x 3
1
/
2
”, with 4” x
4
1
/
2
” top plate
2
Model A B C Capacity Net weight
PNU-2448 24” 52
1
/
2
” 48” 1,500 lb. 244 lb.
PNU-3060 30” 64
1
/
2
” 60” 1,500 lb. 276 lb.
PNU-3672 36” 76
1
/
2
” 72” 1,500 lb. 312 lb.
