Rev. 12/7/2017 PRAIL-102, MANUAL

PRAIL-102 Interlocking Crowd Control Barriers

Receiving instructions:

After delivery, remove the packaging from the product. Inspect the product closely to determine whether

it sustained damage during transport. If damage is discovered, immediately record a complete description

of the damage on the bill of lading. If the product is undamaged, discard the packaging.

Note:

The end-user is solely responsible for confirming that product design complies with all laws, regulations,

codes, and mandatory standards applied where the product is used.

Vestil Manufacturing Corp.

2999 North Wayne Street, P.O. Box 507, Angola, IN 46703

Telephone: (260) 665-7586 -or- Toll Free (800) 348-0868

Fax: (260) 665-1339

Web: www.vestilmfg.com e-mail: info@vestil.com

Table of Contents

Signal Words………………………………………………………..……………………………………………….. 2

Safety Guidelines………………………………………….………………………………..………………….……. 2

Barrier Frame Models……………………………………………………………………………………………….. 2

Types of Feet & Foot Installation………………………………………………………………………………….. 2

Specifications………………………………………………………………………………………………………... 3

Using the Barrier…………….………………………………………………..……………………………...……… 3

Limited Warranty…………………………………………………………………………...…………………….….. 4

**Photo of PRAIL-102-Y

Rev. 12/7/2017 PRAIL-102, MANUAL

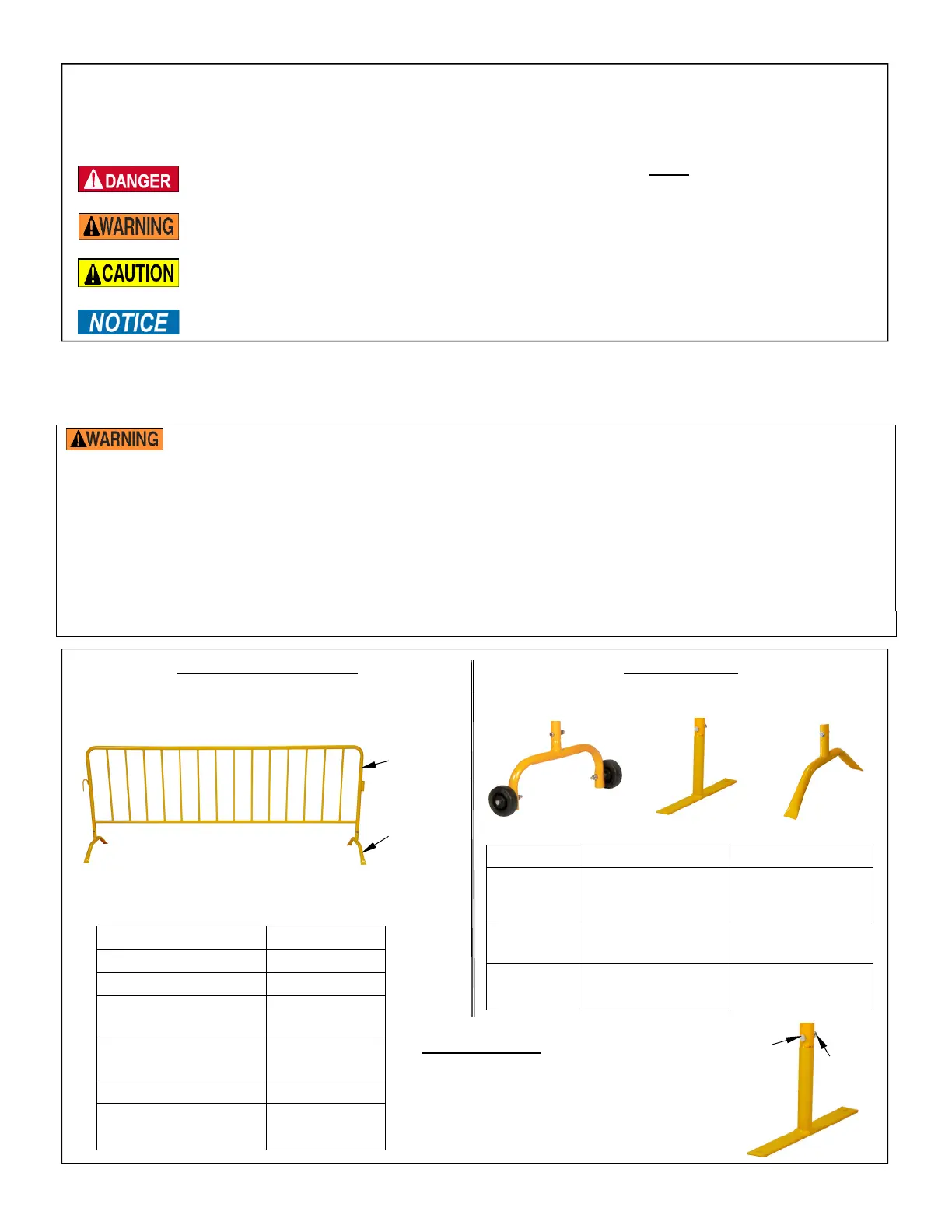

Signal Words:

This manual uses SIGNAL WORDS to indicate the likelihood of personal injuries, as well as the

probable seriousness of those injuries, if the product is misused in the ways described. The signal words

used in this manual appear below along with their definitions.

Identifies a hazardous situation which, if not avoided, WILL result in DEATH or

SERIOUS INJURY. Use of this signal word is limited to the most extreme situations.

Identifies a hazardous situation which, if not avoided, COULD result in DEATH or

SERIOUS INJURY.

Indicates a hazardous situation which, if not avoided, COULD result in MINOR or

MODERATE injury.

Identifies practices likely to result in product/property damage, such as operation that

might damage the product.

Safety Guidelines:

Vestil strives to identify all foreseeable hazards of using its products, but no manual can address every

conceivable risk. Read the entire manual before assembling and using the barrier.

If this product is used improperly or carelessly, people might sustain serious personal injuries

or could even be killed.

 Read and understand the entire manual before assembling and using this barrier.

 This barrier does NOT anchor to the ground and can fall over if pushed. DO NOT use it as a guardrail

because it does not provide fall protection.

 DO NOT modify the barrier in any way. Modifications automatically void the Limited Warranty (p. 4) and

might make the product unsafe to use.

 Inspect the product before each use. Confirm that there are no breaks or severely rusted/corroded regions,

especially along the top rail.

 DO NOT use this device UNLESS all product labels are readable and undamaged.

Barrier

frame

Foot

(standard

“curved”

foot

shown)

Barrier frame model Part no.

PRAIL-102-Y 23-001-363-B

PRAIL-102-G 23-001-353-B

PRAIL-102-HD-Y

(Heavy duty)

23-001-368-B

PRAIL-102-HD-G

(Heavy duty)

23-001-358-B

PRAIL-102-SS 23-001-373-B

PRAIL-102-HD-SS

(Heavy duty)

23-001-374-B

Wheels

(-W suffix)

Flat

(

F suffix)

Curved

(no suffix)

Foot Finishes available

Part no.

Curved

(standard

foot)

Yellow

Galvanized

Stainless steel

23-014-309

23-014-306

23-014-318

Flat

Yellow

Galvanized

23-014-311

23-014-308

Wheels

Yellow

galvanized

23-014-310

23-014-307

Types of Feet

Unless wheels or flat feet are ordered, barriers

include (standard) curved feet. Hardware included.

Barrier Frame Models

Barrier frames are available in 3 finishes: yellow

powder coat, galvanized, and stainless steel. Hea

duty barriers are also available in all 3 finishes.

Yellow powder coat finish (-Y suffix)

Galvanized finish (-G suffix)

Stainless steel (-SS suffix)

Foot installation: Insert the feet into the

legs of the barrier frame. Align the bolt

holes in the foot with the holes in the

frame. Insert

”-20 x 2” bolts through the

holes. Secure each bolt with a

” flat

washer and

”-20 hex nut.

Bolt

Washer

and nut

Produkt Specifikationer

Mærke:	Vestil
Kategori:	Ikke kategoriseret
Model:	PRAIL-102-G
