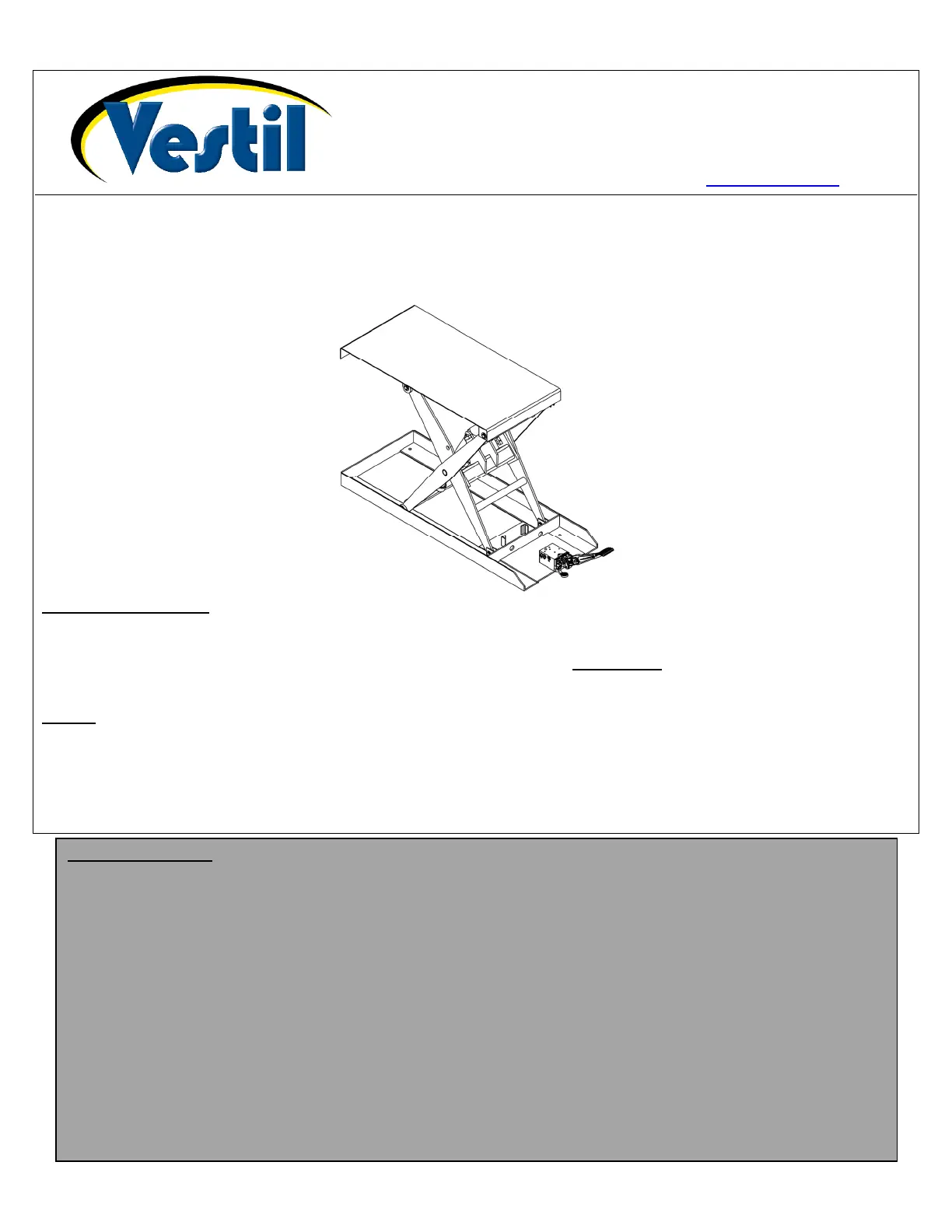

Rev. 3/26/2014 SCTAB, manual.doc
Copyright 2014 Vestil Manufacturing Co.
Page 1 of 14
SCTAB-500, SCTAB-750D, SCTAB-1000 & SCTAB-2000
SCISSOR LIFT TABLES
USE AND MAINTENANCE MANUAL
Receiving instructions:
After delivery, IMMEDIATELY remove the packaging from the product in a manner that preserves the packaging and
maintains the orientation of the product in the packaging; then inspect the product closely to determine whether it sustained
damage during transport. If damage is discovered during the inspection, immediately record a complete description of
the damage on the bill of lading. If the product is undamaged, discard the packaging.
NOTES:
1) Compliance with laws, regulations, codes, and non-voluntary standards enforced in the location where the product is used
is exclusively the responsibility of the owner/end-user
2) VESTIL is not liable for any injury or property damage that occurs as a consequence of failing to apply either:
a) Instructions in this manual; or b) information provided on labels affixed to the product. Neither is Vestil responsible for any
consequential damages sustained as a result of failing to exercise sound judgment while assembling, installing, using or
maintaining this product.
VESTIL MANUFACTURING CORP.
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
Telephone: (260) 665-7586 -or- Toll Free (800) 348-0868
Fax: (260) 665-1339
www.vestilmfg.com e-mail: sales@vestil.com
Table of Contents
Product Specifications…………………………………..…………………………………………………………………….. 2
Hazard Identification: Explanation of Signal Words….……………………………………………………………………. 2
Safety Recommendations………………………………………………………………..…………………………………… 3
FIG. 1: SCTAB-500 exploded parts diagram & bill of materials………………………………………………………….. 4
FIG. 2: SCTAB-750D exploded parts diagram & bill of materials………………………………………………………… 5
FIG. 3: SCTAB-1000 exploded parts diagram & bill of materials…….…………………………………………………… 6
FIG. 4: SCTAB-2000 exploded parts diagram & bill of materials……………………………………………................... 7
FIGS. 5A & 5B: Autoshifter exploded parts diagram & bill of materials…………..……………………………………... 8 – 9
Operation instructions………………………………………………………………………………………………………….. 10
Pump purging procedure……………………………………………………………………………………………………… 10
Cylinder purging procedure…………………………………………………………………………………………………... 10
Loading instructions…………………………………………………………………………………………………………… 10
Inspections & Maintenance…………………………………………………………………………………………………… 11
Label Placement Diagram……...…………………………………………………………………………………………….. 12
Troubleshooting……………………………………………………………………………………………………………….. 13
Limited Warranty…...………………………………………………………………………………………………………….. 14
Rev. 3/26/2014 SCTAB, manual.doc
Copyright 2014 Vestil Manufacturing Co.
Page 2 of 14
Product specifications:
Dimensions and other product specifications appear in the following table:
Model
Maximum
rated load
Hydraulic
System
Tabletop
dimensions
Maximum
table
height
Lowered
table
height
Net
weight
SCTAB-400
400lb.
181.8kg
Manual, Auto-
shifter 2-speed
foot pump
17.75in. x 27.5in.
45cm x 70cm
28.5in.
72.4cm
8.25in.
21cm
95lb.
43.2kg
SCTAB-500
500lb.
227.3kg
Manual, Auto-
shifter 2-speed
foot pump
20in. x 33in.
51cm x 84cm
28in.
71cm
6in.
15cm
196.2lb.
89.2kg
SCTAB-750D
(double
scissor lift)
750lb.
340.9kg
Manual, Auto-
shifter 2-speed
foot pump
20in. x 40in.
51cm x 102cm
35in.
89cm
7in.
18cm
223lb.
kg
SCTAB-800D
(double
scissor lift)
800lb.
363.6kg
Manual, Auto-
shifter 2-speed
foot pump
20in. x 35.5in.
51cm x 90cm
52in.
132cm
15.5in.
39.4cm
258lb.
kg
SCTAB-1000
1,000lb.
454.5kg
Manual, Auto-
shifter 2-speed
foot pump
20in. x 40in.
51cm x 102cm
32in.
81cm
8in.
20cm
234lb.
106.4kg
SCTAB-2000
2,000lb.
909.1kg
Manual, Auto-
shifter 2-speed
foot pump
42in. x 42in.
107cm x 107cm
32in.
81cm
8in.
20cm
342lb.
155.5kg
Hazard Identification--Explanation of SIGNAL WORDS
This manual uses SIGNAL WORDS to indicate the likelihood of personal injuries, as well as the
probable seriousness of those injuries, if the product is misused in the ways described. Other signal
words call attention to uses of the product likely cause property damage. The signal words used appear
below along with the meaning of each word:
Identifies a hazardous situation which, if not avoided, WILL result in
DEATH or SERIOUS INJURY. Use of this signal word is limited to
the most extreme situations.
Identifies a hazardous situation which, if not avoided, COULD
result in DEATH or SERIOUS INJURY.
Indicates a hazardous situation which, if not avoided, COULD
result in MINOR or MODERATE injury.
Identifies practices likely to result in product/property damage, such
as operation that might damage the product.
Each person who assembles, installs, uses, or maintains this product should read the entire manual
in advance and fully understand the directions. If after reading the manual you do not understand an
instruction, ask your supervisor or employer for clarification, because failure to adhere to the directions
in this manual might result in serious personal injury.
