Rev. 2/16/2015 TDT-50-LD, MANUAL.doc

TDT-50-LD SERIES LIGHT DUTY MOLDED POLYURETHANE BINS (0.5YD

)

ASSEMBLY MANUAL

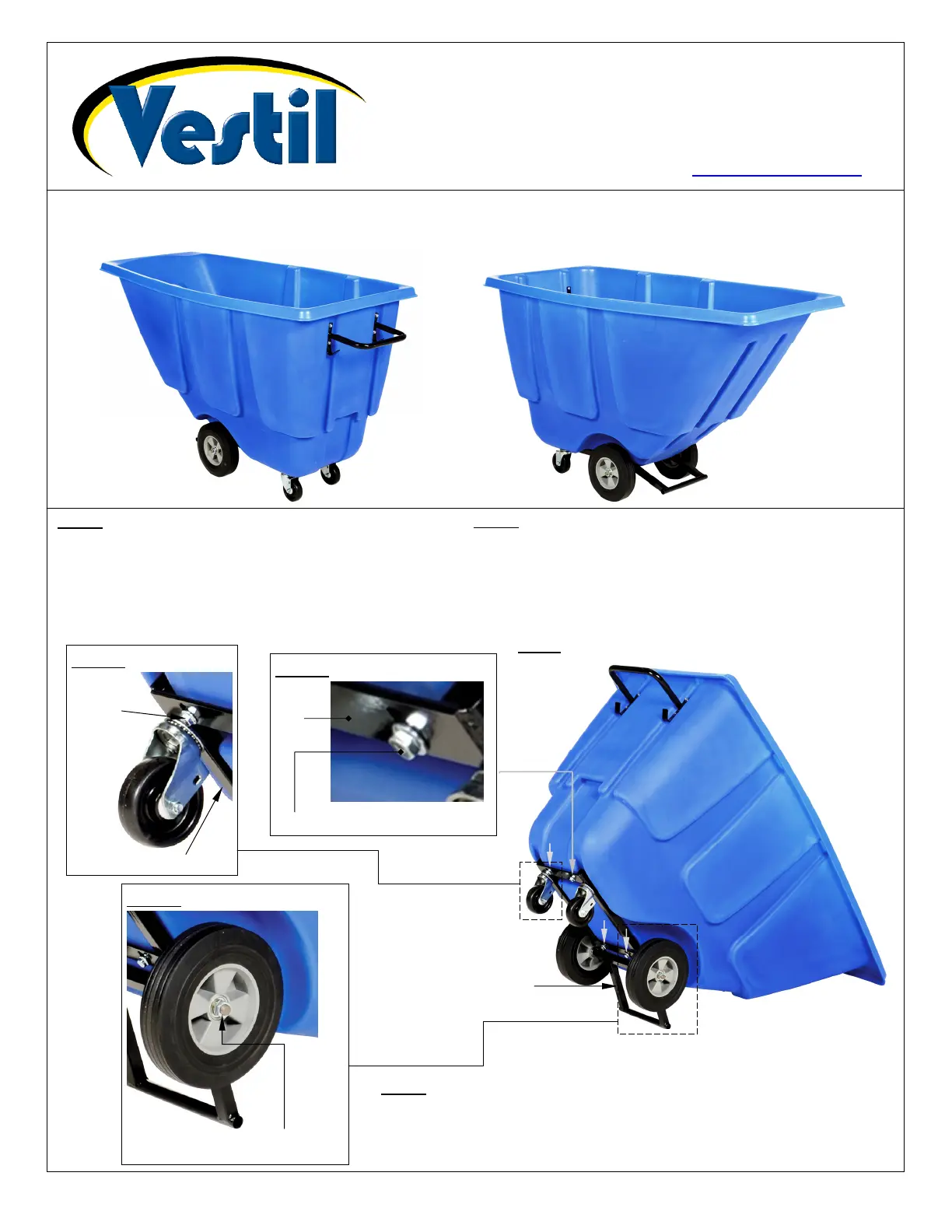

FIG. 1: Complete bin assembly

FIG. 1B: Fasten carriage to bin

VESTIL MANUFACTURING CORP.

2999 North Wayne Street, P.O. Box 507, Angola, IN 46703

Telephone: (260) 665-7586 -or- Toll Free (800) 348-0868

Fax: (260) 665-1339

www.vestilmfg.com e-mail: sales@vestil.com

FIG. 1A: Attach casters

Step 2: Fasten the undercarriage to the bottom of the bin at

the four locations highlighted with light-colored arrows

below. To attach the carriage to the bin, use the 4 large hex

head screws provided with the product. Insert the screws

through slots in the cross rails of the undercarriage and into

the bin as shown in FIGS. 1A & 1B.

Step 3: Slide a wheel onto each end of the axle. The threaded ends of

the axle should project from the wheel hubs. Secure each wheel to the

axle with hex nuts as shown in FIG. 1C.

FIG. 1C: Attach wheels to axle

Tighten hex nut against metal

hub to secure wheel on axle

Step 1: Fasten the casters (2) to the undercarriage.

[NOTE: Attach casters before fastening undercarriage to

bottom of bin.] Referring to FIG. 1A, insert the threaded

stem of each caster into the threaded bolt hole in the side

rail (of the undercarriage); then install hex nuts on the

ends of the stems and tighten the nuts against the side

rail.

Undercarriage

Side rail of carriage

Hex head

screw

Cross

rail

Large hex head screw

Rev. 2/16/2015 TDT-50-LD, MANUAL.doc

LIMITED WARRANTY

Vestil Manufacturing Corporation (“Vestil”) warrants this product to be free of defects in material and workmanship during the warranty

period. Our warranty obligation is to provide a replacement for a defective original part if the part is covered by the warranty, after we

receive a proper request from the warrantee (you) for warranty service.

Who may request service? Only a warrantee may request service. You are a warrantee if you purchased the product from Vestil or

from an authorized distributor AND Vestil has been fully paid.

What is an “original part”? An original part is a part used to make the product as shipped to the warrantee.

What is a “proper request”? A request for warranty service is proper if Vestil receives: 1) a photocopy of the Customer Invoice that

displays the shipping date; AND 2) a written request for warranty service including your name and phone number. Send requests by

any of the following methods:

Mail Fax Email

Vestil Manufacturing Corporation (260) 665-1339 sales@vestil.com

2999 North Wayne Street, PO Box 507 Phone

Angola, IN 46703 (260) 665-7586

In the written request, list the parts believed to be defective and include the address where replacements should be delivered.

What is covered under the warranty? After Vestil receives your request for warranty service, an authorized representative will contact

you to determine whether your claim is covered by the warranty. Before providing warranty service, Vestil may require you to send the

entire product, or just the defective part or parts, to its facility in Angola, IN. The warranty covers defects in the following original

dynamic components: motors, hydraulic pumps, electronic controllers, switches and cylinders. It also covers defects in original parts

that wear under normal usage conditions (“wearing parts”): bearings, hoses, wheels, seals, brushes, batteries, and the battery charger.

How long is the warranty period? The warranty period for original dynamic components is 30 days. For wearing parts, the warranty

period is 30 days. The warranty periods begin on the date when Vestil ships the product to the warrantee. If the product was purchased

from an authorized distributor, the periods begin when the distributor ships the product. Vestil may, at its sole discretion, extend the

warranty periods for products shipped from authorized distributors by up to 30 days to account for shipping time.

If a defective part is covered by the warranty, what will Vestil do to correct the problem? Vestil will provide an appropriate

replacement for any covered part. An authorized representative of Vestil will contact you to discuss your claim.

What is not covered by the warranty?

1. Labor;

2. Freight;

3. Occurrence of any of the following, which automatically voids the warranty:

 Product misuse;

 Negligent operation or repair;

 Corrosion or use in corrosive environments;

 Inadequate or improper maintenance;

 Damage sustained during shipping;

 Collisions or incidental contacts causing damage to the product;

 Unauthorized modifications: DO NOT modify the product IN

ANY WAY without first receiving written authorization from

Vestil. Modification(s) might make the product unsafe to use or

might cause excessive and/or abnormal wear.

Do any other warranties apply to the product?

Vestil Manufacturing Corp. makes no other express warranties. All implied warranties are disclaimed to the extent allowed by law. Any

implied warranty not disclaimed is limited in scope to the terms of this Limited Warranty.

Step 4: Attach the handle to the bin using the 4 round head

carriage bolts and corresponding lock nuts provided with the

unit. Referring to FIG. 2B, begin on the inside the bin. Insert

the bolts through the 2 handle brackets; then insert them

through the bolt holes in the handle weldment. Tightly fasten

the bolts in

lace with 4 lock nuts as shown in FIG. 2

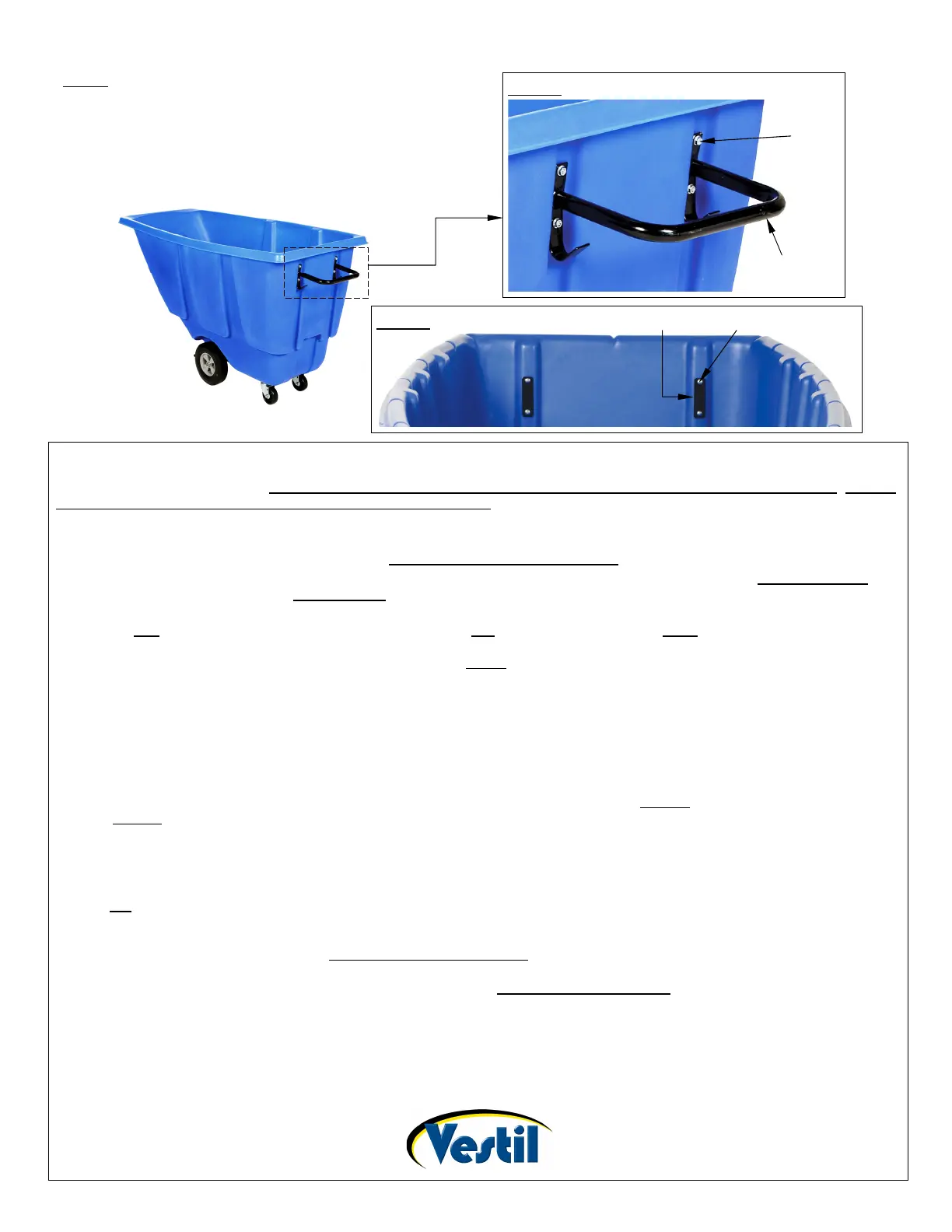

FIG. 2A: Handle attachment

FIG. 2B: Handle attachment

Lock

nut

Handle

Handle bracket

Carriage bolt
