Side 1/12
1
Revised 12-07 03-002-057
A company dedicated to solving ergonomic and
material handling problems since 1955
.
VESTIL MANUFACTURING CORPORATION
2999 North Wayne St., Angola, IN 46703
Phone (260) 665-7586 • Fax (260) 665-1339
E-mail: sales@vestil.com • www.vestil.com

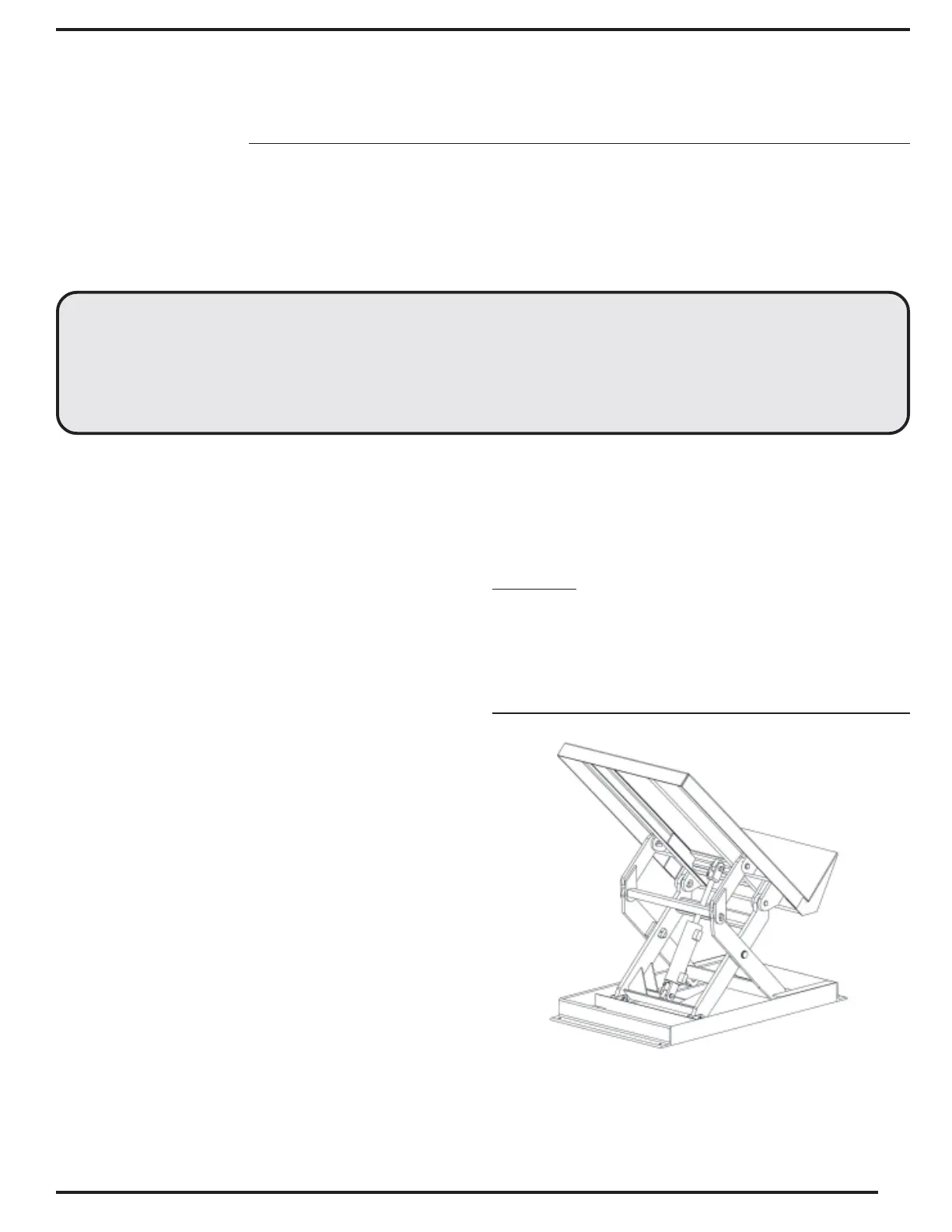

LIFT AND TILT WORKSTATION TABLES
MODEL ULTT
OWNER’S
MANUAL
Ergonomic Solutions
Power Unit’s Operation ....................................... 9
Troubleshooting ................................................ 10
Safety Label Identification ................................. 11
Warranty............................................................ 12
Contents
Installation Instructions................................ 2
Operation Instructions ................................. 3
Routine Maintenance & Safety Checks....... 4
Exploded Structural Parts Drawing & BOM . 5
Electrical & Hydraulic Diagrams & BOM ..... 6-8
WARNINGS & SAFETY INSTRUCTIONS
Ensure that all employees understand and follow the
following.
• Read and understand the owner’s manual before using
or servicing the ULTT.
• The load must be removed and the platform supported or
fully lowered before any work is performed on the lift.
• Ensure that all safety and warning labels stay in place
and are legible.
• Do not use the ULTT if any damage or unusual noise is
observed.
• Always watch the platform and the container carefully
when the tilter is in operation.
• Do not use brake fluid or jack oils in the hydraulic
system. If oil is needed, use an anti-wear hydraulic oil
with a viscosity grade of 150 SUS at 100°F, (ISO 32 cSt
@ 40°C), or Dexron transmission fluid.
• Contact the manufacturer for any needed MSDS
information.
• Do not perform any modifications to the ULTT without
the manufacturer’s approval. Failure to receive
authorization for changes to the equipment could void
the warranty.
• Maintenance and repairs are to be done only by
personnel qualified to perform the required work.
Warranty labor charges will not receive consideration
without prior written authorization by the manufacturer.
REPLACEMENT PARTS
We take pride in using quality parts on the equipment we
manufacture. We are not responsible for equipment
problems resulting from the use of unapproved replacement
parts.
To order replacement or spare parts for this equipment,
contact the factory.
In any communication with the factory please be prepared
to provide the machine’s serial number, which is indicated
on the machine dataplate.
RECEIVING INSTRUCTIONS
Every unit is thoroughly tested and inspected prior
to shipment. However, it is possible that the unit could incur
damage during transit.
Inspect the unit closely when it arrives.
If you see
evidence of damage or rough handling to either the
packaging or to the product when it is being unloaded,
immediately make a note of it on the Bill Of Lading!
It is important that you remove the product’s
packaging upon its arrival to ensure that there is no
concealed damage or to enable a timely claim with the
carrier for freight damage.
Also verify that the product and its specifications are
as ordered.
Model ULTT
2
INSTALLATION INSTRUCTIONS
Review this entire page before installing the ULTT.
Consult the factory in the event there are any questions or problems at the time of installation, or for information
regarding optional features not covered by the owner’s manual.
• Modifications or additions to the ULTT without prior manufacturer’s authorization may void the unit’s warranty. The
addition of ancillary equipment to the platform may necessitate that its load capacity be reduced.
• The installation must be made so that it complies with all the regulations applicable to the machine and its location. The
end-user must verify that the supplied equipment is installed so it will be suited to the environment in which it will be
used.
• Installation must be performed by suitably trained personnel with access to the appropriate equipment. The electrical
aspects of the installation should be performed by an electrician.
———————————————————————————————————————
For a typical installation you will need the following:
1. A fork truck or hoisting means to unload the ULTT from the freight truck and set it into place.
2. A smooth, level, and adequately strong concrete surface on which to mount and operate the ULTT.
3. Concrete anchors, a masonry drill, a masonry bit, hand tools, grout, and steel shims. Consult the building’s architect or
facility engineer to determine the best size and type of hardware with which to anchor the machine to the floor.
4. A power supply circuit and electrical disconnect matching the motor voltage and current requirements. Refer to the
machine’s dataplate, to the labels on the control enclosure, and to the electrical section in this manual for more
information. The end-user is responsible for supplying the branch circuit’s required ground fault and short-circuit
protection. (Motor overload protection is provided by a thermostat built into the motor.)
———————————————————
1. Move the tilter into place with a fork truck having the proper capacity and work load rating.
2. Temporarily connect the power supply to the pigtail cord supplied with the ULTT, and raise the platform so the unit’s
safety maintenance prop(s) can be utilized. Lower the platform so the unit is supported by the prop(s).
• The maintenance prop is located on the outside of the frame. It is a flat bar. To install the prop, raise the platform to its
fully raised height and insert the tapered end into the corner of the deck (opposite the cradle end). Lower the deck unit it
rests on the prop.
• If the platform must be raised without first having the proper power supply connected, raise the platform at the side
of the table opposite the platform cradle. Use rigging or insert a lift truck’s forks under the front edge of the platform
to tilt the platform up. Hold the frame down at the ends of the shipping 4 x 4’s on the hinged side of the ULTT while
the platform is raised.
3. Anchor the frame to the floor through the holes located at the frame’s corners. (Non-portable units only.)
4. Make permanent connection to the power supply, using an appropriate wiring method.
5. Operate the ULTT through several full raise and lower cycles. Verify that the upper travel limit switch functions properly.
6. Check the hydraulic oil level. It should be filled to within 1" to 1½” of the reservoir’s fill hole. If oil is needed, use an anti-
wear hydraulic oil with a viscosity grade of 150 SUS at 100°F (ISO 32 at 40°C) or a non-synthetic automatic
transmission fluid.
7. Clean up any debris or spilled oil, and verify that all of the warning and safety labels are intact.
