Rev. 1/23/2018 WTJ-2, MANUAL
Copyright 2018 Vestil Manufacturing Corp. Page 1 of 12
WTJ-2 Series Vehicle Mounted Jib Cranes
Instruction Manual
Receiving instructions:
After delivery, remove the packaging from the product. Inspect the product closely to determine whether
it sustained damage during transport. If damage is discovered, record a complete description of it on the
bill of lading. If the product is undamaged, discard the packaging.
NOTE:
The end-user is solely responsible for confirming that product design, installation, use, and maintenance
comply with laws, regulations, codes, and mandatory standards applied where the product is used.
Table of Contents
Specifications……….……………………………………………..……………………………………………….. 2
WTJ-2 Exploded Parts Diagram………………………………………...………………………………………... 3
Bills of Materials (WTJ-2 & WTJ-G)……………..……………………………………………………..………… 4
WTJ-2-G & WTJ-2-SS Exploded Parts Diagram……………………………………………………………….. 5
Bill of Materials (WTJ-2-SS)………………………………………………………………………………………. 6
Assembling the Crane…………………………………………………………………………………….…….…. 6
Signal words………………………………………………………………………………………………..………. 7
Hazards of improper use………………………………………………………………..……………………..….. 7
Installing the Crane in a Fixed Location (not in a Vehicle)...……………………………………………..……. 8
Installing the Crane on a Vehicle………………………………………………………………………….……… 8
Raising and Lowering the Boom…………………………………………………………………………..……… 9
Boom Length Adjustments……………………………………………………………………………..…………. 9
Using the crane………………………………………………………………………………………….…………. 9-10
Inspections………………….………………………………………………………………………………………. 10
Troubleshooting………………………………………...…………………………………................................... 11
Labeling Diagram……………………………….…………..……………………………………………………… 11
Limited Warranty………………………………………..………………………………………………………….. 12
Vestil Manufacturing Co.
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
Telephone: (260) 665-7586 -or- Toll Free (800) 348-0868
Fax: (260) 665-1339
Web: www.vestilmfg.com e-mail:
HUinfo@vestil.comU
Rev. 1/23/2018 WTJ-2, MANUAL
Copyright 2018 Vestil Manufacturing Corp. Page 2 of 12

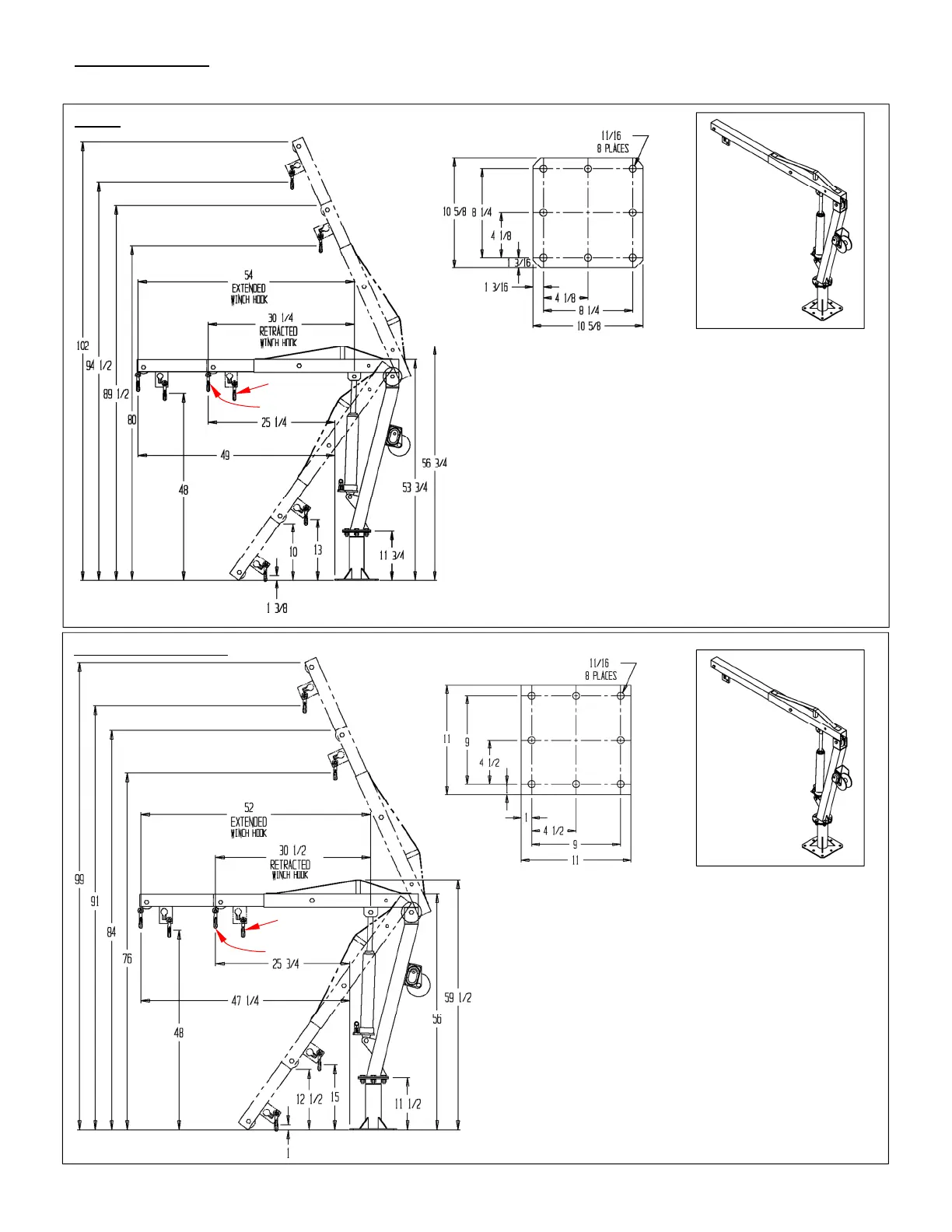

Specifications:
Crane dimensions, capacity, and net weight appear in the diagram and table below. All figures are subject to change
without notice.
WTJ-2
WTJ-2-G & WTJ-2-SS
Mounting plate dimensions
Fixed hook
Winch hook
Fixed hook capacities:
Boom extended (“long”) = 500 lb. (227.3kg)
Boom retracted (“short”) = 1,000 lb. (454.5kg)
Winch & winch hook capacity = 500 lb. (227.3kg)
Winch hook heights:
Cylinder extended & boom extended = 102” (259cm)
Cylinder extended & boom retracted = 89
1
/
2
” (227cm)
Cylinder retracted & boom extended = 0” (0cm)
Cylinder retracted & boom retracted = 10” (25cm)
Cable dimensions:
Overall length = 14
1
/
2
ft. (4.4m)
Usable length = 9 ft. (2.7m)
Usable reach:
Boom horizontal & extended = 54” (137cm))
Boom horizontal & retracted = 30
1
/
4
” (77cm)
NNet weight of crane = 135 lb. (61.4kg)
3D model
shown for
reference
Fixed hook capacities:
Boom extended (“long”) = 500 lb. (227.3kg)
Boom retracted (“short”) = 1,000 lb. (454.5kg)
Winch & winch hook capacity = 500 lb. (227.3kg)
Winch hook heights:
Cylinder extended & boom extended = 99” (39cm)
Cylinder extended & boom retracted = 84” (33cm)
Cylinder retracted & boom extended = 0” (0cm)
Cylinder retracted & boom retracted = 12
1
/
2
” (32cm)
Cable dimensions:
Overall length = 32 ft. (9.8m)
Usable length = 24 ft. (7.3m)
Usable reach:
Boom horizontal & fully extended = 52” (132cm)
Boom horizontal & fully retracted = 30
1
/
2
” (78cm)
Net weight of crane = 134 lb. (61kg)
Mounting plate dimensions
Fixed hook
Winch hook
