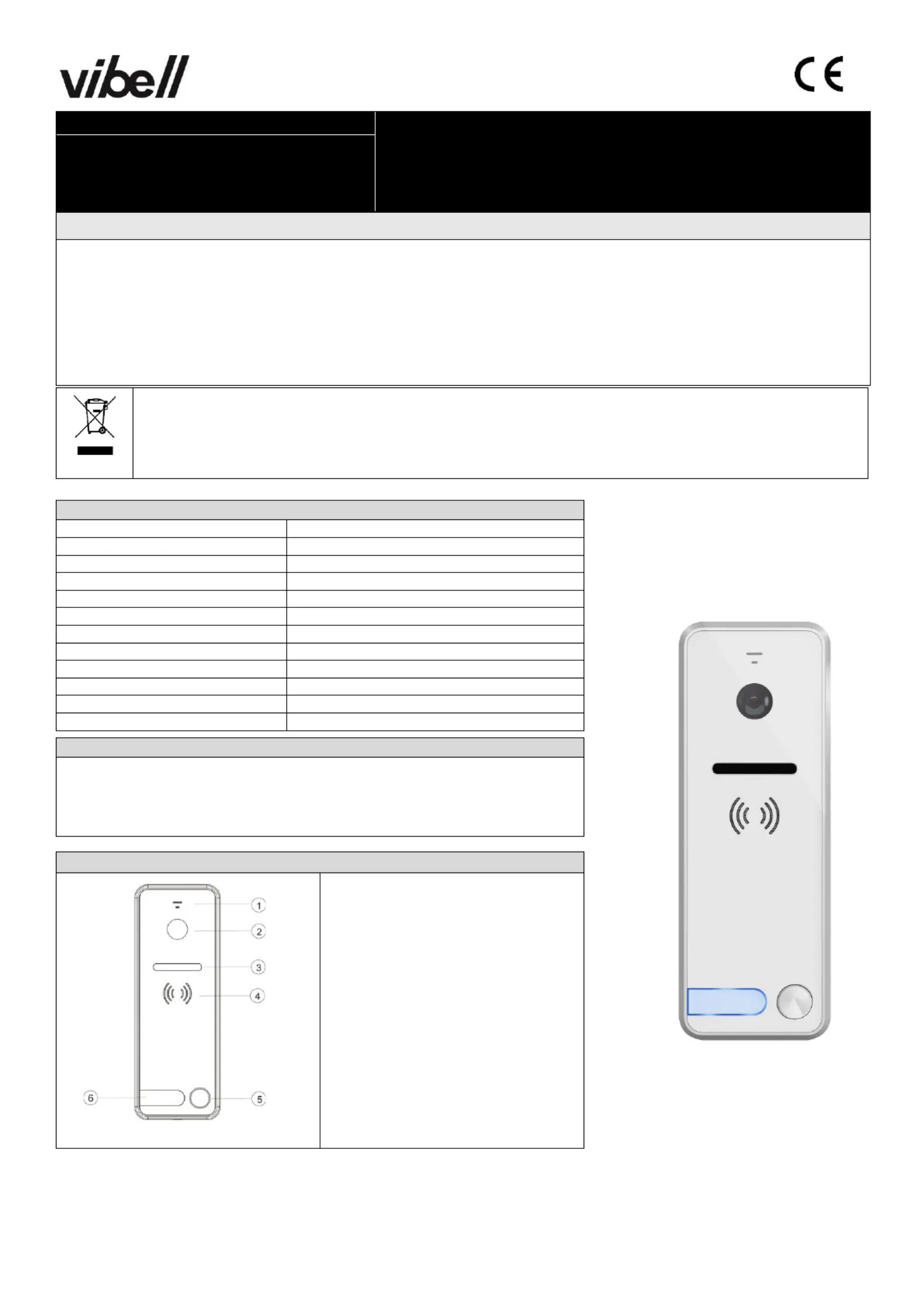

Side 1/3
OR-VID- -1057KVEX
ORNO-LOGISTIC Sp. z o.o.
ul. Rolników 437,
-141, Gliwice POLAND 44
tel. (+48) 32 43 43 110
VIDEO CAMERA
( IMPORTANT! EN)
Before using the device, read this Service Manual and keep it for future use. Any repair or modification carried out by yourselves results in loss of guarantee. Mounting should be
performed by an appropriately quailed person. The manufacturer is not responsible for any damage that can result from improper device installation or operation.
In view of the fact that the technical data are subject to continuous modifications, the manufacturer reserves a right to make changes to the product characteristics and to
introduce different constructional solutions without deterioration of the product parameters or functional quality. The latest version of the Manual can be downloaded from
suport.orno.pl. Any translation/interpretation rights and copyright are reserved in relation to this Manual.
1. Do not use the device contrary to its dedication.
2. Disconnect the power supply before any activities on the product.
3. Do not immerse the device in water or other fluids.
4. Do not operate the device when its housing is damaged.
5. Do not open the device and do not repair it by yourselves.
Each household is a user of electrical and electronic equipment, and hence a potential producer of hazardous waste for humans and the environment, due to the presence of hazardous
substances, mixtures and components in the equipment. On the other hand, used equipment is valuable material from which we can recover raw materials such as copper, tin, glass, iron
and others. The weee sign placed on the equipment, packaging or documents attached to it indicates the need for selective collection of waste electrical and electronic equipment. Products
so marked, under penalty of fine, cannot be thrown into ordinary garbage along with other waste. The marking means at the same time that the equipment was placed on the market after
August 13, 2005. It is the responsibility of the user to hand the used equipment to a designated collection point for proper processing. Used equipment can also be handed over to the seller,
if one buys a new product in an amount not greater than the new purchased equipment of the same type. Information on the available collection system of waste electrical equipment can
be found in the information desk of the store and in the municipal office or district office. Proper handling of used equipment prevents negative consequences for the environment and
human health!
09/2021
TECHNICAL DATA
Power consumption:
3W
Viewing angle:
11 °(horizontal), 96 (vertical)
Camera resolution:
700TVL
Video:
1Vp-p 75 output) Ohm Ω (
Audio:
300mVp- bi-directional) p 300 Ohm Ω (
Backlighting:
white LED
Minimum light intensity:
0 LUX (0.5 m)
Ingress protection:
IP 65
Working temperature:
- 25°C +60°C
Materia l:
aluminium
Dimensions:
55 x 152 x 21 mm
Net weight:
0.29 kg
DESCRIPTION AND FUNCTIONS
Single-family video camera, 1 call button, high-quality wide-angle lens, colour
camera 700TVL, weather-proof, surface-mounted, super-bright LEDs for night
vision, possibility of conversation between the external panel (video camera) and
internal panel, illuminated name space, gate control option.
CONSTRUCTION
1. Microphone
2. Camera
3. LEDs diode
4. Loudspeaker
5. Call button
6. Name space
Fig .1

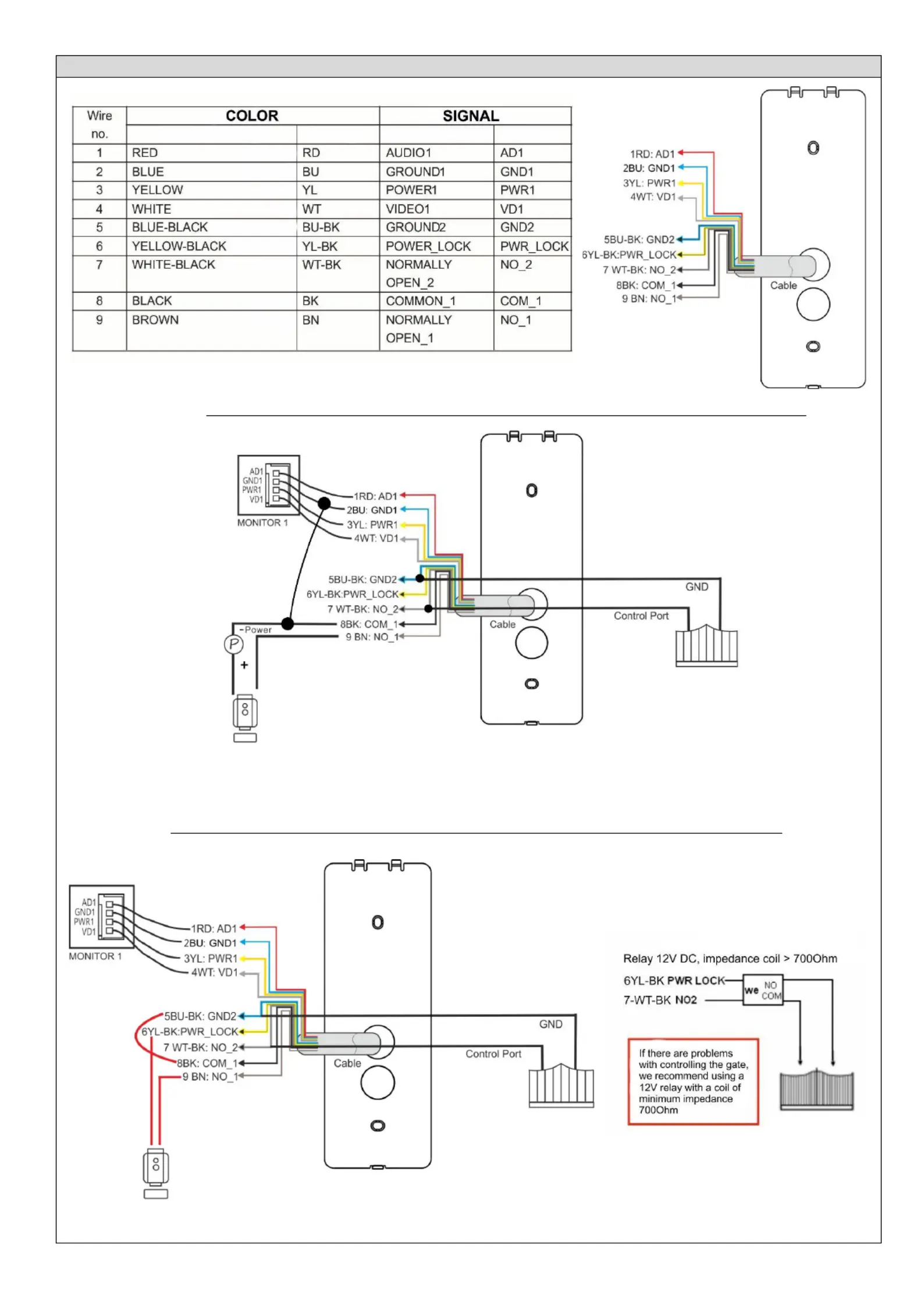

WIRING DIAGRAM
Fig.2a
Fig.2b
Fig.2c
Gate control
Gate control
Electric strike
Electric door strike
Scheme of connection of an electric door strike supplied with a separate 12VDC power
Connection diagram of an electric door strike powered from the video door entry system
12VDC over 450mA (max 1000mA)
12VDC mA do 450
Fig.2d
POWER
SUPPLY
12VDC
