Eikon Evo
21512.1
Touch screen colour Full Flat - 3 modules.
Device with a touch screen to be used in the By-me automation system for controlling
lights, roller shutters, air-conditioning, scenarios and speaker system. In addition, if
the system is also fitted with the load control, the device enables viewing the state of
the loads themselves. It does not handle the intrusion detection system.
CAUTION: For the flush-mounted controls only (art. 01480, 01481, 01482, 01485,
01486 and 01487), the function of pressing the button briefly or holding it down
dynamically change the behaviour of the timer actuator (from monostable timed to
bistable or vice versa) configured in the same group.

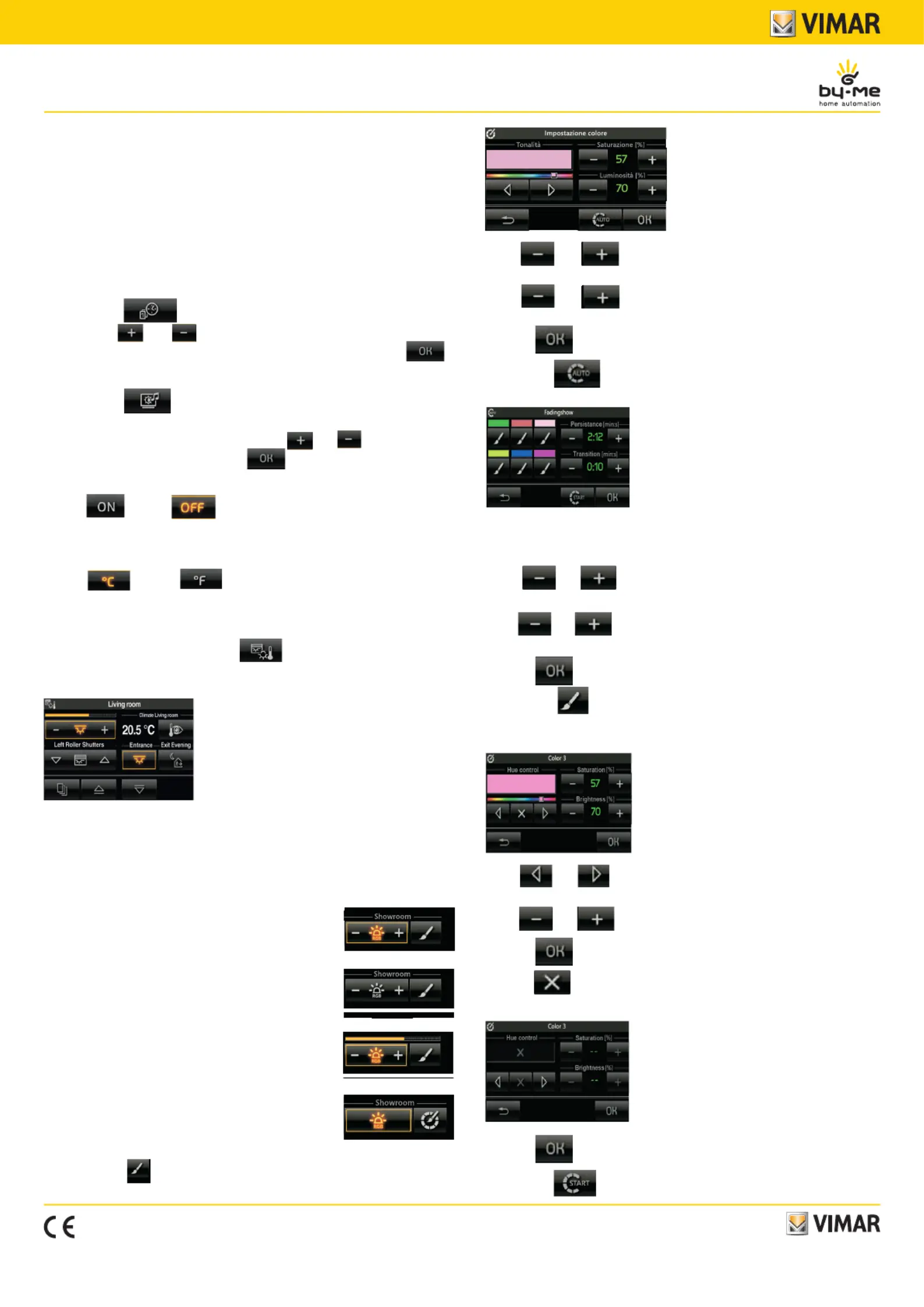

• SETTING DATE AND TIME
B -y touching the icon it is possible to set the time and date to be displa
yed. Using the and icons set the blinking value to bring it to the desired
time and the day, month and year and finally confirm by touching the icon .
• SETTING BACKLIGHTING AND CONTRAST OF THE DISPLAY
On touching the icon the display shows the screen that enables setting the
backlighting and the contrast of the display.
The setting is made by keeping your finger on the and icons to reach the
desired level and then it is confirmed with .
• SETTING THE AUDIBLE WARNING
With the icon our icon it is possible to enable or disable the audible
warning (beep) that accompanies touching the icons displayed on the touch screen.
• SETTING TEMPERATURE UNIT
With the icon our icon in correspondence of the wording of tem-
perature unit, you select the units in which temperature is displayed.
• CONTROL MANAGEMENT
From the main menu, by touching the icon, you access the screen that
enables viewing and controlling the devices configured in the rooms controlled by the
touch screen. For example:
Managing RGB lamps
The video touch screen enables managing switching on/off, adjusting/changing the
hue, saturation, and brightnessof the RGB lamps and it will also be possible to activa-
te the Fading-Show application configured on the controller by your installer.
Depending on the operating mode, the adjustment icon will be displayed as follows:
Tapping the icon opens the screen where you make the colour settings.
• With and on you set the percentage of “vividness” Saturation
of the colour.
• With and on you set the percentage of “contrast” Brightness
of the colour.
• Tapping confirms the settings you have made.
• Tapping the icon opens the screen where you make the Fading-Show
settings.
The function of Fading-Show allows to set a cyclical sequence of colors (up to a
maximum of 6) for color changes and the play of light in the environments where
the lamps are installed RGB.
• With and on Persistance you set the time during which each of
the colors remains fixed.
• With and on Transition you set the time that elapses between the
passage of a gradual color to the next.
• Tapping confirms the settings you have made.
• Tapping the icon associated with each of the colors that make up the
sequence is going to change the color characteristics of that color; in fact will
see the following screen:
• With and you set the tone of color that will match the position of
the cursor to the position desired color.
• . With and you set Saturation and Brightness
• Tapping confirms the settings you have made.
• Tapping you remove the color selected by the sequence of Fading-Show
and the screen will become as follows:
• Tapping confirms the settings you have made.
• Tapping the icon to activate the sequence Fading-Show just set.
WARNING - Operation of the icons of activation of
the scenarios:
• Short press: Activate the scenario.
• Long press (5 seconds): storage scenario (are sto-
red and overwritten states of the groups involved
in the scenario being created).
- Lamp ON.
In this case the degree of illumination is constant (no
adjustment) and the colour is fixed.
- Lamp OFF.
As above but with the lamp off.
- Lamp under adjustment.
In this case the degree of illumination is adjustable (level
displayedby the scroll bar) and the colour is fixed.
- Lamp ON in Fading-Show mode.
In this case the lamp is on and it provides the lighting
sequence configured on the controller.
Viale Vicenza, 14
36063 Marostica VI - Italy
www.vimar.com
21512.1UEN 07 1806

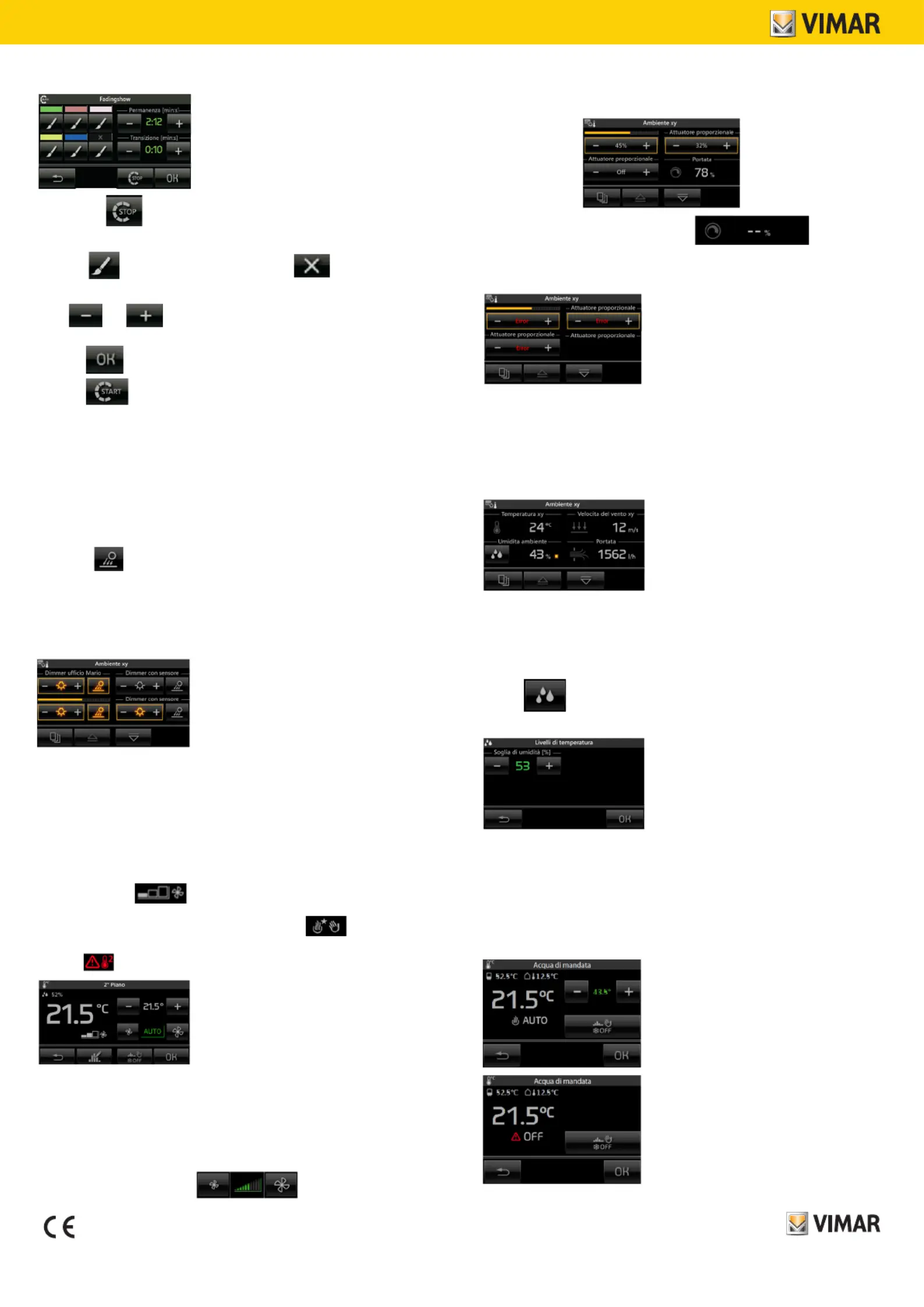

When the sequence is active and you fall into the menu Fading-Show, the screen
becomes the following:
• Tapping the icon will stop the sequence of Faing-Show set.
Example for setting the Fading-Show with 4 colors.
- With the icon set the desired 4 colors; with remove the 2 colors
that you want to include in the sequence.
- With and set the Persistance and Transition (for example, 2 min
and 15 s respectively).
- Tapping confirms the settings you have made.
- Tapping to activate the sequence Fading-Show just set.
In the case considered the color remains fixed for 2 minutes then if will start to
change up to the next color within 15 seconds.
Dimmer feature when it is combined with the “Brightness Sensor”
If the system is fitted with a brightness sensor combined with art. 01467, you can
keep the brightness in a room automatically constant according to the value read
by the sensor and a brightness setpoint that is set automatically with each adjust-
ment on the dimmer.
The function of keeping the brightness constant can be switched on/off at any time
by tapping ; in this case the controls become the same as for any other
dimmered lighting point.
This function then allows obtaining energy savings as natural light is used, as long
as possible, instead of artificial light for lighting the room.
On the touchscreen, the dimmer combined with the brightness sensor can be
added to any room screen and the view is similar to the following:
• THERMOSTAT AND TEMPERATURE PROBE
In the touchscreen, at the graphical user interface level, the thermostat and the
temperature probe behave in a similar way; it will then display:
• Current temperature.
• Temperature measured by the external sensor connected to the thermostat input
(if fitted).
• Relative humidity, measured by the electronic humidity sensor (if fitted).
• Speed of fan coil (if fitted).
• Current setpoint.
• Output status (on, off and, when present, with boost) .
• Alarm symbol of an external probe used as a screed alarm in an underfloor
system .
With the touchscreen you can set:
• Seasonal mode SUMMER – NEUTRAL ZONE – WINTER.
• Operating mode.
• Temperature setpoint.
• Fan coil speed (1-2-3 AUTO or setting on a proportional value, in steps of 10%,
between 0 and 100% or AUTO) .
• OTHER TYPES OF ADJUSTMENTS
The touchscreen lets you make other types of proportional adjustments that are not
necessarily related to the lighting; a viewing example can be as follows:
If the actuator is OFF, the display will show: .
If there is a fault on the output that you are adjusting, the associated control will
display a specific warning instead of the adjustment value:
If the system includes the device with 3 analogue inputs 01467 which is connected
to a dedicated sensor, the room control screens may display one or more instanta-
neous values of different variables measured by the sensor.
The variables that can be viewed, which can be brightness, wind speed, baromet-
ric pressure, relative humidity, air quality, air flow, voltage, electric current, power,
amount of rainfall and temperature, are shown as follows:
If the displayed variable is relative humidity and when envisaged by the system,
you can set a setpoint on exceeding which a special alarm will be displayed, and
activated when needed.
On the previous screen, notice that the ON/OFF output status indicator linked to it
may be absent if the humidity control is disabled on the setpoint adjustment screen.
Tapping displays the screen for setpoint adjustment (minimum value 20%
- maximum value 80%) and for switching the output control on/off:
• CLIMATE CONTROLLER
If there is one or more climate controllers in the system and the installer has
configured their command/control in the touch screen, the device will display the
following operating options:
- Fixed mode (with the possible setpoint control).
- Modulating mode.
ON normal
On in the
adjustment phase
Adjustment OFF Viewing only
